Характеристики

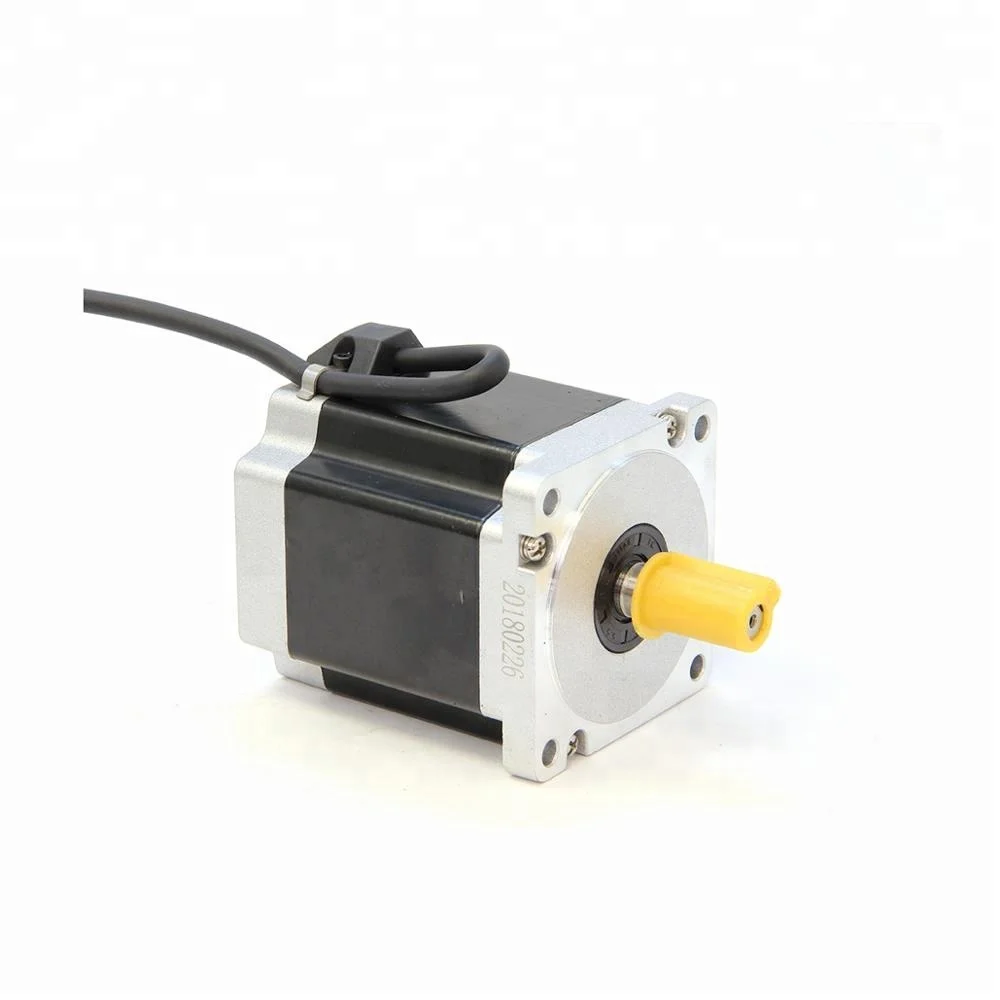

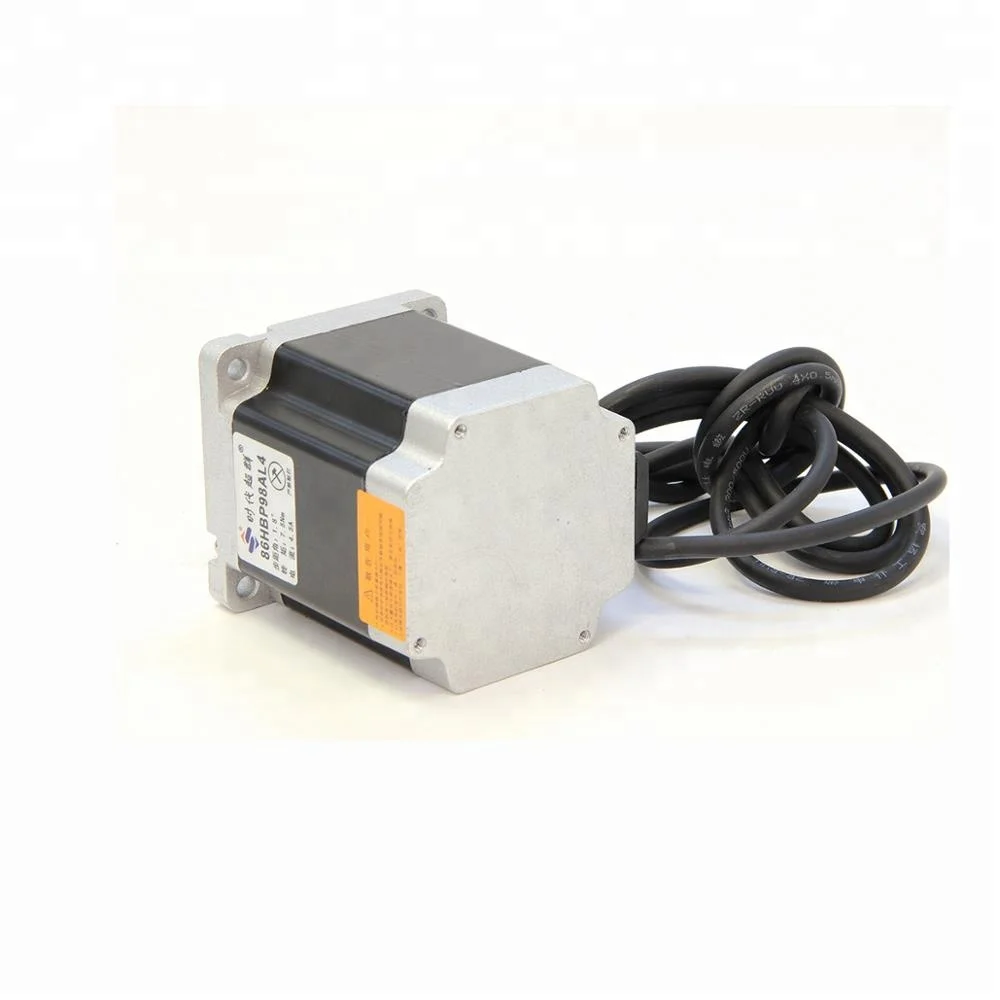

Nema 34 1.8 degree 7.5Nm Stepper Motor cnc kit
3-5days delivery time( most in stock)!!
Product Description
Details:
| Basic Parameters | |
| Type | Mixed Stepper |
| Motor Model | 86HBP98AL4 |
| Phase | 2 |
| The Temperature Rise | 80K Max |
| Environment Temperature | -40 ℃ + 55 ℃ |
| Insulation Grade | B Class |
| Insulation Resistance | 100MΩ |
| Insulation Strength | 1000VAC 50Hz 1mA/Min |
| Electrical Parameters | |
| Step Angle | 1.8° |
| Torque | 7.5Nm |
| Current | 4A |
| Power Supply Voltage | 24V-80V |
| Resistance | 0.5Ω |
| Inductance | 7.4mH |

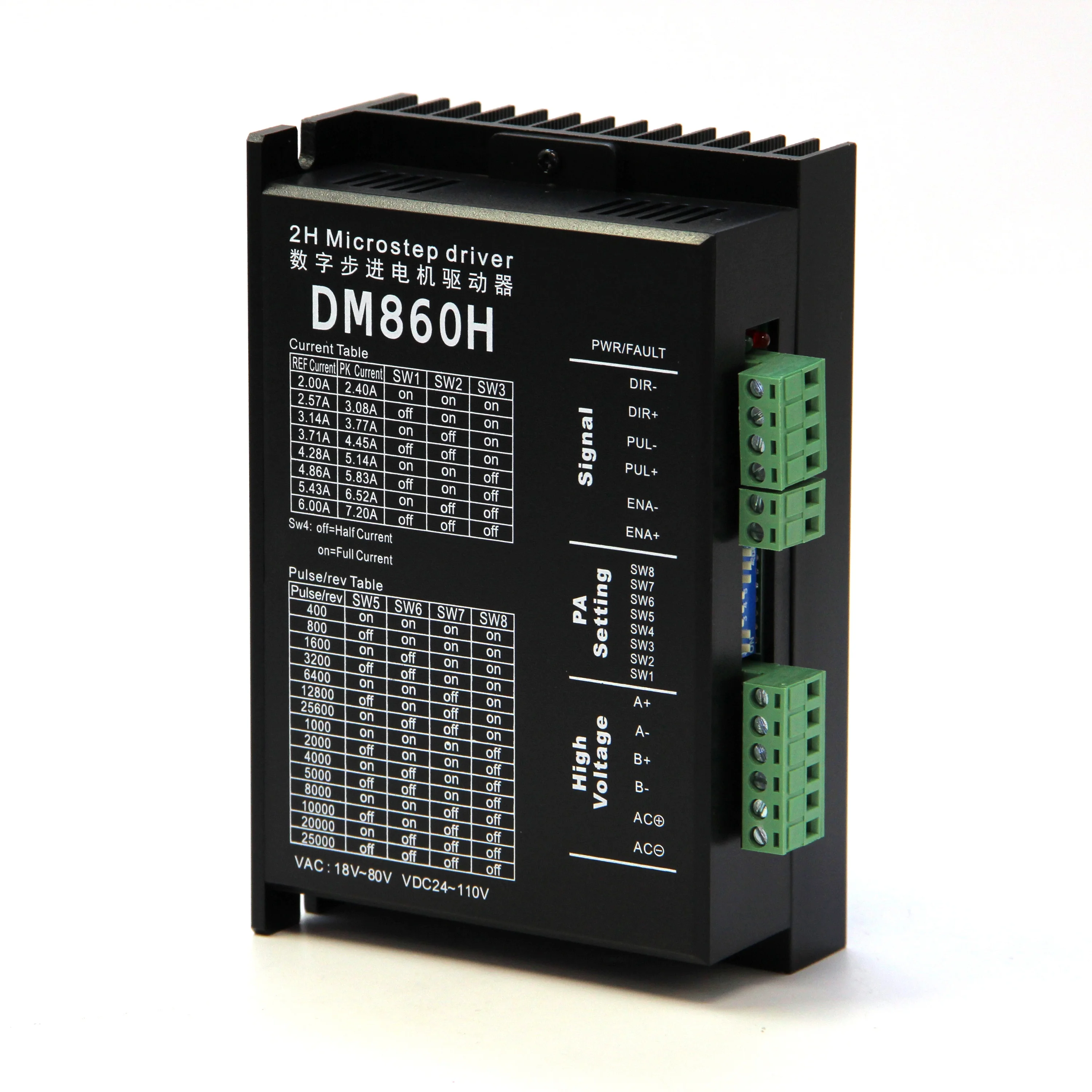

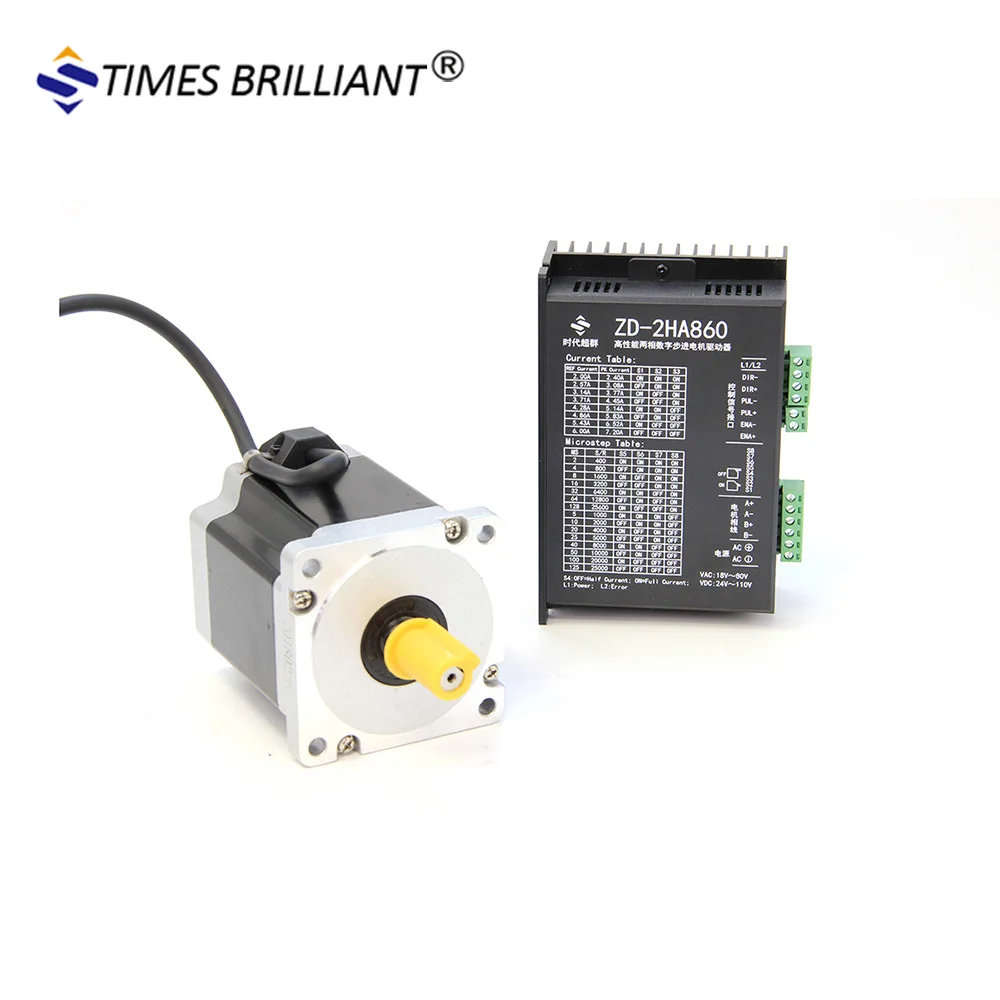

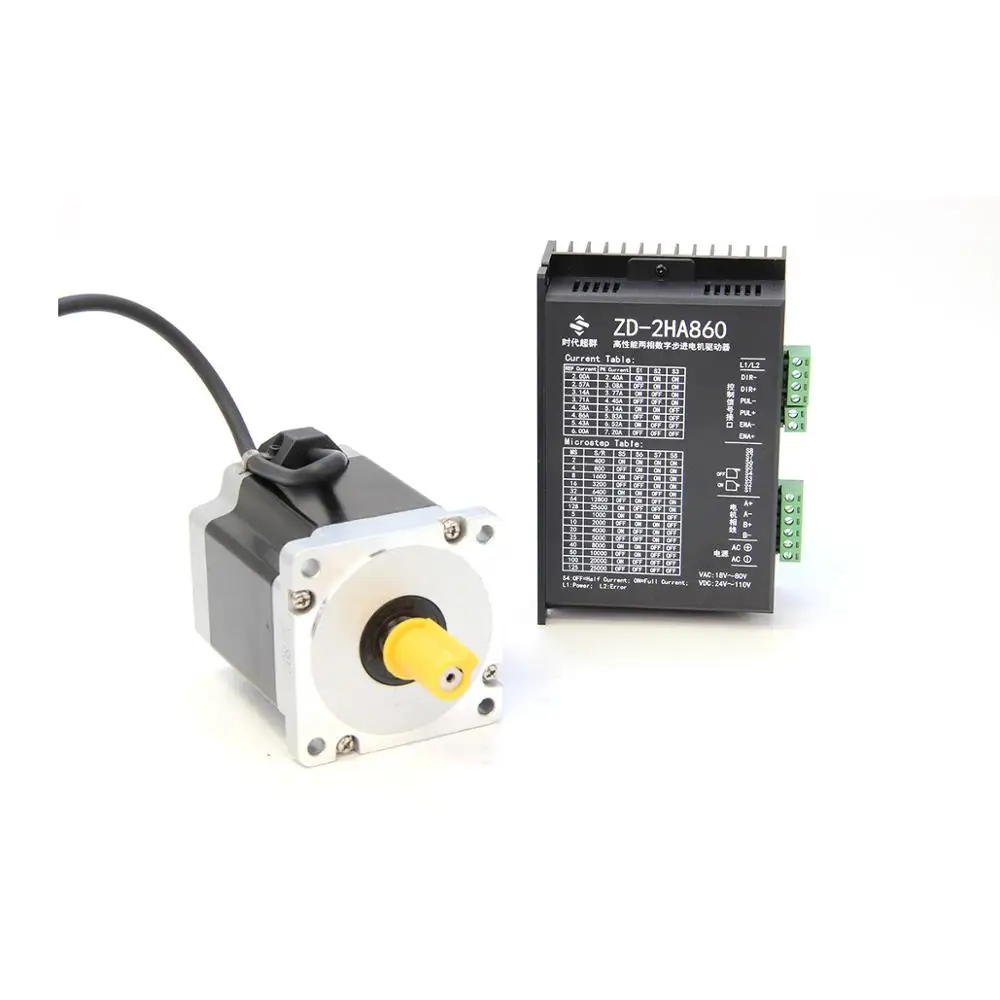

| Adapter Driver | ZD-2HD542, ZD-2HA860 |
| Defects Liability Period | 2 years |
| Mechanical Parameters | |
| Length | 98mm |
| Spigot | 73mm |
| Hole Dist | 70mm |
| Shaft L | 34mm |
| Shaft D | 14mm |
| Shaft | keyway 5/Shaft |
| Load Wire | Straight Line |
| Wire No. | 4 |
| Weight | 3Kg |
Related Products
Related Products
| Type | Phase | Angle | Nm | Current | Voltage | Longth | Line | Kg |
| 86HBP65AL4-TF0 + Driver Suit | 2 | 1.8 | 3 | 3 | 24-80 | 65 | 4 | 1.7 |
| 86HBP80AL4-TF0 + Driver Suit | 2 | 1.8 | 4 | 4 | 24-80 | 80 | 4 | 2.35 |
| 86HBP98AL4-TF0 + Driver Suit | 2 | 1.8 | 7.5 | 4 | 24-80 | 98 | 4 | 3 |
| 86HBP113AL4-TF0 + Driver Suit | 2 | 1.8 | 8.5 | 4 | 24-80 | 113 | 4 | 3.7 |
| 86HBP128AL4-TF0 + Driver Suit | 2 | 1.8 | 10 | 4 | 24-80 | 128 | 4 | 4.1 |
| 86HBP148AL4-TF0 + Driver Suit | 2 | 1.8 | 10 | 5 | 24-80 | 148 | 4 | 5 |
| 86HBP150AL4-TF0 + Driver Suit | 2 | 1.8 | 12 | 4 | 24-80 | 150 | 4 | 5.2 |
Size
L=98MM
