Подземный TDR-трекер с мульти-импульсным сенсорным экраном для обнаружения дефектов кабеля питания/система

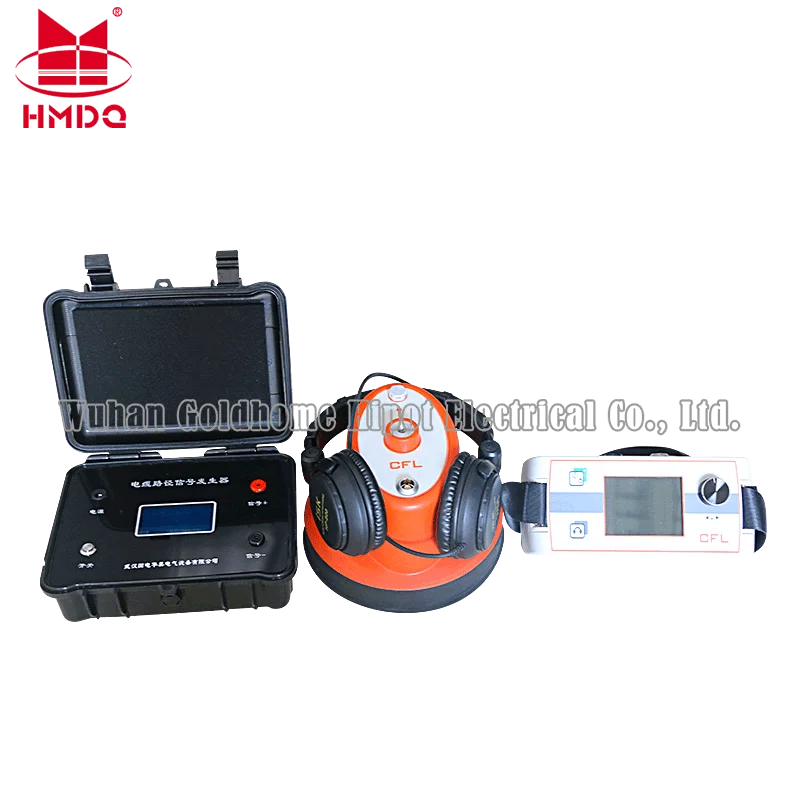

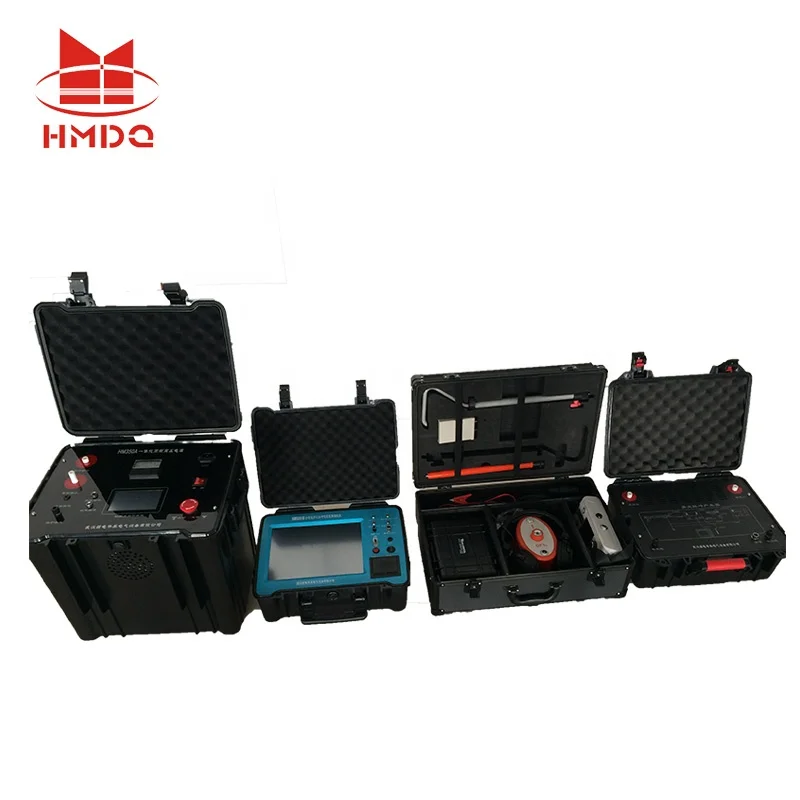

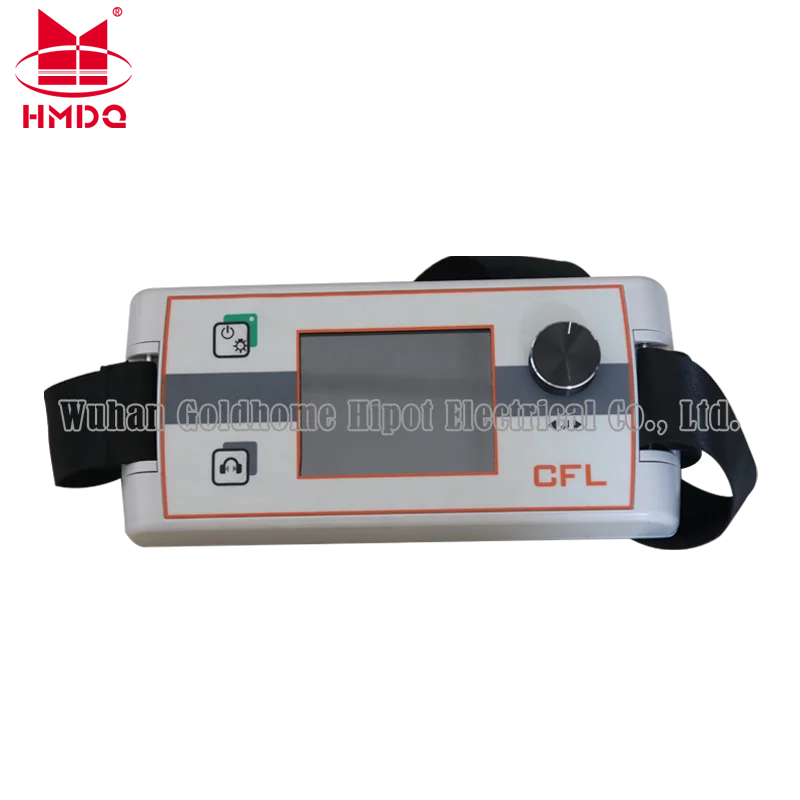

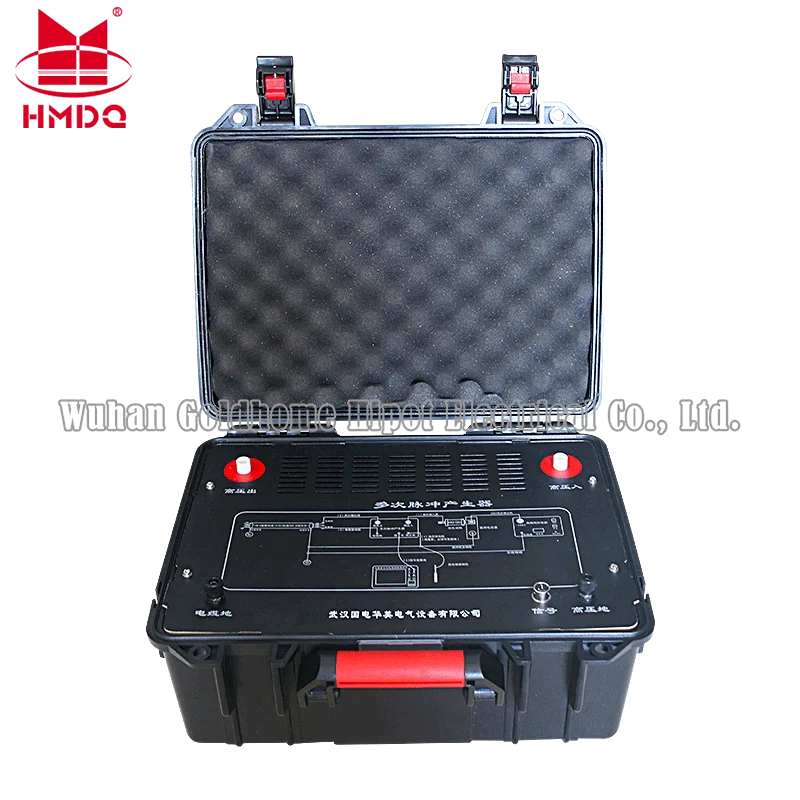

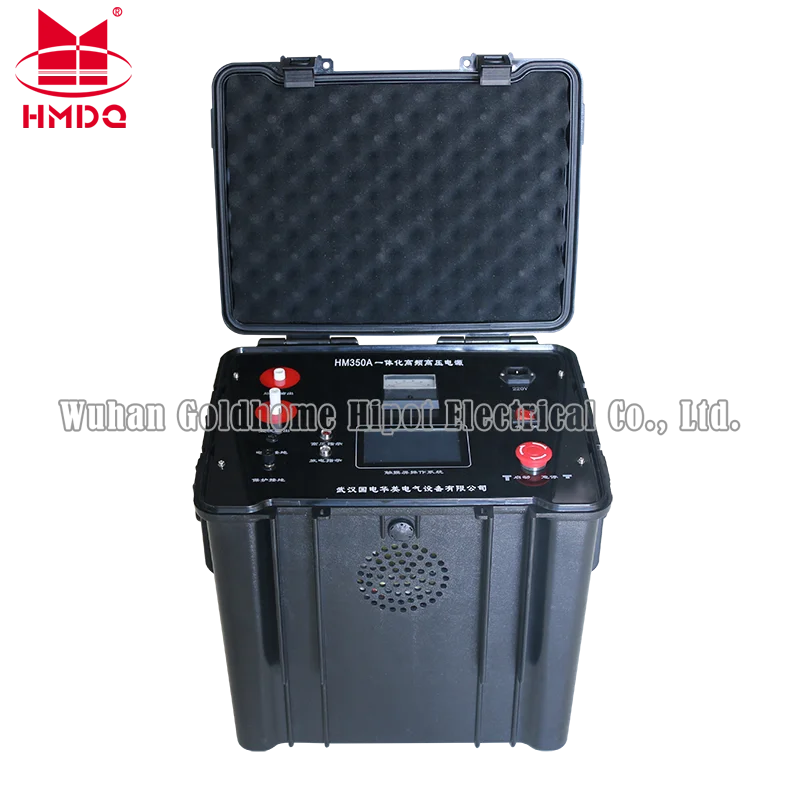

 HM-A300 cable fault locator is the advance system for testing and fault locating on low and medium voltage cables. it can test cable fault at different voltage levels below 35KV. Can test cable fault of different cable sections, different dielectric and different cable materials. Can test open-circuit cable fault, short-circuit cable fault, low-resistance cable fault, high-resistance leakage cable fault and high-resistance flash-over cable fault. Also can test buried route and depth of power cable.

The cable fault location can also be used for accurate testing of railway and airport signal control cable fault and streetlight cable fault.

The cable fault locator offers convenient operator support with remote on-site test help. It automatically shows the far end of cable and fault distance. Even inexperienced users can easily locate faults with the “Step-by-Step Easy Mode.The operator is guided through the fault locating process. On the other hand, the “Expert-Mode” provides free access to all parameters for comprehensive fault locating even under difficult conditions.

Available to test various voltage grade under 35kV , different section and different medium and all kinds of power cable fault, including: short circuit fault, open circuit fault, low resistance, high leakage, high impedance arc fault.

Available to test various faults of railway communication control cable, street lamp cable and airport signal cable

Available to test speed of radio waves travelling in any cable of known length.

Available to test buried path and buried depth of power cable.

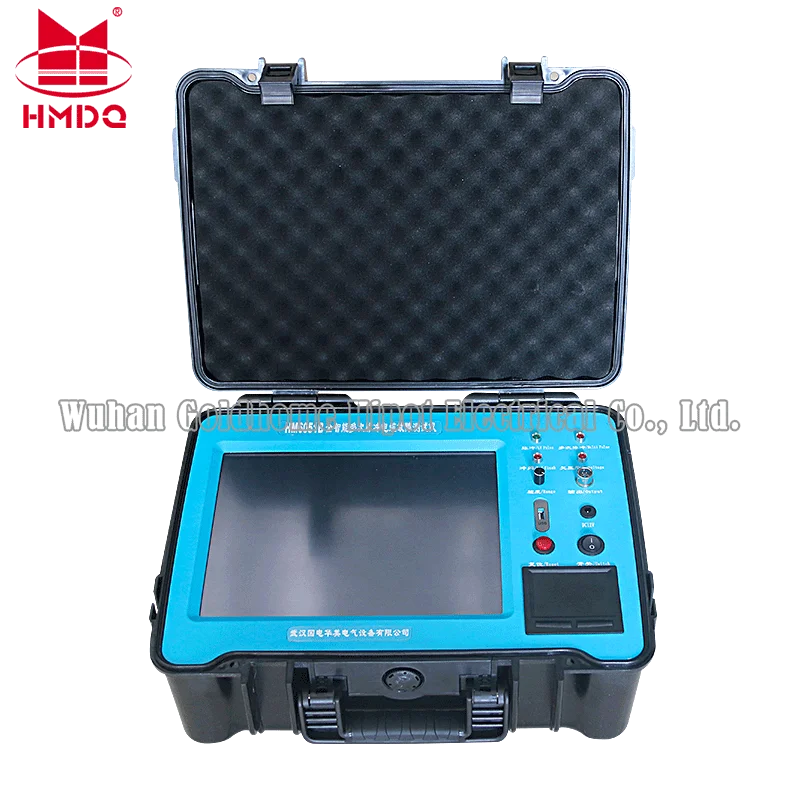

1.Display :12.1 Inch industrial LCD screen (XP operating platform)
2.Measuring distance : not less than 60km
3.Operating model :Touch pen and mouse operation
4.Testing method :Low pressure pulse method, impulse lightning flow method, multiple pulse method
5.Memory space :8G
6.Minimum testing distance (blind area) : 0-5 m or no blind area
7.Accuracy of pointing :±0.2m
8.Measuring accuracy :system less than ±1%
9.Frequency :6.25MHz,12.5MHz,25MHz,50MHz,100MHz
10.Pulse width : 80 ns,100ns,200 ns,1μs,2μs(Software automatic matching)
11.Working time :Use continuously for about 6 hours
12.Weight of host :8kg
13.Size of host :180mm×300mm×400mm
14.Environment temperature :-20℃~+40℃,relative humidity:80%
15.Power and power consumption:AC220V±10%,not more than15W; DC12V7AH),no less than 20W
