100 А 4P медный автоматический переключатель ATS для переключения

100 А 4P медный автоматический переключатель ATS для переключения

Категория: Другие переключатели >>>
Поставщик: Xiamen,Ai,Power,Technology,Co.,Ltd.

Цена:550,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	655.37 $*	688.26 $*
Aug-15-2025	649.53 $*	681.90 $*
Jul-15-2025	545.61 $*	572.80 $*
Jun-15-2025	638.71 $*	670.38 $*
May-15-2025	556.1 $*	584.93 $*
Apr-15-2025	627.48 $*	658.95 $*
Mar-15-2025	622.48 $*	653.25 $*
Feb-15-2025	616.27 $*	647.3 $*
Jan-15-2025	611.94 $*	642.90 $*

Характеристики

Product Description

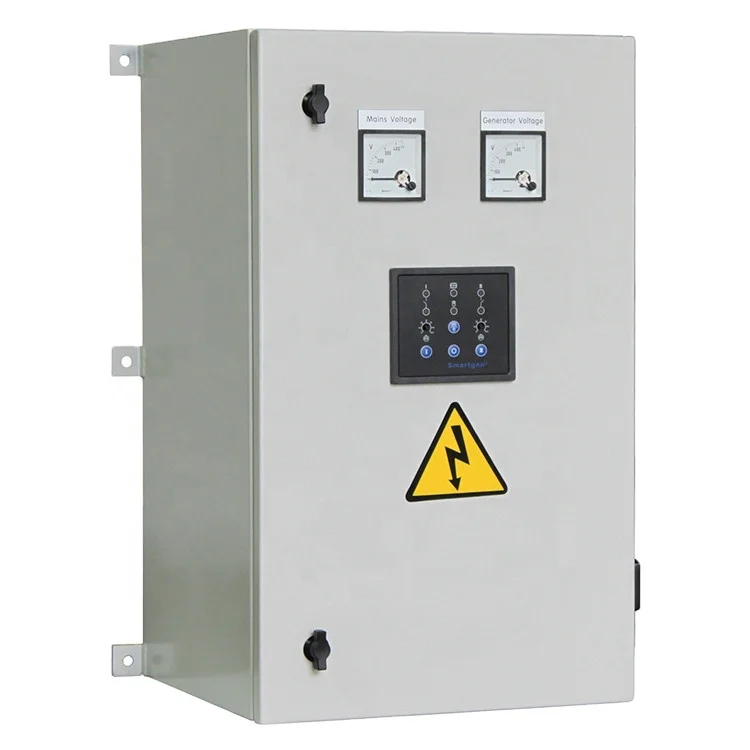

100A 4P copper automatic transfer switch ATS for generator changeover

AI YAT series automatic transfer switch adopt high quality and reliable switch module which is designed for emergency power supply. It can transfer the load between mains power and mains power or between mains and generator in few seconds. It can automatically detect the voltage and frequency of mains power or generator power timely. The ATS has an intelligent integrated design with PC pole and zero position function. It has larger isolation distance to withstand higher impact voltage above 8KV. The technology and performance of the ATS conform with standard of IEC60947-6-1, GB14048.11-2002.

Specification:

Manufacturer	XIAMEN AI POWER TECHNOLOGY CO., LTD.
ATS module Brand	Aisikai
ATS model	YAT100
Capacity(A)	100
Voltage(V)	400V, 380V, 220V, 480V
Poles	4 poles

Product Details

AI POWER ATS

AI POWER automatic transfer switch adopt high quality and reliable switch module which is designed for emergency power supply. It can transfer the load between two generators or between mains and generator in few seconds. It can automatically detect the voltage and frequency of mains power or generator power timely. The ATS has an intelligent integrated design with PC pole and zero position function. It has larger isolation distance to withstand higher impact voltage above 8KV. The technology and performance of the ATS conform with standard of IEC60947-6-1, GB14048.11-2002.

ATS SPECIFICATION:

● Manual or automatic optional.
● Mechanical and electrical interlocking ensures safe transfer.
●3 position indication to show the working status position.
● Insulation class III.
● Cable entry kept in the bottom of panel box for easy installation.\t
● Disassemble panels of four sides for easy maintenance.
● Cold steel plate materials and powder paint.
● Lifting ear on the top of panel for easy remove.
● Wall type or standby type for choice.

ATS CONTROLLER FOR OPTIONS

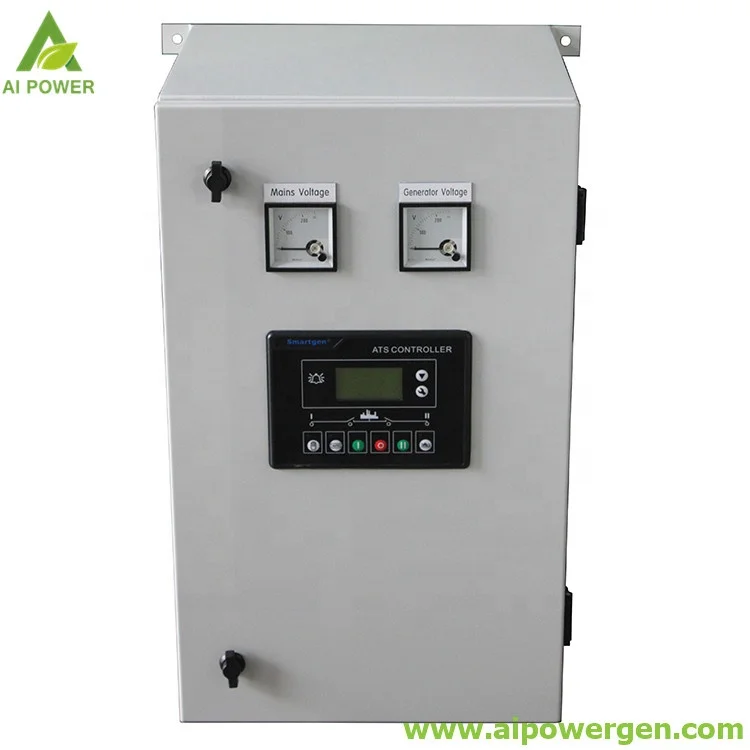

ATS controller Smartgen HAT530N

The powerful Microprocessor contained within the HAT530N ATS controller allows for precision voltage (2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to transfer after the delay has expired. This controller is suitable for NO Breaking ATS and ONE Breaking ATS. When #1 power is abnormal, the controller will send signal to start genset after the “#1 abnormal delay” has expired. “Three remotes” (remote control, remote measurement and remote communication) functions can be implemented with the help of LINK communication port.

ATS controller Smartgen HAT600N

HAT600N series ATS controller is intelligent dual-supply module with programmable function, automatic measurement, LCD display, and digital communication. It combines digital intelligence and networking. Automatic measurement and control can reduce incorrect operation. HAT600N series ATS controller is made of microprocessor as its core, can accurately detect extended-spectrum 2-way-3-phase voltage and also make accurate judgment and output passive control switch under the abnormal voltage (over and under voltage, miss phase and over and under frequency). This controller has full consideration in various application of ATS (automatic transfer system) can be directly used for Intelligent ATS, Contactor ATS, Circuit Break ATS etc.

ATS USAGE SAMPLE

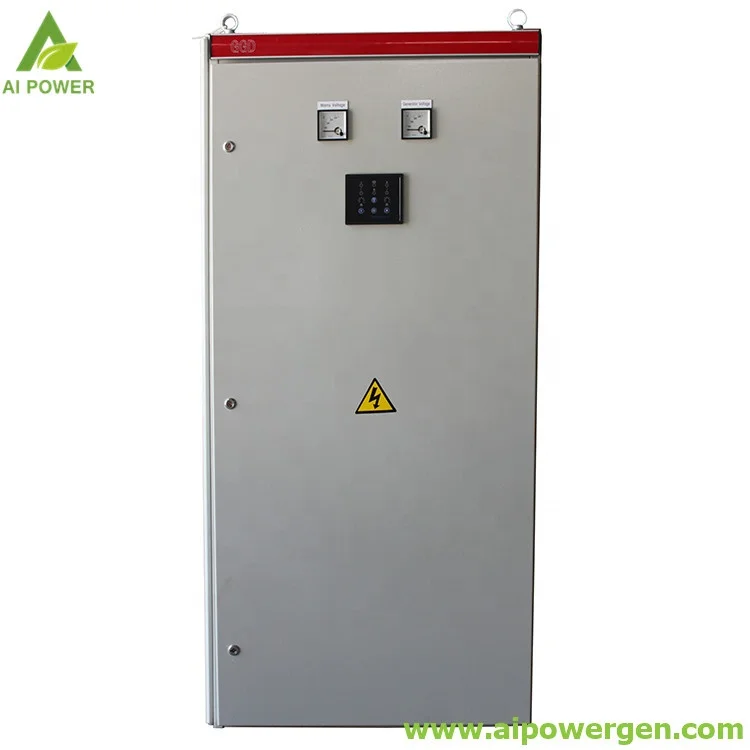

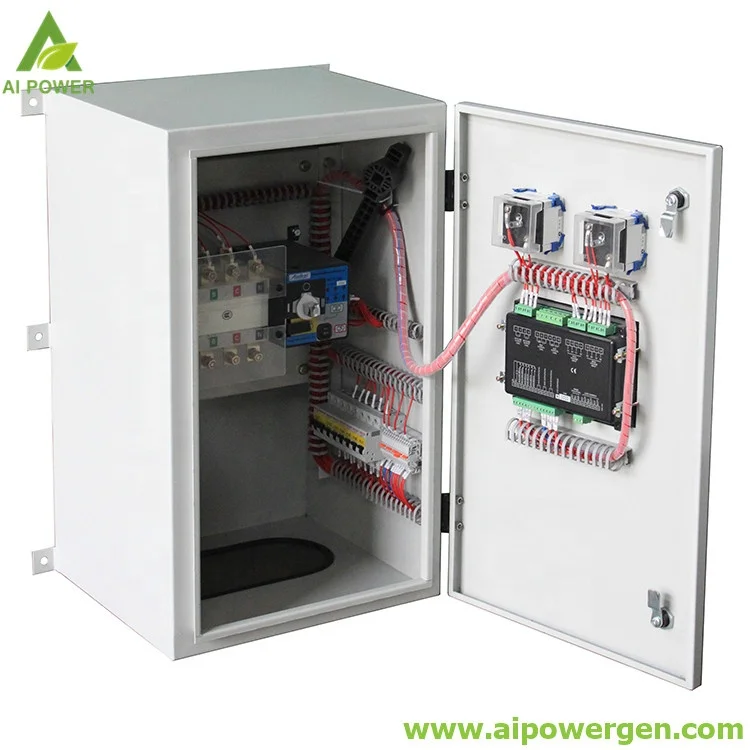

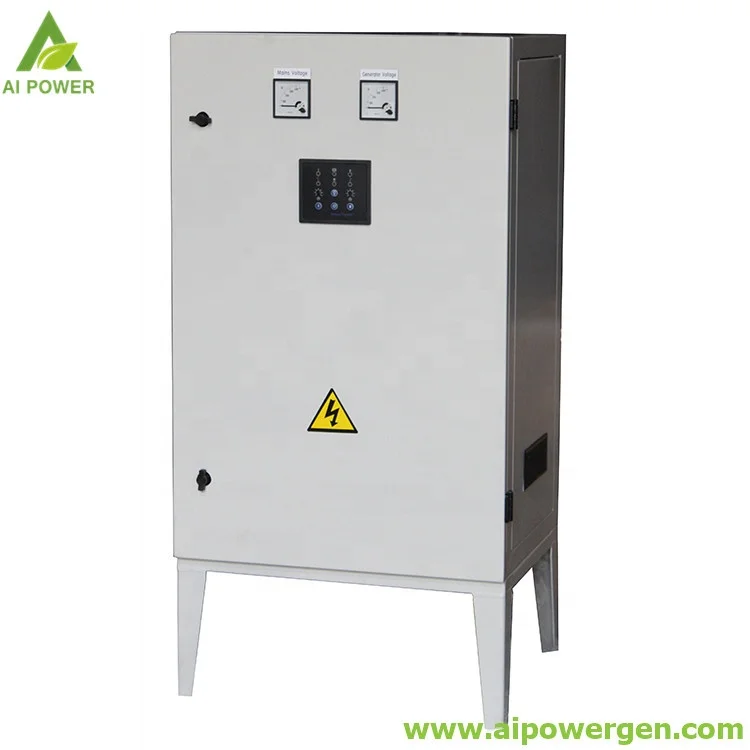

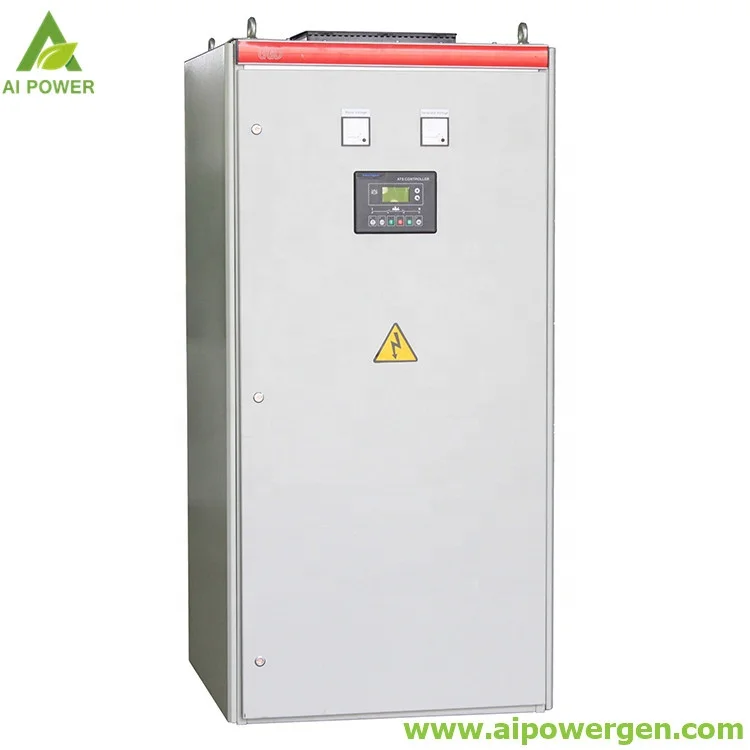

Ai Power ATS detail show:

AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switch gear, etc.

Packing & Delivery

FAQ

1. Can you accept small order?
A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.

2. What is your company product range?
A: We are a professional turbocharger supplier, OEM and ODM are welcome.

3. Do you inspect the product? How?
A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.

4. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.

5. What about your factory production capacity?
A: 200pcs per month.

6.What kind of transactions you can accept.
A: We can accept FOB, CIF, CFR.
