Semi Automatic Pet Blow Molding Machine,4 cavity dropping the bottle

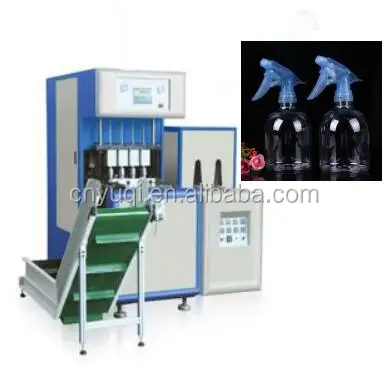

♥ Machine Picture

4 cavity Semi-automatic  blow moulding machine is the latest high output semi-automaitc PET blow moulding machine. Comparing to the traditional machine design, thanks to new concept of automatic bottle discharging unit, the patented heating system and the preforms automatic loading design, The  blow molding machine requires less manpower and reducing the work intension for the operator. This is an outstanding improvement in the PET Bottle blow molding industry.

TYPE	ITEM
				YQ-4F
container	Prouduct material			Pet
	container volume	L		≤2.5
	theoretical output	Pcs/hr		2000
	max.bottle height	Mm		365
	max.bottle diameter	Mm		90
Moulding	max.mould plate dimension(l*w)	Mm		550
	max.mould thickness	Mm		220
	clamping force	Kn		130
	mould  opening stroke	Mm		370
air comppessor	working pressure	Mpa		0.8-1.0
	air compressure for blowing	Mpa		3.0
MAIN machine elecricity	power	Kw		12
	voltage/frequency	v/hz		380-240-110/50-60
machine size and weight	main machine	M		1700*830*2050
	main machine weight	Kg		1200
	hearter	M		2080*630*1380
	hearter weight	Kg		330

♥ Description

1.Perfect function with economic investment.
2.Small size and compact construction with no space waste.
3.Easy to operate and maintain,operation by one person.
4.Saving power and uneasy to worn out.Adopting new double crank four bars to lock mould,the cross fixed. Providing high pressure blowing system.
5.We can provide performs and cap moulds for different bottles to meet customer's requirem

6.Automatic feeding and automatic dropping the bottles.

7.High output:1500-2500pcs per hour.

♥ Blowing Process



♥ Bottle Samples







♥ CEITIFICATION

♥ Why Choose Us

1. More than 10 years’ professional experience in plastic machine industry.

2. Fast delivery: Reply the mail and take action in 24 hour.
3. Strict quality control system and after-sales service. 1 year warranty .During warranty, we provide free of charge for repairing cost. Lifetime maintenance. After-sales department can provide life time maintenance service

4. Our price is competitive factory price.

5. Our products are sold to South America/North America/Mid-east etc.

6. We have our own design department and can OEM as your requirement

We can help you to design the product line , workshop and provide turn-key project

7. We will offer our technician for overseas bottle making machine installation and training service

We can also provide our Sales as translator to your site help the installation and Trainin

Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
