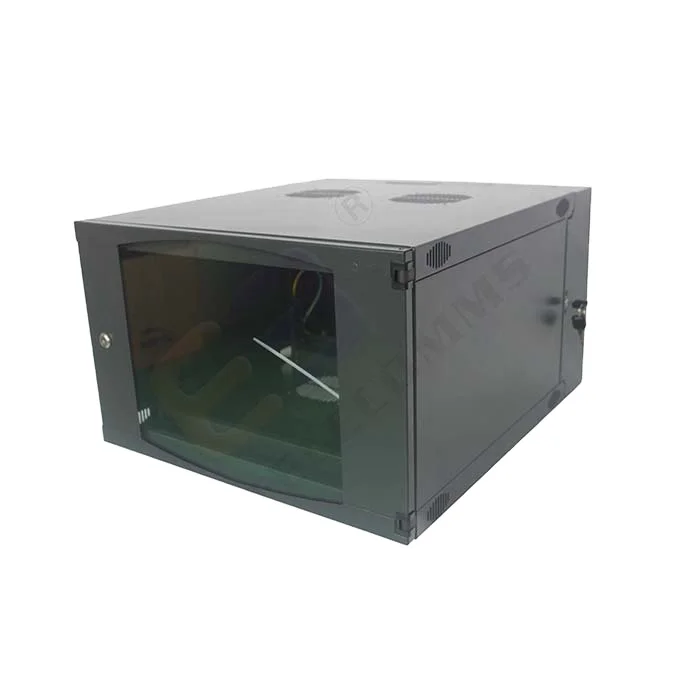

19' Unique design 540 wide double section network wall

                                             19''   Unique design 540 wide double section wall cabinet

Feature

WB-YDxxxx3NB cabinet is intended for installation data and telecommunication devices and their distribution systems.

19" rack mountable, Double section structure - possible of max the load capacity up to 45KG.

Front & back door earthing.

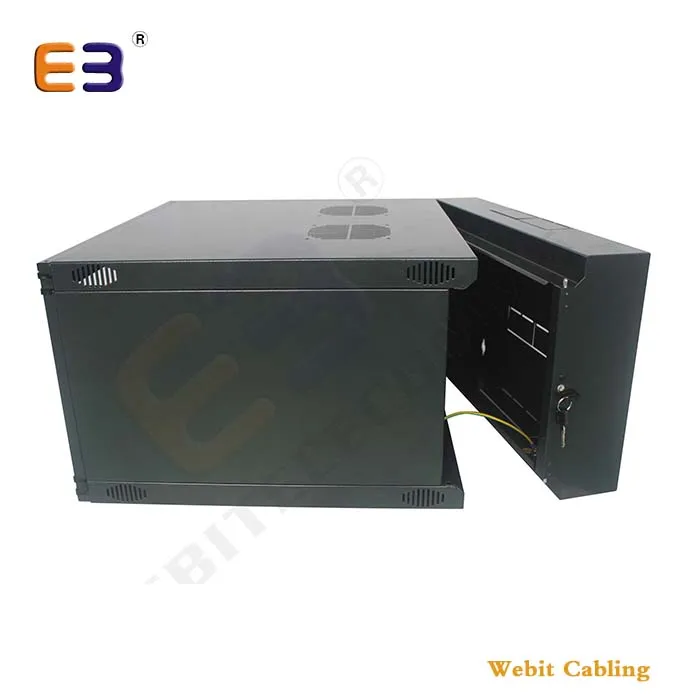

Side panel can be opened like a door.

Top and bottom panel can be exchanged.

Full of operating.

Cabinet brings a complete full-view appearance and its strong structure [as strong as welded structure]

Widely used for Data cabling devices.

Doors

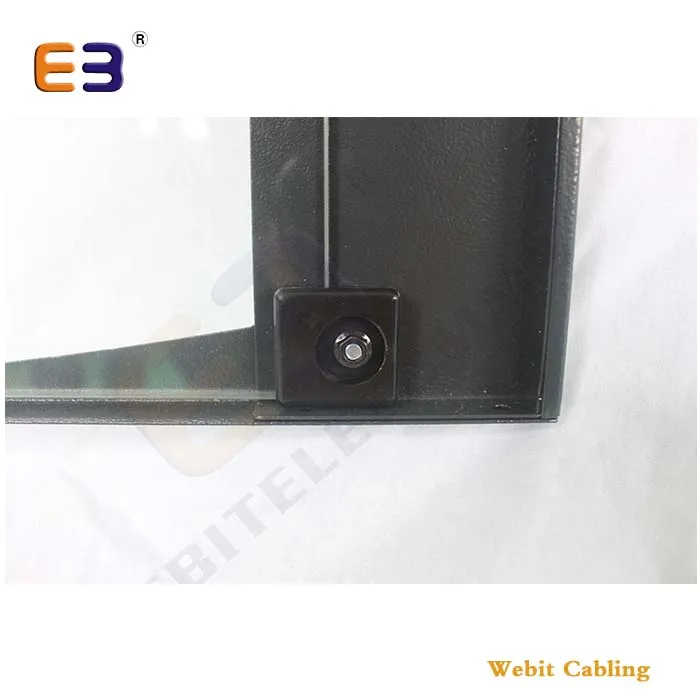

Front frame-design glass door without glue - cylinder key lock.

Rear 100mm section with pad lock.

Spindle side panel , opened from inside.

Accessories

4× 1.80 mm Position-adjustable 19" mounting rail.

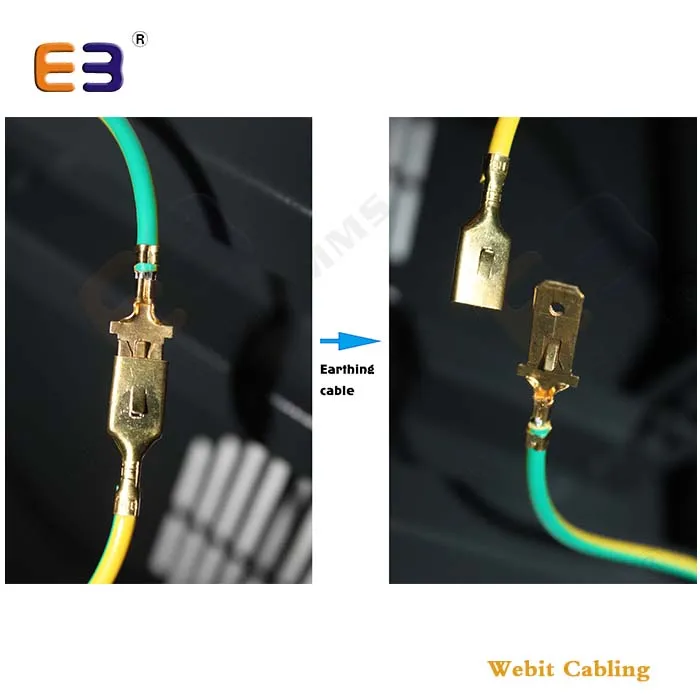

2× Earthing cable

10 sets of extra M6 caged screws.

Cable entrance

Top  - 2 * 200×50mm rectangle cable entrance

Bottom - 2* 200×50mm rectangle cable entrance

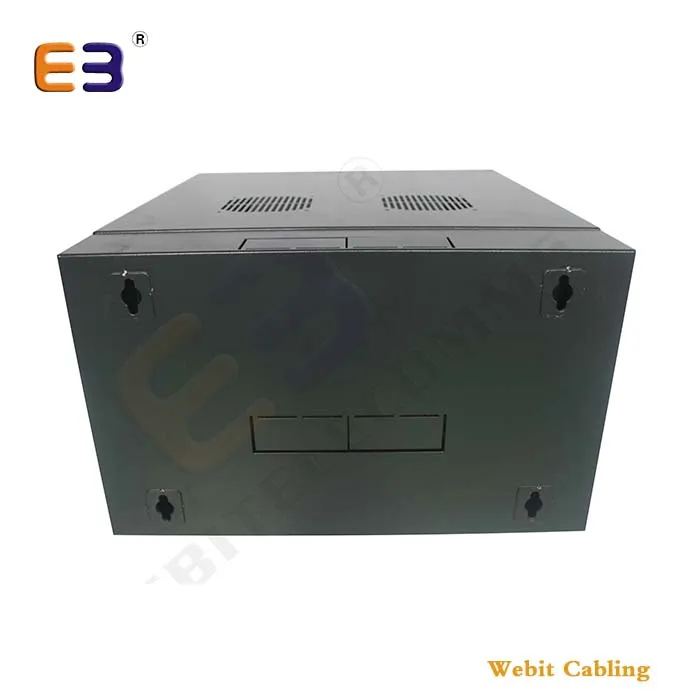

Back -2* 200×50mm rectangle cable entrance

Can ask for more...

Package

Disassembled packing save 66% volume , allows for convenient stocking.

Webitelecomms neutral carton box packed

Plywood pallet for options

Standards

Width: 540 mm

Depth: 600,550 mm

Height: 4U, 6U, 9U, 12U, 15U, 18U,OEM

Customized size is available

Industry Standard and Material:

Comply with

ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.

Surface Finish:Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating

Material:SPCC cold rolled steel or EG steel

Thickness:

Mounting profile:1.8mm

others:1.00mm to 1.20mm

IP degree: IP-20

Loading capacity: Max Static loading---45 KG

Body color:RAL9005(black);RAL7035(grey),etc
