Introduction of Best price polyurethane spray foam insulation machine for sale

9.5kw winter use clear polyurethane foam equipment  machine



Model	CNMC-H
Power source	3-phase 4-wires 380V 50Hz
Heating powe	9.5KW
Driven mode	pneumatic
Air source	0.5~0.8 MPa ≥0.9m³/min
Raw output	2~12 kg/min
Maximum output pressure	11MPA
AB material output ratio	1:1
Spray gun	1 Set
Feeding pump	2 sets
Heating hose	15meters
Gun connection pipe	2pieces
Feed delivery pipe	2pieces
pneumatic  pipe	5meters
Spare parts	1set
Packing size	760mm X 560mm X 1130mm
Machine weight	109KG

Introduction

Polyurethane Spray Machine Features:

1. pneumatic supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. minimizing spraying congestion with multi-feedstock device;

4. multi-leakage protection system to protect the safety of the operator;

5. equipped with emergency switch system, help operator deal with emergencies rapidly;

6. great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. humanized design with equipment operation panel, super easy to get the hang of it;

8. the latest spraying gun has great features like small volume, light weight, low failure rate, etc;

9. lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity;

Polyurethane Spray Machine Equipment applications:



Configuration

More photos

Spray gun :



Heating hose :

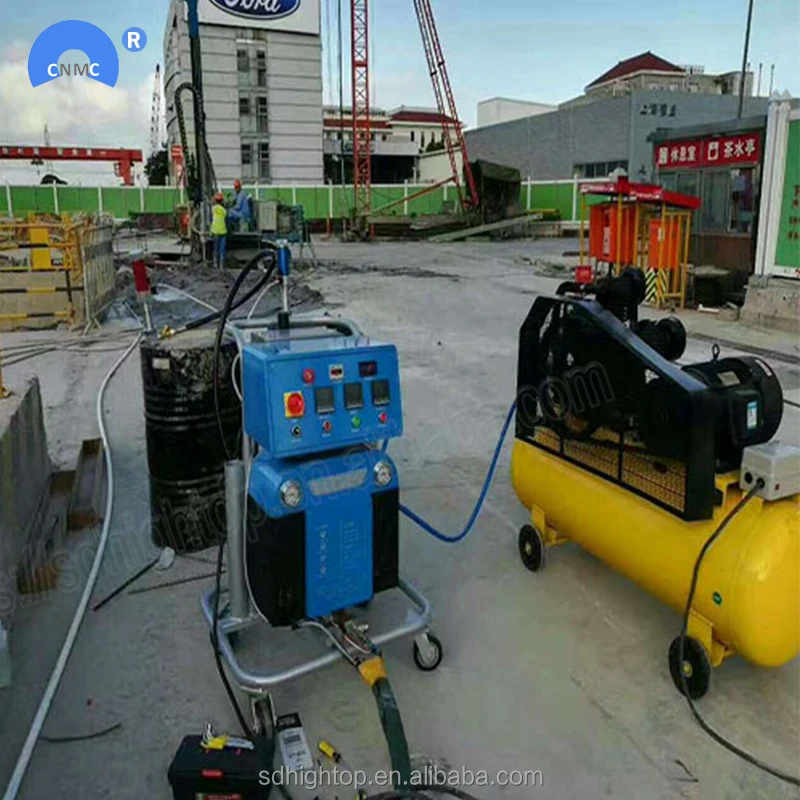

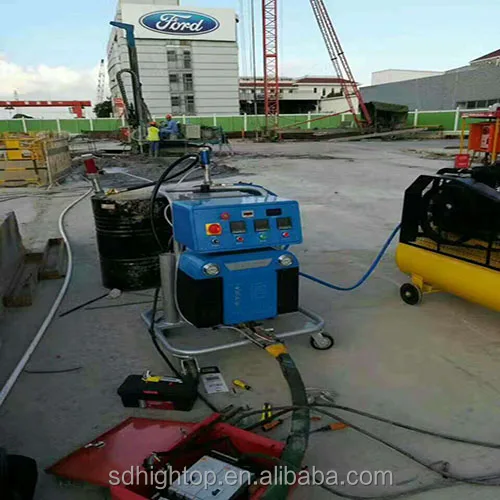

Application  Example:

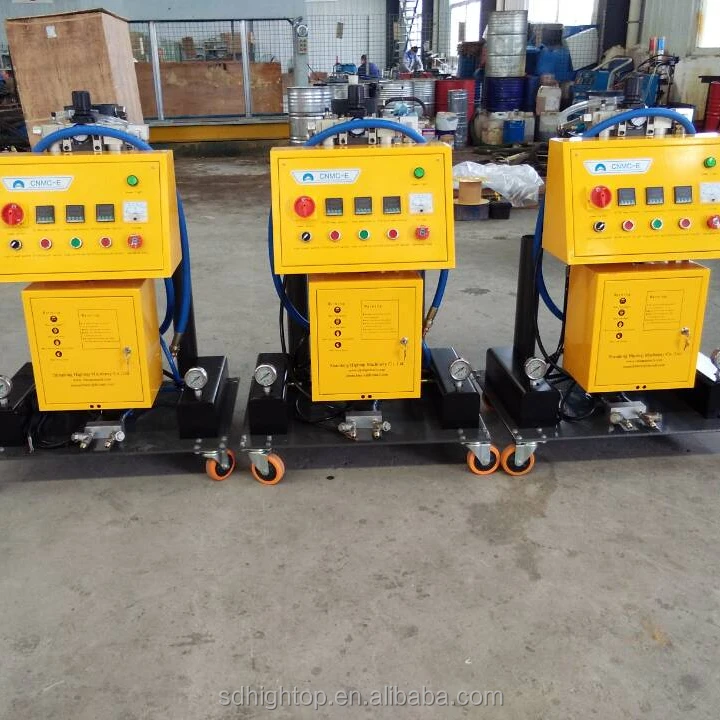

Factory workshop:

Product dispacth
