Пивная ферментационная система из нержавеющей стали 100 литровый конический

Пивная ферментационная система из нержавеющей стали 100 литровый конический

Категория: Fermenting Equipment >>>
Поставщик: Shandong,Tonsen,Equipment,Co.,Ltd.

Цена:1 400,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	1666.79 $*	1749.39 $*
Aug-15-2025	1652.15 $*	1735.68 $*
Jul-15-2025	1386.69 $*	1455.21 $*
Jun-15-2025	1624.32 $*	1705.15 $*
May-15-2025	1414.10 $*	1485.91 $*
Apr-15-2025	1596.30 $*	1676.26 $*
Mar-15-2025	1582.92 $*	1661.79 $*
Feb-15-2025	1568.86 $*	1646.28 $*
Jan-15-2025	1554.79 $*	1632.31 $*

Характеристики

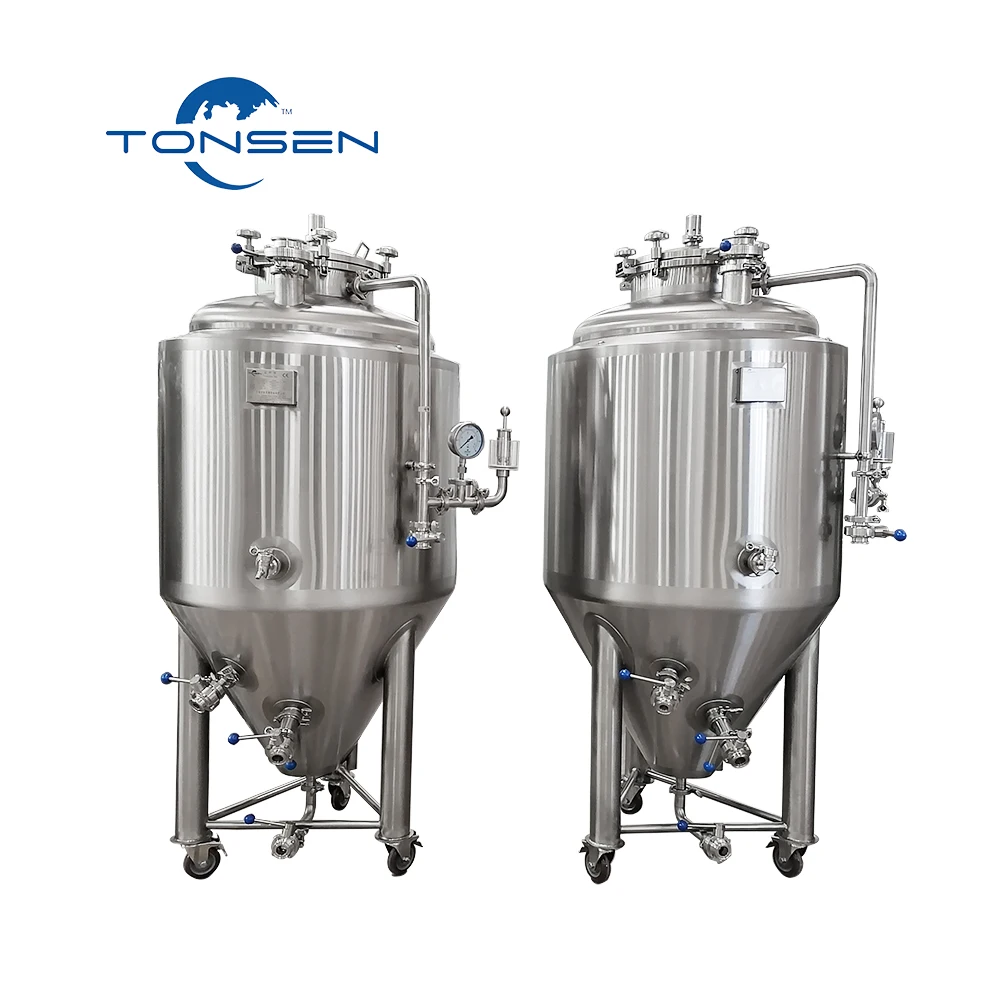

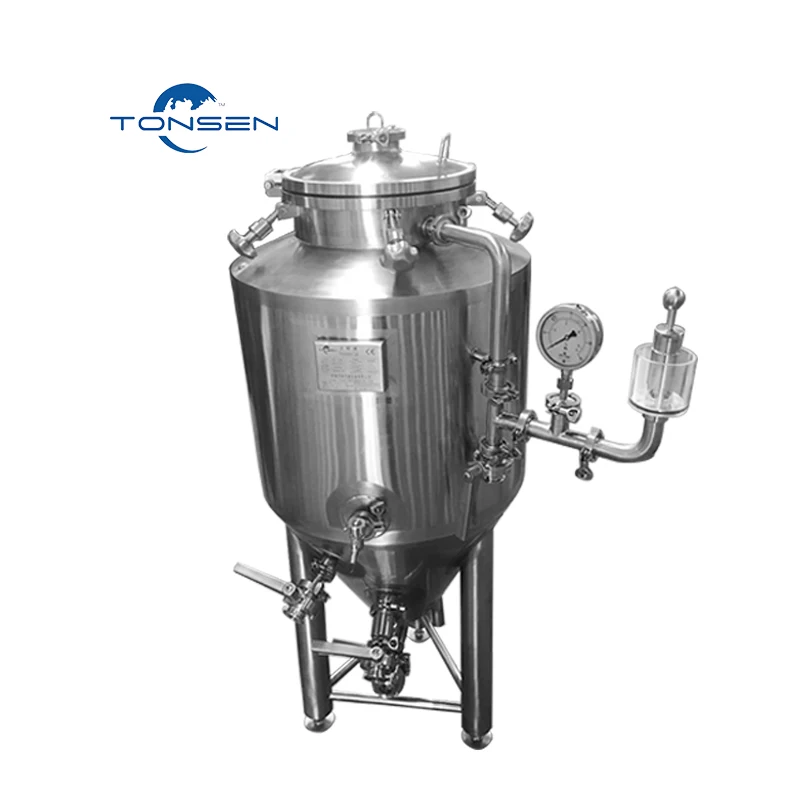

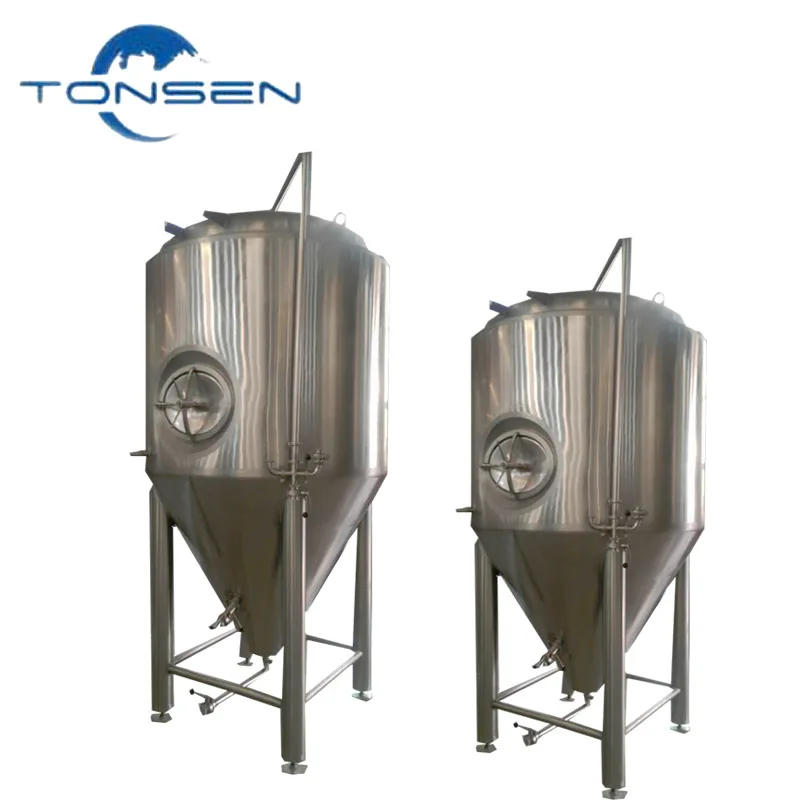

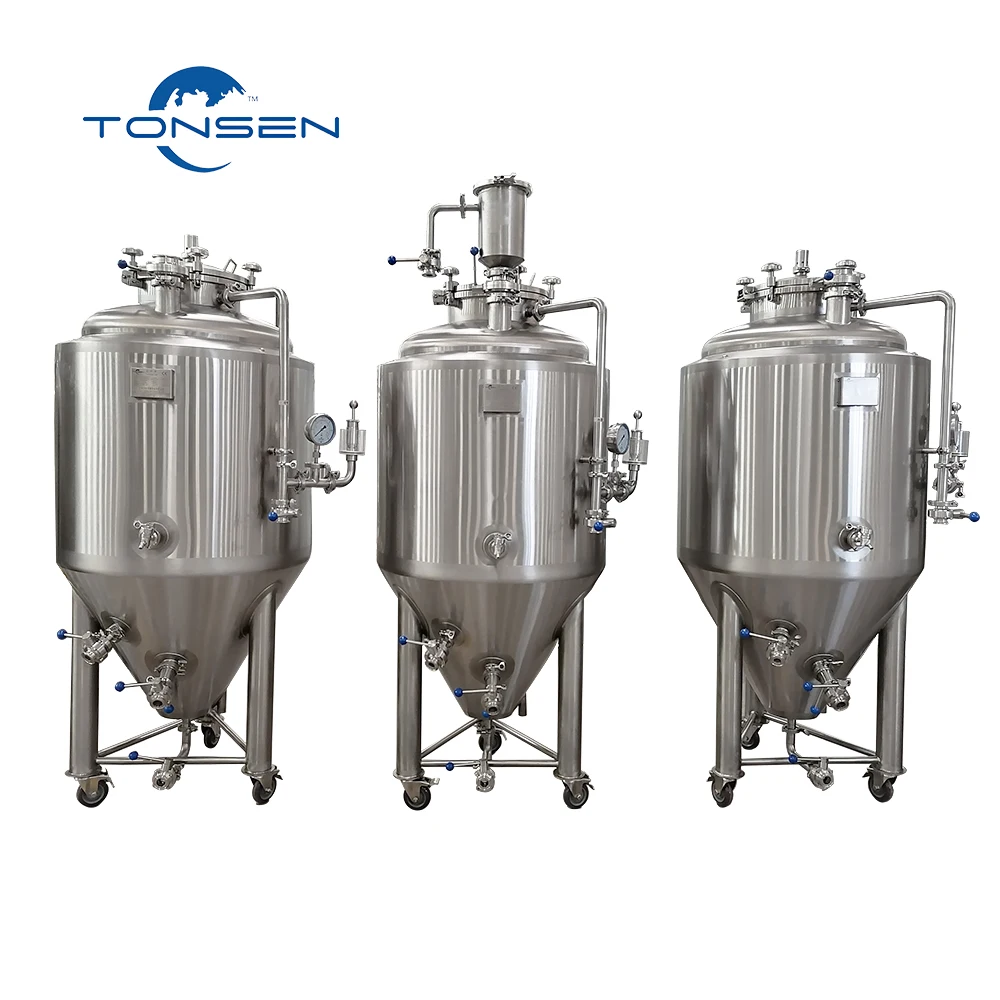

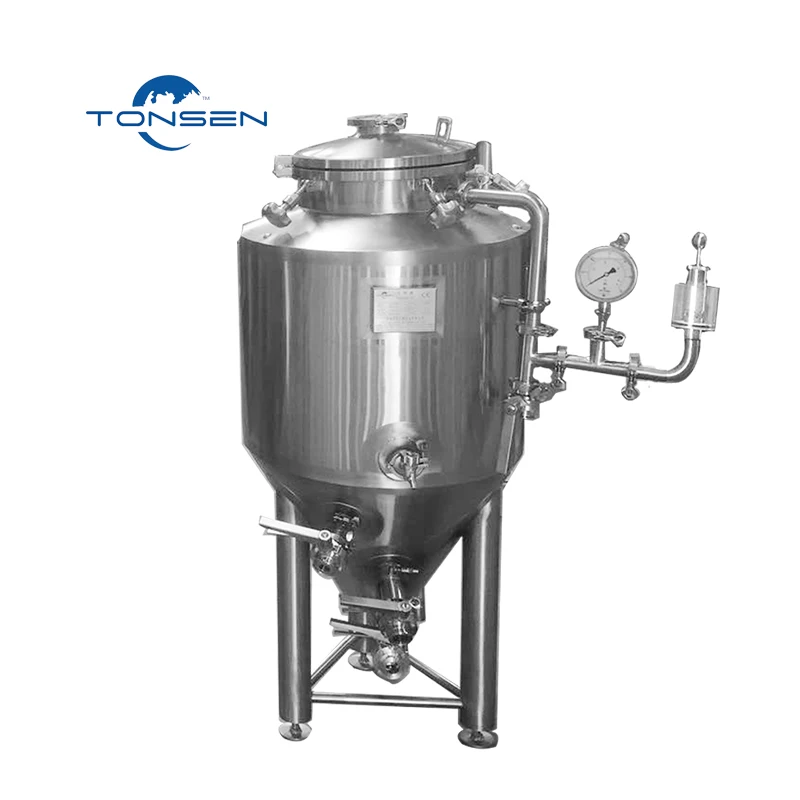

Stainless steel beer fermentation system 100 liter conical fermenter

Description

Tonsen is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture,
Installation at site and brewing technology transfer.

We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system,
cooling system, cleaning system, control system, package line.

Tonsen has been exported to more than 20 countries, which include USA,Canada, UK,France,Germany,Holland,Slovakia, Belgium ,Argentina etc.

Technical drawing for 1000L /10HL conical fermenter
Effective capacity	1000L	Thickness	80mm
Total capacity	1300L	Interior thickness	3mm
Boundary dimension	φ1210×H2550	Exterior thickness	2mm
Material	SUS304, brushed outer shell	Manhole	Side/Top manhole
Insulation	polyurethane

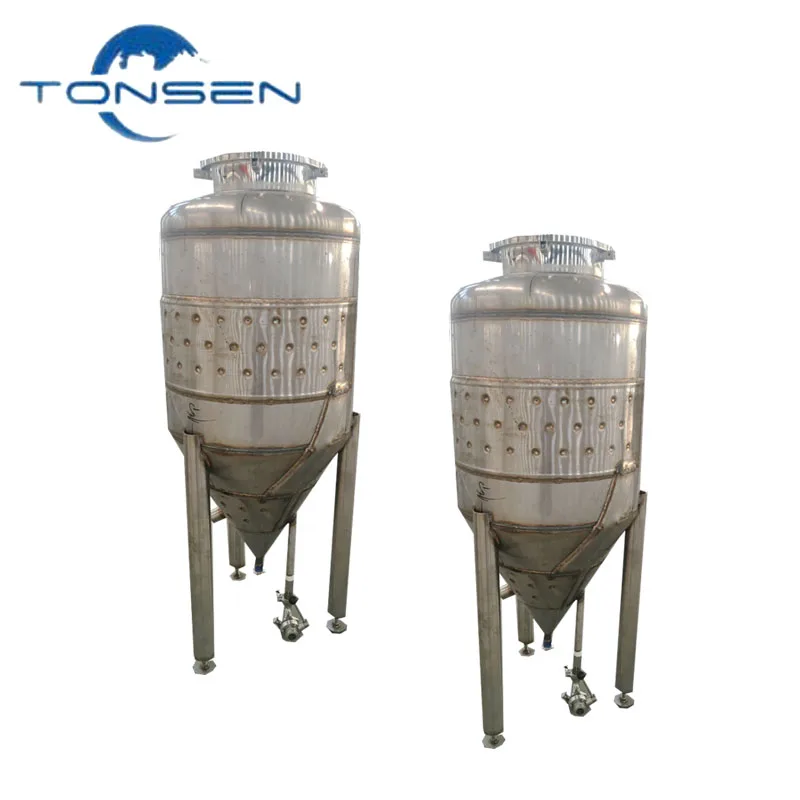

*Dimple plate cooling jacket on tank body and conical bottom

*Dished head and taper angle 60°

*Temperature sensor TP100

*Inner tank mechanical polishing and out plate surface protection ribbon polished on welds

*1pcs x Hops adding port

*1pcs x breathing valve

*1pcs x mechanical pressure regulation valve

*1pcs x sample valve

*1pcs x racking arm

*1pcs x pressure gauge

*1pcs x CIP spray device

*1pcs x drain outlet bottom

*4 heavy duty legs with leveling pad

*Working pressure: 1bar

Note:1.1Hectolitre(HL)=100Liter; 1Barrel(BBL)=117Liter
2.Water supply: water supply, for mashing, cooling, cleaning
3. Electricity supply: 3-phase electricity
4. Voltage/frequency adjust to your local power supply
5.Material: malted barley or wheat, hops, water

Detailed image

1.Polishing
-Inside Polishing: Overall polishing to 0.6μm without dead corner .
-Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
-Purpose: Make sure the inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer
tanks looks more like an artwork.
2.100% WIG Welding
-All welding is TIG welding.
-All welding is Full welding.
-All welding is double side welding.
-Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the
air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong.

Part of Auxiliaries:

Tonsen offers all necessary peripheral equipment to ensure that your brewery / Brewpub has everything it needs for a high quality brew and the means to give your clients the best drinking experience.

Project Recommend

Middle Beer Brewery Equipment

We are factory supplied with good quality,more competitive price and installation service. Lifetime guarantee are assured.

Whether you are creating a business or brewery renovation project, come here!
A perfect solution is always for you!

Our Service

1-Pre-sales Service:

Technical Drawing

We will offer Technical Drawings of each tank based on the equipment layout .

Layout design

Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an
equipment footprint according to your requirement.

3D Drawing

We will 3D effective sketch to make sure ensure you have a more intuitive experience.

2.After-sales service

-We can provide weekly production report to let you clear of production progrss and production details;
-We will do equipment test and test report available for you;
-Providing piping connection drawing and English operation manuals;
-Providing equipment installation, debugging, and personnel training service;
-We can help you to arrange transportation till to your location;
-Main machine guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.

Company Profile

FAQ

1.Q: It’s the first year(1st year) for you to produce brewing equipments?
A: No. We worked in this business for many years

2.Q:How any years does your warranty ?
A:The main equipment for 3 years, auxiliary ones for 1 year.

3.Q;What’s your advantage ?
A:We are pioneer and know this business. Our 3 top-level technicists worked in this business over 10 years, 2 senior engineers
worked over 8 years, workers average production experience is 3 years.

4.Q: Can you do OEM or ODM?
A: Yes, we can do.

5.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

6.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.

7.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
