Лучшая цена малогабаритная машина для нефтеперерабатывания съедобного масла необработанного кокосового горчичного соевого арахиса завод по производству нефтеперерабатывающего
- Категория: Прессы для отжима масла >>>
- Поставщик: Anyang,Best,Complete,Machinery,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 35462.86 $* | 37235.70 $* |
| Aug-15-2025 | 35164.23 $* | 36922.91 $* |
| Jul-15-2025 | 29502.91 $* | 30977.77 $* |
| Jun-15-2025 | 34568.98 $* | 36296.57 $* |
| May-15-2025 | 30098.77 $* | 31603.2 $* |
| Apr-15-2025 | 33972.69 $* | 35671.49 $* |
| Mar-15-2025 | 33674.6 $* | 35358.95 $* |
| Feb-15-2025 | 33376.28 $* | 35045.76 $* |
| Jan-15-2025 | 33078.54 $* | 34732.16 $* |
Характеристики
BEST price small scale edible oil refinery machine for crude coconut mustard soya peanut edible oil refinery plant
What is edible oil refinery plant
Edible oil refining and edible oil refinery plant and have been the areas of excellence for ABC Machinery. We are the basic designers, manufacturers and exporters of complete edible oil refinery machine to refine the crude oil and make it pure edible. ABC Machinery manufactures unique edible oil refinery plant with complete unique construction. Our small scale edible oil refinery is specifically designed to give the minimum operation costs and maximum output results. The edible oil refinery can refine almost all types of oils. The refined oil quality depends on the type of crude oil and its chemical structure. So far, we have exported our refinery plants to 25 countries of the world.
Click Now for Catalogs & Factory Price!

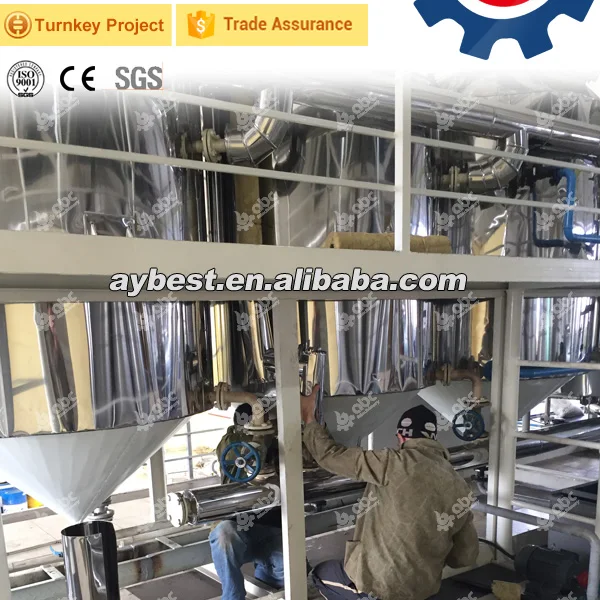

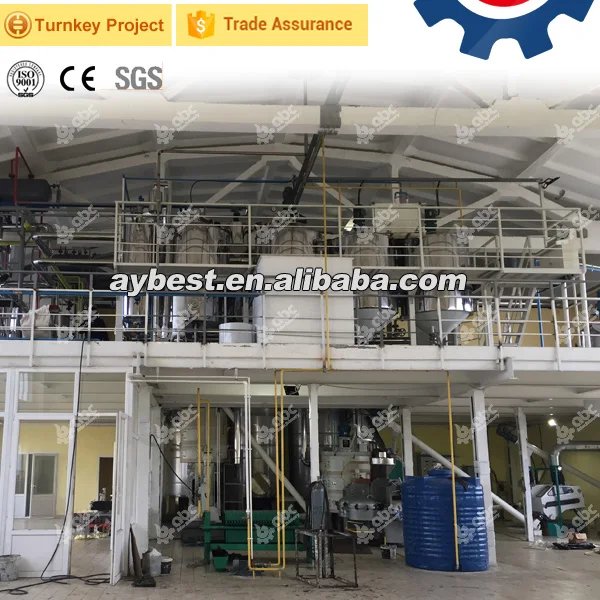

Installation of edible oil refinery plant
The onsite installation and equipment commissioning were in charge by our company, so any questions and problems can be instantly solved without affecting the duration. Based on local weather conditions and oil refining requirements, this edible oil refinery plant was designed with strong and sturdy thermal insulation layers to ensure highest production rate!
Click Now for Catalogs & Factory Price!

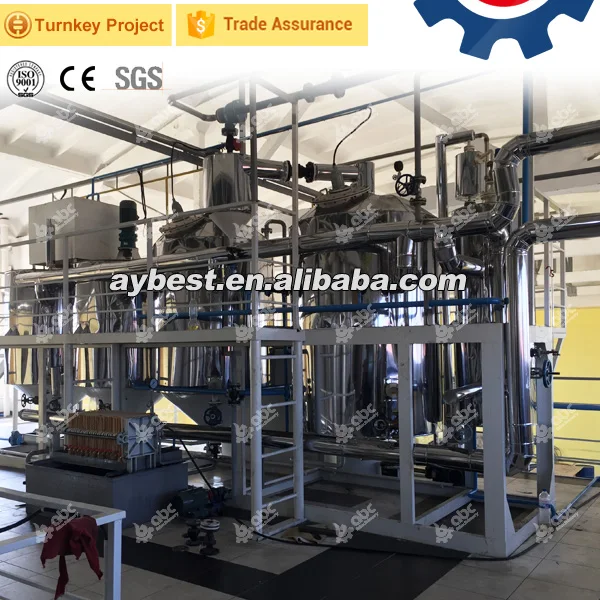

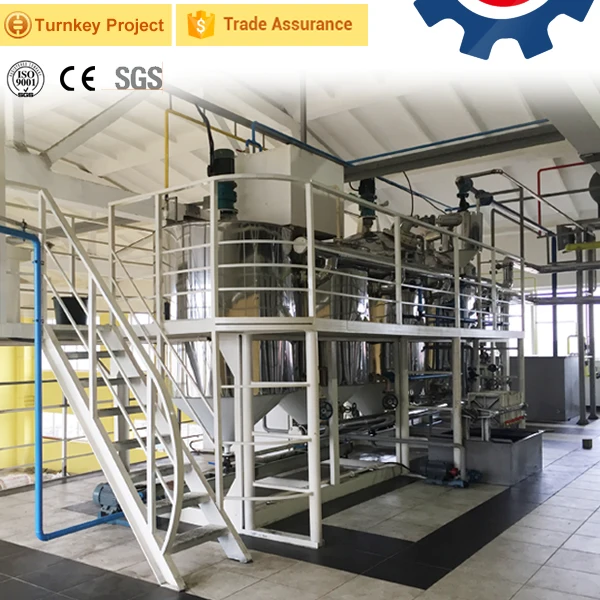

3 Tons per day edible oil refinery plant
Equipment of 3 TPD edible oil refinery plant
A complete edible oil refinery plant equipment includes Neutralizer, Bleacher, Deodourizer, Cooler, Thermic Fluid Boiler, Filter Press, Raw Oil Tank, Bleach Oil Tank, Soap Pan, Steam generator, Vacuum pump and Other equipment. This is designed for small scale edible oil refinery, for large edible oil refinery, the process and equipment is much more complicated.
Click Now for Catalogs & Factory Price!
Process description of edible oil refinery plant:
For refining the edible oil, there are three basic processes in the edible oil refinery plant. First process is neutralizing the oil in the neutralizer to remove the Free Fatty Acids (FFA) by adding caustic soda. Oil is heated up to about 60°C by thermic fluid coils and oil is stirred by stirrer. Then soap stock formed due to chemical reaction is allowed to settle at the bottom of the neutralizer from where it is taken out into soap pan.
Neutralized oil is drawn into the second vessel called bleacher where color of oil is removed by bleaching process with aid of chemicals such as carbon black and bleaching earth. Oil is generally heated up to 110°C by thermic fluid coils. Stirring is also continued. Bleaching process is done under vacuum.
Bleached oil then goes to the filter press where bleaching earth and chemicals are separated and clean bleached oil is then drawn to deodorizer where oil is heated above 110°C through thermic fluid coils and then live steam is given to the oil from the bottom steam nozzles and temperature of oil is raised up to 200 to 220°C through thermic fluid coils. Entire process is done under high vacuum. Thus smell is removed from the oil in the deodorizer. Then it goes to cooler where water circulating coils take away heat and oil is cooled. Again it goes to second filter press where completely refined and transparent color less oil is obtained.
Thermic Fluid Boiler, Vacuum Pump, Barometric Condenser, Catchalls, Steam Generator etc. play their role in the refining process. So these equipment are part of the refinery and connected with the vessels through pipelines.
BEST edible oil refinery plant manufacturer & supplier
We are leading edible oil refinery plant supplier and manufacturer in China. We have gained rich experiences in designing, manufacturing, installing and commissioning of edible oil refinery. Choosing us, you can get the most competitive price, premium quality edible oil refinery machine, favorable technical supports and comprehensive service!
Click Now for Catalogs & Factory Price!
Why our edible oil refinery is at lower price
High acceptances of edible oil refinery plant by customers
