52 5 W 24V 4000 об/мин bldc бесщеточный электродвигатель постоянного тока с подгонянным 3 фазный мотор
- Категория: >>>
- Поставщик: Changzhou,Jkongmotor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 17.48 $* | 17.34 $* |
| Jul-16-2025 | 13.97 $* | 13.76 $* |
| Jun-16-2025 | 16.23 $* | 16.23 $* |
| May-16-2025 | 16.77 $* | 16.11 $* |
| Apr-16-2025 | 13.51 $* | 13.53 $* |
| Mar-16-2025 | 16.54 $* | 16.85 $* |
| Feb-16-2025 | 16.68 $* | 16.75 $* |
| Jan-16-2025 | 16.23 $* | 16.72 $* |
Характеристики
Product Description
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Jiangsu | |
Brand Name | JK |
Model Number | JK42BLS02 |
Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Other |
Certification | CCC, ce, RoHS |
Type | Brushless dc motor |
Torque | 0.19N.m |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Explosion-proof |
Speed(RPM) | 4000rpm |
Continuous Current(A) | 10.6A |
Efficiency | Other |
Color | Black |
Product name | JK42BLS Brushless dc motor |
Application | 24v / 36v |
Length | 61mm |
Mass | 0.45kg |
rpm | 4000 |
VDC | 24v/36v |
Back E.M.F | 2.71 |
Rotor inertia | 48g.cm2 |
Continuous stall torque | 0.15N.m |
Product Paramenters
Brand: Jkongmotor
Model No.: JK42BLS02
Number of Phase: 3phase
Number of Poles: 8poles
Rated Voltage: 24V
Rated Speed: 4000Rpm
Rated Torque: 0.125Nm
Rated Current: 3.3A
Rated Power: 52.5W
Peak Torque: 0.38Nm
Peak Current: 10.6A
Rotor Interia: 48g.cm3
Body Length: 61mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃
Number of Phase: 3phase
Number of Poles: 8poles
Rated Voltage: 24V
Rated Speed: 4000Rpm
Rated Torque: 0.125Nm
Rated Current: 3.3A
Rated Power: 52.5W
Peak Torque: 0.38Nm
Peak Current: 10.6A
Rotor Interia: 48g.cm3
Body Length: 61mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃
Genaral Specification: | ||||||||||
Item | Specification | |||||||||
Winding type | Delta | |||||||||
Hall effect angle | 120 degree electrical angle | |||||||||
Shaft run out | 0.025mm | |||||||||
Radial play | 0.02mm@450g | |||||||||
End play | 0.08mm@450g | |||||||||
Max. radial force | 28N@20mm form the flange | |||||||||
Max. axial force | 10N | |||||||||
Insulation class | Class B | |||||||||
Dielectric strength | 500VDC for one minute | |||||||||
Insulation resistance | 100MΩ Min., 500VDC | |||||||||
Electrical Specification: | ||||||||||
Model | ||||||||||
JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 | |||||||
Number of phase | Phase | 3 | ||||||||
Number of poles | Poles | 8 | ||||||||
Rated voltage | VDC | 24 | ||||||||
Rated speed | Rpm | 4000 | ||||||||
Rated torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 | |||||
Rated current | Amps | 1.8 | 3.3 | 4.8 | 6.3 | |||||
Rated power | W | 26 | 52.5 | 77.5 | 105 | |||||
Peak torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 | |||||
Peak current | Amps | 5.4 | 10.6 | 15.5 | 20 | |||||
Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 | |||||
Torque constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 | |||||
Rotor inertia | g.cm2 | 24 | 48 | 72 | 96 | |||||
Body length | mm | 41 | 61 | 81 | 100 | |||||
Weight | kg | 0.3 | 0.45 | 0.65 | 0.8 | |||||
Sensor | Honeywell | |||||||||
Insulation class | IP30 | |||||||||
Degree of protection | -25~ +70℃ | |||||||||
Storage temperature | -15~ +50℃ | |||||||||
Operating temperature | 85% RH或以下（无结露）<= 85% RH | |||||||||
Working environment | No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust. | |||||||||
Altitude | 1000m or below | |||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||

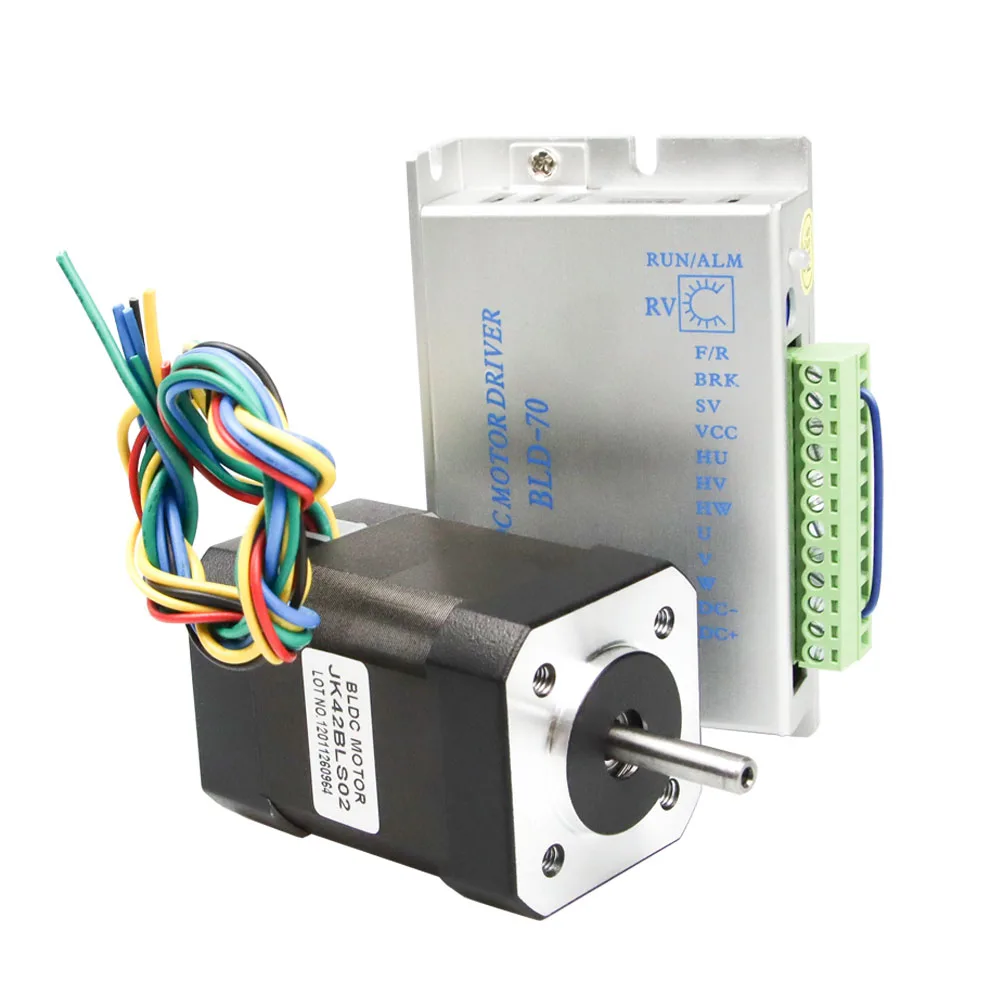

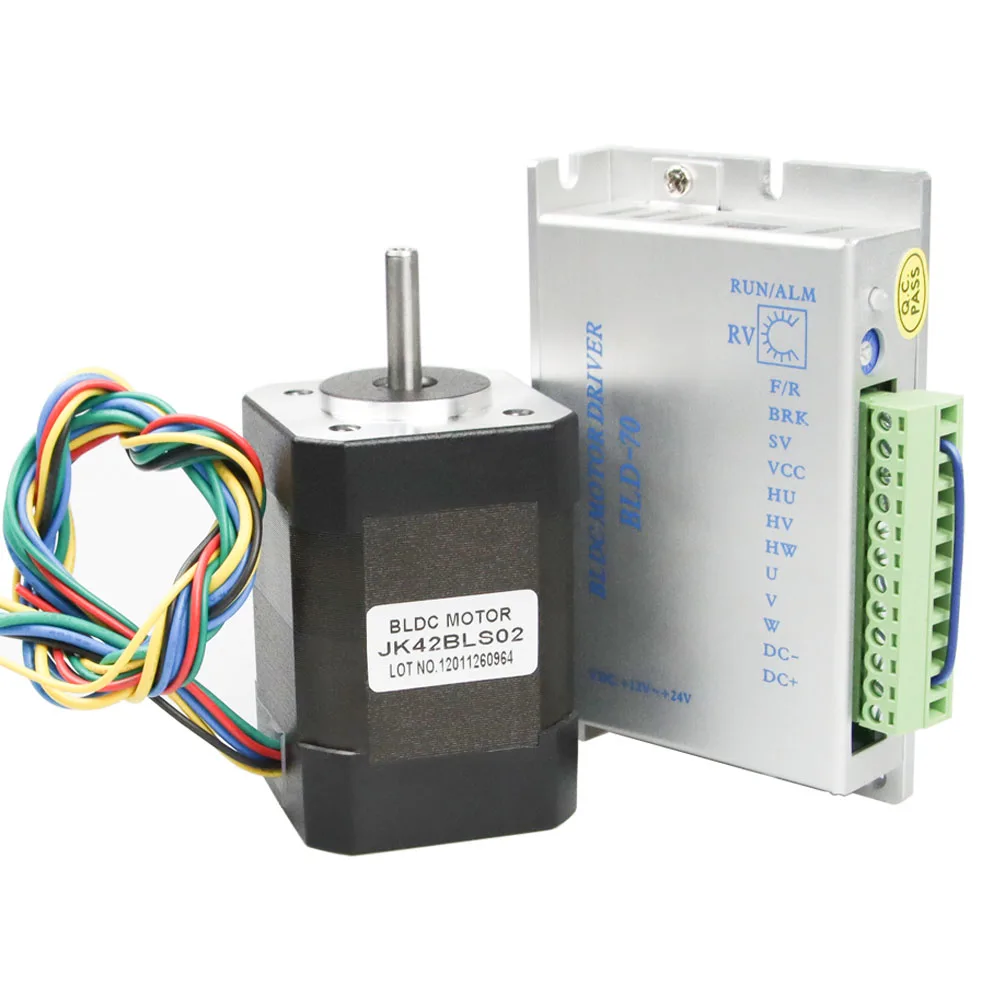

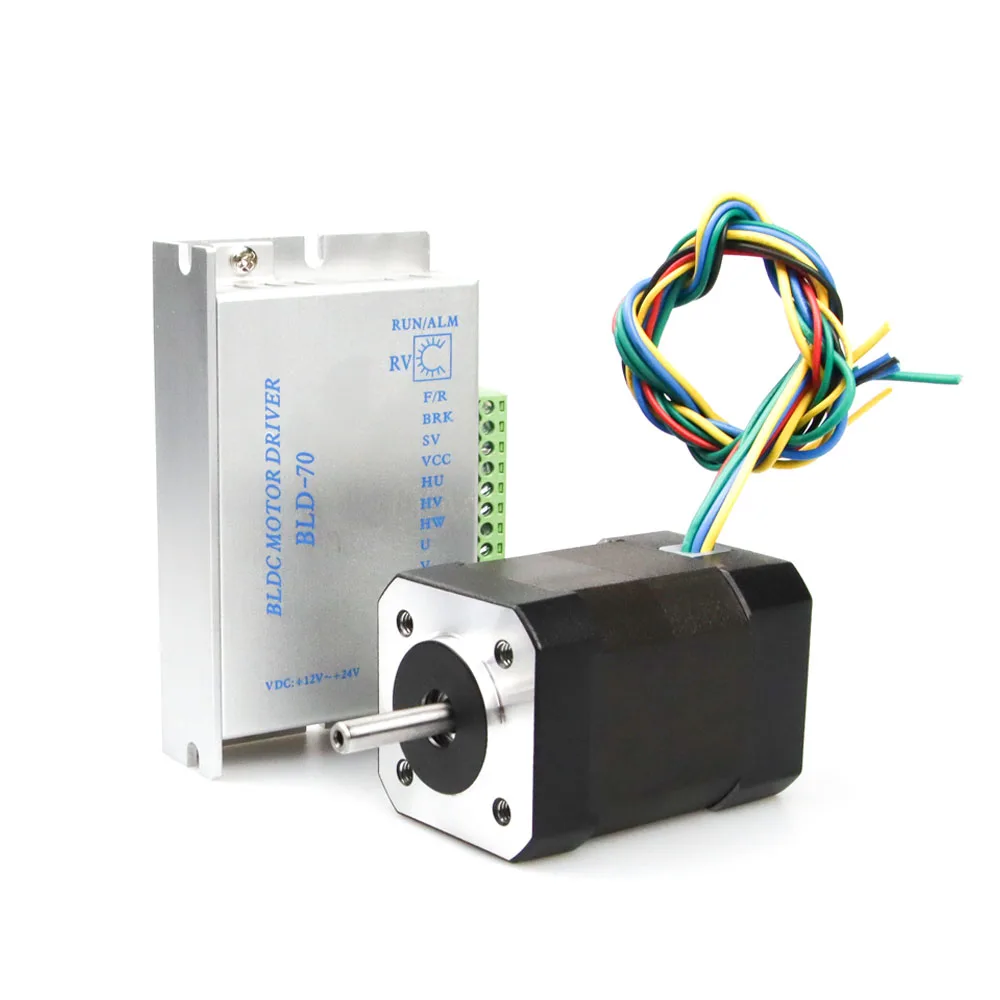

JKBLD70 JKBLD120 Brushless DC Motor Driver | ||||||||||
Environment Temperature | JKBLD70 | JKBLD120 | ||||||||
-10℃~ 50℃ | -10℃~ 50℃ | |||||||||
Input Voltage | +12V~ +24V | +12V~ +30V | ||||||||
Output Current | 0.05A~3A | Rated speed 8A, Maximum current monent 30A(<3s) | ||||||||
Suitable Motor Speed | 0~10000Rpm | 0~20000Rpm | ||||||||
Hall Sensor Voltage | 4.5V~ 6.5V | 4.5V~ 6.5V | ||||||||
External Potentiometer | 10KΩ | 10KΩ | ||||||||
Support Motor | Brushless dc motor less of 70w | Brushless dc motor less of 120w | ||||||||
JKBLD70 is a high performance, codt-effective 3 phase BLDC motor driver which can provide power output 70W max. The design is based on advanced current control technology and feature high torque, low noise, low vibration, over current protect, over load protection. | ||||||||||
JKBLD120 brushless dc driver is suit the following 3 phase since wavve power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, external analog control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the driver have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control. | ||||||||||

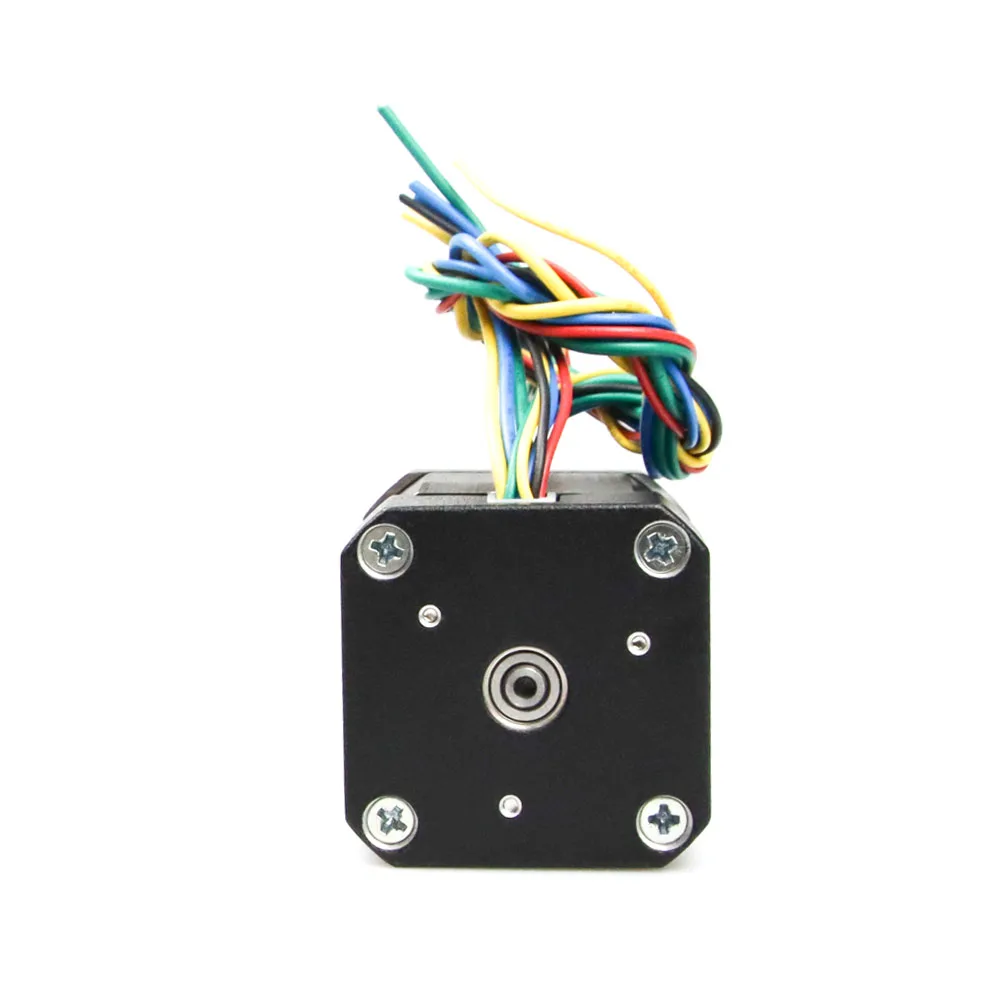

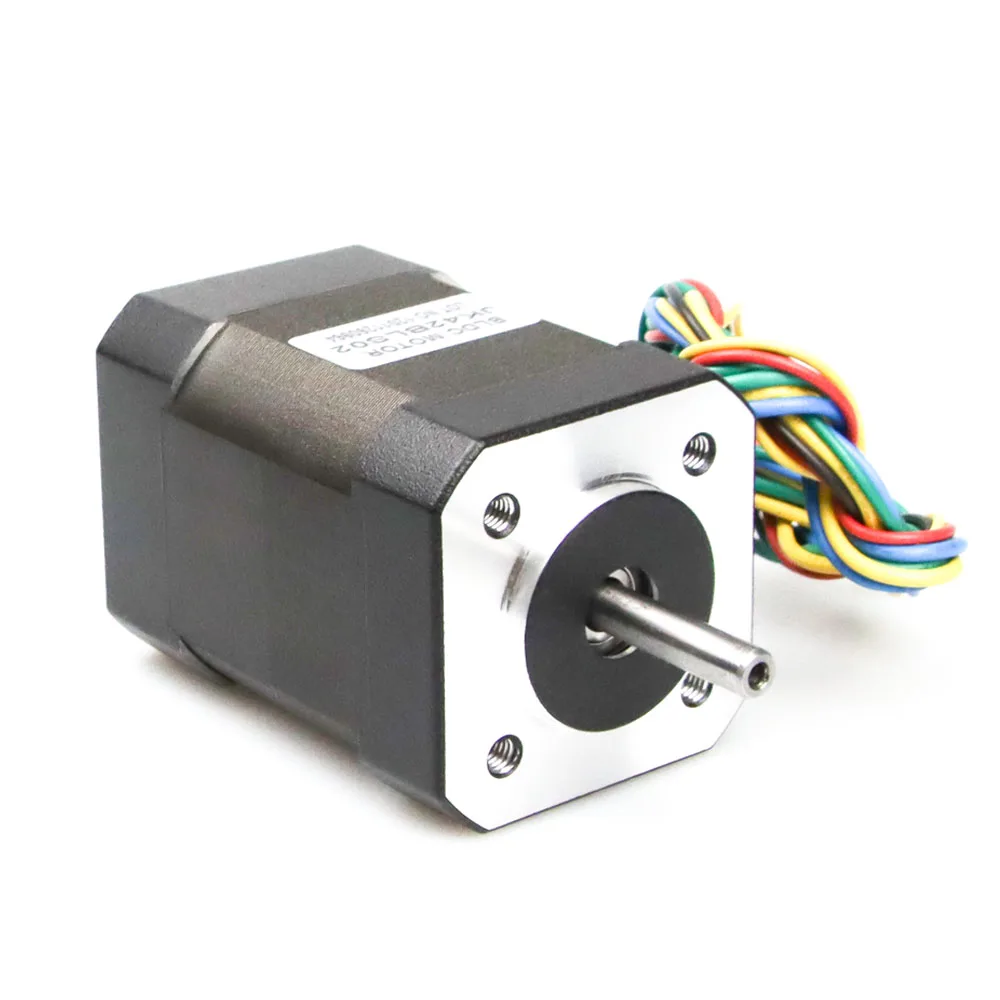

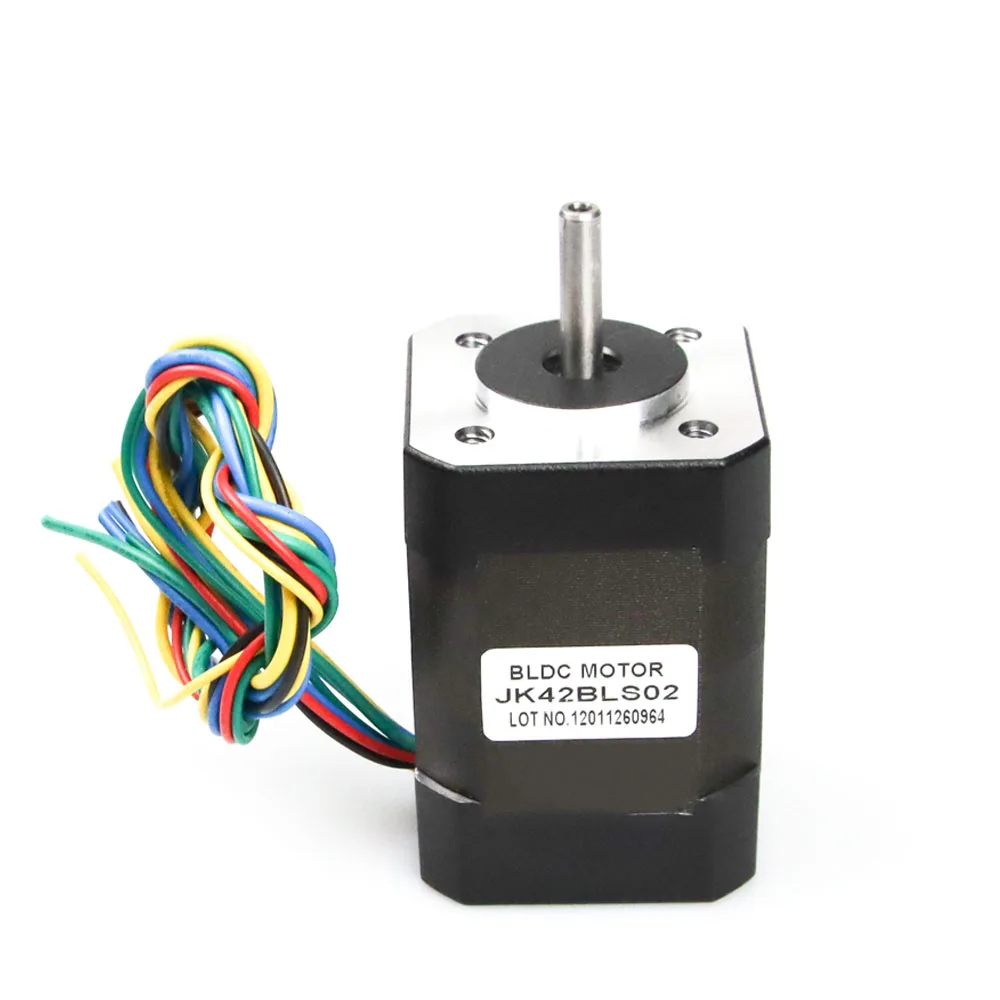

Details Images
Product Drawing
Company Profile
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Production Process
Packing
Certifications
FAQ
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
