Product description

Vertical design electric steam boiler ,the heating elements are completely submerged in water and completely insulated-high efficiency and  minimum radiation losses . After precision calculation&design, boiler could quickly and efficiently reach work pressure. Using low heat load surface heating elements-- not easily melted or softened.Each component with water pressure and withstand voltage test.Boiler could immediately work after connecting to power and water supply. Nearly 100% thermal efficiency--quiet, clean, more in line with environmental requirements, No atmospheric emissions  NOx (nitrogen oxides)





Technical Parameters

LDR Vertical Electric Heating Steam Boiler
Type			LDR0.15	LDR0.2	LDR0.3	LDR0.5
Project		Unit
Rated evaporation		t/h	0.15	0.2	0.3	0.5
Rated working pressure		MPa	0.7/1.0	0.7/1.0	0.7/1.0	0.8/1.0
Staturated steam temperature		℃	170/184	170/184	170/184	175/184
Input Power		KW	108	144	216	360
Input current		A	162	216	324	540
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	18×6	18×8/24×6	27×8	36×10
a Main steam valve diameter		DN	25	25	32	50
b Safety valve diameter		DN	25	25	25	40
c Inlet diamater		DN	15	15	25	25
d Blowoff  Valve diameter		DN	25	25	40	40
Overall size	L	mm	1100	1150	1300	1450
	W	mm	950	950	1100	1350
	H	mm	1950	2000	2100	2300

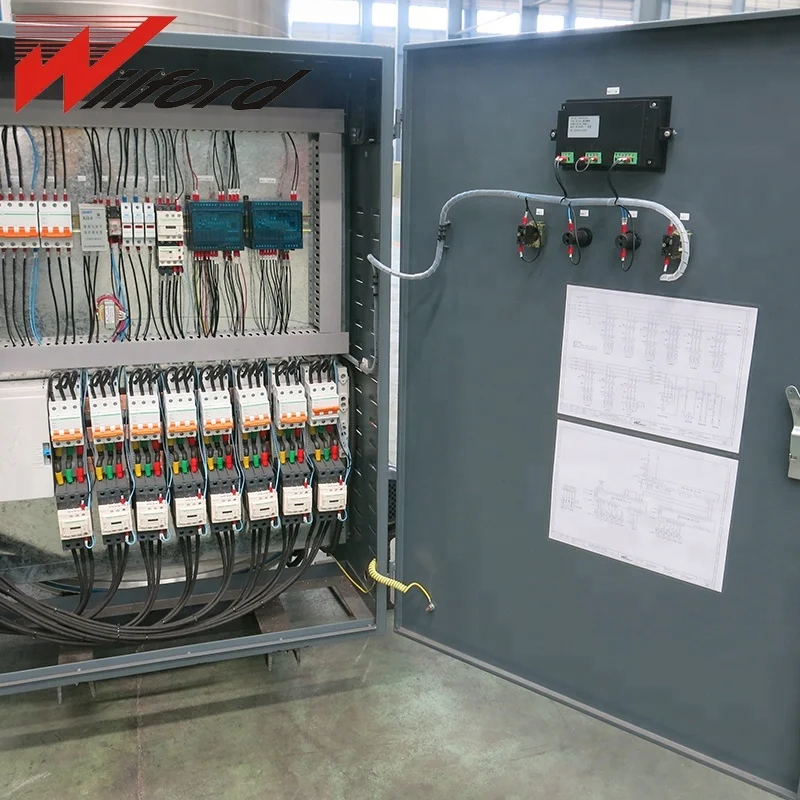

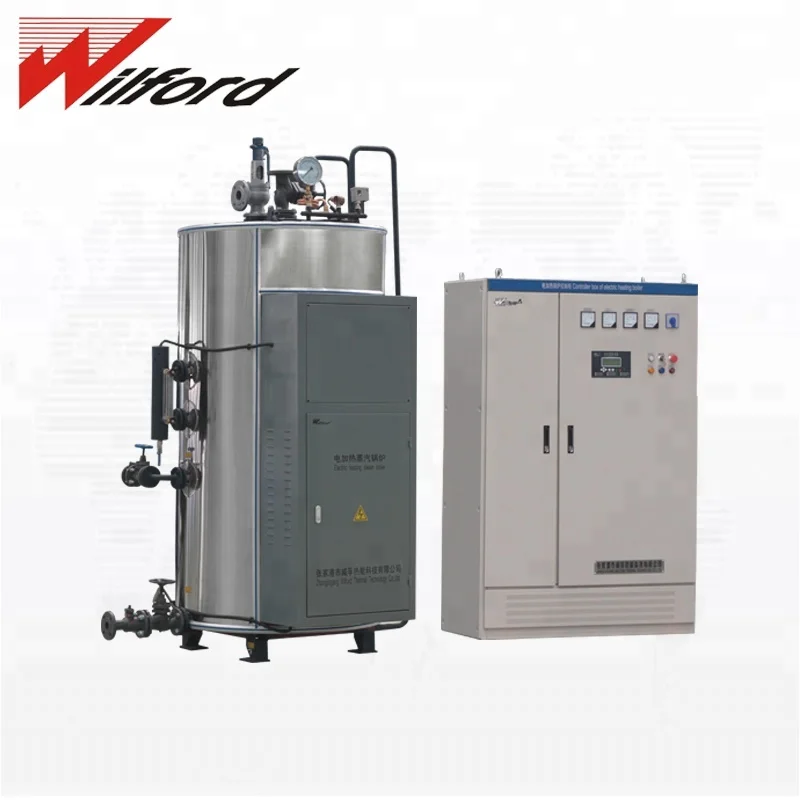

For boiler steam capacity up to or more  than 300kg/hr ,the structure is seperated --boiler with seperate electrical control cabinet.	A	mm	-	-	-	1200
	B	mm	-	-	-	600
	C	mm	-	-	-	2000
Weight		kg	350	450	680	980





Product Advantages

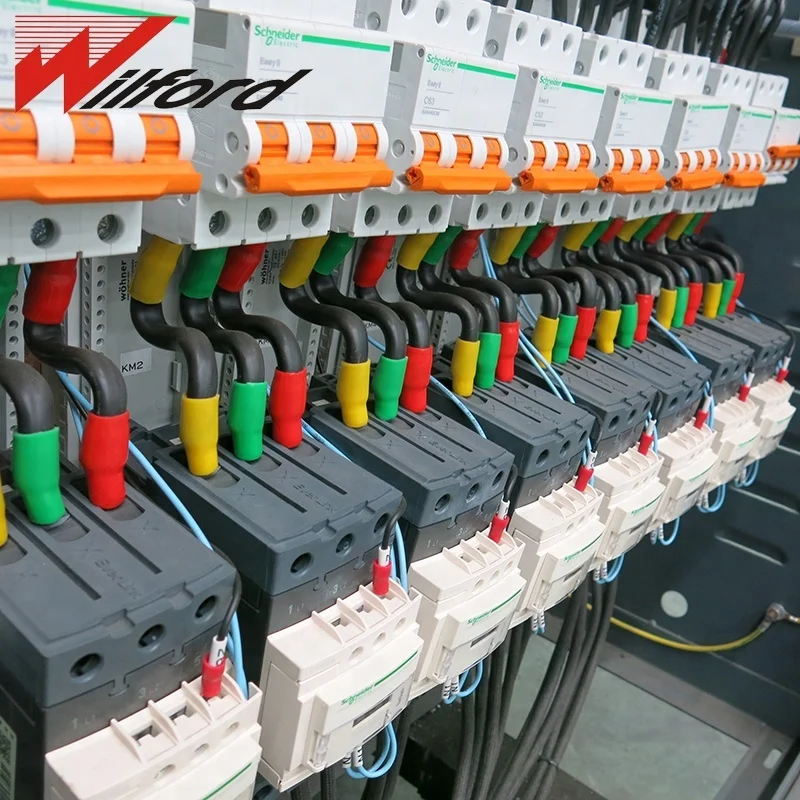

1.All electrical components with CE and UL marks --ensure safety and long life service.

2.Quickly start and stop, big operation load adjusting range,easily handling."

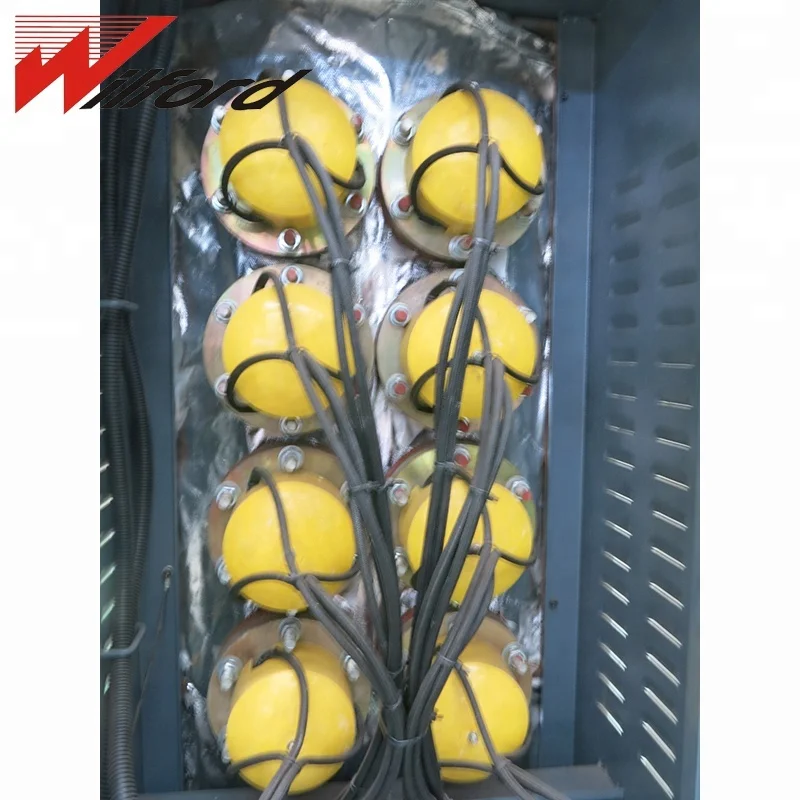

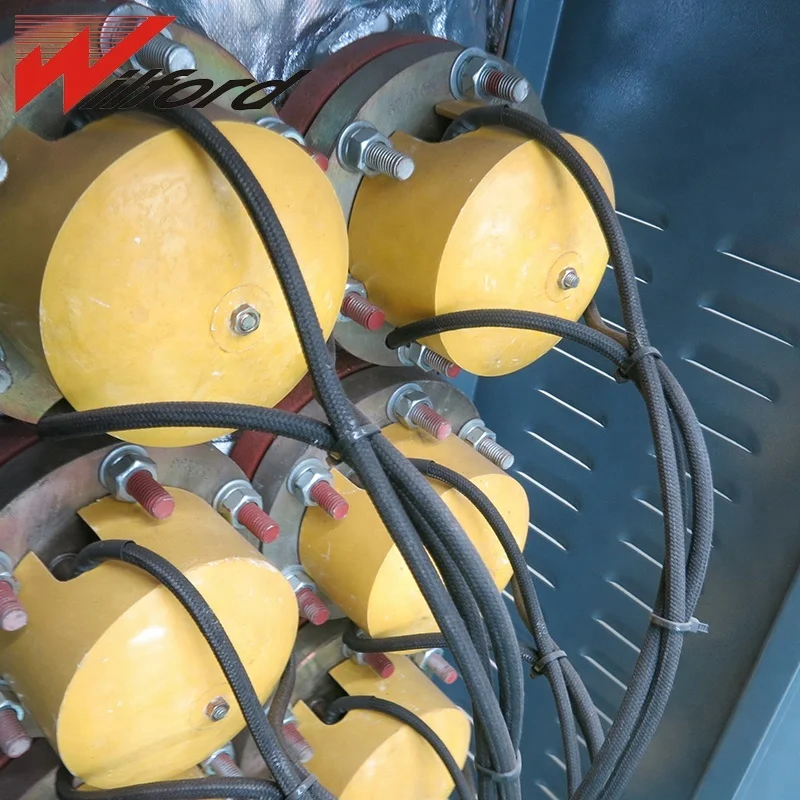

3.Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life."

4.Flexible working methods, could set either  manual or automatic mode."

5.Unique power switching function,could be regulated based on actual demand of steam power, make same usage time/frequency ,improve equipment service life."

6.When electric boiler heating element in a group has problem, could immediate stop operation the destroyed heating group and cut off power supply."

7. Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation."
