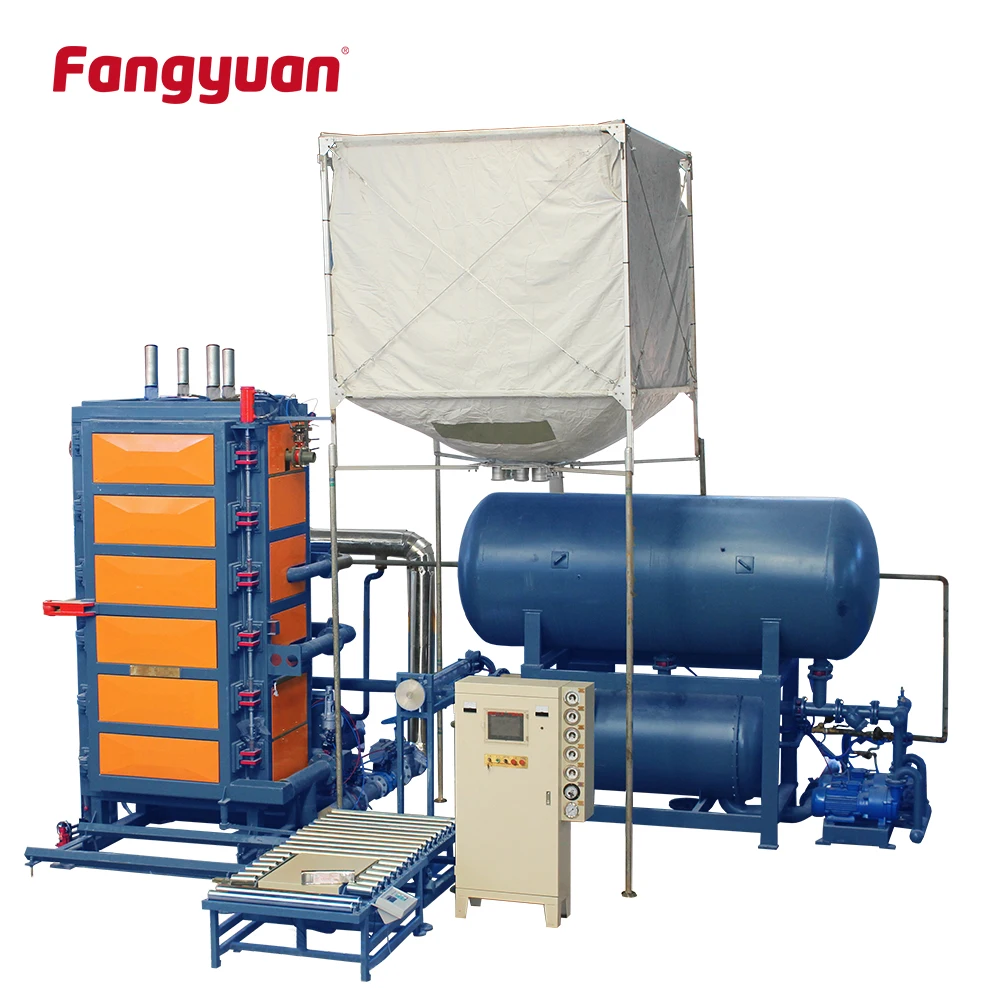

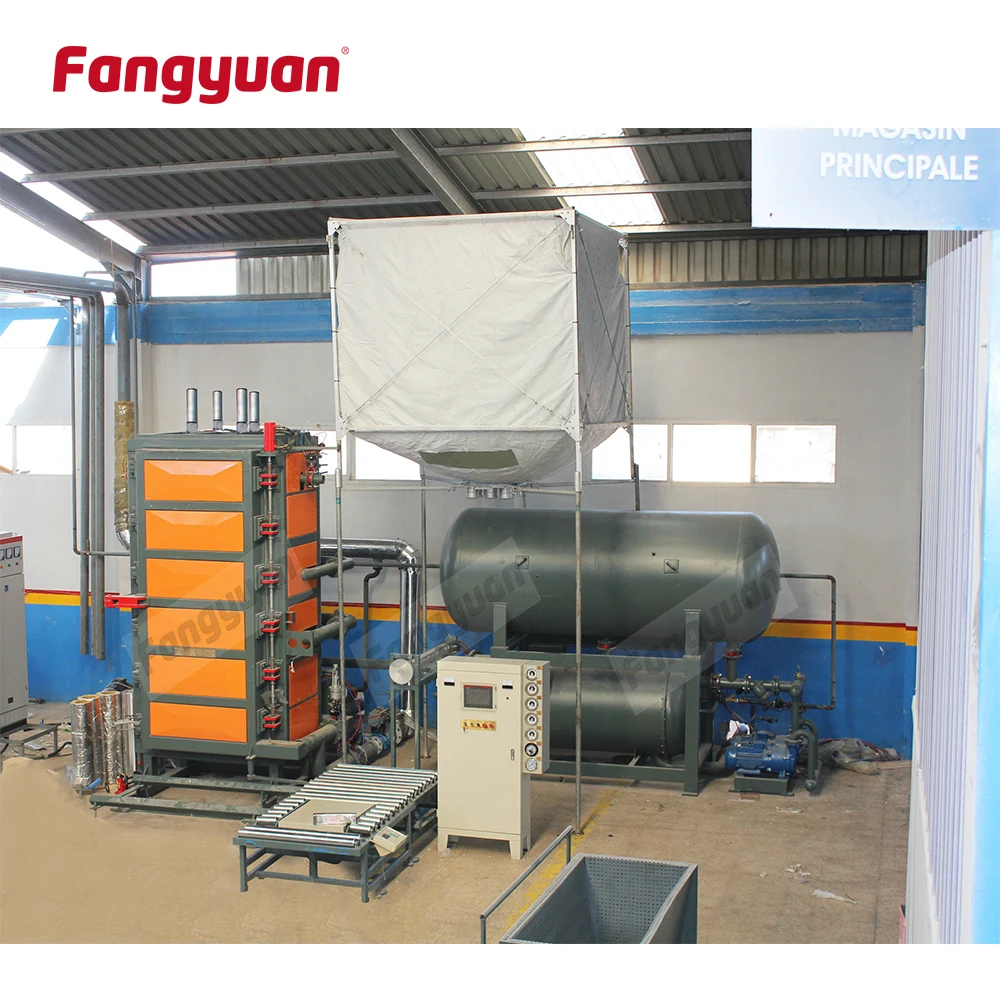

          SPB200-600LF eps machine polystyrene concrete block

The eps block production line has all advantages and features which is same to DZ/DF block molding machine;

1.Machine structure:

- The machine mould are welded by strong rectangle tube and steel plate with high strength frame, keep more safety;

- All block mould frame are processed by heat-treatment, the welding pressure will be released, so the frame would not deform easier, accurate machining process keep non-leakage;

- After heating treatment, all mould frame are processed by sand blasting treatment to get rust prevention, so under coat and finishing coat are greatly improved anticorrosion performance and long life;

- Adopts three Germany gauges and safety valve for double protection, the machine will be water pressure and steam many testing, ensure the machine more stable and safety.

2. Steam system:

- Adopts three ball valves to take place of one big steam valve (save steam 20%) with ISO-standard butterfly valves, greatly improved stably and long life;

3. Control system:

- Adopts PLC(Japan Mitsubishi) and touch screen (French Schneider) with easily operation;

- Equipped with material level sensor for control the filling, the block cooling is controlled by foam pressure sensor, it is realize the filling, heating, cooling and open block mould, the whole working procedure automatically.

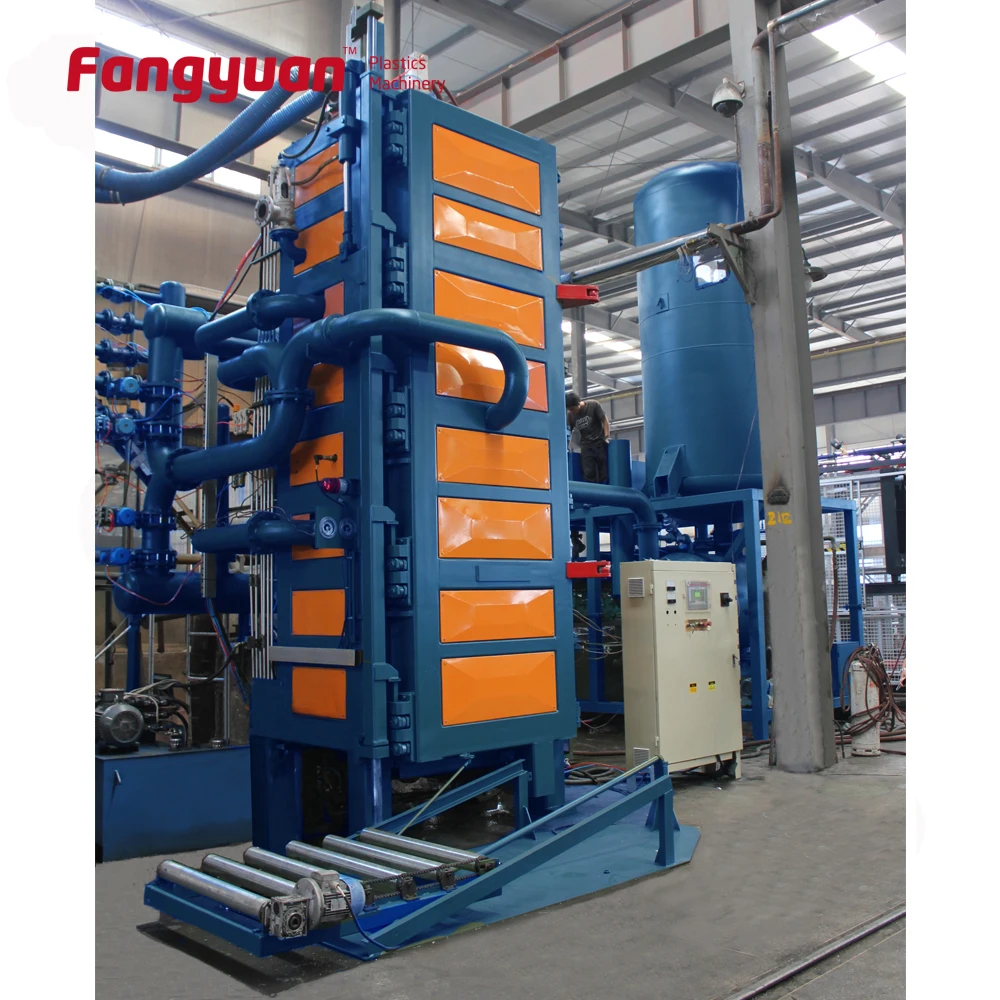

4. Vertical frame type:

- less space occupied, with good drainage performance, reduced low moisture content of blocks .



















Item		SPB200/LZ	SPB200/LF	SPB300/LZ	SPB300/LF	SPB400/LZ	SPB400/LF	SPB600/LZ	SPB600/LF
Mould Cavity Size		2040×1240 ×1030mm	2040×1240 ×630mm	3060×1240 ×1030mm	3060×1240 ×630mm	4080×1240 ×1030mm	4080×1240 ×630mm	6100×1240 ×1030mm	6100×1240 ×630mm
Block Size		2000×1200 ×1000mm	2000×1200 ×600mm	3000×1200 ×1000mm	3000×1200 ×600mm	4000×1200 ×1000mm	4000×1200 ×600mm	6000×1200 ×1000mm	6000×1200 ×600mm
Outside Dimensions	L×W×H	6700×4600 ×3500mm	2300×3800 ×3500mm	6700×4600 ×4500mm	2300×3800 ×4500mm	6700×4600 ×5500mm	2300×3800 ×5500mm	6700×4600 ×7500mm	2300×3800 ×7500mm
Weight		6.00t	4.20t	7.20t	6.00t	12.0t	8.50t	15.0t	9.50t
Room Height  Required		5000mm	6000mm	6000mm	6000mm	6000mm	6000mm	8000mm	8000mm
Note: We custom make machines according to customer's requirement.
