Carrier tape forming machine for SMD packaging
US $8000-$8500
Машина для формовки пищевых
- Категория: Оборудование для производства пластиковых изделий >>>
- Поставщик: Fujian,Baochuang,Machinery,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.98 $* | 0.26 $* |
| Aug-20-2025 | 0.4 $* | 0.4 $* |
| Jul-20-2025 | 0.47 $* | 0.17 $* |
| Jun-20-2025 | 0.84 $* | 0.22 $* |
| May-20-2025 | 0.13 $* | 0.64 $* |
| Apr-20-2025 | 0.42 $* | 0.56 $* |
| Mar-20-2025 | 0.2 $* | 0.9 $* |
| Feb-20-2025 | 0.16 $* | 0.59 $* |
| Jan-20-2025 | 0.56 $* | 0.75 $* |
Характеристики
Product Description
Machine Description

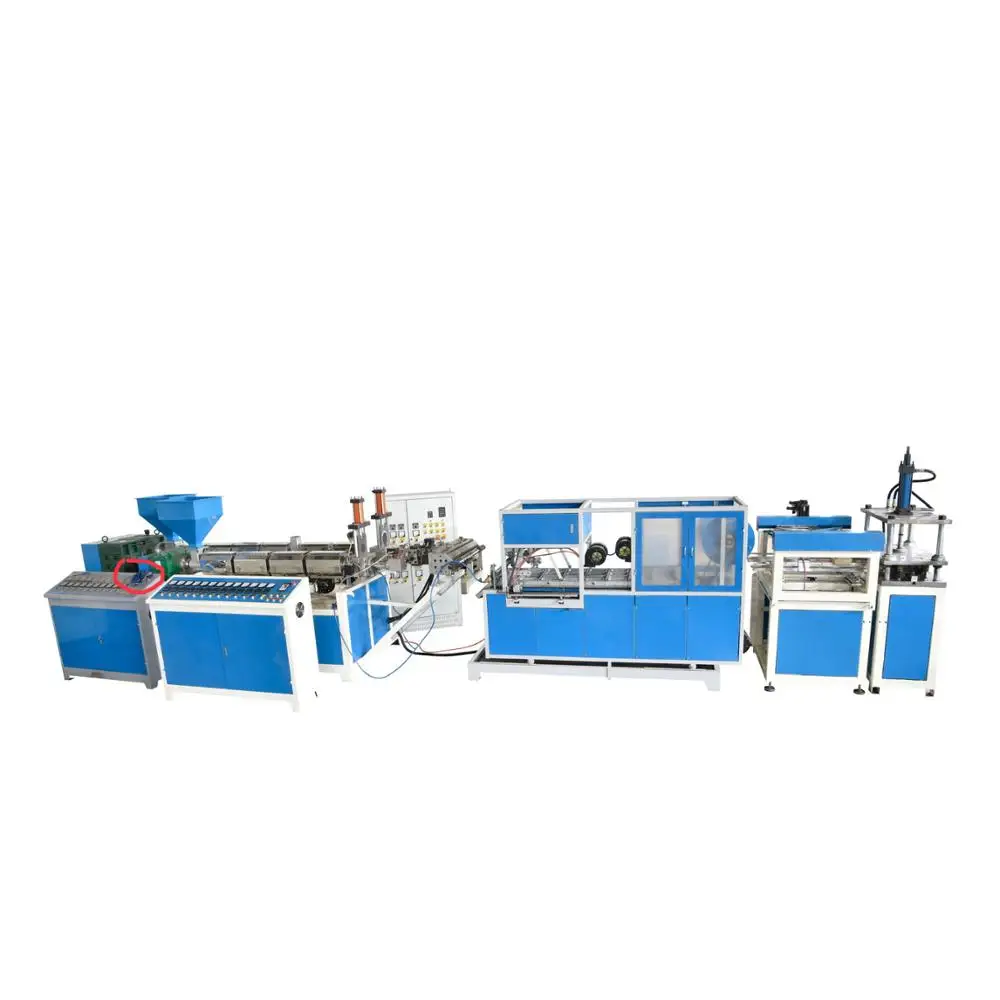

X-90 Fully Automatic Line
The Machine produces tableware by using a variety of raw materials such as PP(poly propylene), PS, PE,Calcium carbonate, plant fibre, Corn starch, Bamboo powder, Wood powder, Husk, Straw, and so on. It is able to manufacture a great variety of products such as bowl, cup, plate, dish, lunch box, cleaned vegetable tray etc.
Manufacturing Technique | ||||||||||
90Main Screw | 90mm | Power of main motor | 37KW | Pumping speed of vacuum pump | 70m3/h | |||||
Length-to-diametre ratio of main screw | 1:36mm | Power of sucking plastic and shaping section | 1.5KW | Pressure of air source | 0.5~0.7mpa | |||||
Screw rotation speed | 10~80r/min | Max shaping area | 600mm×260mm | Power supply | 380V50HZ | |||||
Heating system | 65A | Max shaping depth | 80mm | Weight of complete unit | 6T | |||||
Extrusion output | 120kg/h | Working speed | 25-32s/min | Machine size(mm) | 7000*1200*2000 | |||||
Hourly Output Capacity | ||||||
Plate Size(mm) | 40%Starch, 40%PP, 20% Calcium Carbonate | 40%PP, 60% Calcium Carbonate | 60%PLA， 40% Talcium | |||
240*240*90 | 1600-1800 | 1800-2000 | 2000-2200 | |||
200*140*70 | 2400-2600 | 2600-2800 | 3400-3600 | |||
150*150*80 | 1800-2000 | 2000-2200 | 2200-2400 | |||
220*120*80 | 2400-2600 | 2600-2800 | 3400-3600 | |||
The main advantages
1. Eliminates the drawing piece of manufacturing process
2. The plastic pellets can be formed directly and the gate plastic can be reused again.
3. Above process can save energy for re-heating the drawing piece, The electricity consumption of X-80 Production Line is 13 degrees per hour, and 15 degrees per hour for X-90 Production Line .
4. The thickness of the product can be controlled easily
5. It is adapted to producing inner or outer food container each as DO-FU box,jelly cup,fast food box,bowls,tray made of PP or other environment protection material.
6. Environmental Protection, This machine line is able to produce products with 70% starch, or up to 30% plant fiber(Bamboo powder, Wood powder, Husk, Straw)
8. Low-cost,This machine produces products with 80% Calcium carbonate.( the price of Calcium carbonate is about 61 USD per ton in China).
9. We provide the formula of producing products, and formula of producing Biodegradable boxes. The certificated degradation rate reaches 80% in 28 days.
10. This machine line and our formula has been certificated by CE, SGS. What is more, we owns a number of national patents. The products produce by this machine has been Inspected by Chinese Research Academic of Environmental Science Solid Institute and National Research Center for Environmental Analysis and Measurement.
2. The plastic pellets can be formed directly and the gate plastic can be reused again.
3. Above process can save energy for re-heating the drawing piece, The electricity consumption of X-80 Production Line is 13 degrees per hour, and 15 degrees per hour for X-90 Production Line .
4. The thickness of the product can be controlled easily
5. It is adapted to producing inner or outer food container each as DO-FU box,jelly cup,fast food box,bowls,tray made of PP or other environment protection material.
6. Environmental Protection, This machine line is able to produce products with 70% starch, or up to 30% plant fiber(Bamboo powder, Wood powder, Husk, Straw)
8. Low-cost,This machine produces products with 80% Calcium carbonate.( the price of Calcium carbonate is about 61 USD per ton in China).
9. We provide the formula of producing products, and formula of producing Biodegradable boxes. The certificated degradation rate reaches 80% in 28 days.
10. This machine line and our formula has been certificated by CE, SGS. What is more, we owns a number of national patents. The products produce by this machine has been Inspected by Chinese Research Academic of Environmental Science Solid Institute and National Research Center for Environmental Analysis and Measurement.
Machine Details

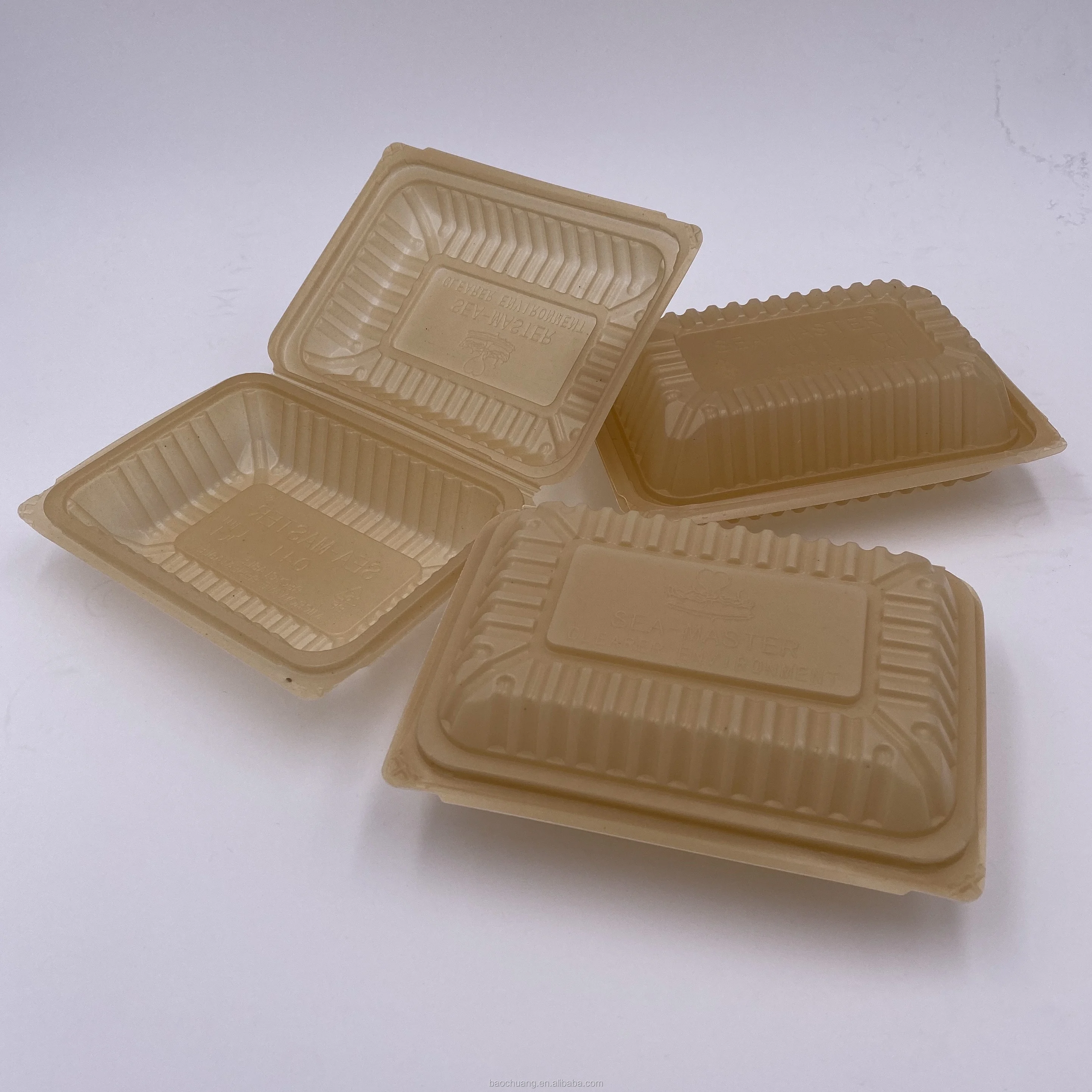

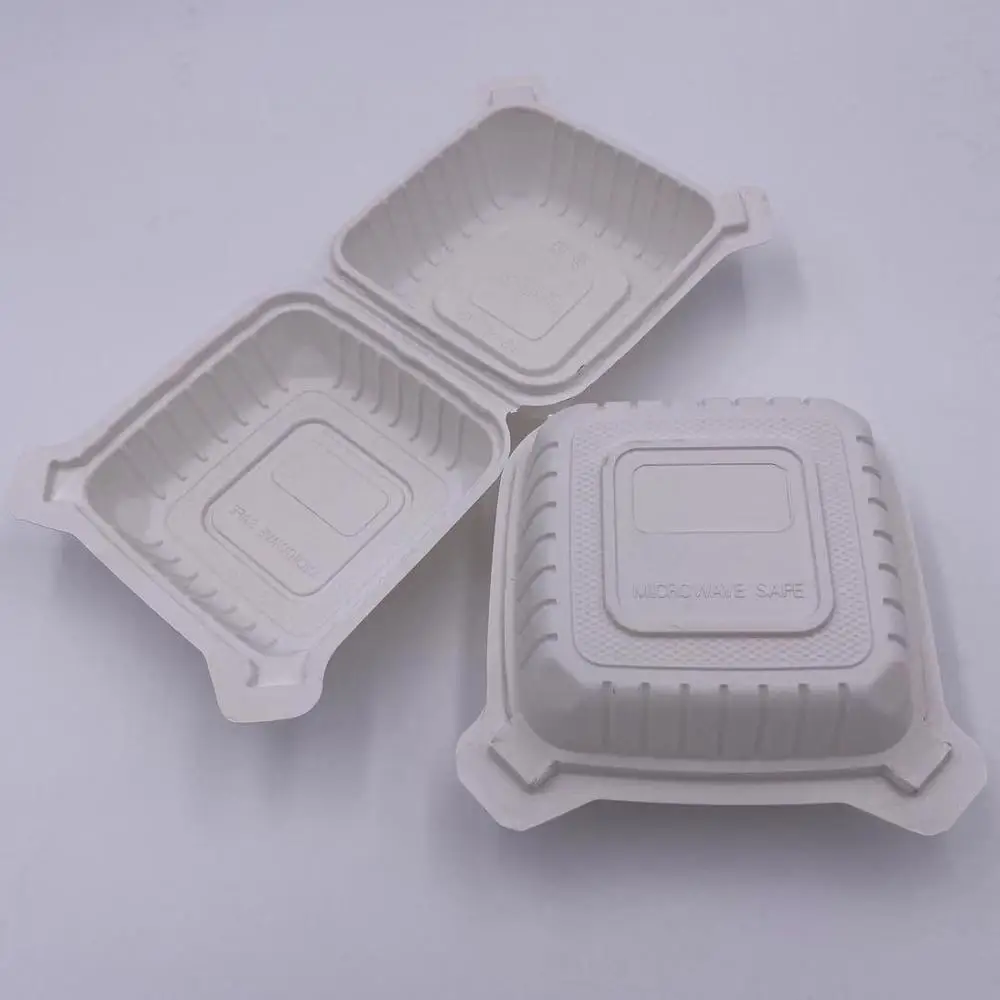

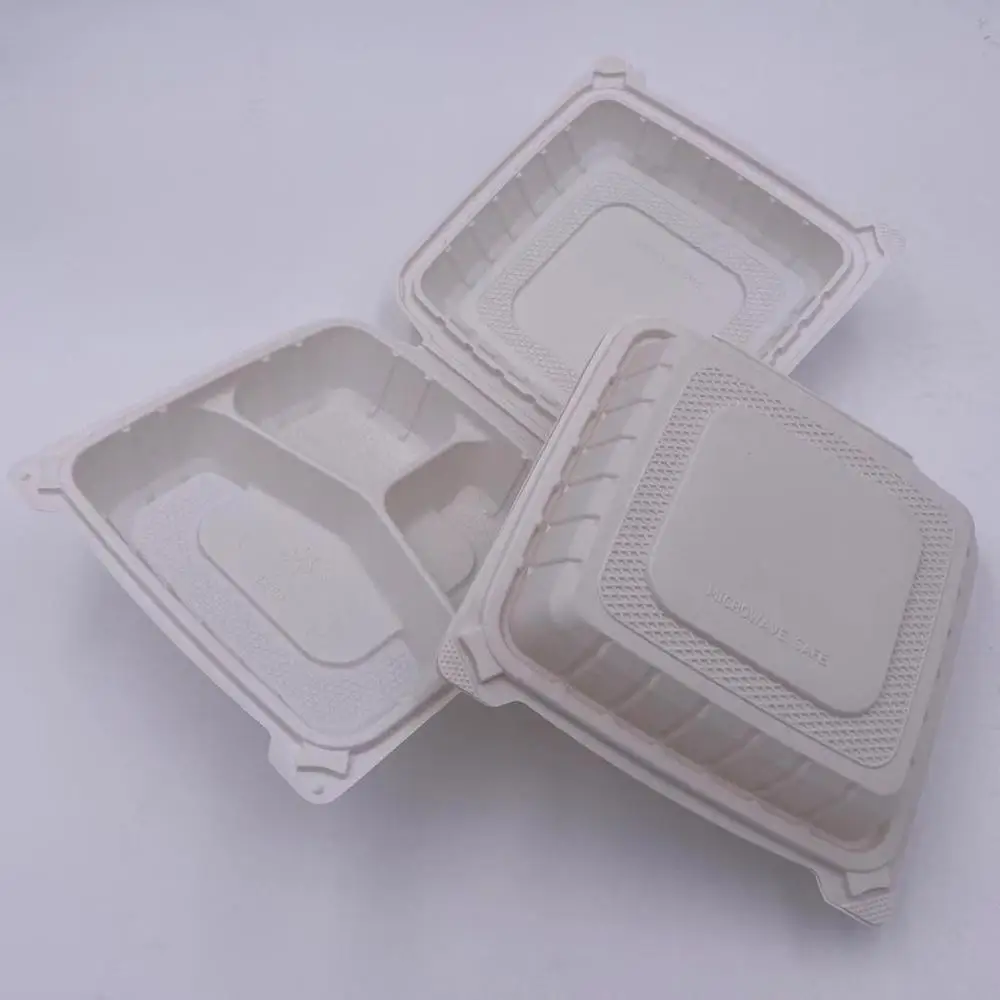

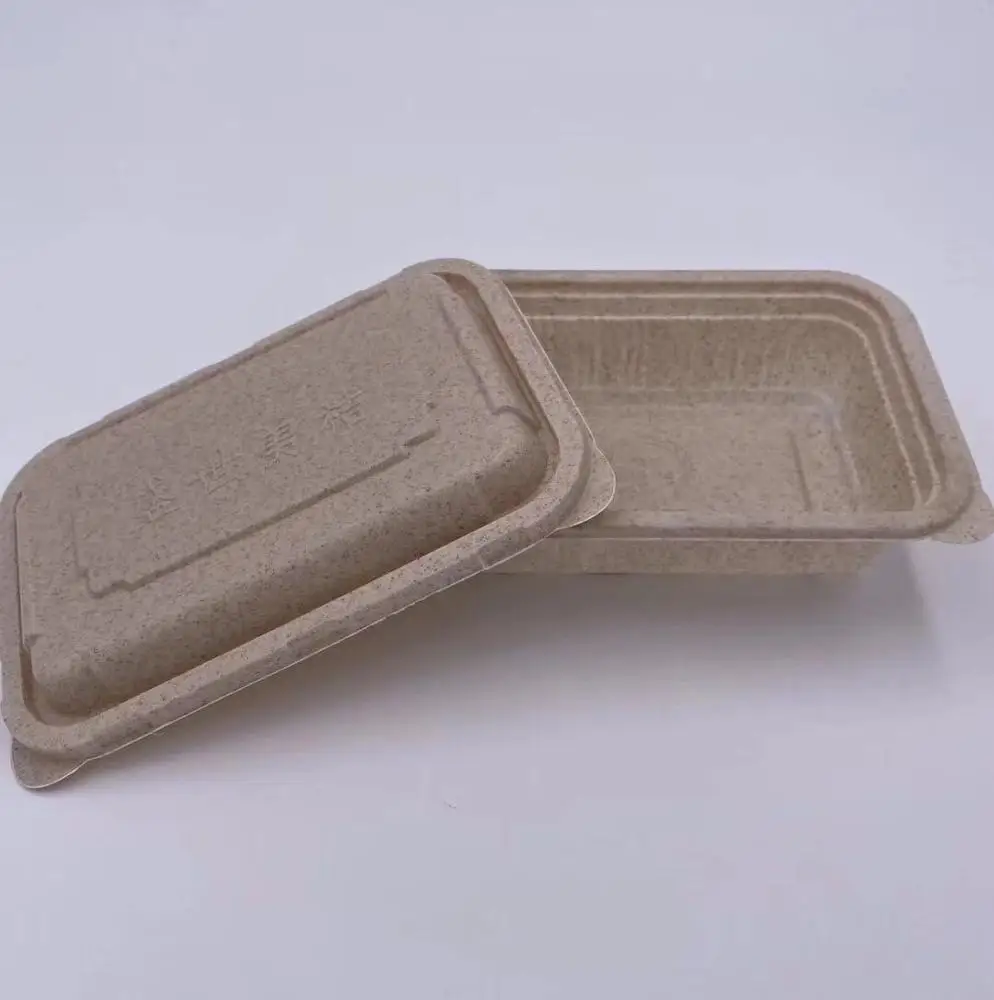

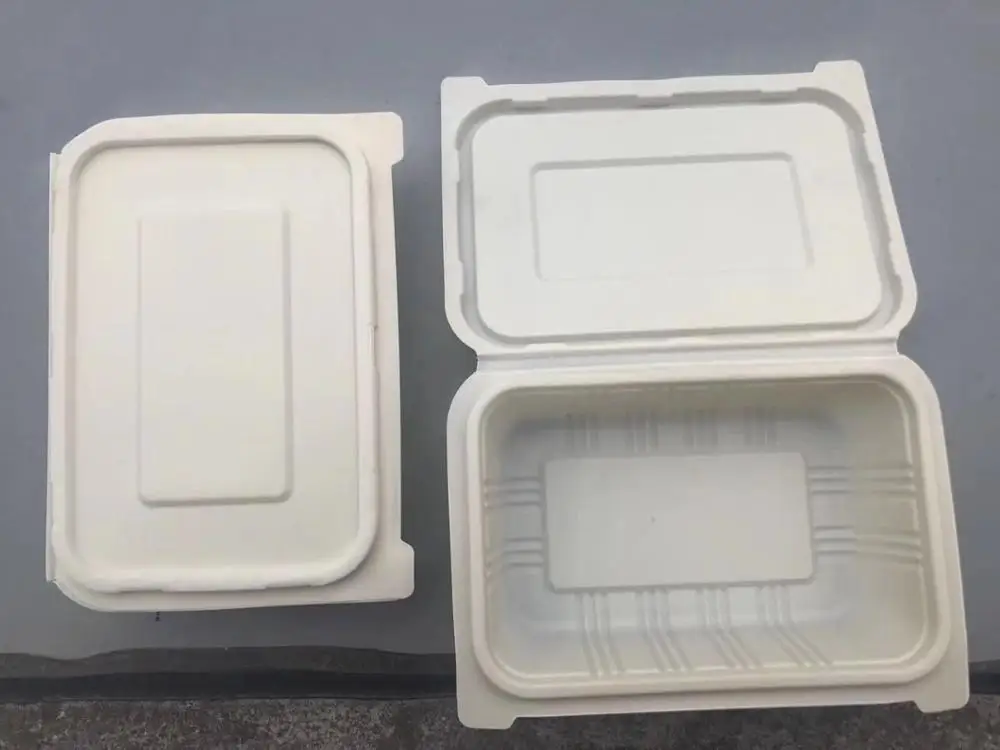

Sample Products
Certifications and Patents
Company Profile
Fujian baochuang Machinery Industrial Co., Ltd.
The company is located in Fuzhou, Fujian Province, the factory covers an area of 43 acres. Located in Minhou Jingxi Minhou Tieling Economic and Technological Development Zone one on the 9th Road on the 9th. Mainly produces one-step extrusion plastic molding machine products; computer tableware machine products; single screw, twin screw extruder; high-speed mixer and plastic packaging molding machinery, after ten years of business the company has developed accumulation design and development of new products. Has dozens of national patents, products in the domestic similar products leader. Products exported to Southeast Asia, Africa, the Americas, Europe, and more than twenty countries. Products by "sgs" identified by EU standards. Company technical personnel from Institute of Chemical Engineering, Fuzhou, Fuzhou Plastics Research Institute, Fuzhou BYK technical backbone of the Institute of Light Industry.
Company Address: 21 Fuzhou Road Tongpan 307 (Provincial Revenue opposite) (Zuohai Park on the right)
Tel: 0591-87829330
Fax: 0591-87829330
Company Address: 21 Fuzhou Road Tongpan 307 (Provincial Revenue opposite) (Zuohai Park on the right)
Tel: 0591-87829330
Fax: 0591-87829330
Whatsapp:+86 15705988886
Whatsapp:+86 13075824845
Web:http://www.baochuang.com/EN/index.asp
Web:http://www.baochuang.com/EN/index.asp
