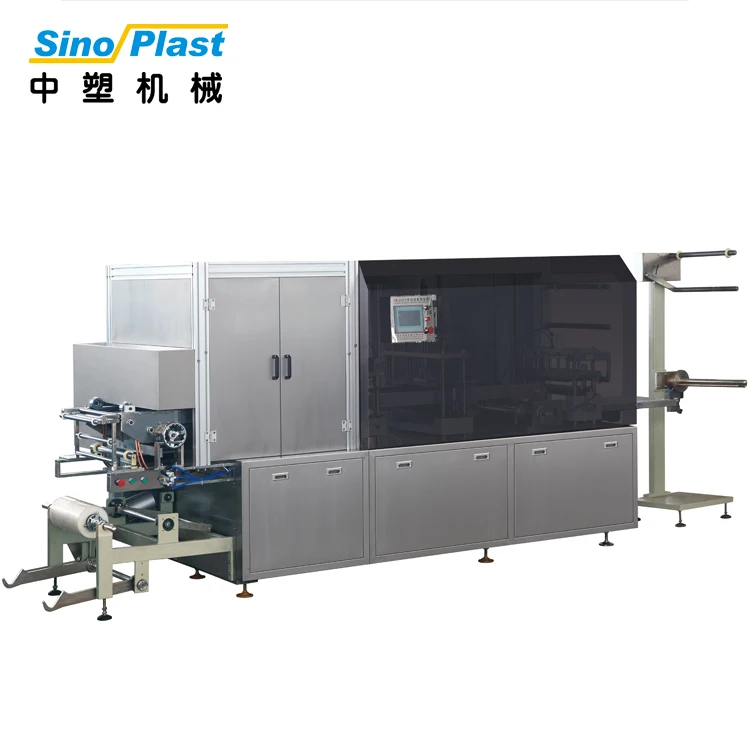

SINOPLAST Wholesale Products Dome Ice Cream Cup Lid Making Machinery
Main Technical Parameter:
Model | SPBK-410S |
Suitable Material | PS/HIPS/PVC/PET |
Journey Range | 30-160mm |
Max Forming Area | 410x150mm |
Max Forming Depth | 30mm |
Total Power | 10KW |
Power Consumption | 4-5KW |
Required Sheet Width | 430mm |
Required Sheet Thickness | 0.15-0.55mm |
Air Pressure | 0.4-0.7MPa |
Air Consumption | 0.6-0.8m³/min |
Water Consumption (recycle) | 60 liters/hr |
Punching Frequency | 8-32 times/min |
Power Voltage | 380V/50HZ |
Approx. Machine Weight | 1000kg |
Approx. Machine Dimension | 2700×830×1450mm |
Usage:

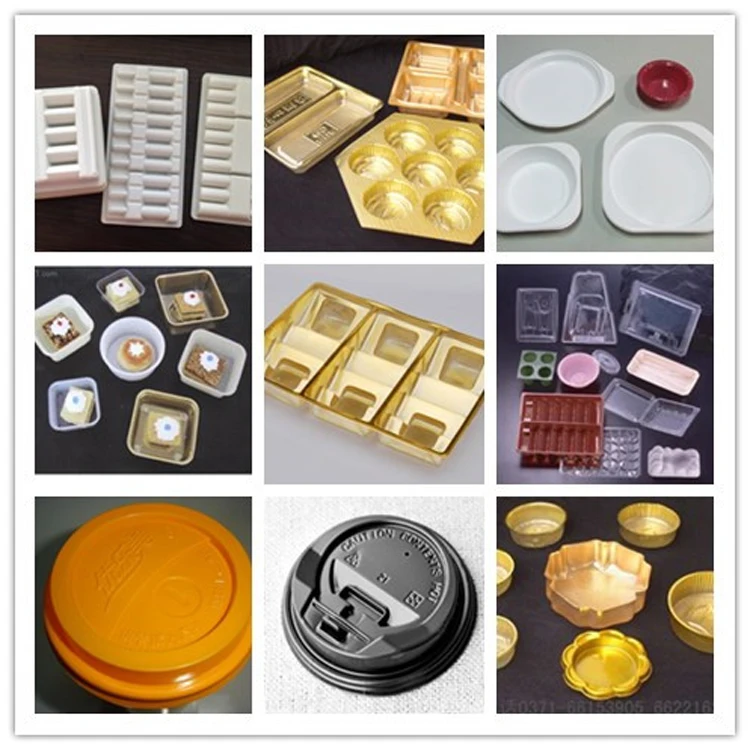

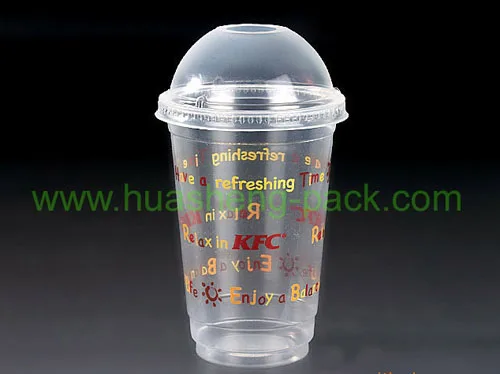

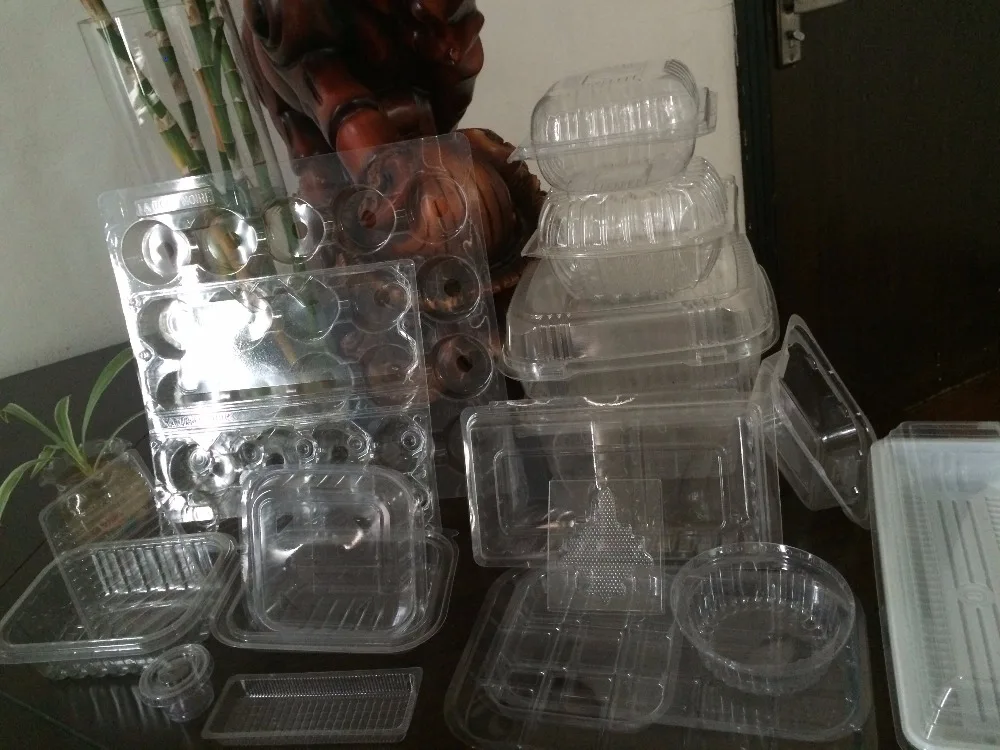

This machine is specially designed for making disposable HIPS/PVC/PET lids for plastic/paper cups, mini soup spoons, trays for medicine and etc.
Characteristic:
1. This machine adopts sheet roll feeding, heating, molding, hole or cross punching, trimming, finished products transmission automatically, which saves labor and avoids product pollution during the production.
2. This machine is controlled by PLC with interface, which is easy operation and maintenance.
3. The journey of this machine is adjustable, and easy to change the moulds for different sizes of products.
In a word, this is a perfect machine with small workshop requires, less electricity consumption, less labor invests, less waste sheet appears, but high output, favorable price, easy operation and maintenance.
Pingyang Sinoplast Machinery Co.,LTD is a full service manufacturing company and willing to supply mould, plastic cup making machine,thermoforming machine,vacuum forming machine,printing machine, eps foam sheet extruder,auxiliary machine and other machineries in mechanical industry.We produce many different types products for your selection.
1 year warranty after installation, if the spare parts is broken in the warranty period, we will send replacement parts as free, but delivery cost will be paid by buyer.
INSTALLATION AND TRAINING:
We can send 1-2 engineers to install and set up machine, but all the charges should be paid by buyer.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How does your factory do regarding quality control?
A: We have passed the ISO9001:2000 Quality Management System and CE certifate and we have a special QC department in charge of products' quality.
3. Q: How long is the warranty period?
A: Cam System three years, others machinery have one year warranty,
4. Q: What's the main market of your company?
A: Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory?
A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located?
A: Our factory is located in Xingbei Road, Doubei Village, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China.
8. Q: How to reach our factory?
A: It will take 50 minutes from Wenzhou Airport by car, 25 minutes from Ruian Highspeed Rail Station by car.
