Ветровой контроллер на сетке 2 кВт заряда ветра 220 В завязки сетки ветровой

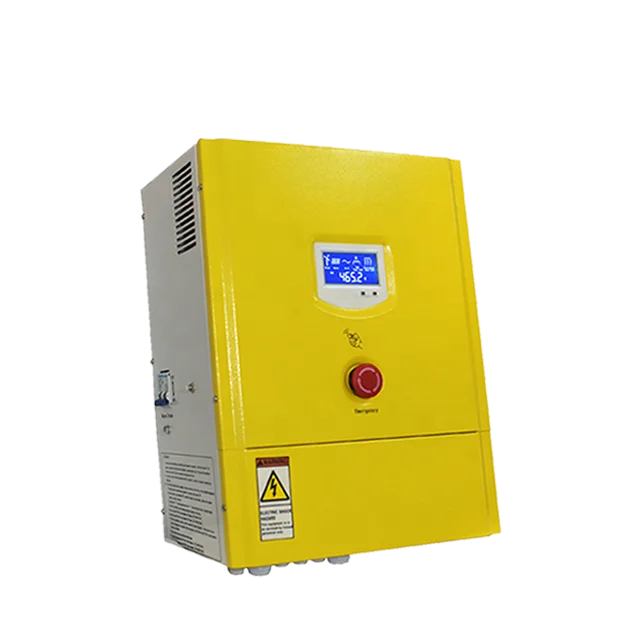

FKJ-GT (Grid-tie) model On grid Wind Turbine Controller Product Characteristics

1.The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T

19115.1-2003 national standard also with users’ technical requirements.

2.Big LCD display.The images tell working state visually.Various data show: real-time wind

turbine voltage,current,solar panel voltage,current,DC output voltage,current,total power

generation(The main board is with button battery,in case of power failure, history data can

be saved for 30 days)

3.Two sets of control systems:PWM constant voltage system and three-phase dump load

system.

4.PWM constant voltage control is 120% of the rated power of the wind turbine. In case

exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately. After 10-20 minutes, the three-phase dump load will stop and the wind turbine will re-start to resume power supply to ensure the safe running of the overall wind turbine generation system.

5.When the strong or super-strong wind conditions, the controller can conduct constant voltage output to ensure the inverter safety running.

6.When the condition of disconnected grid-connected inverter, the controller can conduct

constant voltage output and wait for inverter resumption.

7.When the grid is cut off, the three-phase dump load of the controller will automatically start to

work and the inverter will stop output to grid. When the grid resuming, the controller stops

three-phase dump load and the inverter will resume power supply.

8.The inside of the controller is equipped with surge protector. Contain the over voltage into

the wind turbine under the bearable voltage of the equipment or system. On another way, to

conduct the strong lightening current into the earth directly to avoid any damage of equipment.

9.The controller is equipped with emergency stop switch; in case of emergency, press down the emergency stop button in the front panel to cut off all power supply of the controller and the wind turbine will immediately brake(three-phase dump load).

10.The controller is equipped with manual three-phase dump load switch. To using this switch,

the wind turbine will brake (three-phase dump load).

1. Adopt Modbus Communication protocol. Convenient to carry out the secondary development.

2.  Adjusting the technical specification via RS485 is available.Convenient to adjust the different wind turbines for professional customers.

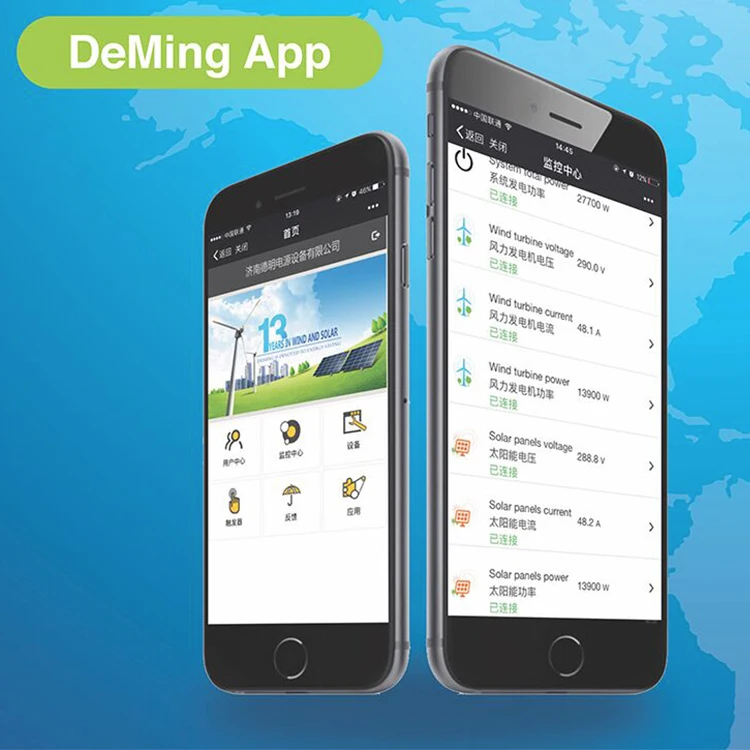

3.  Support WIFI and GPRS.Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history working sate.Both Android and OS are compatible in Mobile.

4.  Can increase the solar panel control system according to customer requirements.

5.  For the different wind turbine, the controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake,hydraulic brake, electromagnetism brake and other brake functions.

Technical Parameters of the On Grid Wind Turbine (wind solar hybrid) Controller

1.5KW-3KW

 2000W Grid Tie Wind Controller PWM Wind Turbine Controller

Above parameter only for reference

1. Could be custom made to user specifications.  2, Could have solar power control subject to user demand.

  Service guarantee

         As our corporate users, you enjoy the following service:
        (1) The machine warranty for free in 2 year;
        (2) Technical support;
        (3) Within 24 hours for respond after receiving notification;
        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.
  However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;
       (2) Install or modify arbitrarily;
       (3) Incorrect operation or use;
       (4) Do not depending on the manual to do cleaning or maintenance;
       (5) Abnormal environment condition exceed the specifications, result in damage;
       (6) The deliberate destruction of man-made;
       (7) Irresistible natural disasters.

,
