Оптовая продажа ортопедическая Беспроводная электрическая Аккумуляторная дрель пила Набор Расширителей для ортопедических операций


Поделиться:


Цена:753,38 ₽ - 301 351,60 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 956.97 $* 975.30 $*
Jul-19-2025 776.32 $* 792.28 $*
Jun-19-2025 941.78 $* 960.91 $*
May-19-2025 934.15 $* 953.97 $*
Apr-19-2025 745.33 $* 760.34 $*
Mar-19-2025 919.4 $* 937.76 $*
Feb-19-2025 911.36 $* 929.74 $*
Jan-19-2025 904.29 $* 922.96 $*

Характеристики

Wholesale orthopedic cordless electric battery operated drill , saw , reamer set for orthopedic surgeries (NM-100)



Application

All medical instruments and devices are broadly applied in traumatic surgery ,joint surgery ,orthopedic surgery ,neurosurgery operations .K wires or be used in intermediary interlocking nail surgery or arthroscopic surgery.  whole unit is autoclavable,imported motor ensure low noise,high speed,high proper alignment ,long service life , the machine is warranty for 12 moths. can adopt various flexible reamer ,chuck easily during the process of surgery .

Spec data

Main data

Hand pieceworking voltage14.4 V
Ooutput power20 W
unit rise in temp25°C
ChargerInput voltageAC 220V,50HZ/ 110V,60HZ
Output power14.4v 900ma
Input power 30 W
Batteryvoltage14.4 V
charging time3 hours

Individual product data

productspeednoisediameter run-outtorque
Normal bone drill0-1300 r/m≤65db≤0.5mm≥1.6NM
Cannulated bone drill0-600 r/m≤65db≤0.5mm≥3.5NM
Oscillating saw0-18000 osc/m≤75db
AcetabulumSlow drill0-300 r/m≤65db≤0.5mm≥6.5NM
Sternum saw0-15000 ocs/m≤75db
Craniotomy drill0-900 r/m ≤40db
Craniotomy mill 0-40000 r/m≤40db
Grinding drill0-40000 r/m≤65db ≥1.25NM
Product Description

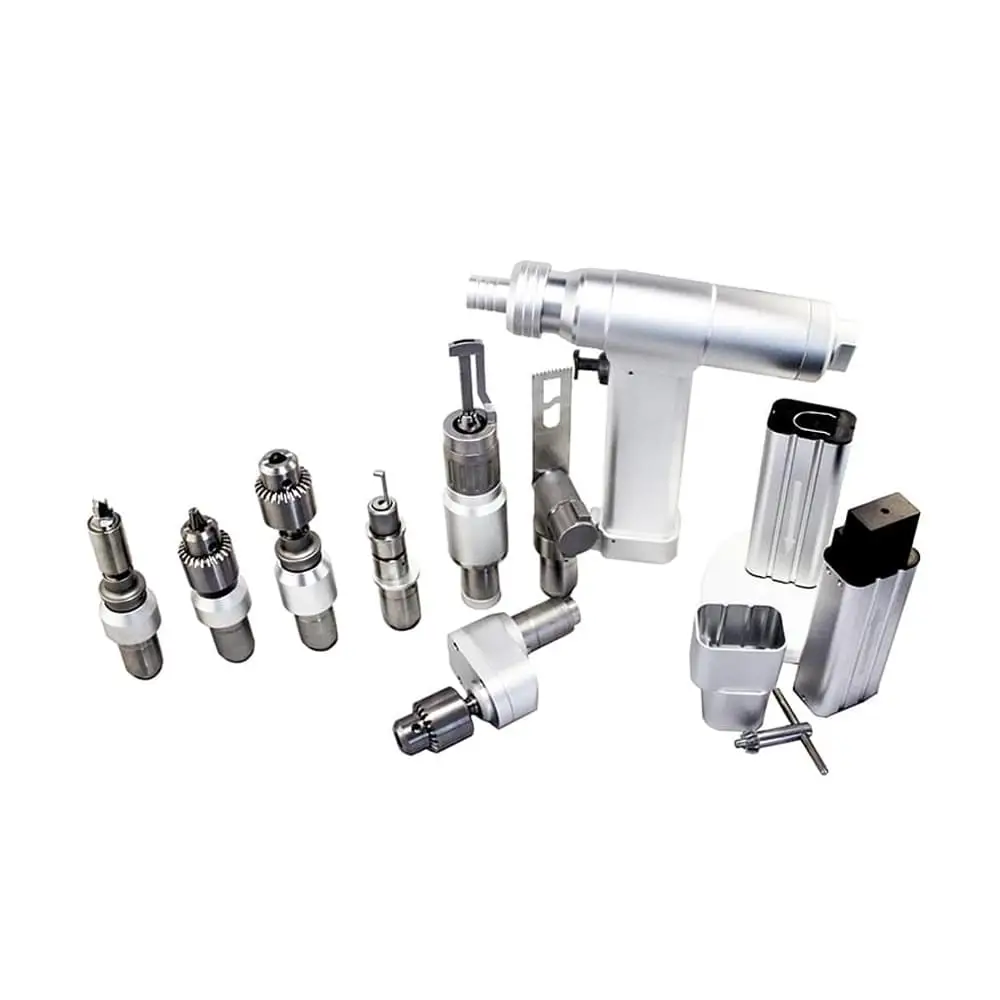

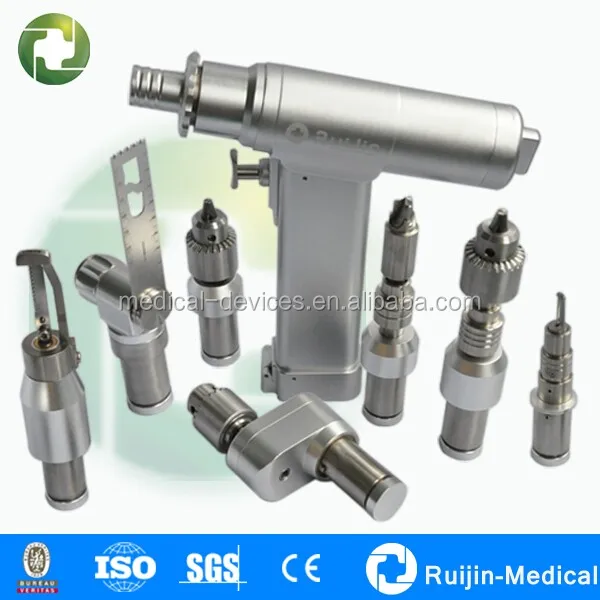

Multifunctional system technical data

Part (multfunctional attachment)frequencyweightnoisetorquesterilize

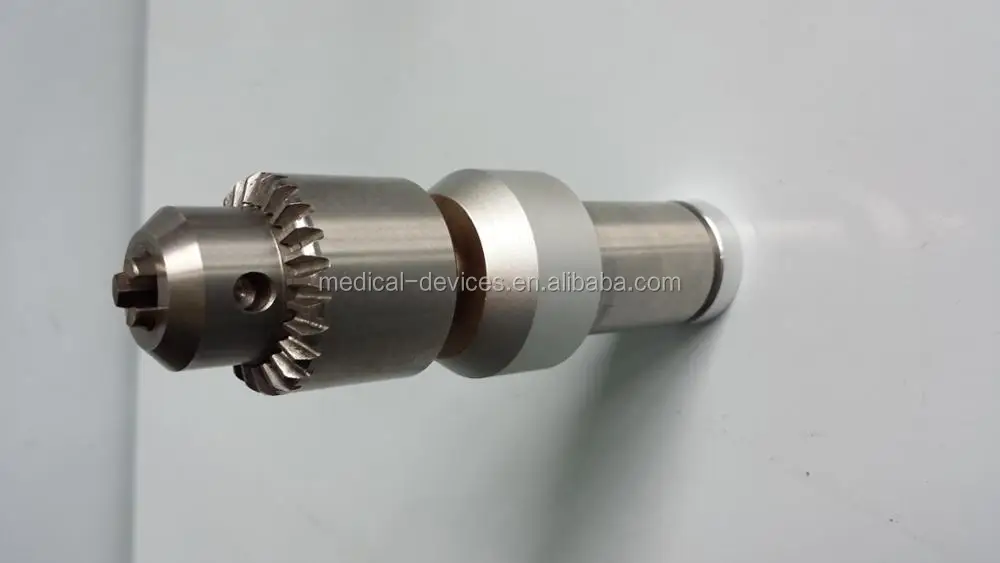

Quick chuck(bone drill speed) attachment0-1300 r/m342g≤65db≥1.6NM≤135 °C
Reamer(acetabulum burnishing slow drill) attachment0-300 r/m408g≤65db≥6.5NM≤135 °C
Sternum saw attachment0-15000 ocs/m365g≤75db ≤135 °C
Craniotomy mill attachment0-40000 r/m186g≤65db ≤135 °C

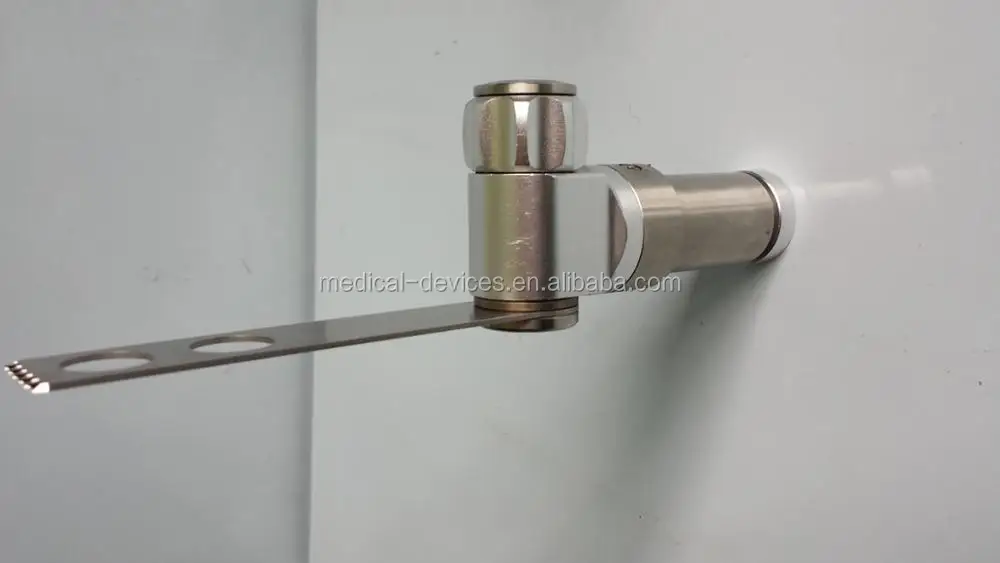

Oscillating saw attachment0-18000 osc/m290g≤75db ≤135 °C
Wire and pin chuck(cannulate drill speed)attachment0-600 r/m527g≤65db≥3.5NM≤135 °C

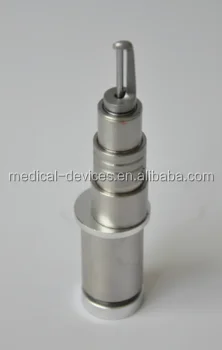

Craniotomy drill attachment0-900 r/m361g≤65db ≤135 °C

 cranial drill attachment.jpg

 cranial mill attachment.jpghollow cannulated drill attachment.jpgnormal bone drill attachment.jpgoscillating saw attachment.jpgreciprocating saw attachment.jpgslow drill attachment.jpg

 multifunction tool main frame with cover.jpg



Packaging & Shipping

shipping and packing.jpg

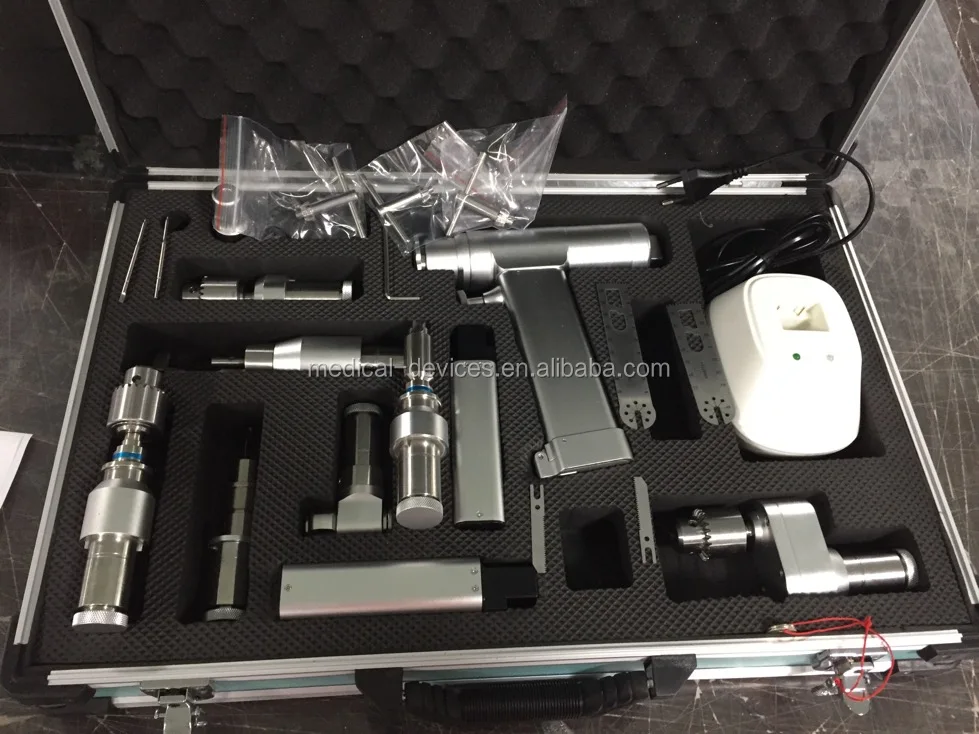

Grinding drll Standard configuration
1Mainframe
1Digtal power controller
1Pedal switch
1Straight Attachment
1Angled Attachment
1Sterilizing box
1Aluminum alloy box

package new 800.jpg

Advantages

I Common merits

1) Autoclavable to 135 °C with 1.6mpa ,in which way the bacilli and virus will be killed

2) NI-MH battery will be friendly to human environment

3) Whole power is steady with low noise in operation

4) 12 months warrant for our products mainframe

II Merits for mainframe

1) handpiece can drive a variety quick connects

2) attachments can be replaced easily

3) 360°rotating

4) high-strength stainless steel makes main parts

III Merits for multifunction system

1) Mainframe is made of Aluminium,light weight,durable,long working time

2) Jacobs chuck ensures outstanding performance during operation

3) Sternum saw:Both 360°rotating head and blade guard can protect soft tissue around sternum

4) Craniotomy mill: 40000r.p.m rates assures fast,effient and safe process in craniotomy

5) Oscillating saw : 360°rotating head can be applied to any surgical

     Sites.Wrenchless collect allows for easy,fast and safe loading and unloading blades

6) Reamer : Hi-torque,ideal for acetabulum or medullary operation available to all brands mill universal

7) Wire and pin chuck : with a canula diameter 4.0mm applied to various intramedullary pin or

     kirschner pin fixing opration easily and convenientiy

8) cranial drill :Auto-pause offer perforation ensures safety in neurosurgery.

10) Perfect ergonomic design

11) can meet different kinds of surgery operation

Note allert warrant

Warrant:

1. We will response to customer email within 24 hours

2. 12 months guarantee for the hand piece (main engine)

2 . 3 months guarantees for the accesory (battery, saw blades,cutter blades,drill bits,bistrique ,etc


Company Information

Wuhu Ruijin Medical instrument&device Co.,ltd . established in 2007

Major in production of medical electric saw series ,medical bne drills ,cannulate drills ,

swing saws,reciprocating saws and medical electric plaster saws

and also micro-electric grinding drill series etc.

They are mainly applied in orthopedic,traumatic,neurousurgery operations

production info new800.jpg

Wuhu RuijinMedical Instrument & Devices Co.,Ltd

Add No. 33 , Wanchun Road, Wuhu Economic &Technology Development zone ,Wuhu city Anhui Province ,P.R.C

www.livespower.com
Tel: (86-553)-5223845
Fax:(86-553)-5223846

certification

certified liscence.jpg
