Китайский завод высококачественные защитные трубки для соединения кабеля 60 мм/40 мм/45
- Категория: Кабельные муфты >>>
- Поставщик: Beijing,Byx,Optical,Fiber,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.52 $* | 0.0 $* |
| Aug-19-2025 | 0.59 $* | 0.66 $* |
| Jul-19-2025 | 0.18 $* | 0.69 $* |
| Jun-19-2025 | 0.74 $* | 0.75 $* |
| May-19-2025 | 0.95 $* | 0.47 $* |
| Apr-19-2025 | 0.5 $* | 0.1 $* |
| Mar-19-2025 | 0.64 $* | 0.45 $* |
| Feb-19-2025 | 0.39 $* | 0.84 $* |
| Jan-19-2025 | 0.42 $* | 0.32 $* |
Характеристики

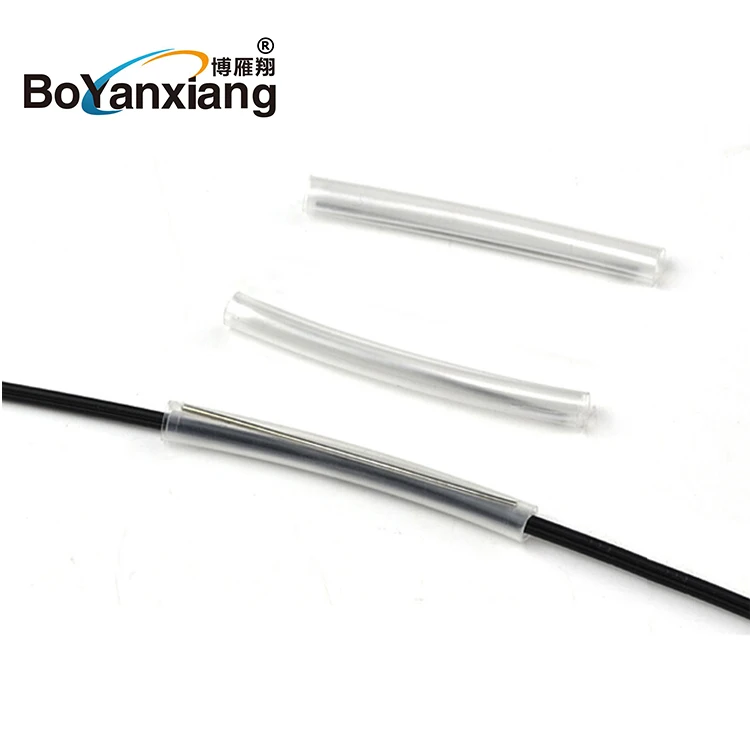

Heat Shrink sleeves are to be designed to restore complete environmental and mechanical integrity of fibre after splicing.
Sleeves shall be made with hot melt adhesive tube of polyolefin Ethyl Vinyl Acetate copolymer. This helps in good bond between fiber and the heat shrinkable tube
Storage conditions: Temperature: -25 to 60ºC & Humidity: 0 to 95%. No dew.

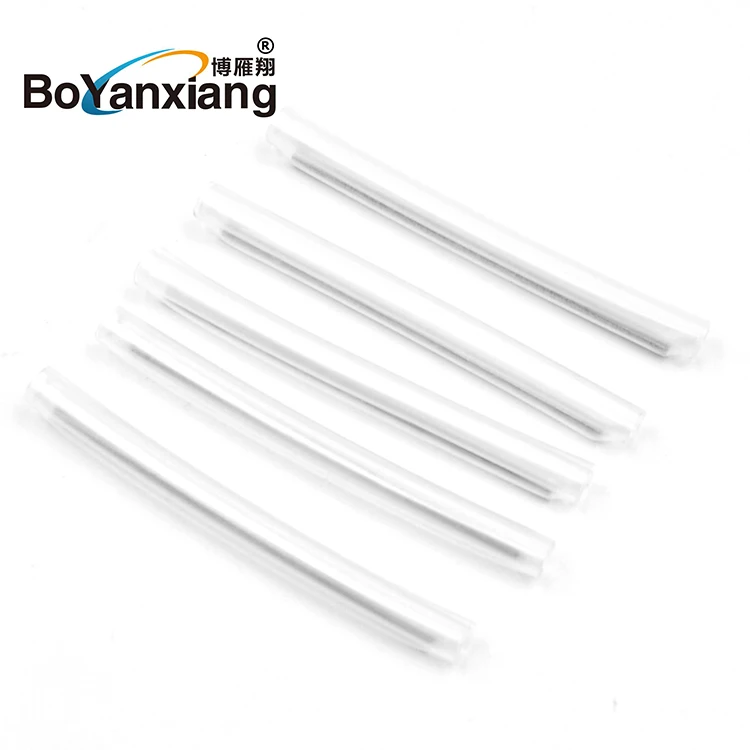

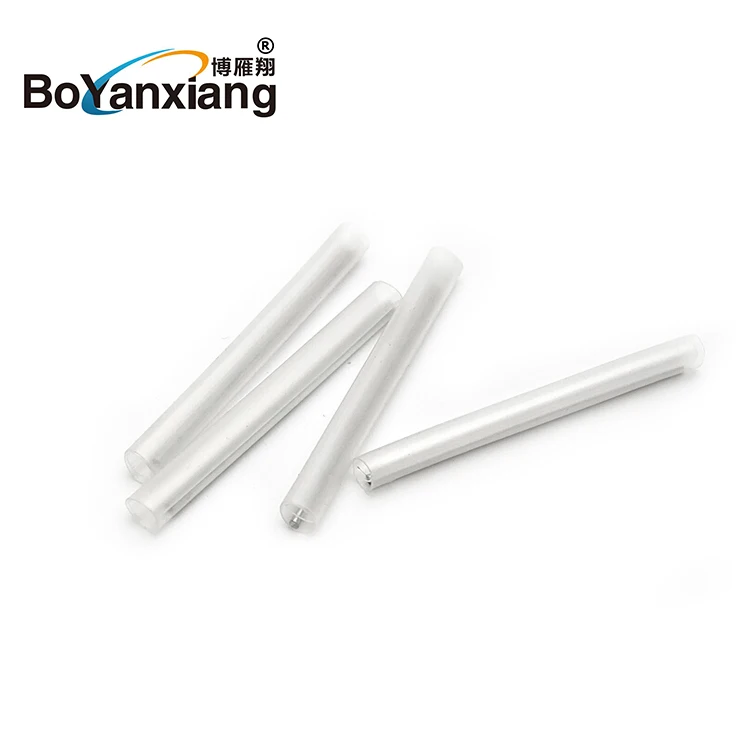

the size:60mm*1.2*3.0 45mm*1.2*3.0

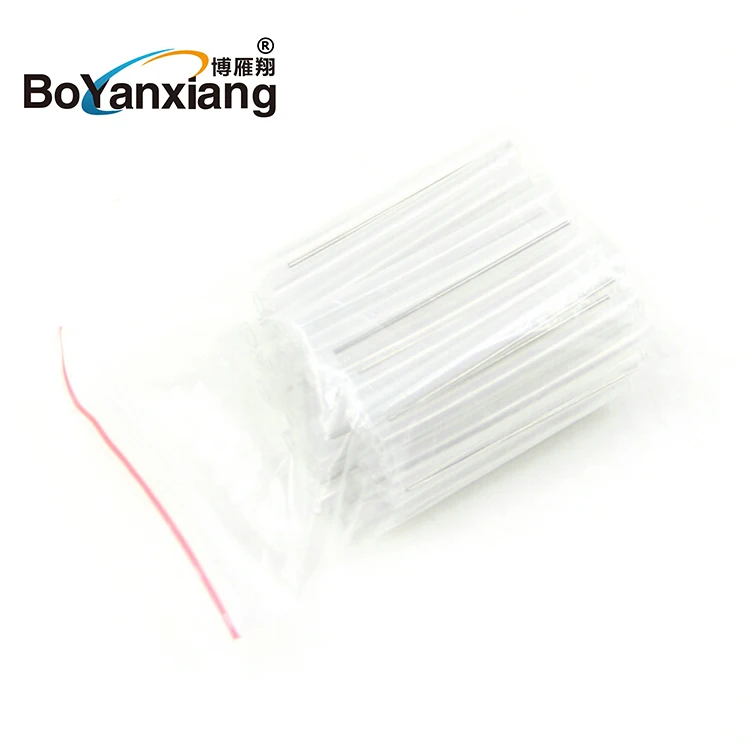

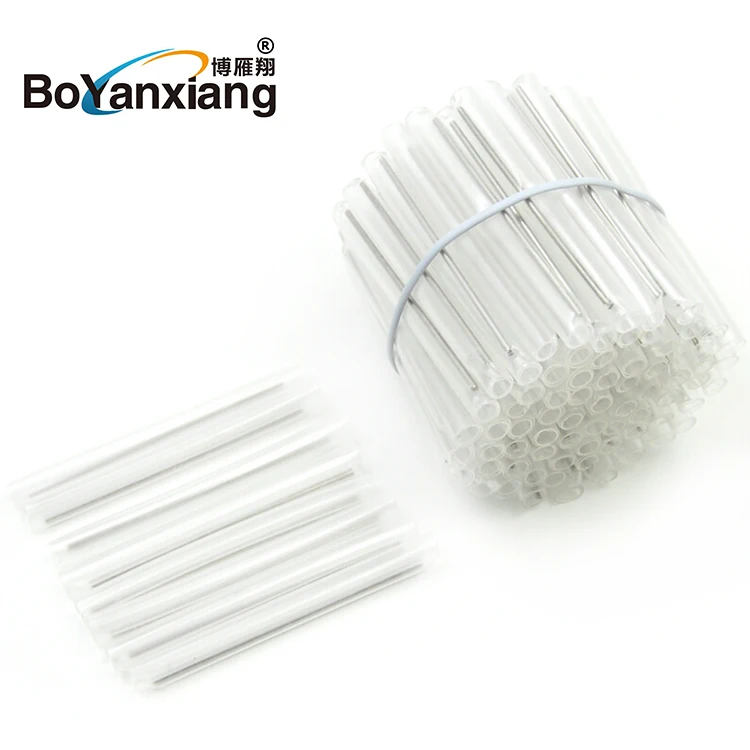

package:12pcs/bag or 100pcs/bag could be chioced.
the materials of stainless steel needle could chioce 201 or 304 stainless steel.
Optic Fiber heat shrink tube parameters:
Shrinking Temperature (°C) | 110 ~ 130 |
Radial Shrinking Rate (%) | >50 |
Axial Shrinking Rate (%) | <10 |
Low Temperature Property | No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) | -55°C ~ + 135°C |
Normal Operature Relative Humidity | ≤95% |
Spark- over Strength (kV/mm) | ≥20 |
Tensile Strength (Mpa) | 20 |
Loss at -40°C | 0.03dB |
Loss at +60°C RH95% | 0.02dB |
