LY ЧПУ гравировальный станок 3040 1.5KW частотно-регулируемым приводом USB 4 оси мини CNC сверлильный и фрезерный с цифровым управлением ход Z 130 мм
- Категория: Woodworking Machinery >>>
- Поставщик: Shenzhen,Liyang,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.71 $* | 0.14 $* |
| Aug-19-2025 | 0.97 $* | 0.80 $* |
| Jul-19-2025 | 0.24 $* | 0.92 $* |
| Jun-19-2025 | 0.16 $* | 0.57 $* |
| May-19-2025 | 0.35 $* | 0.32 $* |
| Apr-19-2025 | 0.50 $* | 0.57 $* |
| Mar-19-2025 | 0.10 $* | 0.42 $* |
| Feb-19-2025 | 0.47 $* | 0.58 $* |
| Jan-19-2025 | 0.81 $* | 0.7 $* |
Характеристики
Product Description

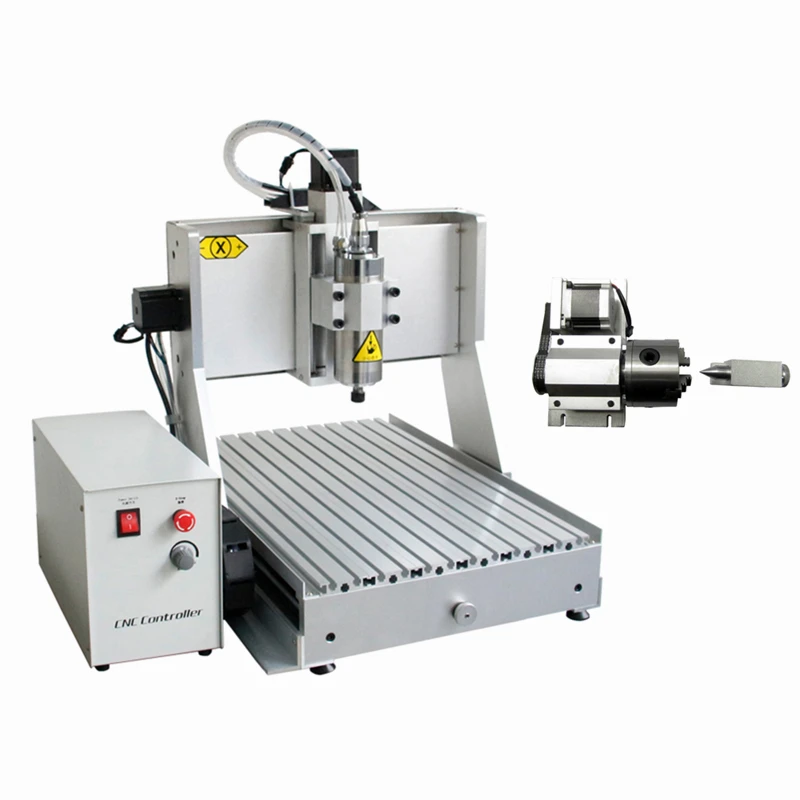

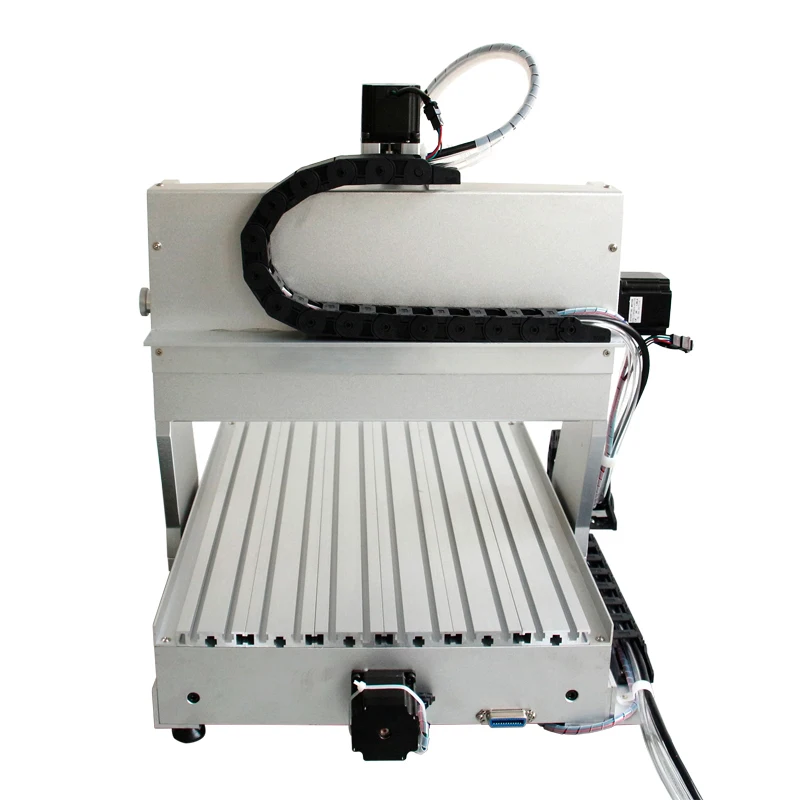

LY CNC Engraving machine 30X40cm 1.5KW VFD USB 4th axis Drilling and Milling Machine Z axis stroke 130mm For woodworking
CNC Router Engraver/Engraving Drilling and Milling Machine
LYCNC3040ZH-VFD1.5KW USB 4axis
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
In addition, it can be upgraded to be installed a rotational axis.
More Precise Stepping Motor
The engraving process is visible as controlled by computer
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Shipping by DHL FEDEX UPS with tracking number
Technical Parameters
LYCNC3040ZH-VFD1.5KW USB 4axis parameters:
Machine Dimensions: 600X510X480mm
Rack material: 6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area: 400X300mm
Z-Axis Stroke: 130mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness: ≤130mm
Rail type: Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw: Ball screw 1605, Pitch 4mm
Spindle motor: 1.5KW VFD water cooling spindle , 0-24000r/min
Collet type: ER11,1/8"(3.175mm) Collet
Stepper motor and drive: two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.
Maximum operating speed: 4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy: 0.03mm
Communication interface: USB port
Software Compatability: Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code: G code/.nc/.ncc/.tab/.txt
Machine weight: 60kg

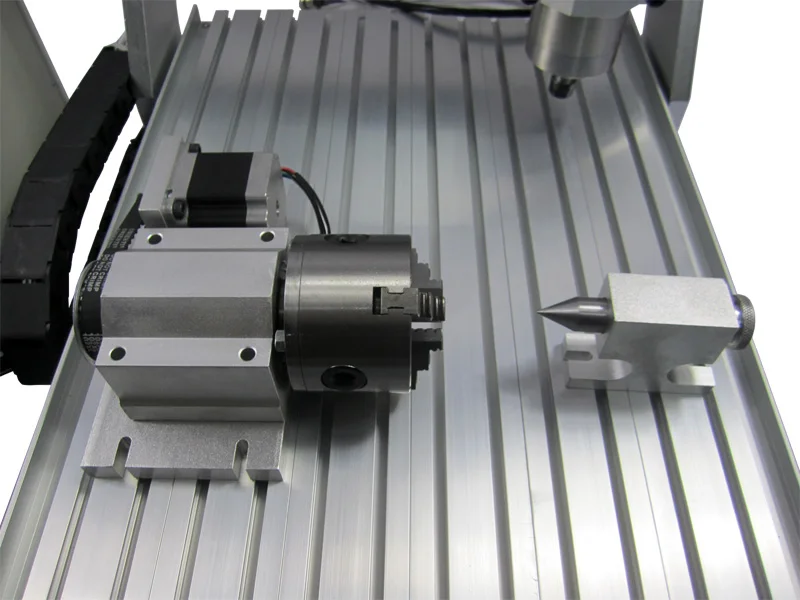

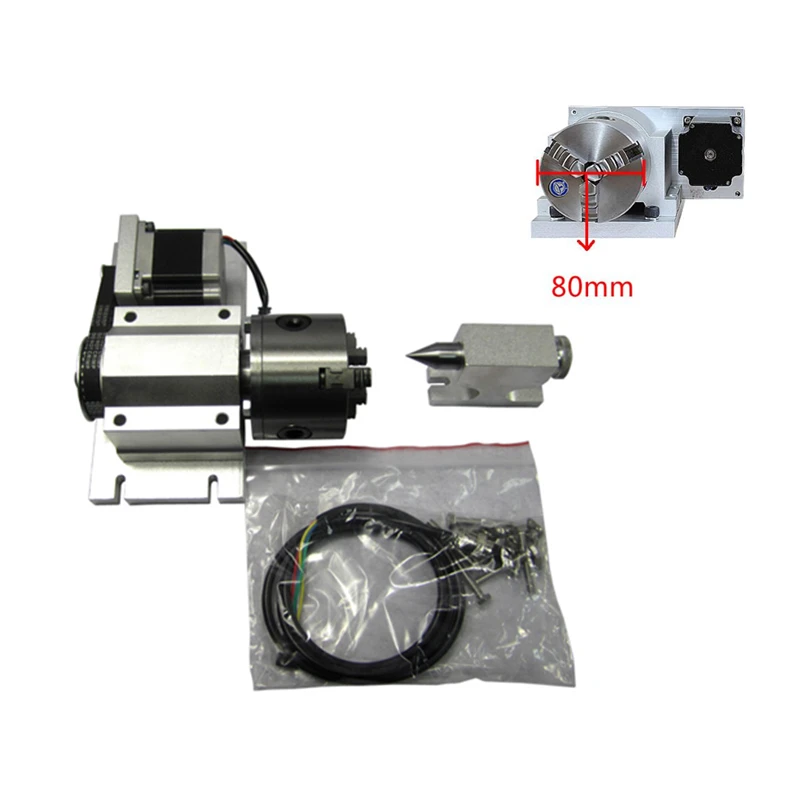

Rotation Axis (4th Axis)
Description:
Chuck Size: 80mm self-centering chuck

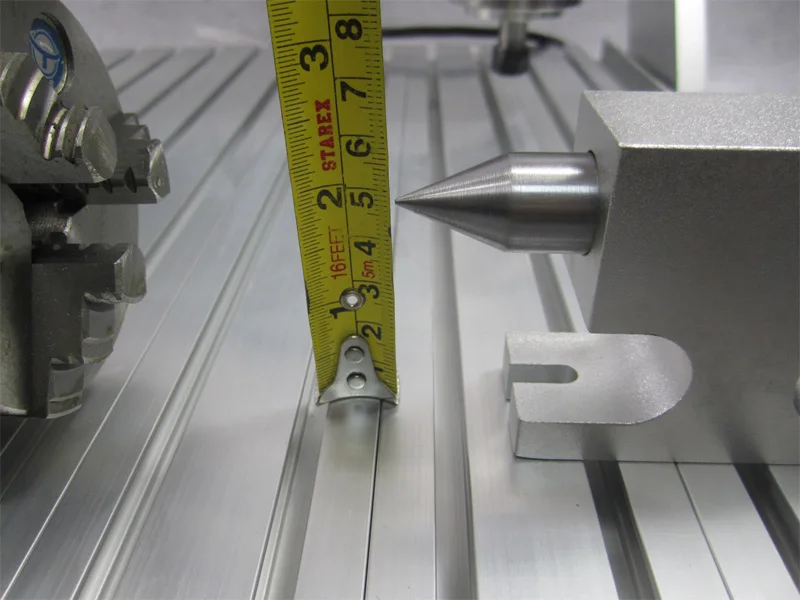

Center height: H = 49mm
Clamping diameter: 80mm or less
Deceleration mode: synchronous wheel / belt
Deceleration ratio: 3:1
Stepper motor: 57 type / 2A two phase 4 line
Positioning accuracy: 0.075 °
The machine already assembled & tested well,
can directly use after take them out from package
Packing list:
1× Engraving machine

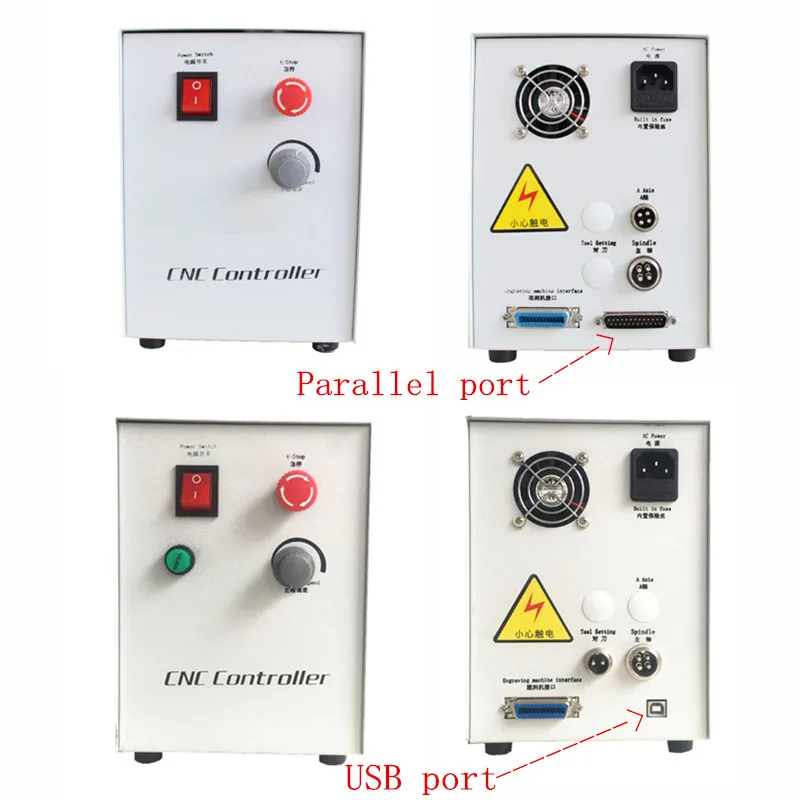

1× Control box
1× Power cable
1× control line
1× USB port cable
1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs)
1× tool auto-checking instrument
1x water pump
1× Rotation axis
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
Warranty
• 1 year full warranty directly from factory .
Shipping
• By DHL & UPS & FEDEX with tracking number, need 4~7 days;
• By SEA , need 40~50 days;
• We will mark the item at the very low value, so that you do not need to pay for the tax or pay a little tax.
What information need for delivery the item to you
• Please email us your phone number after you pay for the item only for delivery purpose.
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
C. 25-30 workdays shipping from China to Russian customers.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Company Information
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon… Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
