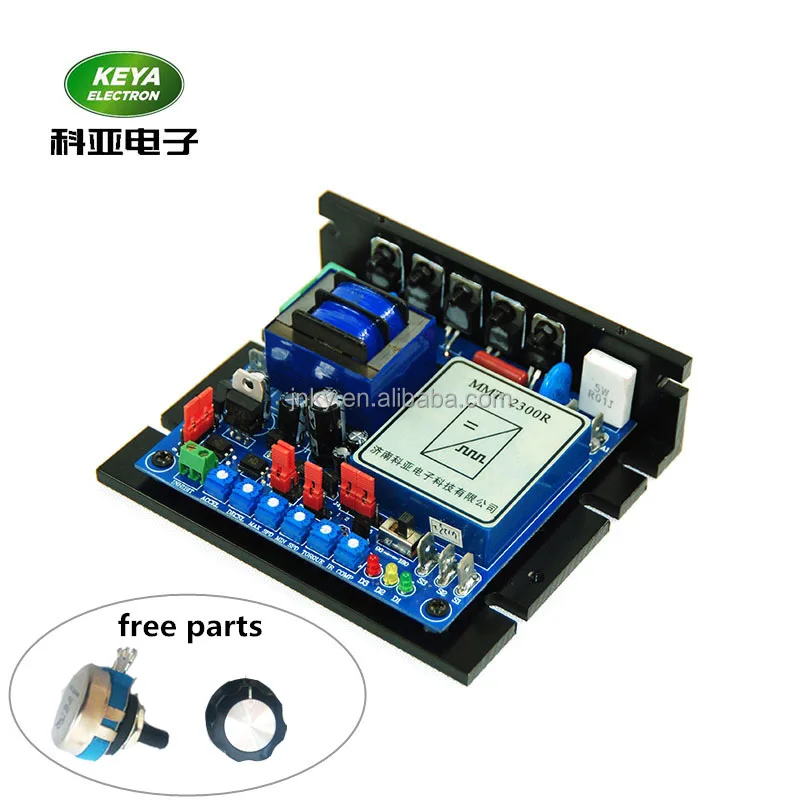

110v 220v switchable input controller 10A for 90v 180v dc motor speed driver



Model: 115/230DR10AL-02



Product Description



MMT-115/230DR Series DC motor driver is a kind of speed governing product developed and produced by adopting past successful experience and combining modern advanced technology. This series of products have met international standard requirements and are sold to many countries. This driver adopts thyristor chopping control principle and uses independent trigger mode. Even there is no velocity feedback, high speed ratio can be achieved to make it more accurate and reliable.
Excellent performance, reliable quality and high cost performance make it a strong performer in DC motor driver field and it was widely used in plastic machinery, food machinery, cable equipment, machining, paper printing, testing equipment, laboratory equipment and mixing equipment, etc.



1. SMT technology, small size

2. Good following features, rapid respond speed

3. Wide speed ratio, strong mechanical features

4. Applicable to permanent magnet ,separate excitation type and DC torque motor

5. Double closed-loop PI regulation (Voltage, current)

6. Current setting and current-limiting protection (continuous operation setting current)

7. Large low speed output moment

8. Over-current protection function

9. Quick stop function

10. Arbitrary setting of upper and lower speed

11. Soft start, soft stop setting function

12. Selection of speed mode, torque mode

13. Normally open, close selection of enable signal

14. Selection of input, output voltage switch

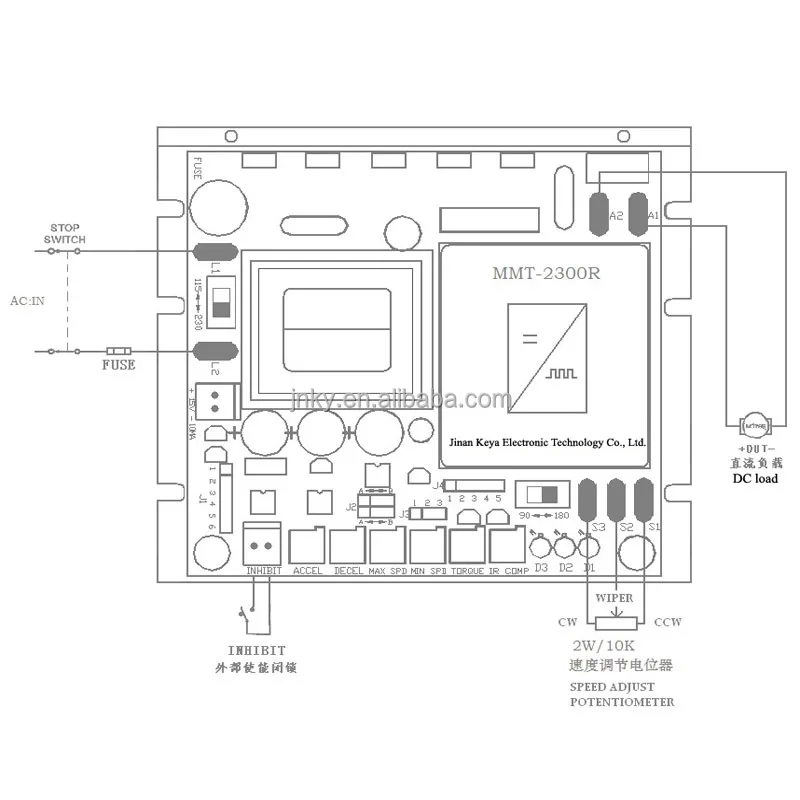

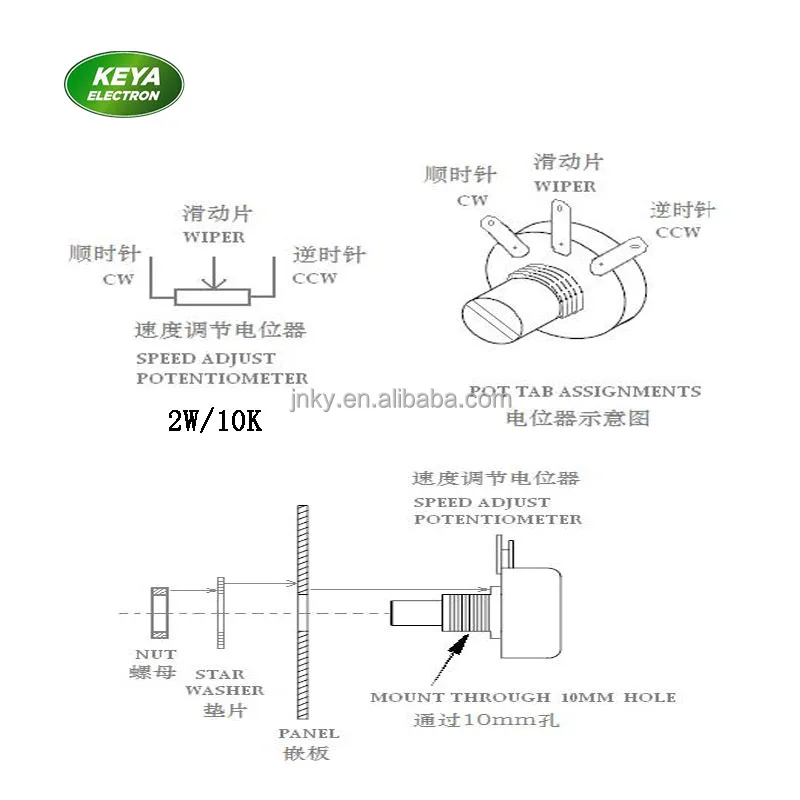

15. Driver speed governing controlled by standard signal input 0-5V or 10K potentiometer





Specification for 115/230DR10AL-02
Input voltage range	AC110V/220V switchable (please notify before place the order)
Max output current	10A
Output voltage	0-90V   0-110V   0-160V   0-180V   0-220V (please notify before place the order)
Operating mode	Speed mode, Torque mode
Control ways	0-5V, Potentiometer
Protection	Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function.
Temperature protection	When the temperature is 70℃, the controller will reduce output by overheating protection and stop output.
Working Temperature	-10℃ --  +60℃
Ambient humidity	Relative humidity less than 80RH

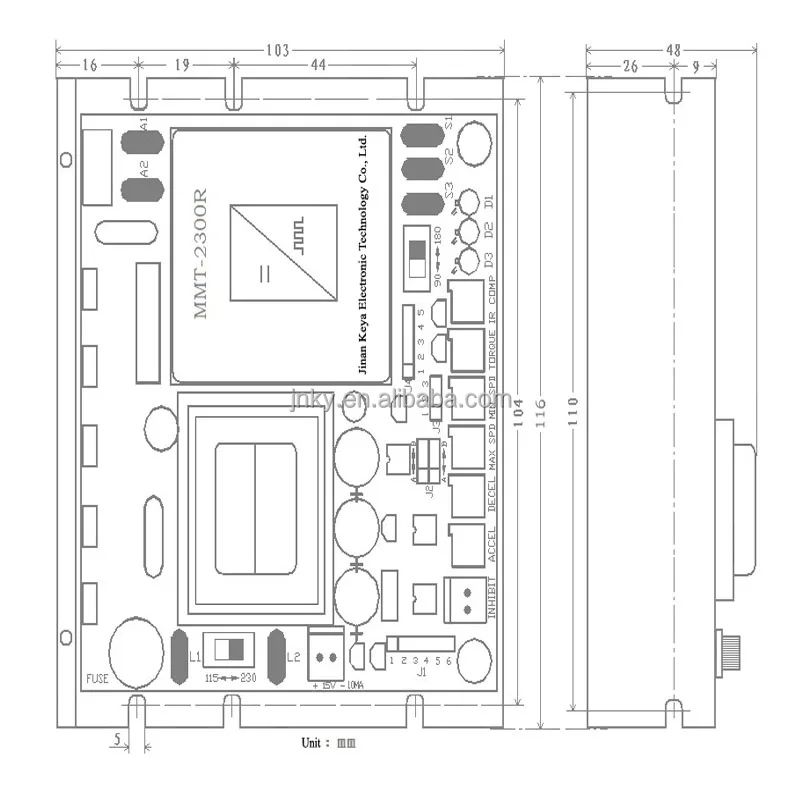

Size	L*W*H = 116*103*48 mm
Weight	500g

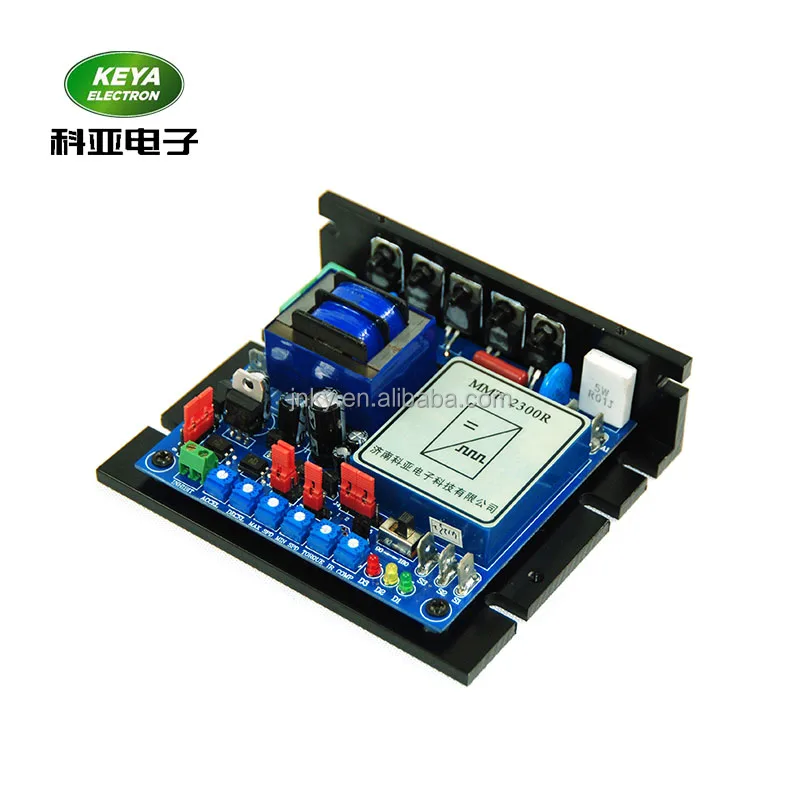

Product Overview

110v 220v switchable input controller 10A for 90v 180v dc motor speed driver

Related products



Model	Input voltage	Output voltage	Continue current	Max current	Controller mode
220DR10AL	AC220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220VDC	5A	10A	poti, 0-5V
220DR15AL	AC 220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220VDC	8A	15A	Poti, 0-5V
220DR20AL	AC 220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220VDC	10A	20A	Poti, 0-5V
220DR35AL	AC 220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220VDC	18A	35A	Poti, 0-5V

Producing





110v 220v switchable input controller 10A for 90v 180v dc motor speed driver

Certification



Company information



Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC Servo motor and Servo control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.

The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.



Our Service



We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.

110v 220v switchable input controller 10A for 90v 180v dc motor speed driver



Delivery time: 1-3 working days after receive the payment

110v 220v switchable input controller 10A for 90v 180v dc motor speed driver

Products Application Cases Display





FAQ

 1.    Q: What are your main products?

      A: We produce various kinds of dc motor & controller.

2.    Q: How long have you been in this field?

      A: More than 15 years in this field.

3.    Q: Do you have your own R&D team?

      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all       the time. Some of our engineers have more than 20years experience in the industry, and we also         cooperate with colleges, scientific research institutions and large enterprises.

4.    Q: How soon can you deliver the goods?

      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5.    Q: Can you make the product according to customer’s requirements?

      A: Yes, welcome costom-made products.

6.    Q: What is your payment term?

      A: You can pay by TT, Paypal, Western Union.
