Small Business Simple Price Ceramic Tile Adhesive Mixing Mortar Manufacturing Making Machine
Product Description
Introduction

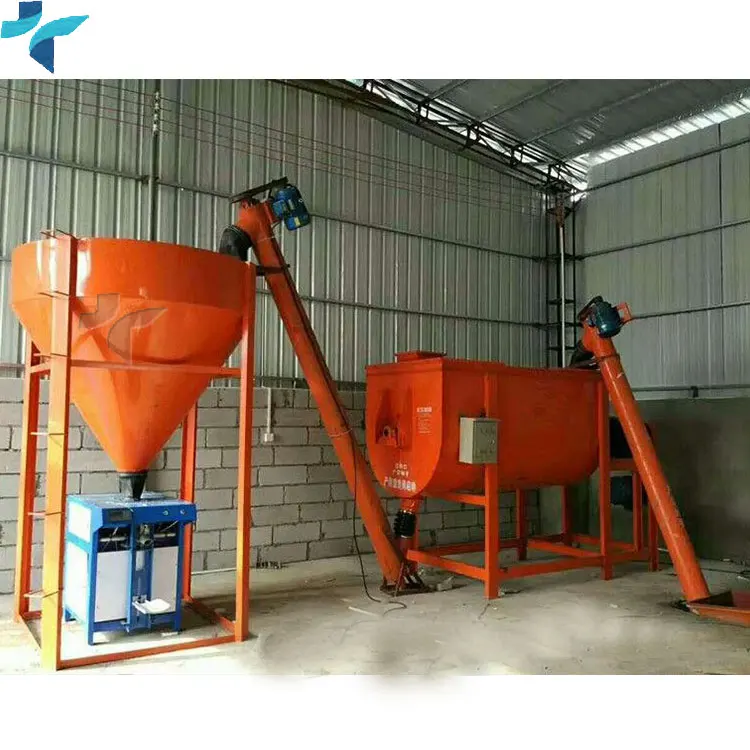

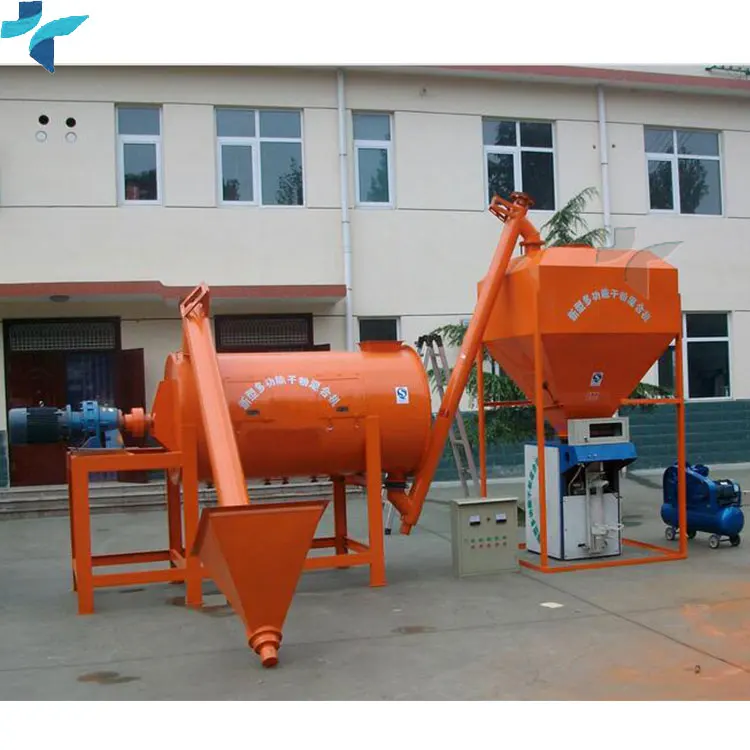

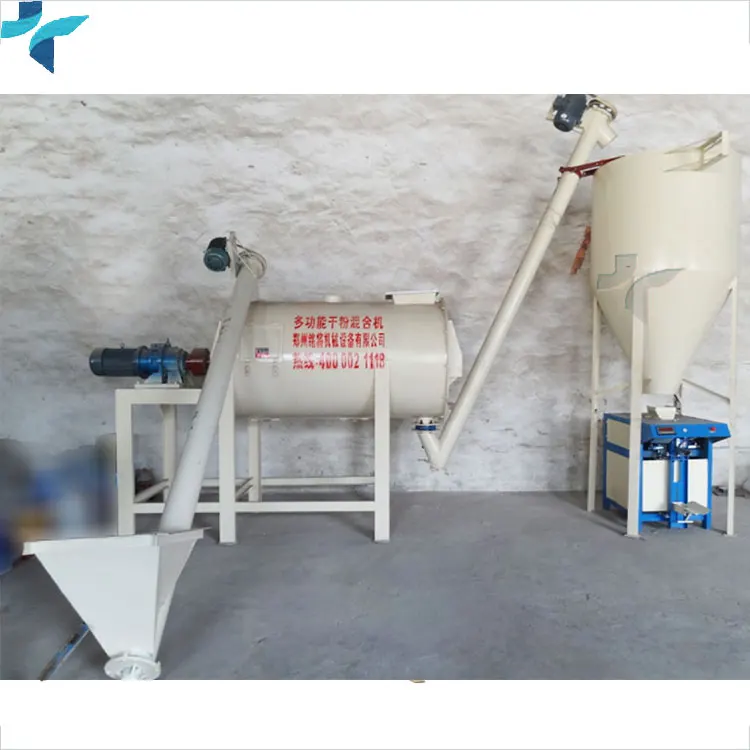

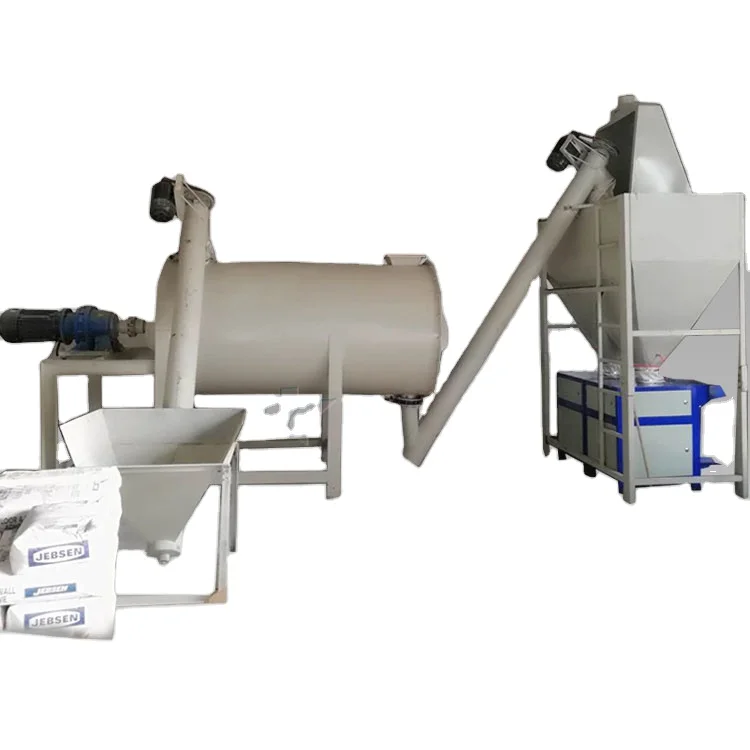

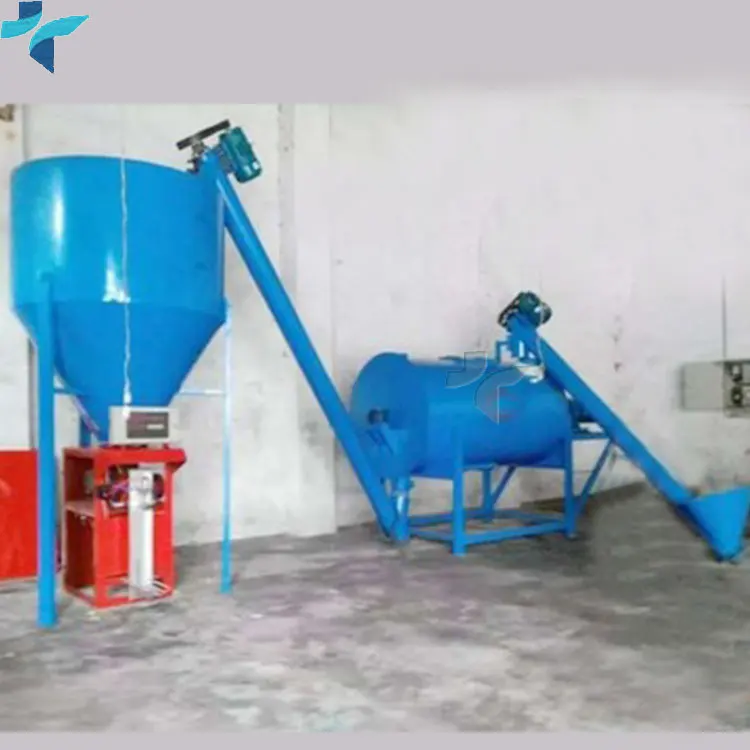

Simple tile adhesive mixer is horizontal spiral ribbon mixer, has three layer inside and outside
Horizontal mixer tank is equipped with a moving door to easy to clear up, Can be made of carbon steel, stainless steel, stainless steel mixer according to customer required.
Conveyor can fast moving material,save mixing time:6-8minutes per batch.
Automatic weighing and packing machine:5-8seconds/bag.
weight of bag:10kg-50kg,open mouth or valve port can do.
Detailed Images
5ton/batch Ribbon Mixer
Technology parameter
Item
1ton/h
2tons/h
3tons/batch
4ton/h
5tons/batch
Mixing power
5.5KW
7.5KW
15KW
11KW
22KW
Feeding conveyor power
3KW
3KW
4KW
4KW
4KW
Second conveyor power
###
4KW
4KW
4KW
5.5KW
Mixing time
5-8minutes
5-8minutes
5-8minutes
5-8minutes
5-8minutes
Note
For the first time to use this machine, mixer machine must be add grease oil to reducer.
For this ribbon mixer machine, it need while feeding raw material while mixing, when feeding over, then also about 5-8minutes will be high evenness, when discharging finished material, please not open fully for discharging door, if open fully, maybe it will be easy block the second screw conveyor.
Please clean the mixer machine use the air tube when work finished every time
1.We have more than 60 machines and will guarantee the short production time and good quality.
2.We are located in Henan Province China,the largest construction town,there is a large advantage on experience and cost.it is easy for you to visit our company and the factory.we will also provide you 24h online chat service.
3.Online chat,quick reply,good quality.
4.We have sell lots of construction equipment,that can demand different purchase demand,it is convenient.
5.We have gained a global sales network reaching in Uganda,Colombia, Bolivia,Brazil,Algeria, Ecuador, Russia, Pakistan, Vietnam, Dubai, Ghana, India and so on. The quality,the price,the delivery time will be the best.
Customer Visit
Packaging & Shipping
Delivery time: 15 days after receipt payment
Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery
Package
Wire cables are used for fastening the machine on the trailer or inside the container
Cork wood are placed in front or behind the machine to protect it
Plastic film is covered on the machine as a rain-roof
What's raw material do you used?
How many the capacity per hour do you need?
FAQ
Q1:What is the area occupied?
A1:A complete simple 5 ton per hour line is about 20 m2 and height is less than 1 meters
Q2:How about the power consumption?
A2:For 2ton/h line,that need 80-100Kwh for 8 hours,for 4ton/h line,it need 120-140Kwh for 8 hours.for 5ton/h line,it need about 220-240Kwh for 8 hours
Q3:Weather can choose the packaging machine?
A3:Of course,we have simple packing machine and automatic packing machine(automatic weighing and automatic packing).we can do valve port and open port packaging machine according to your bag
