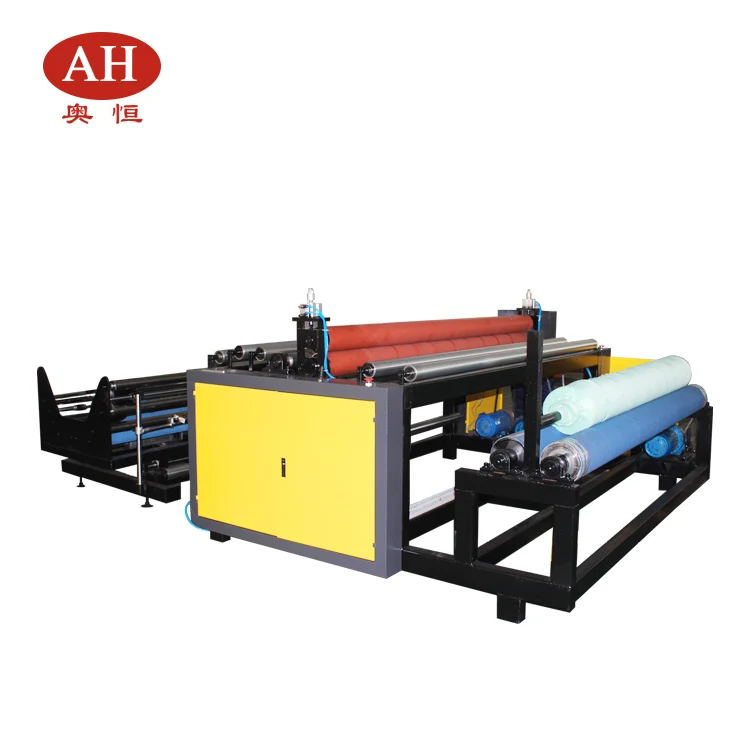

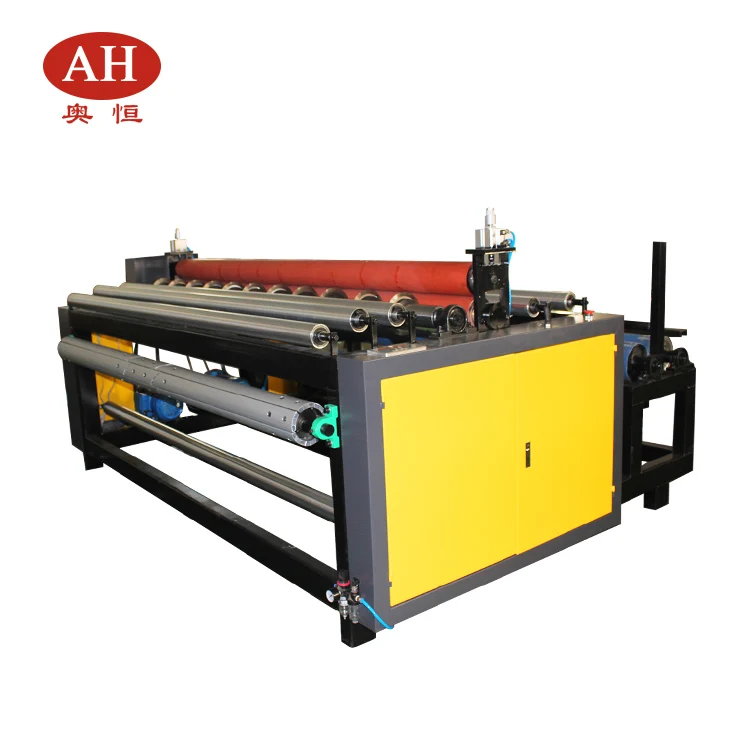

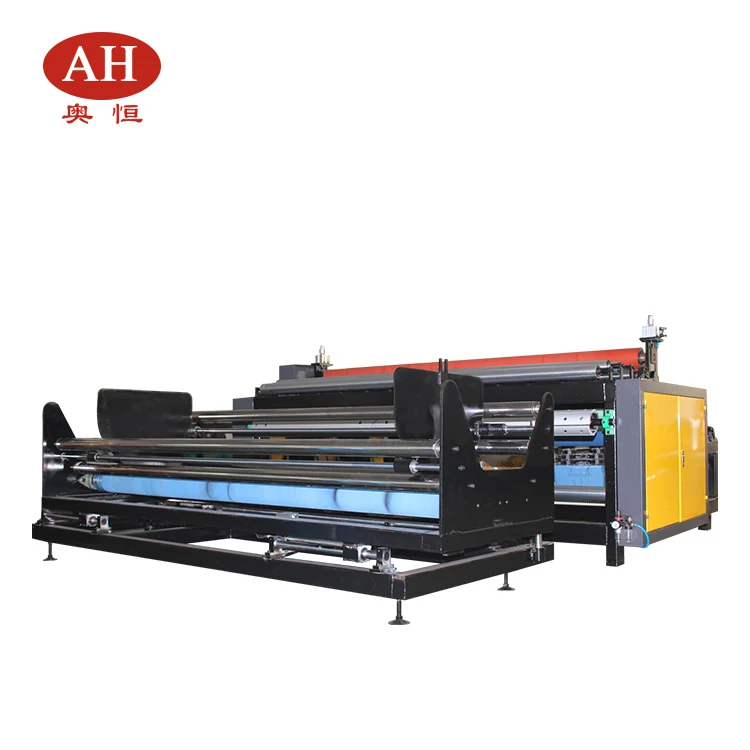

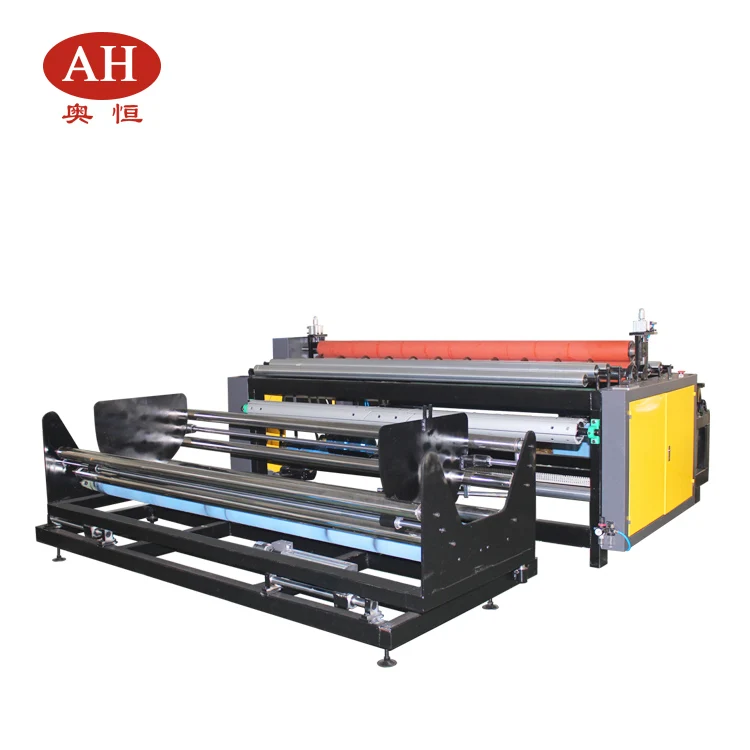

Ультразвуковая машина для резки всех видов химических волоконных

Описание и отзывы

Трекер стоимости

Характеристики





Technical parameters

Product name	Ultrasonic slitting cutting machine	Model	AH-SC2400
Working power supply	380V	Generator power	800W* Multiple sets of
Work efficiency	1-20m/min	Output frequency	20KHz
Slitting width	Adjustable	Max unwinding diameter	1000mm
Sword	Single pole / Double knife	Motor	Stepper motor transportation
Drive type	Automatic	Weight	2000-3500KG
Overall results	Ultrasonic electric cabinets, discharge, process technology



Product features

1. Instead of the traditional sewing technology, equipment use PLC centralized control of the entire operating system, the entire process automated, save labor and increase efficiency.

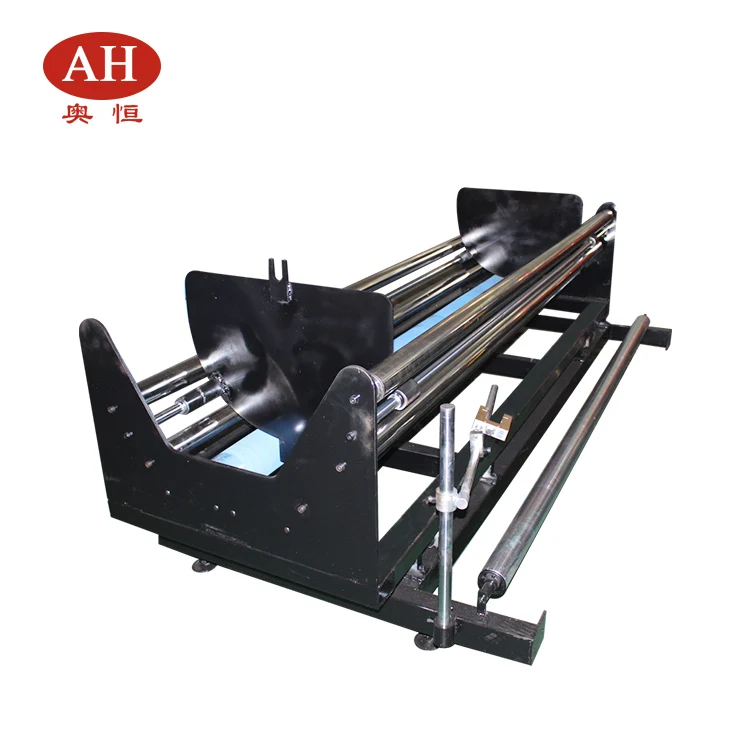

2. Cradle-type discharge using double rollers-split transmission, drive shaft hold the whole fabric, depending on the length of the fabric on both sides of the bezel can be adjusted.

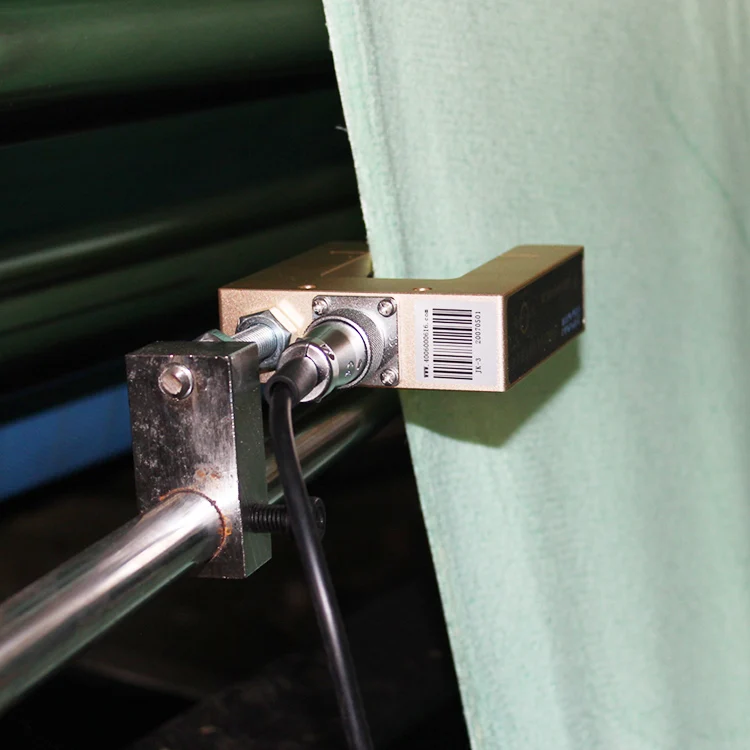

3. Automatic deviation correction control system feeding process even small errors and improves the smooth clean cut, and more energy-efficient.

4. Rail slider shaft (transfer convenient vertical cut size and stability) / Cutting (high speed operation is stable and reliable), cut out the cloth without edges, tidy, without deviation, width adjustable.

5. According to customer demand could be single or double knife slices, effectively improve the working efficiency.

6. strong mechanical structure, high stability of high-speed operation, effectively improve the durability and service life of the machine.

7. With wide variety, pattern diversity, various specifications can be customized according to customer requirements



Scope of application and materials

A variety of chemical fiber material, microfiber material, non-woven fabric, spraying-bonded wadding

Mainly used for towel cloth, MOP cloth, curtains, bed curtains,and etc.
