28 светодиодный уличный фонарь 5050 SMD 80X150

Описание и отзывы

Трекер стоимости

Характеристики

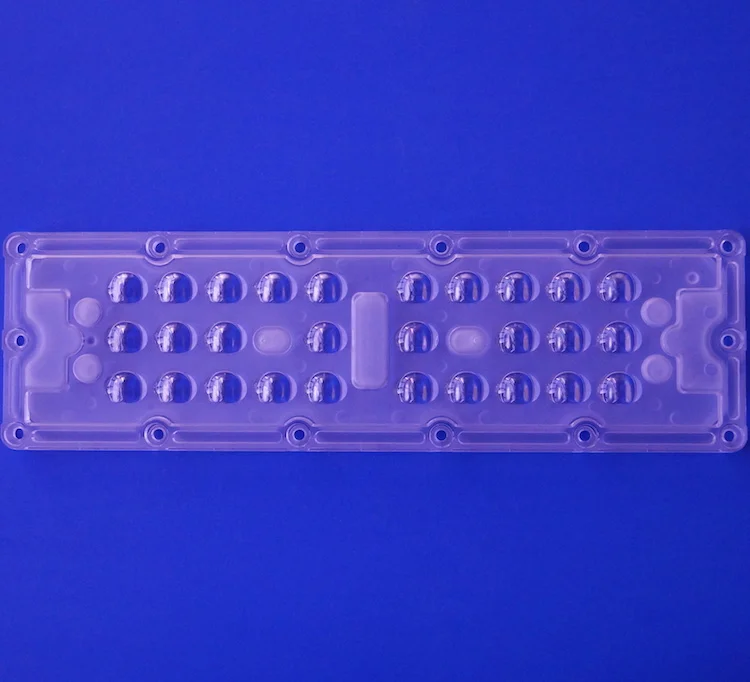

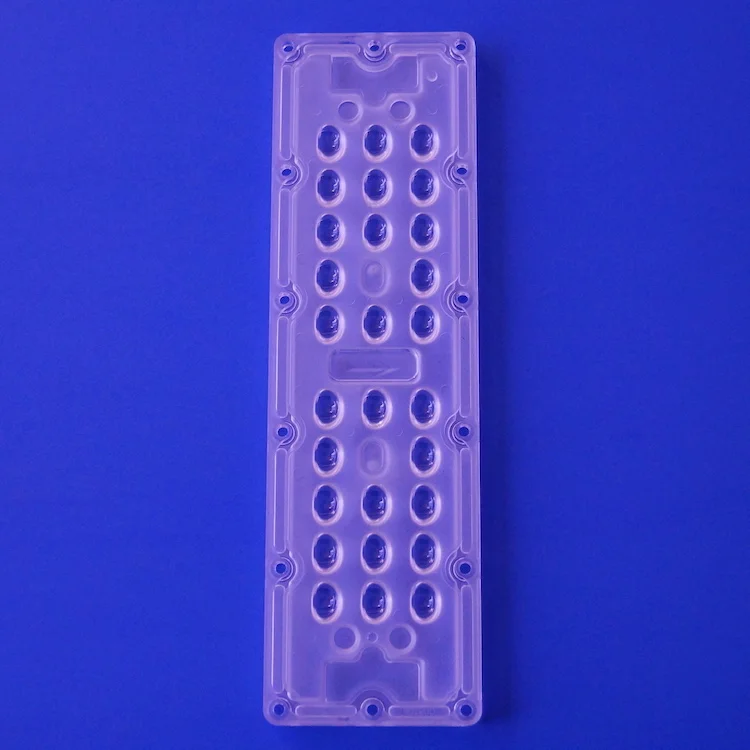

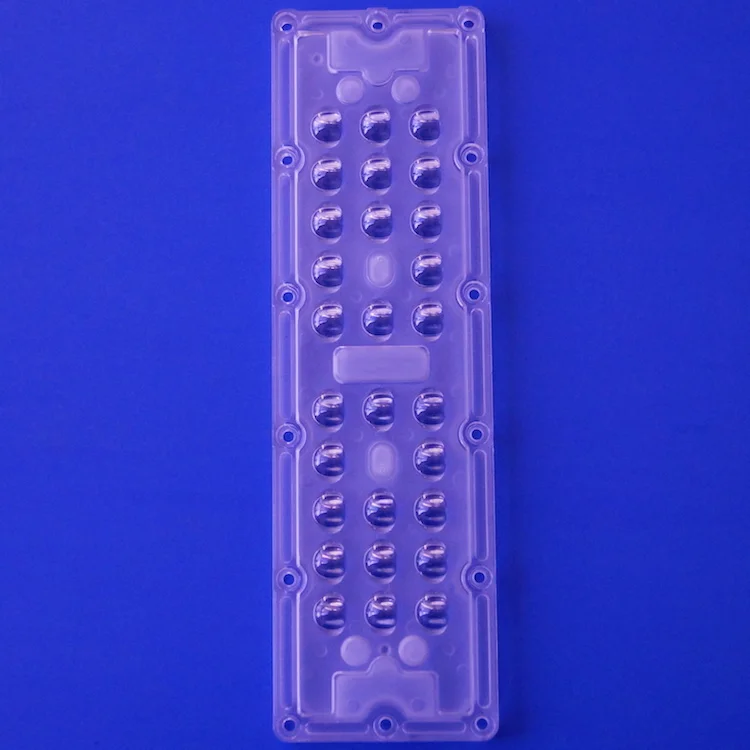

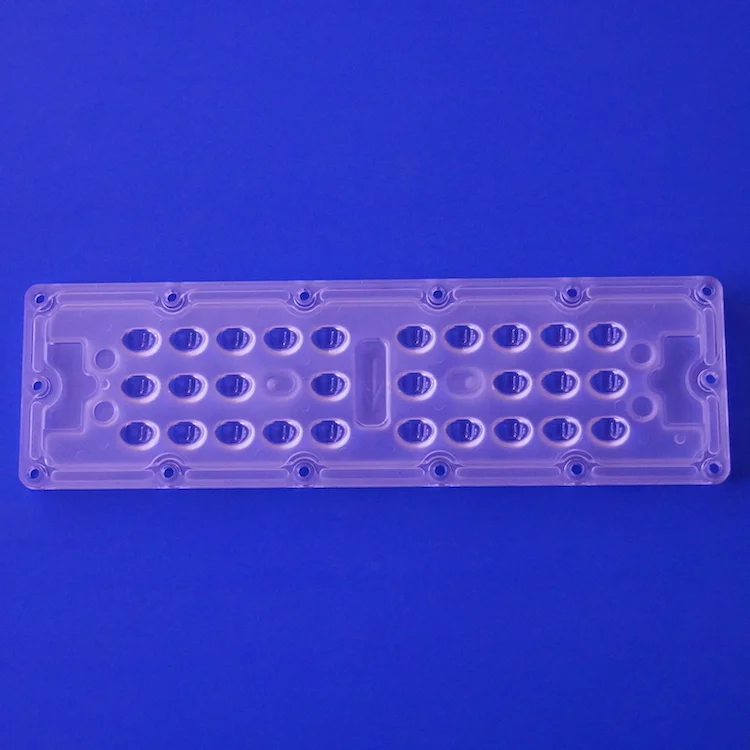

28 LED Street Light Lens 5050 SMD 80X150 Degree









Model	SUN-LD236X70-5050-80x150
Beam angle	80x150 degree
Other angle	60/90/80x150 degree and Vertical 80x150 degree,90x120 degree
Lens size	236x70mm
PCB size	218x44x1.5mm
LED CHIP	5050SMD @ 160mA,24V 590LM/CRI70;550LM/CRI80 for 5000k/5700k
Dense array of 28 LED	Small footprint, high light output
Materical for lens	Optical grade PC
Lens transmittance	93%
Work temperature	-40-120 degree
Samples	Available
Delivery time	5-7 work days for 1-1000





Dimensions of 28 5050SMD LED lens:







Silicon gasket drawings:

5050SMD PCB Board size:

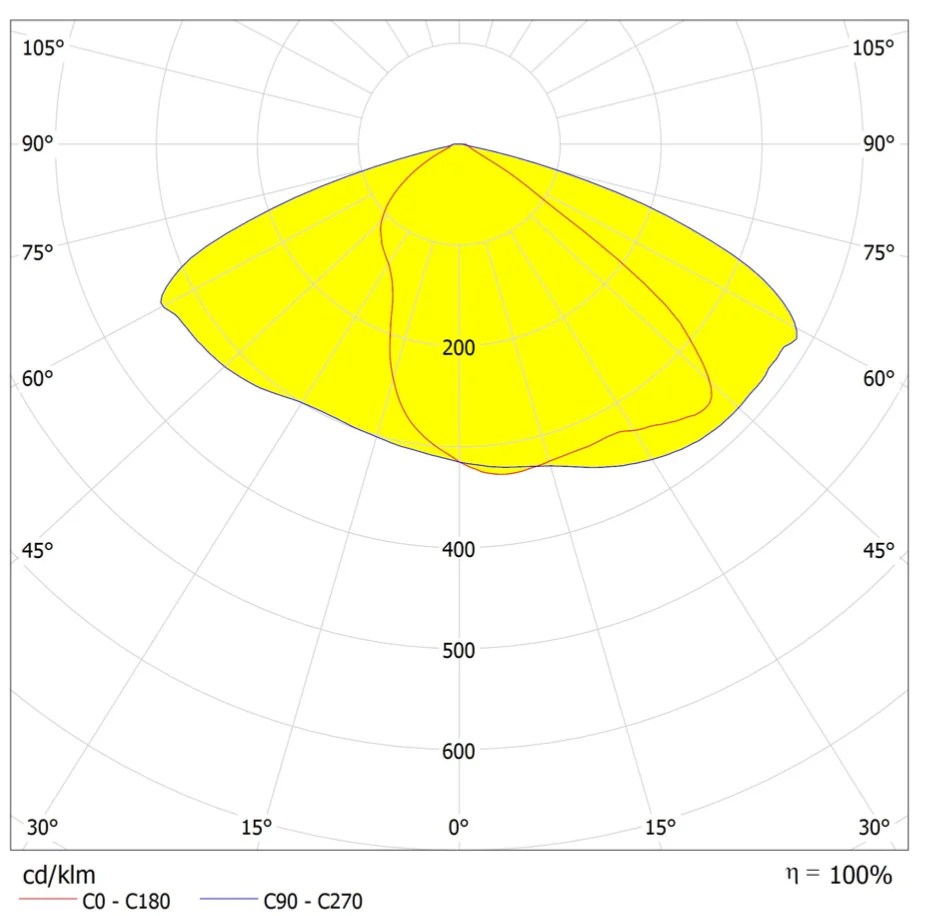

Light distribution:







Packing informaitons :







Features :



1. This SKD 28 LED 5050SMD Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 50-90w for per.


2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


3. Industry-leading thermal management utilizing technology


4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.


5. The LED retrofit kits contain no any mercury or lead.


6. Does not produce UV rays that harm people’s eyes.


7. Directional light means no light pollution, dark sky compliance.


8. Optic lenses are available for projects that need smaller beam angles, like 60 degree,90 degree,90x120 degree, 80x150 degree and so on.

Payment Terms	T/T,Western Union, Paypal, MoneyGram
Minimum Order	1pc
Lead Time Delivery Time	5-7 days,it based on your quantity
Sample Available	Yes
Delivery ways	DHL/Fedex/UPS express, Sea or air shipping for your choice
Packing Info	carton package





Application: It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.





Related for LED lens :





Production line:







Export Markets : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East,Eastern Asia, Western Europe
