Трехфазная вращающаяся барабанная сушильная машина для сушки сахарного
- Категория: Оборудование с барабаном для сушки >>>
- Поставщик: Zhengzhou,Dingli,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.63 $* | 0.22 $* |
| Aug-17-2025 | 0.80 $* | 0.71 $* |
| Jul-17-2025 | 0.24 $* | 0.52 $* |
| Jun-17-2025 | 0.86 $* | 0.30 $* |
| May-17-2025 | 0.70 $* | 0.74 $* |
| Apr-17-2025 | 0.86 $* | 0.7 $* |
| Mar-17-2025 | 0.70 $* | 0.84 $* |
| Feb-17-2025 | 0.93 $* | 0.82 $* |
| Jan-17-2025 | 0.64 $* | 0.56 $* |
Характеристики
Product Description
Product Introduction

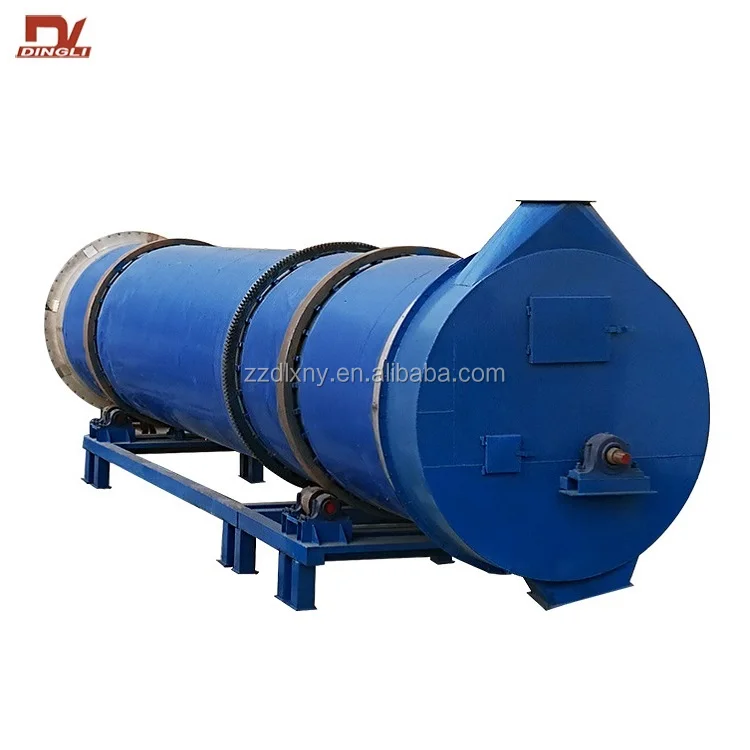

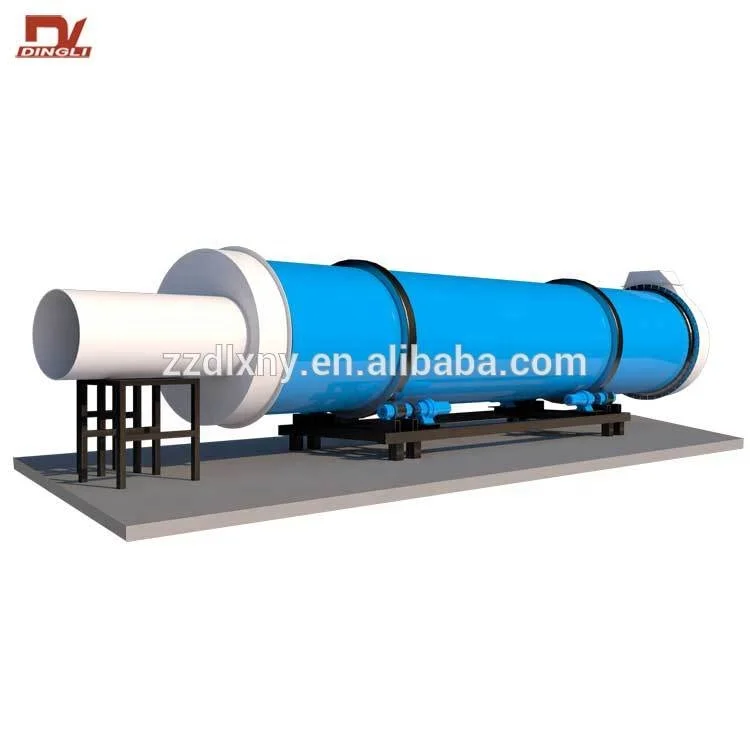

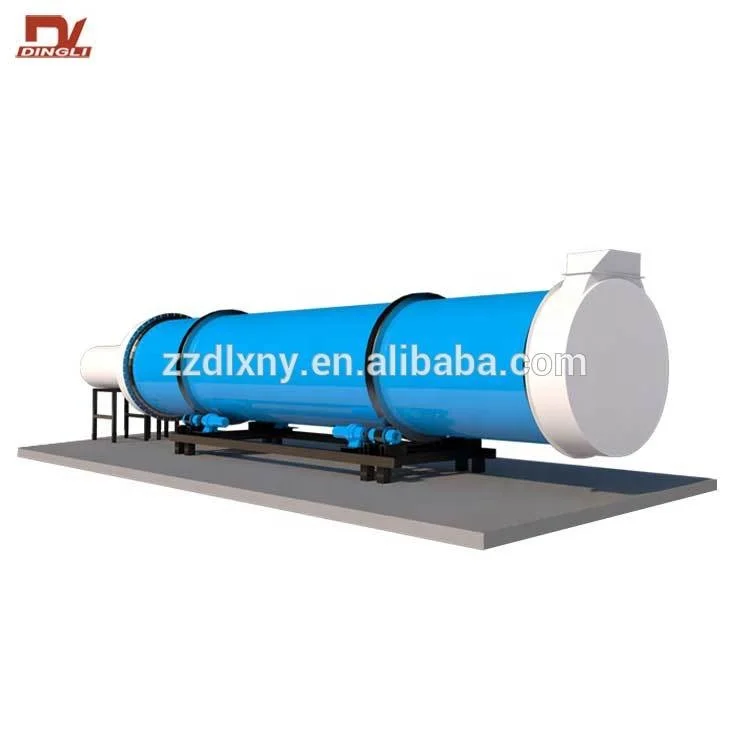

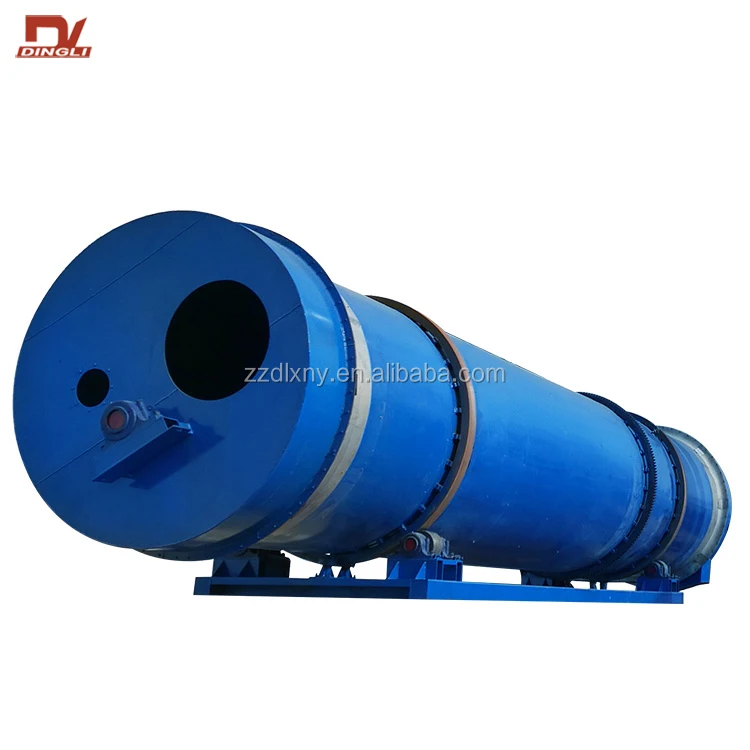

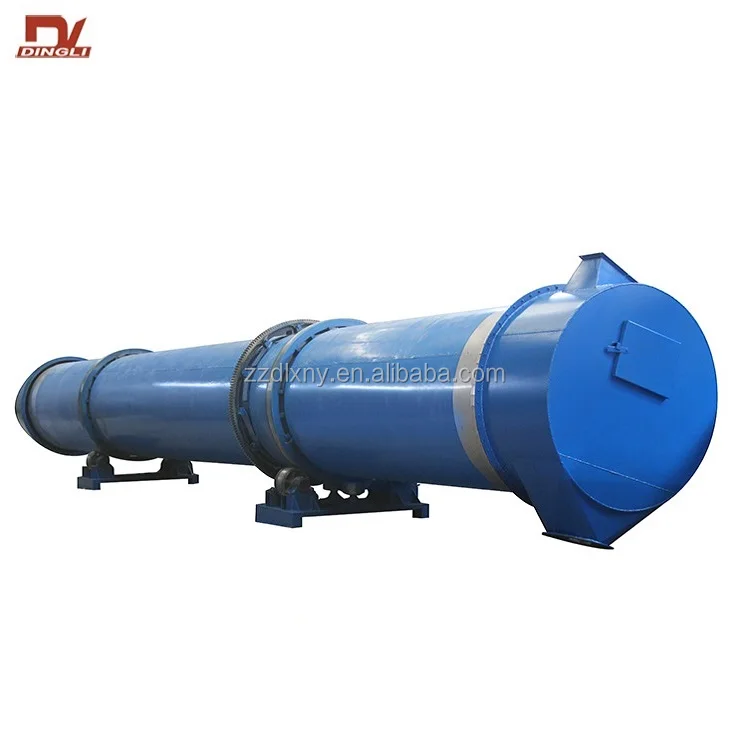

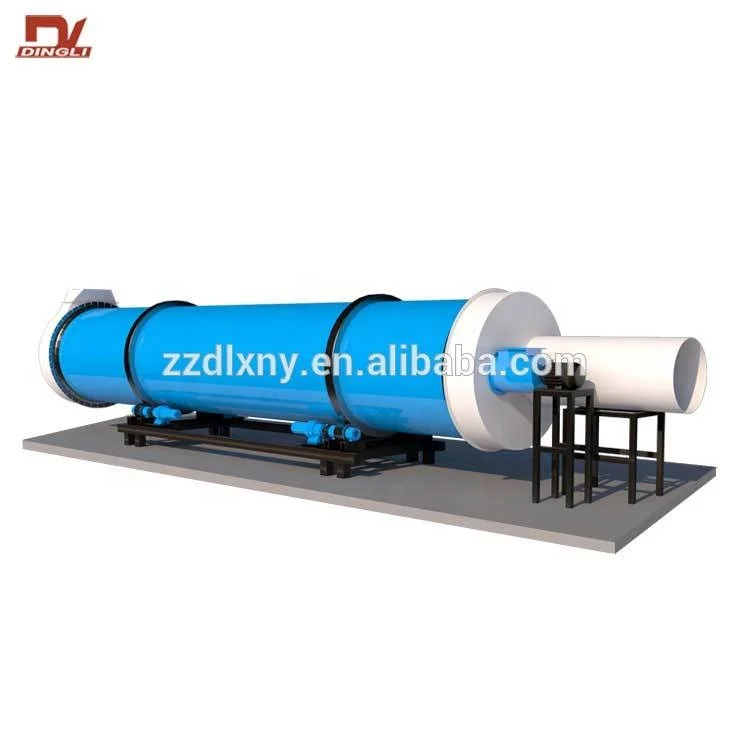

The rotary dryer is used for biomass waste, argicultural waste, etc. Wet materials are continuously sent into the drum through screw conveyer and then get separated and pushed by the high-speed hot flow. The moisture in wet materials is taken away in this process and then we get powder or pellet dry materials.
Product Configuration
Rotary dryers are consist of heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum and discharging port.
Main Features
1) PLC smart control & high automaticity. The performance of rotary dryer and moisture content of dry materials is automatically controlled in stable states.
2) High heat efficiency. The design of multiple circumferential flights combination and flow rate adjustment devices ensure the control of drying period and temperature distribution. The effect of insulation is as high as 70% and raise the heat efficiency by 20%.
3) Four wheel drive, more steady and stable.
4) Save 50% space compared with traditional dryers and reduce 50% civil investment.
5) Convenient variable frequency control systems. Customer could change the material flow rate and product moisture based on their need.
6) Environmental and safe. Modular configuration of dust collection and purification systems
7) More choice for novel air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.
2) High heat efficiency. The design of multiple circumferential flights combination and flow rate adjustment devices ensure the control of drying period and temperature distribution. The effect of insulation is as high as 70% and raise the heat efficiency by 20%.
3) Four wheel drive, more steady and stable.
4) Save 50% space compared with traditional dryers and reduce 50% civil investment.
5) Convenient variable frequency control systems. Customer could change the material flow rate and product moisture based on their need.
6) Environmental and safe. Modular configuration of dust collection and purification systems
7) More choice for novel air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.
\t\t\t\t\t\t\t\t\tProcess & Principle \t\t\t\t\t\t\t
Below is Drying Process
Below is Working Principle
Specifications
Model(DLSG) | 1409 | 1615 | 2008/3 | 2010/3 | 2210/3 | 2510/3 | 2512/3 | 2912/3 | ||||||||
Input Capacity(t/h) | 1.53 | 2.89 | 5.20 | 6.63 | 7.24 | 8.91 | 10.50 | 12.14 | ||||||||
Output Capacity(t/h) | 1.08 | 2.03 | 3.67 | 4.68 | 5.11 | 6.29 | 7.41 | 8.57 | ||||||||
Vaporization(t/h) | 0.45 | 0.85 | 1.53 | 1.95 | 2.13 | 2.62 | 3.09 | 3.57 | ||||||||
Early Moisture(%) | 40±5% | |||||||||||||||
Final Moisture(%) | 15%(adjustable) | |||||||||||||||
Drying Temperature(°C) | 280±30℃ | |||||||||||||||
Total Power(KW) | 34 | 45 | 78 | 90 | 105 | 125 | 140 | 155 | ||||||||
Total Weight(T) | 22 | 28 | 40 | 45 | 50 | 60 | 68 | 76 | ||||||||
Plant Area(m*m) | 5*15 | 6*22 | 8*16 | 8*18 | 8*20 | 10*20 | 10*24 | 10*24 | ||||||||
Except above models, we also can supply special model according to your requirements. | ||||||||||||||||
Our Service
Below is Dingli Group Packaging & Shipping:
Your device will be packed well in container and suit for long ocean shipping.
Below is Dingli Group Service Items:
Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.
\t\t\t\t\t\t\t\t\tCompany Information \t\t\t\t\t\t\t
Below are Dingli Dryer Factory & Sales Team & Production Line Pictures:
Below are Dingli Group Honors & Certificates & Patents:
\t\t\t\t\t\t\t\t\tBuyer & Project Case \t\t\t\t\t\t\t
Below are Dingli Customers Visiting:
Dingli Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.
Below are Installation Sites of Our Customers:
After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: What is your Business Model? Trading company or factory?
A:We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.
We will pick you up at airport. Welcome to visit our factory.
Q: What is the Quality of your products?
A: Dingli Group products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
Q: What should I provide to get the suitable quotation?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
You can send inquiries from this page.Once we get your answers,we can provide you the best quotation immediately.
Remarks: The price will depend on different models.
