Гибридный солнечный инвертор VM inverter 3200W 5000W с 80A 100A MPPT для солнечной энергетической
- Категория: Солнечные инверторы >>>
- Поставщик: Shenzhen,Sunray,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 286.14 $* | 300.11 $* |
| Aug-16-2025 | 283.74 $* | 297.41 $* |
| Jul-16-2025 | 238.91 $* | 250.87 $* |
| Jun-16-2025 | 278.25 $* | 292.27 $* |
| May-16-2025 | 242.41 $* | 254.55 $* |
| Apr-16-2025 | 274.0 $* | 288.34 $* |
| Mar-16-2025 | 271.90 $* | 285.13 $* |
| Feb-16-2025 | 269.84 $* | 282.15 $* |
| Jan-16-2025 | 266.68 $* | 279.42 $* |
Характеристики

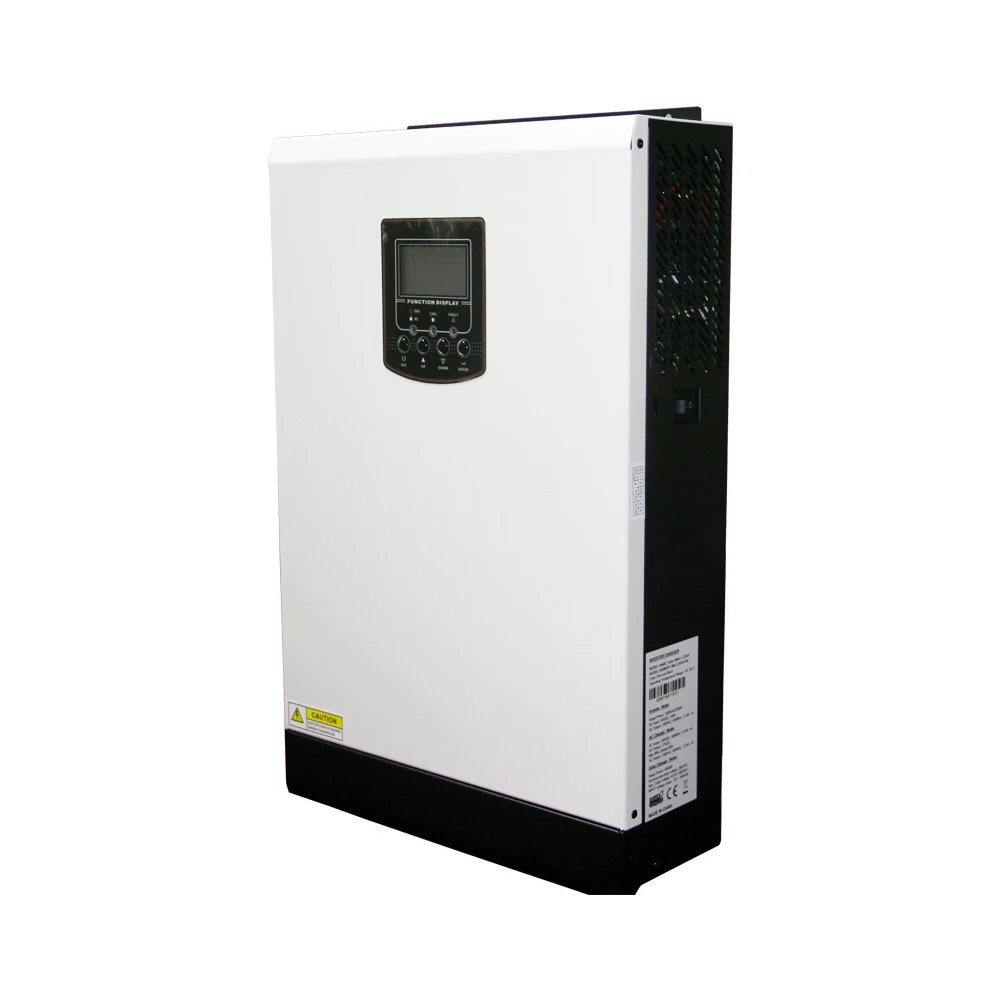

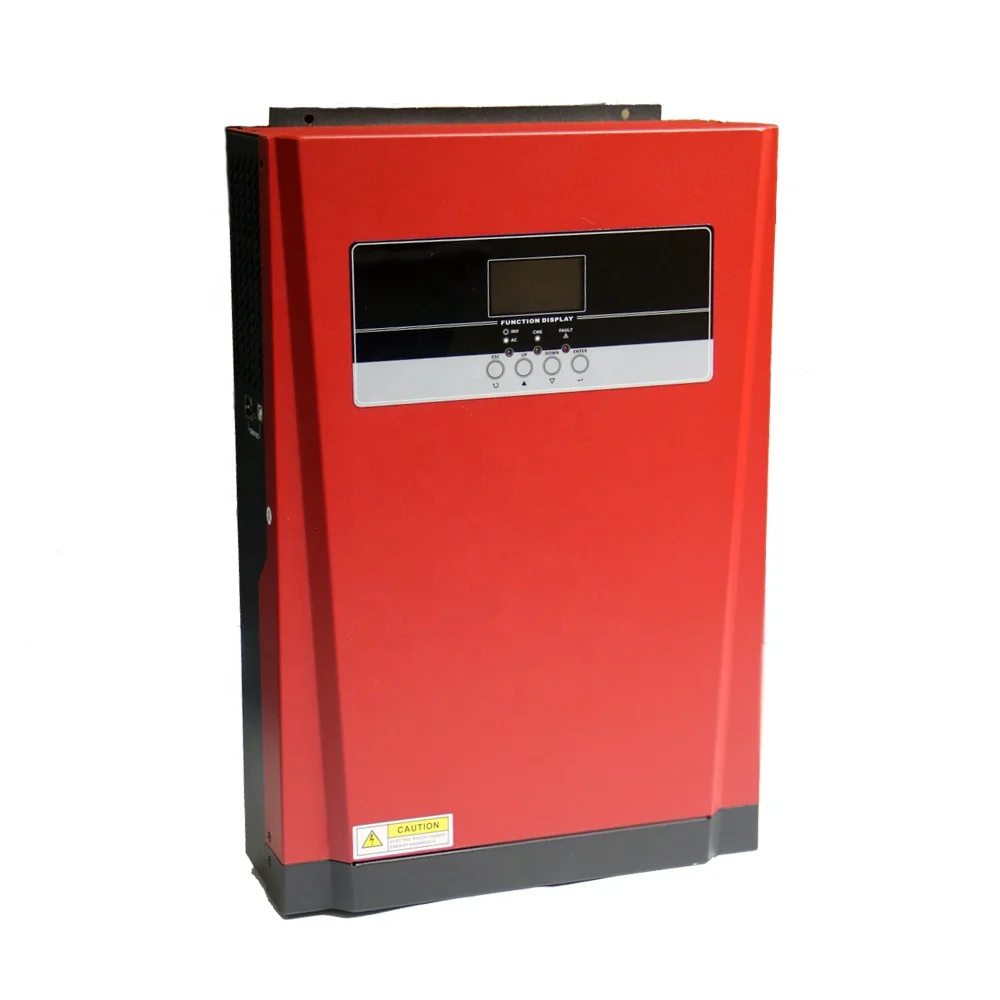

Hybrid MPPT solar inverter VM inverter 3200W 5000W with 80A MPPT for solar energy system
Product Description
Key Features:
1. High efficiency pure sine wave Inverter(PF=1)
2. Wide PV input range(120Vdc~500Vdc)80A MPPT SCC;intelligent 3 stage 60A AC charger
3. Surge to 2X continous power for 5 seconds for motor loads
4. Intelligent functionality enables utility and solar input prioritization
5. Field serviceable with replacement boards and spare parts,Monitor,troubleshoots,or communication with WIFI
6. System configures quickly into compact,wall-mounted system
7. Working without battery in sun day
Specification sheet:
Model No. | MPS-V-3000-24 | MPS-V-5000-48 | ||
Rated power | 3200VA /3200W | 5000VA /5000W | ||
Input | voltage | |||
selectable voltage range | 170-280VAC(For Personal Computers) 90-280Vac(For Home Appliances) | |||
Frequency range | 50Hz/60Hz(Auto Sensing) | |||
Output | AC voltage regulation (Batt.mode) | 230VAC ±5% | ||
Surge power | 6000VA | 10000VA | ||
Efficiency (peak)PV to INV. | 97% | |||
Efficiency (peak)Battery to INV. | 94% | |||
transfer time | 10 ms(For Personal Computers);20ms(For Home Appliances) | |||
waveform | Pure sine wave | |||
Battery& AC charger | battery voltage | 24VDC | 48VDC | |
floating charge voltage | 27VDC | 54VDC | ||
overcharge protection | 33VDC | 63VDC | ||
maximum charge current | 80A | 60A | ||
Solar charger | MAX PV array power | 4000W | ||
MPPT range@ operating voltage | 120~450VDC | |||
maximum PV array open circuit voltage | 500VDC | |||
maximum charging current | 80A | |||
maximum efficiency | 98% | |||
Physical | Dimension, D*W*H(mm) | 100x300x400 | ||
Net weight (kgs) | 9 | 10 | ||
Communication interface | USB/RS232 | |||
operating Environment | humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
operating temperature | 0℃-55℃ | |||
storage temperature | -15℃-60℃ | |||
