Тепла туннель термоусадочная упаковочная машина для двусторонний

Описание и отзывы

Трекер стоимости

Характеристики



Model	GH-6030AES	SF-6040E
Power	2kw	18kw
Power Supply	AC 220V 1/3 PH 50/60Hz	AC 380V 3 PH 50/60Hz
Max Packing Size L×W×H	L(unlimited)×500×300mm	W500×H300mm
Tunnel Size L×W×H	/	1800×600×400mm
Blade Length	670mm	/
Air Temperature	0-300℃	0-300℃
Table Height	820±50mm	820±50mm
Packing Speed	15m/min.	0-15m/min
External Air Source	6-8kg/cm2	/
Shrink Film	PE	PE
Machine Size L×W×H	2160×1333×1703mm	2800×950×1750mm
Packaging Size L×W×H	2210×1383×1853mm	2850×1000×1900mm
G./N. Weight	620/580kgs	625/565kgs

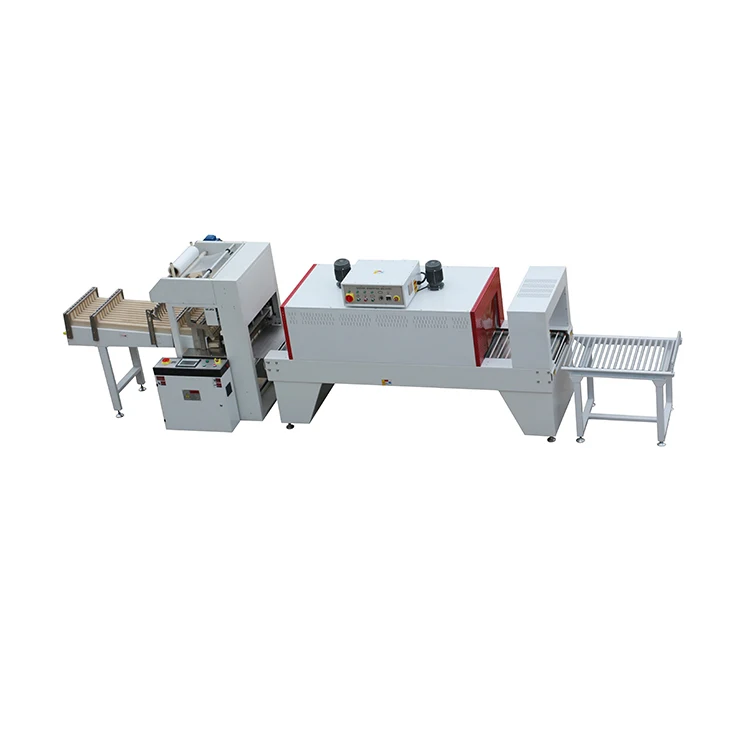

• GH-6030AES+SF-6040E fully-auto Straight Feeding Sleeve Sealer& Shrink Tunnel adopts the unique linear design and compact structure. It is very suitable for accordion type tapes packing. and don't need to adjust the forward      direction packing. What’s more, there is no length limits;

•  It can work independently and also can connect with the production line to realize the unmanned assembly line with the function of auto feeding, film wrapping, sealing, shrinking, cooling and stereotypes.

•  The foreign advanced technology and production process make sure the stable performance.

•  Siemens “PLC” programmable process controller makes it achieve the mechanical, electrical and pneumatic integration.

•  After a special modification, the light and small products can also be packed;

•  It has advantages of speed and connection compared with the common side feed machine.

•  The sealing line is solid without cracking by cutting and anti- sticking by using special blade.

•  Two groups of imported level photoelectric devices are used to accurate positioning;

•  The imported conveyor belt is durable and the conveyor speed is controlled by frequency inverter.

•  The user-friendly control box makes the operator’s operation much easier;

•  The pressure device equipped behind the sealing makes sure the position is stable even for the light product during the procession.

•  SF-6040E shrink tunnel adopts the imported double recycling motor; so that the hot air in the tunnel is even to have more beautiful shrink effect.

•  The outside security cover can be installed according to the customer requirement.

•  The chain conveyor made of solid steel covered with imported silicone tube is very durable. Besides the chain conveyor, we also have different conveyors according the products shape and material.

•  The frequency inverter controls the speed of the conveyor.

•  The separate control box makes sure the electrical components have good ventilation.

•  This machine is mainly applied to the longer products, such as cartons or paper trays which contain drink, beer, water, can or glass bottles collection or single shrink wrapping.

Sealer parts	Brand	Country
Sensor	Autonics	Korea
Cylinder	Airtac	Taiwan
Solenoid Valve	Airtac	Taiwan
Gear Motor	GPG	Taiwan
PLC	Siemens	Taiwan
HMI	Siemens	Taiwan
Film Motor	Haitec	Italy
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Switching Power Supply	Schneider	France
Solid State Relay	Aole	Taiwan
AC Contactor	Schneider	France
Switches	Siemens	Germany



Tunnel Parts	Brand	Country
Gear Motor	GPG	Taiwan
Circulation Motor	SURFON	Taiwan
Intermediate Relay	Siemens	Germany
Temperature Controller	Autonics	Korea
Solid State Relay	Aole	Taiwan
Thermal Overload Relay	Schneider	France
AC Contactor	Schneider	France
Switches	Siemens	Germany

Video Link	Product

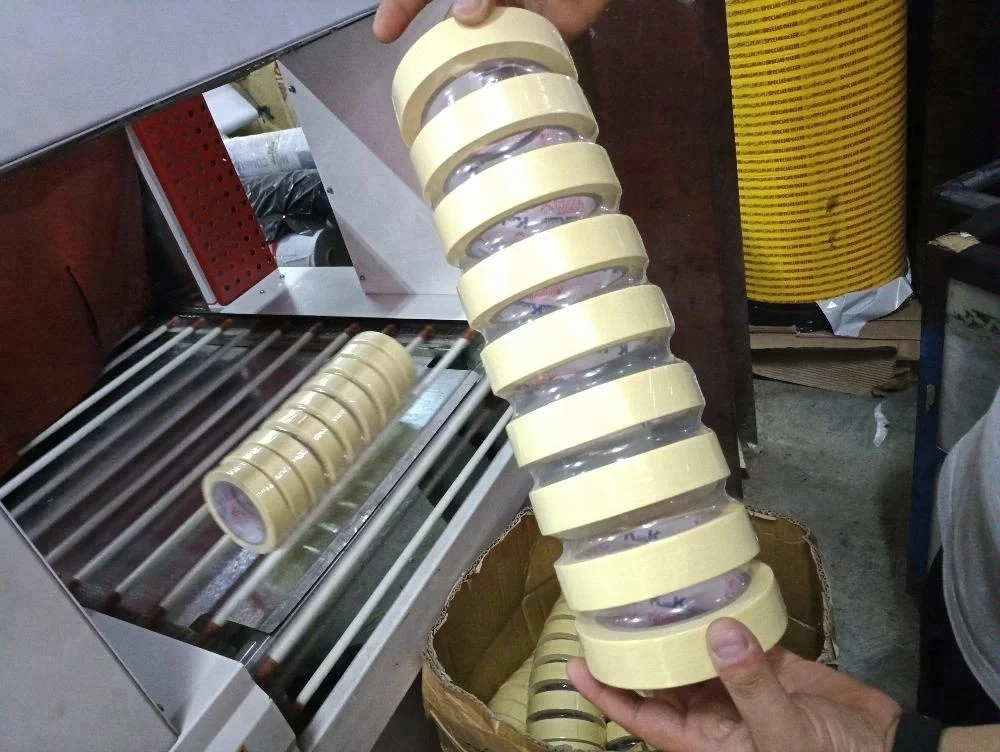

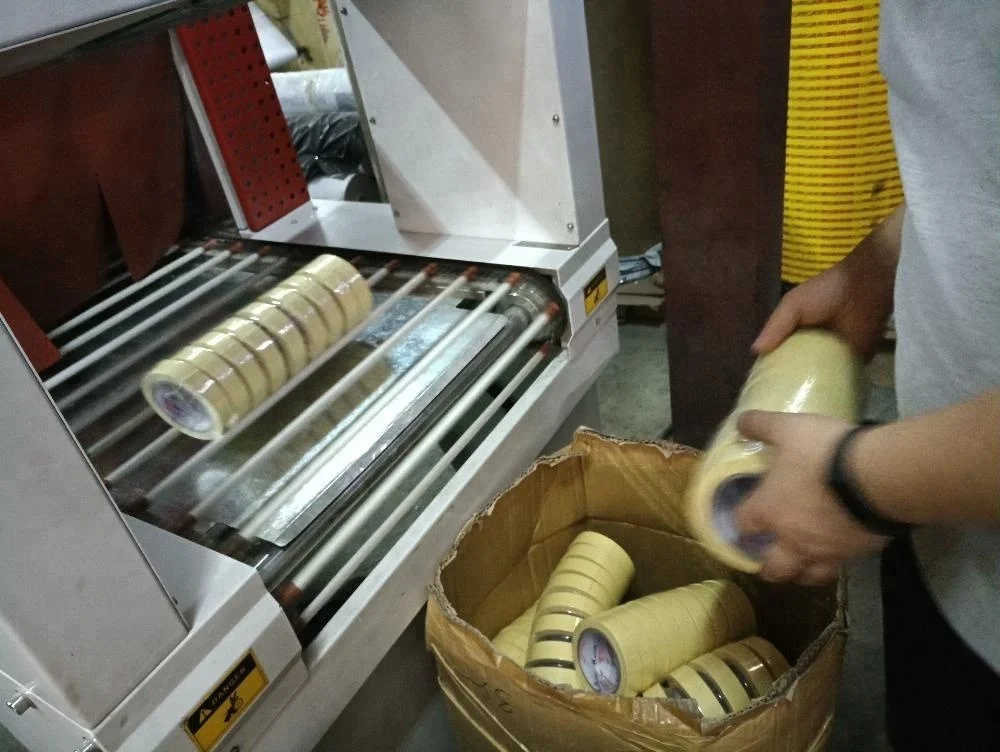

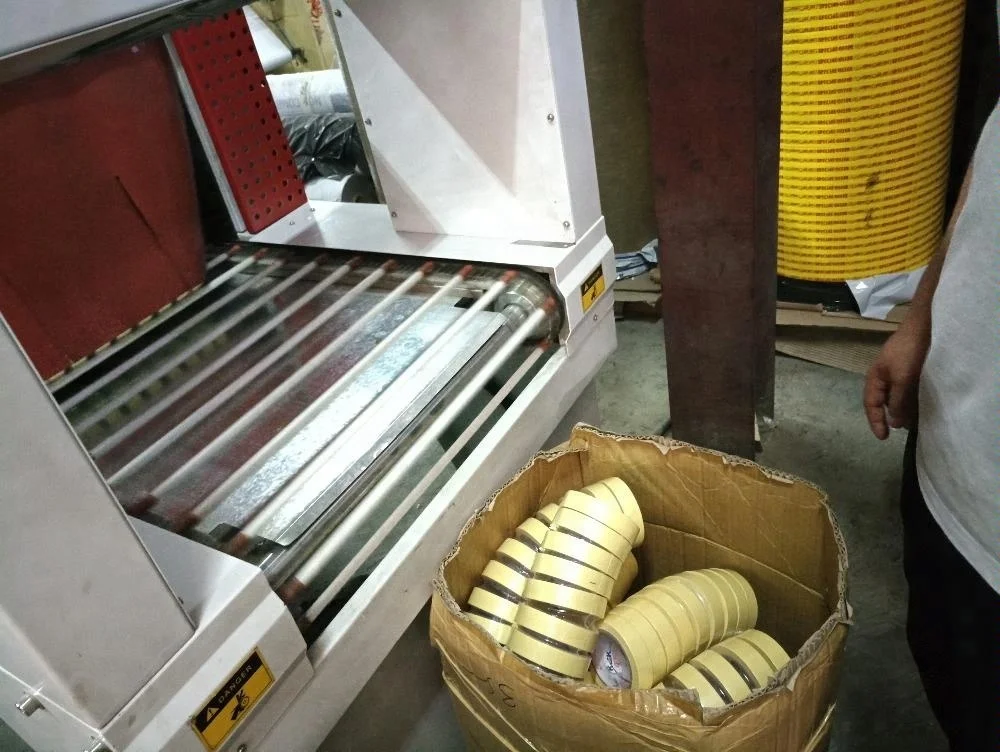

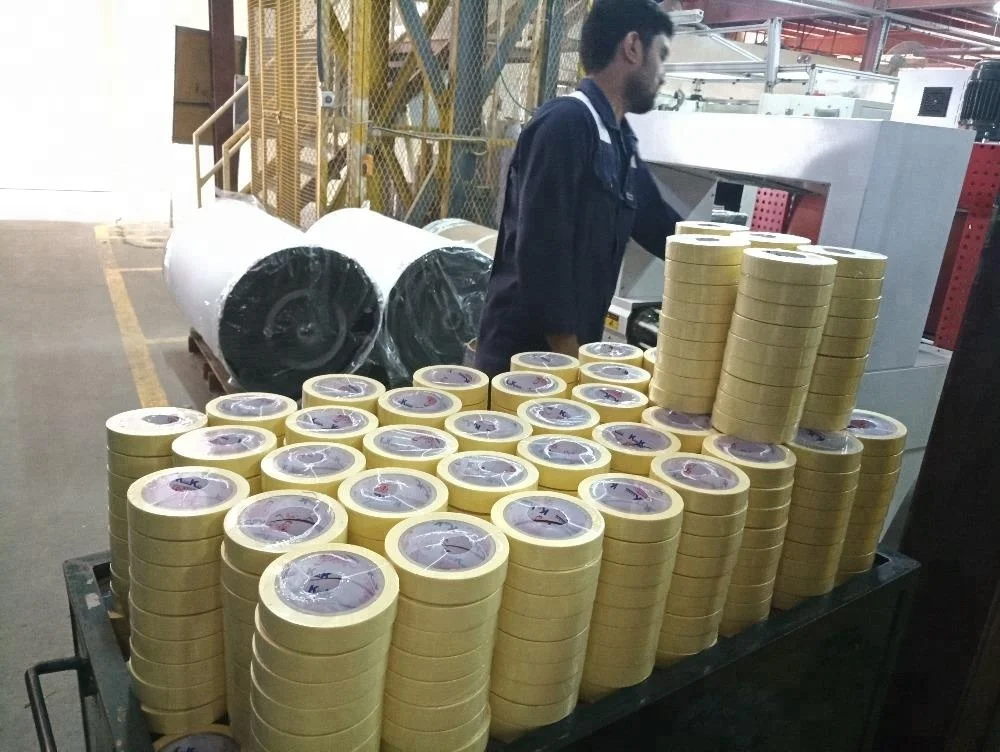

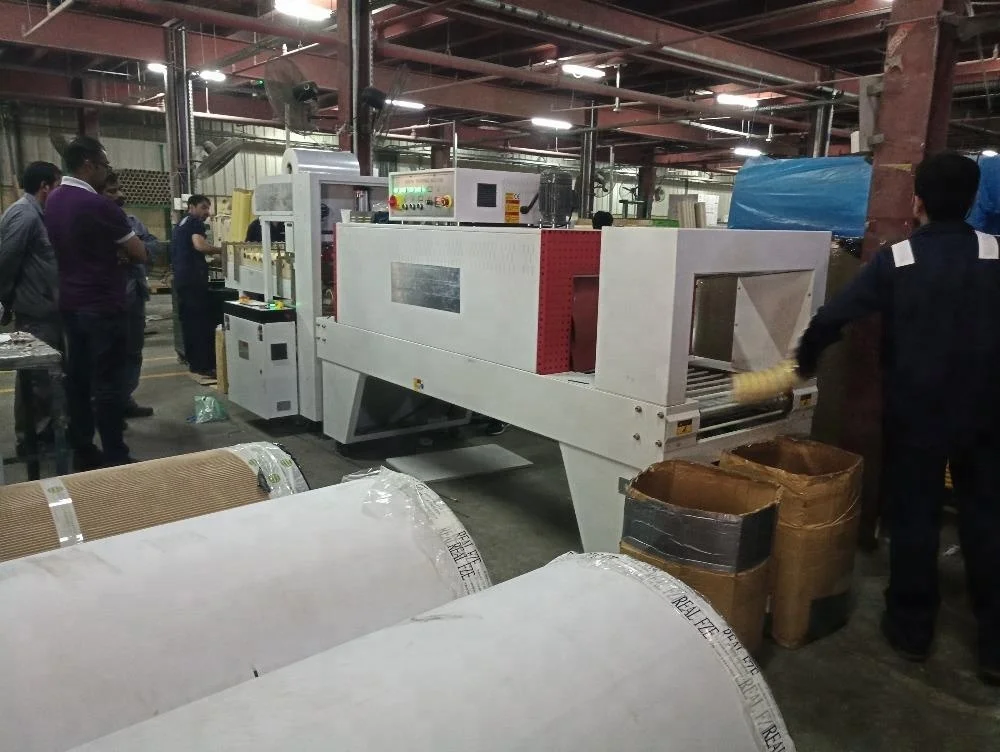

https://youtu.be/Rg4cnrL0srU	Dubai Masking tape
https://youtu.be/fJh-Vpgakcw	Dubai Masking tape
https://youtu.be/jBIMJnvE38Q	Dubai Masking tape
https://youtu.be/j1Qw9u-sUms	Dubai Masking tape
https://youtu.be/LUQ0y1kv6C0	Dubai Masking tape
https://youtu.be/SKt11JUqLFw	Dubai Masking tape  6 pcs/packs
https://youtu.be/K4Z6i16Bv9Q	Dubai Masking tape  5
https://youtu.be/a66HtEbsPD4	Lebanon 24mm masking tape
