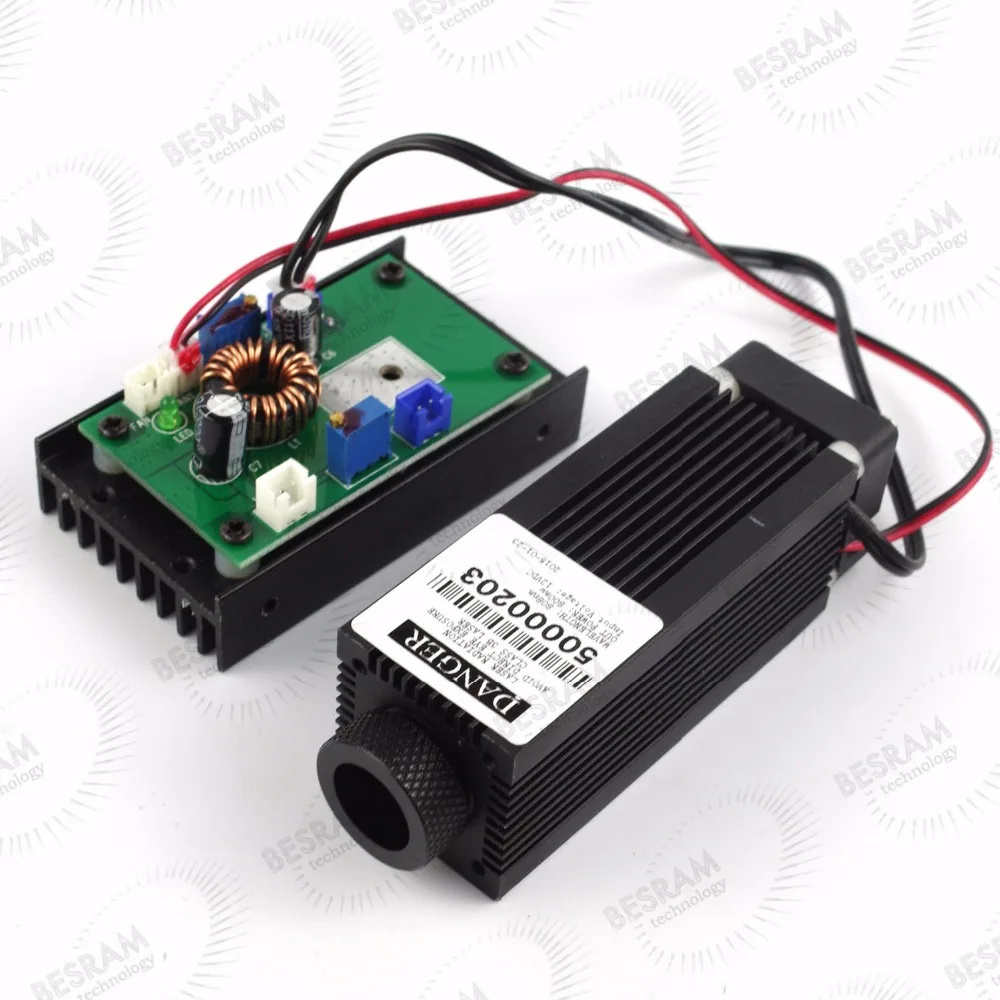

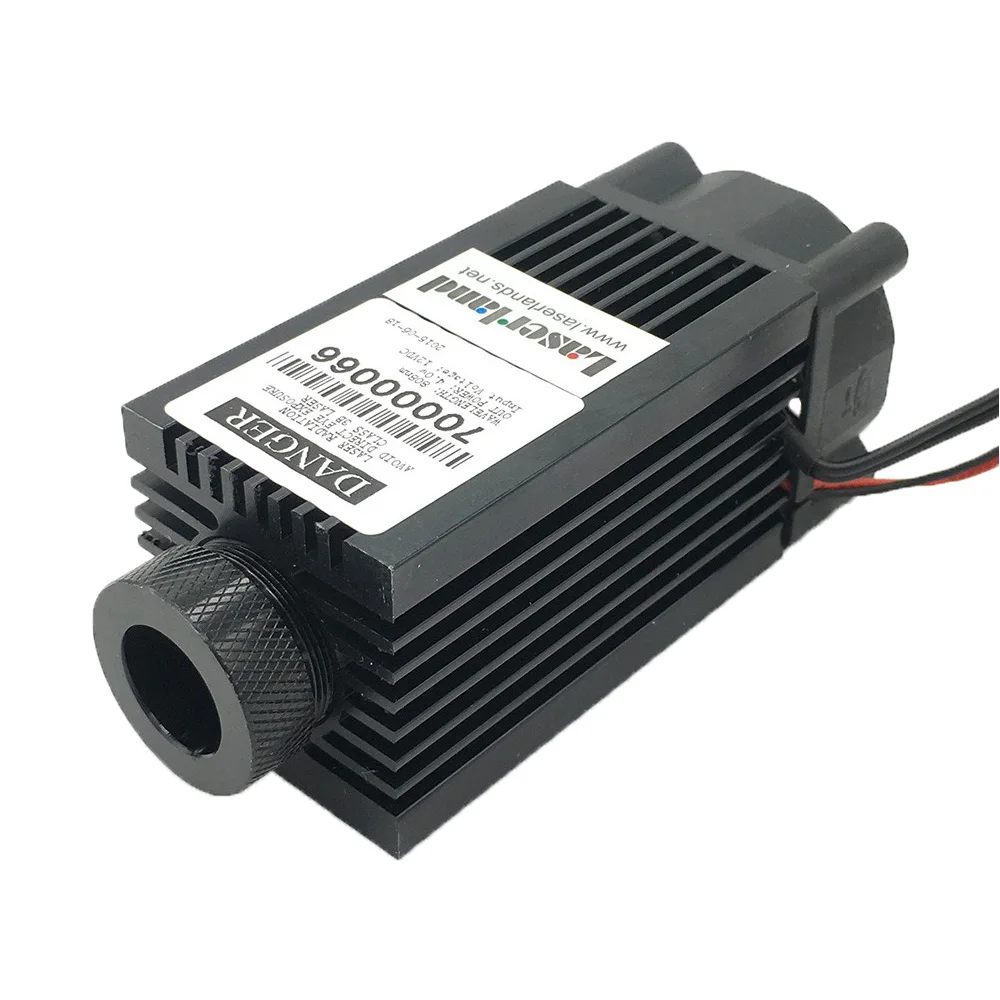

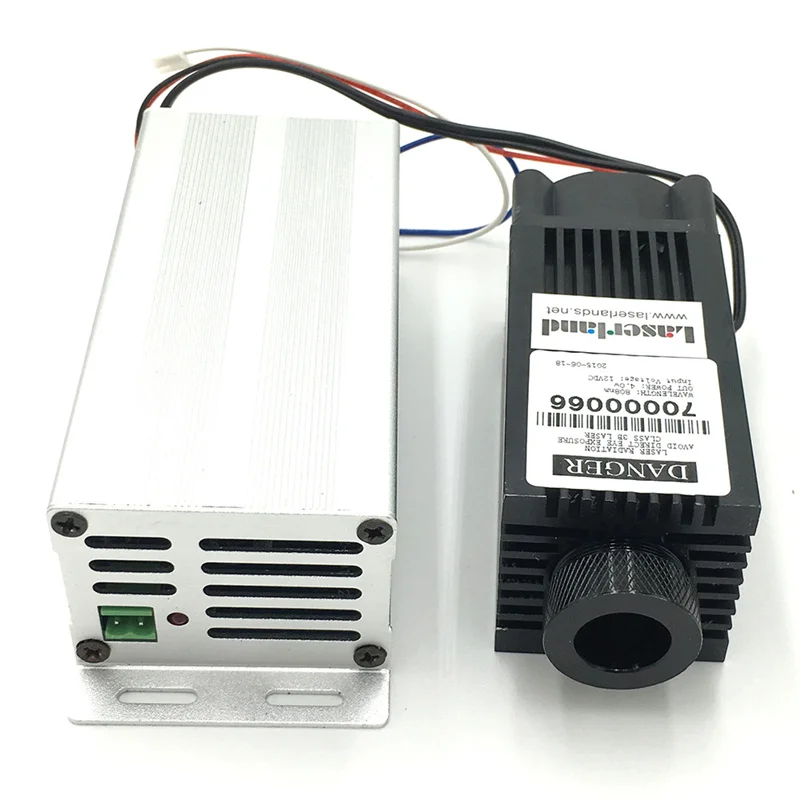

Focusable 1600mW 808nm 810nm Infrared Laser Diode Module TTL

Specification

Products Type

LLM3380-810-5.0T

Size 33*33*80mm

Wavelength  810nm

Lens  Glass

Output  0.8W, 1600mW(1.6W), 2.5W

Divergence  5mrad

Working Voltage  5VDC

TTL  >20KHz

Working Current  1.35A +-15%

LD  808nm 2W

Working Temperature  -10- 30 centi-degree

Operating Life  >5000 Hours



Something buyer need to know:

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30?.

2. Please add a 5VDC power to this laser module. Red wire connects"+" pole; Black wire connects "-" pole. TTL 3-5V on, 0V off. If you don't use TTL, please just leave the blue and white wire.

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

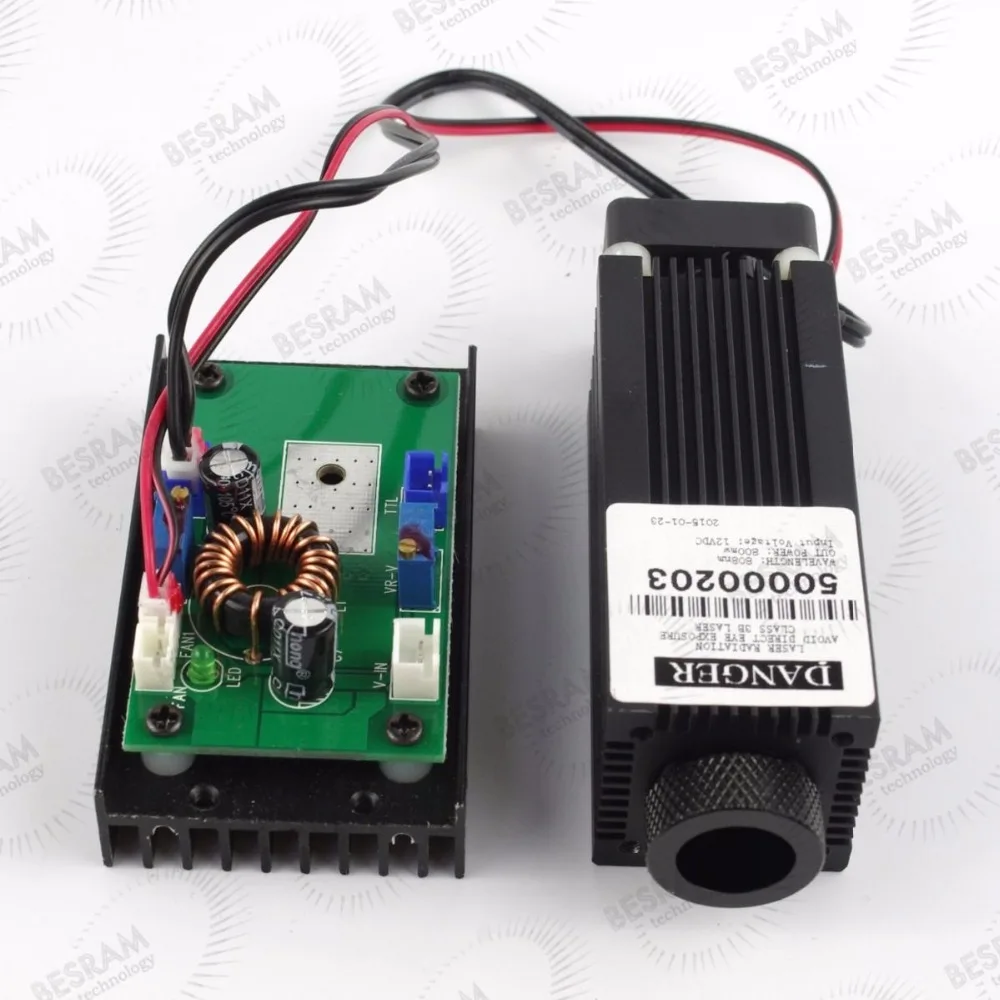

4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.

5. Please wear 808nm laser protection goggles to protect your eyes when working on this module.
