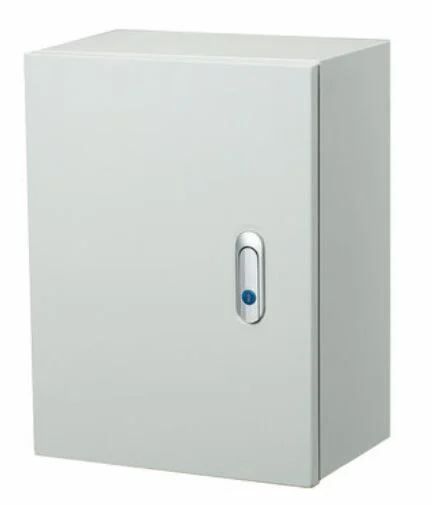

CBL08B Control Box



Applications

The CBL08A is an obstruction lighting Control box designed for controlling and monitoring Lansing LED low

intensity and medium intensity aviation obstruction lights. Incorporated an AC/DC power converter, CBL08A

allows users to input AC voltage (85-265VAC) and converts to 48VDC/24VDC/12VDC for electrical safety works. The user-friendly interface is intuitive for users to monitor operation status and easily configure functions and for monitor lighting operation system for the following failures: burned out lamp, photocell, power failure. & flashing rate control

There are eight light outputs (max. 1A load/output). Practically, for example, for input voltage 48VDC, each output  connects one ZG2K or F864 medium intensity light, or up to Seven DL32/DL100 low intensity lights.

With a Form C dry alarm relay (NO&NC), the control box is capable of transmitting the obstruction lighting system’s failure to users’ alarm devices, when light failure, power-off or photocell failure.

A PT01 photocell is used for automatically switching on and off the obstruction lighting system from dusk to dawn.

Bypass switch on interface panel allows users to bypass the photocell for permanently lightening or testing.

DIN-rail terminal blocks save wiring time and enhance wiring safety. A 2P circuit breaker is effective in protecting the control box from overload. A surge protector (reach 20KV) enhances protection against voltage fluctuation and lightning strikes.



Main functions and features

Control several light flashing synchronously

LED indicators for lights, power and photocell.

Up to eight light outputs, 1-8 selectable upon actual application.

Each light output load maximum 1A

Steady/Flashing adjustable

Din-rail terminal blocks save wiring time and enhance wiring safety.

Bypassl switch—can switch ON/OFF the light when the photocell is not available

Up to 10 dry contact relays(NO&NC) for eight light outputs, power and photocell

Circuit breaker against overload and shortcircuit

External photocell with prewired shieded cable easy for maintain, in case of photocell failure, the

control will give an alarm

Surge protector(up to 20KV) against voltage fluctuation and lighting strikes.

”Service+Service”/”Service+Standby” adjustable when double lights used.



Specification

Input voltage	AC110V-240V		Output voltage	DC48V
Number of Light output	Up tp 8		Alarm output	8 channels
On/off level	70~100Lux		Flashing rate	20~60times/mins(Adjustable)
Surge Protection		20KV	Alarm		NO&NC,Dry contact alarm
Operating temperature	-30C ~ +70C		IP Protection	IP65
Relative humidity	0 ~ 95% (Non  condensing)		Weight	9kg
Material	Cold rolled steel/Stainless steel(optional)
Steady burning and flashing mode available
Wall mounting or U-bolt mounting
