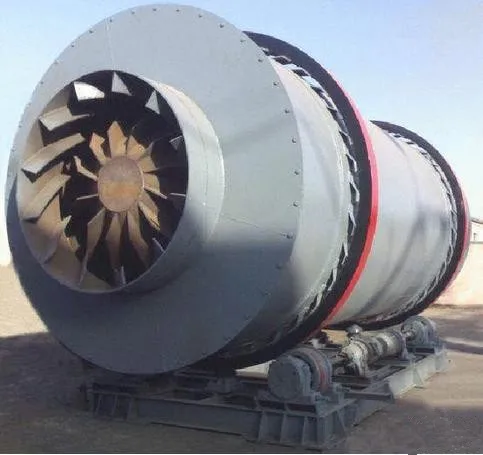

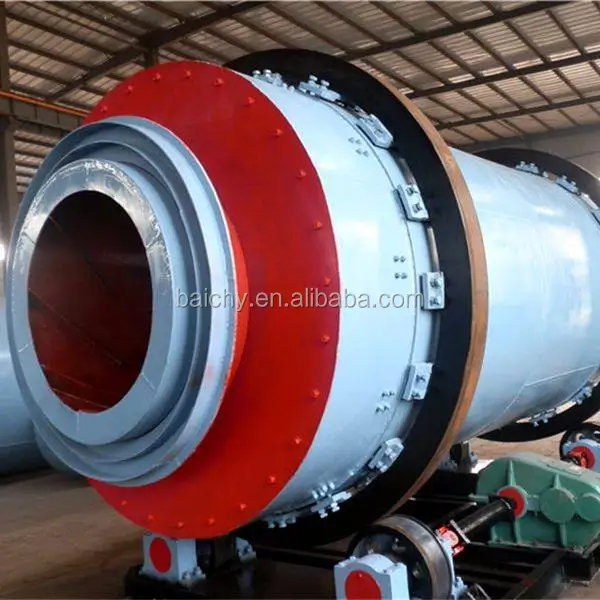

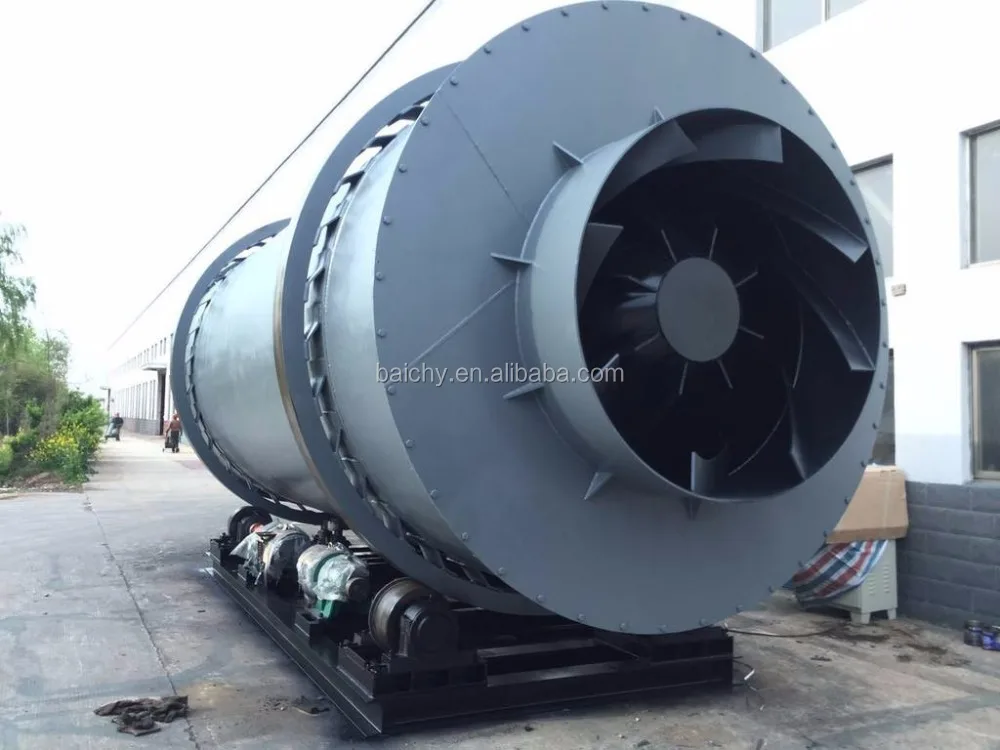

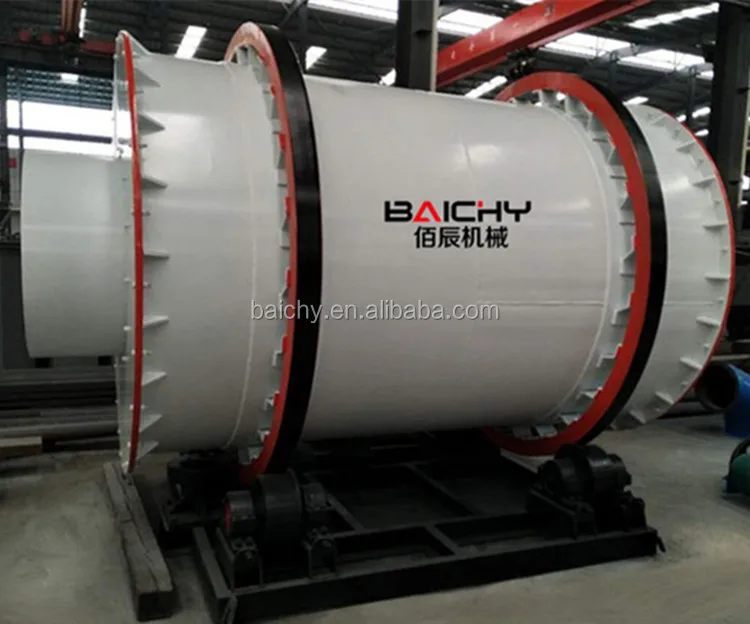

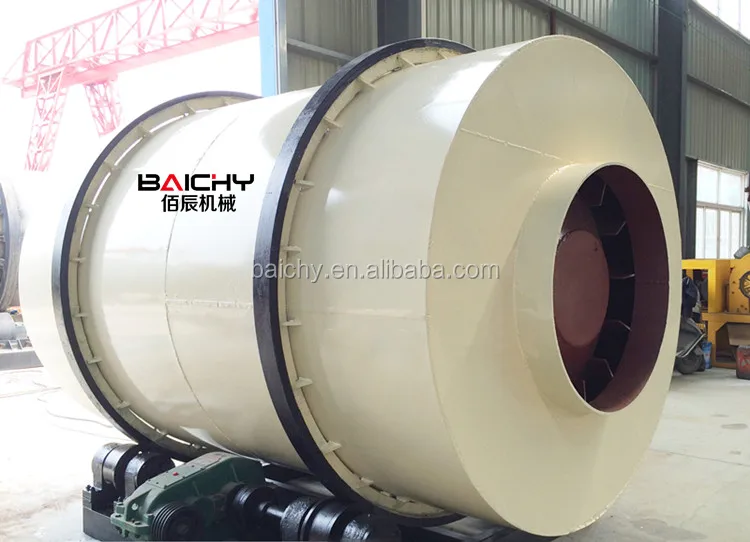

1. Description of the Three Cylinder Rotary Dryer from Baichy Machinery
Three cylinder rotary steam tube dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry. Rotary steam tube dryer has a better adaptability and can dry various materials with a simple and reliable operation.
2. Packaging&Shipping of the Three Cylinder Rotary Dryer from Baichy Machinery
Standard export packing, Spare parts are packed with wooden case, the large machines are loaded in container with nude packing, covered with plastic cloth. We export through Qingdao/Tianjin/Shanghai Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client with competitive price and secure transportation.
3. Working Principle of the Three Cylinder Rotary Dryer from Baichy Machinery
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type. Often, indirect heated dryers are used when product contamination is a concern.
4. Technical Parameters of the Three Cylinder Rotary Dryer from Baichy Machinery
Model | Diameter of outer cylinder(m) | Length of outer cylinder (m) | Drum volume(m³) | Rotation speed(r/min) | Max. air flow temperature(℃) | Production capacity(t/h) | Power(kw) |
2*4.5m | 2 | 4.5 | 14.13 | 4—10 | 700—750 | 13—18 | 5.5 |
2.2*5m | 2.2 | 5 | 18.99 | 4—10 | 700—750 | 15—23 | 7.5 |
2.5*6m | 2.5 | 6 | 29.43 | 4—10 | 700—750 | 20—28 | 5.5 |
2.7*6.5m | 2.7 | 6.5 | 37.19 | 4—10 | 700—750 | 24—33 | 7.5 |
3.0*6.5m | 3 | 6.5 | 45.92 | 4—10 | 700—750 | 35—40 | 11 |
3.2*7m | 3.2 | 7 | 56.27 | 4—10 | 700—750 | 40—60 | 15 |
3.6*8m | 3.6 | 8 | 81.39 | 4—10 | 700—750 | 55—75 | 18.5 |
4.2*8m | 4.2 | 8 | 110.78 | 4—10 | 700—750 | 70—120 | 22 |
5. Features of the Three Cylinder Rotary Dryer from Baichy Machinery
1. Compact structure, reasonable layout and simple structure.
2. Reliable operation, low energy consumption, high thermal efficiency.
3. Easy to automatic control, reduce operating personnel,save the labor resources.
4. Small foundamental investment reduces the one-off investment.
6. All-round Services provided by Baichy Machinery
Pre-sale services:
1. Select equipment model;
2. Design and manufacture products according to customers’ special requirement;
3. Train technical personnel for clients.
Services during the sale:
1. Pre-check and accept products ahead of delivery;
2. Help clients to draft solving plans.
After-sale services:
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators on site;
4. 24 hours, all-weather telephone service, festival and holiday as usual.
