YT27 перфоратор буровая установка пневматический
- Категория: Mine Drilling Rig >>>
- Поставщик: Fujian,Pawacker,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.14 $* | 0.14 $* |
| Aug-18-2025 | 0.72 $* | 0.13 $* |
| Jul-18-2025 | 0.13 $* | 0.65 $* |
| Jun-18-2025 | 0.37 $* | 0.52 $* |
| May-18-2025 | 0.98 $* | 0.65 $* |
| Apr-18-2025 | 0.27 $* | 0.44 $* |
| Mar-18-2025 | 0.93 $* | 0.25 $* |
| Feb-18-2025 | 0.36 $* | 0.22 $* |
| Jan-18-2025 | 0.36 $* | 0.28 $* |
Характеристики

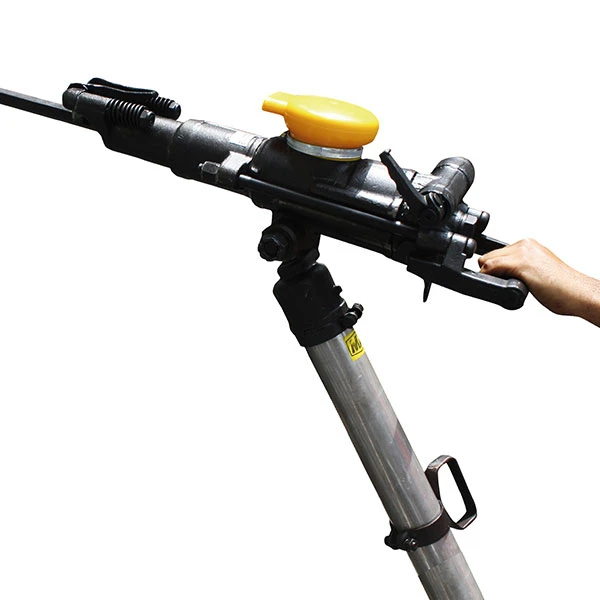

YT27 pusher leg rock drill peforadora
Product Description
The rock drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.
| Weight | 27 | KG |
| Outside dimension(L×W×H) | 668*248*202 | MM |
| Cylinder diameter | 80 | MM |
| Piston Stroke | 60 | MM |
| Impact Energy | ≥75.5 | J |
| Impact frequency | ≥36.7(0.63Mpa) ≥39(0.5Mpa) | HZ |
| Air consumption | ≤83.3(0.63Mpa) ≤57(0.5Mpa) | L/S |
| Working Pressure | 0.5-0.63 | Mpa |
| working water pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34-45 | MM |
| Max Drilling Depth | 5 | M |
| Shank Size | 22*108 | MM |
| FY250A Oil Lubricator | ||
| Weight | 1.2 | ML |
| Oil Reserve | 0.25 | KG |

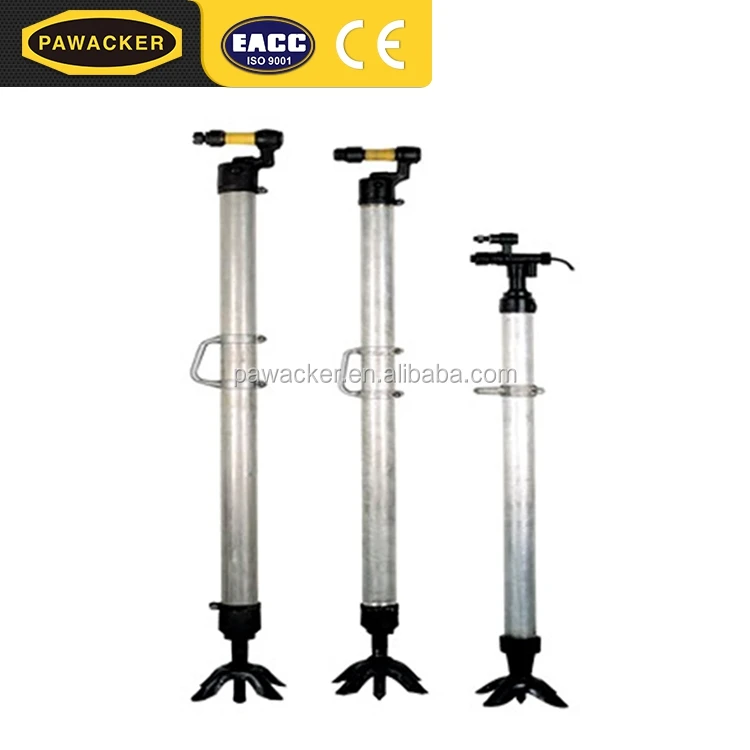

| FT160A Air Leg | ||
| Length | 1668 | KG |
| Advance Length | 1338 | MM |
| Cylinder diameter | 65 | MM |
| Weight | 17 | MM |
