Термоформовочная Машина для горячих питьевых стаканчиков и молочных

Описание и отзывы

Трекер стоимости

Характеристики

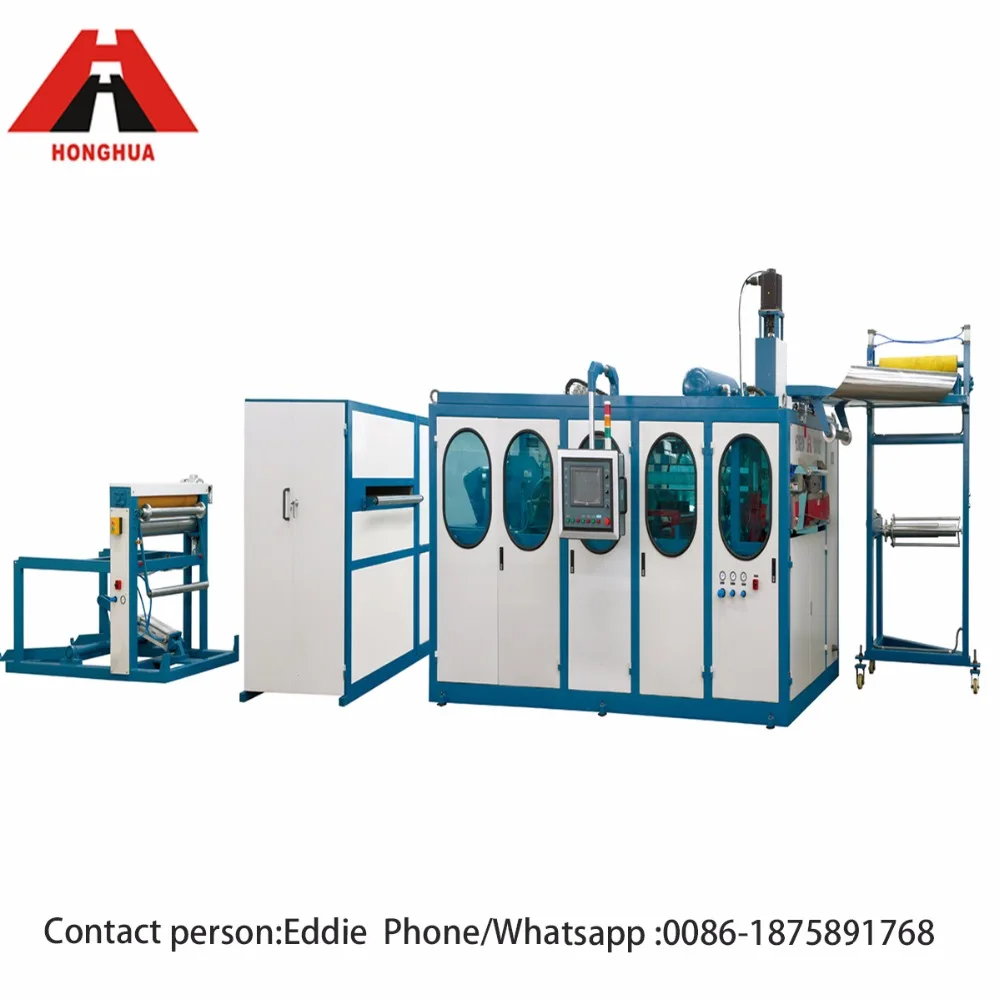

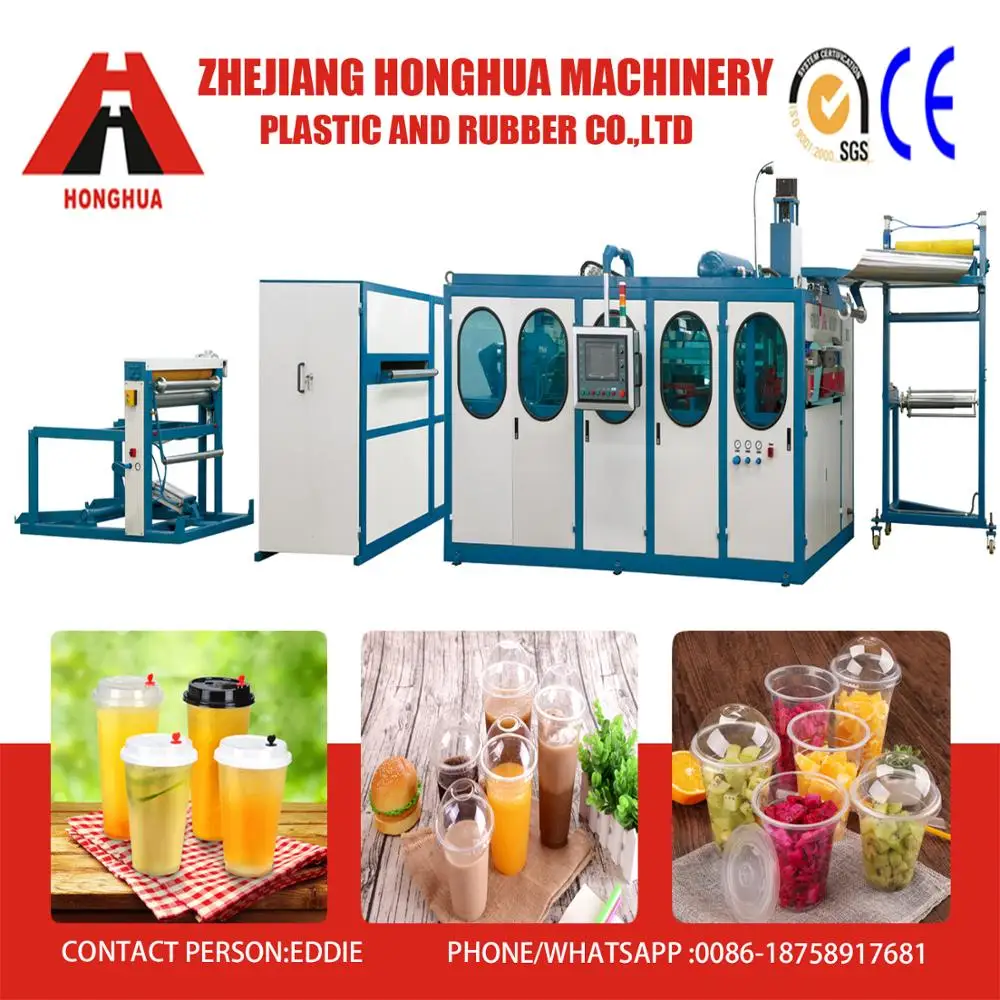

HSC-660D thermoforming machine is designed with most advanced thermoforming technology, a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by PLC. The machine has man-interface operation, preheating by heat conduction oil roller, send sheet by chain, running by cam, press by servo-motor, forming by air pressure. It combines the preheating, material-feeding, heating, drawing, forming, cutting and rewinding into one process.



Application area.

It is used for forming PP.PS.HIPS.PVC. PET plastic sheets, which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as ice-cream cups, milk cups chocolate package boxes, candy boxes and fast food  boxes etc.





1.Maximum forming area.250×580mm	2.Maximum forming depth.120mm
3.Maximum width rage of sheet 300-660mm	4.Thickness range of sheet. 0.2-2.0mm
5.Maximium sheet roller diameter.710mm	6.Air pressure.0.7Mpa
7.Water consumption.10 Liters/min	8.Air consumption2000 Liters/min
9.Manufacturing speed.35mould/min	10.Power.3-N AC380V±15V 50HZ
11.Heating motor power.38kw	12.Main motor power.4kw
13.Feeding motor power.2.2kw	14.Rewinding motor power.0.55kw
15.Weight.4000kg	16.Main machine(L×W×H):3300×1650×2250(mm)







 SAMPLES:
