750 подача гофрированного кровельного листа, формовочная машина
US $14500-$15000
Автоматический строительный материал сборный бетон легкая EPS цементная стеновая
- Категория: Оборудование для изготовления досок >>>
- Поставщик: Shandong,Tianyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 6307.82 $* | 6622.72 $* |
| Aug-18-2025 | 6254.16 $* | 6567.58 $* |
| Jul-18-2025 | 5247.30 $* | 5509.88 $* |
| Jun-18-2025 | 6148.83 $* | 6455.84 $* |
| May-18-2025 | 5353.5 $* | 5621.59 $* |
| Apr-18-2025 | 6042.34 $* | 6344.43 $* |
| Mar-18-2025 | 5989.7 $* | 6288.2 $* |
| Feb-18-2025 | 5936.7 $* | 6233.79 $* |
| Jan-18-2025 | 5883.11 $* | 6177.31 $* |
Характеристики

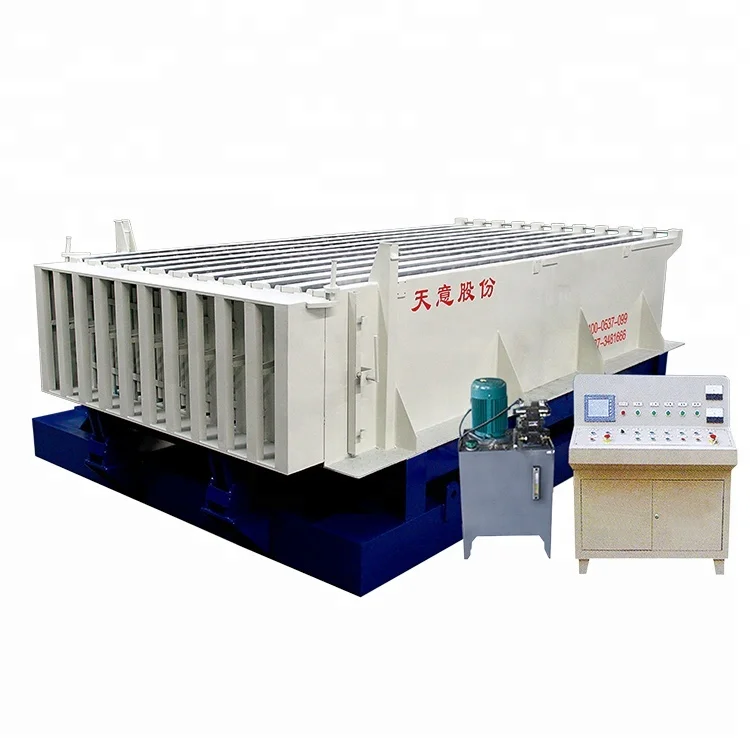

High profit full Automatic Construction Material Precast Concrete Lightweight eps Cement wall Panel Machine/sandwich wall panel |
Machinery Paramenters |
Overall dimension (LxWxH)mm | 3030x1190x2500 |
| Total power(kw) | 23.75 |
| Hydraulic working pressure(Mpa) | 8 |
| Capacity of hydraulic tank(L) | 70 |
| Maximum hydraulic working pressure(Mpa) | 16 |
| Power of vibration system(kw) | 0.75 |
| Power of heating system(kw) | 20 |
| Structural composition | Host machine, hydraulic system, power distribution system, heating system,vibration system, core tubles |
Raw material of lightweight wall panel |
| NO. | Material | Price(¥)/m² |
| 1 | Cement | 10 |
| 2 | Coal ash | 0.5 |
| 3 | Sand | 0.4 |
| 4 | Additive | 1.5 |
| 5 | Labor cost | 2 |
| 6 | water and electricity | 0.5 |
| 7 | Other cost | 0.1 |

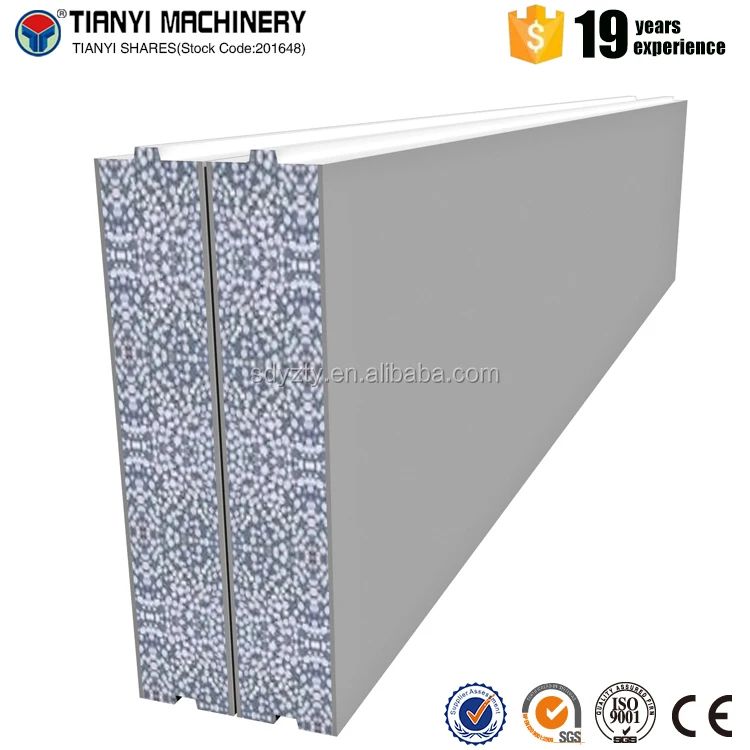

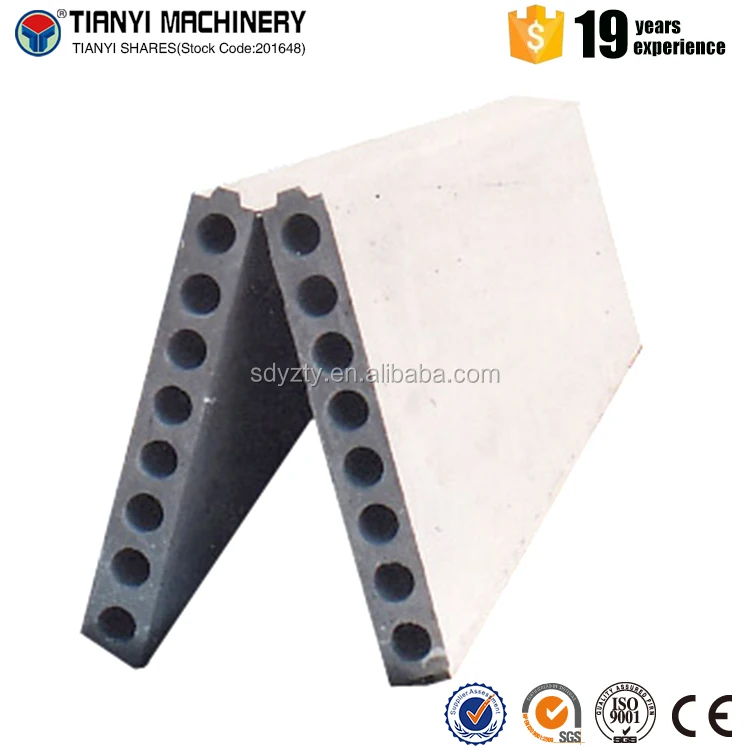

Finished products |
| Test ltems | National standard | Actual index |
| Compressive strength | ≥3.5MPa | ≥3.7MPa |
| Drying shrinkage | ≤0.6mm/m | 0.37mm/m |
| Hanging force | ≥1000N without 0.5mm crack in 24 hours | ≥1000N without 0.5mm crack in 24 hours |
| Shock resistance | without crack shocked by 30Kg sandbag for 5 times | without crack shocked by 30Kg sandbag for 5 times |
| Sound insulation | ≥35dB | 43dB |
Our unique advantages |
Production process |
Our company |
Why choose us |
Shipping |
