Introduction of Air Driven Small Concrete Spraying Machine  Dry Shotcreting Guniting machine

High Quality Wet and Dry Shotcrete machine is concrete shotcrete machine. This kind shotcrete machine uses the compressed air to convey or high-speed jet concrete mix with a certain proportion to the surface through the pipelines. The concrete mix on the surface set and harden to form concrete support layer. In recent years, shotcrete technology with a simple process, an unique effect, the economic cost and fast construction speed, is widely used in construction, rail and road tunnel construction, mine development, slope reinforcement and other fields.



Main Parameter of Air Driven Small Concrete Spraying Machine  Dry Shotcreting Guniting machine

                                                                     dry-mix shotcrete machine main parameter

Model		PZ-3	PZ-5	PZ-7	PZ-9
Output		3.5m3/h	5m3/h	7m3/h	9m3/h
Max. Convey distance	Horizontal	200m	200m	200m	200m
	Vertical	20m	20m	20m	20m
Water cement ratio		≤0.4	≤0.4	≤0.4	≤0.4
Max. Aggregate. size		Φ20mm	Φ20mm	Φ20mm	Φ20mm
Hose inner size		Φ38mm	Φ51.mm	Φ64mm	Φ64mm
Operating air pressure		0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Air consumption		3-4 m3/min	7-8 m3/min	12-15 m3/min	12-15 m3/min
Rotor diameter		350(150)mm	438mm	480mm	480mm
Electric Voltage		220v /380v or as your requirement	220v /380v or as your requirement	380v or as your requirement	380v or as your requirement
Overall dimension		1040*550*940mm	1280*700*1280mm	1600*700*1150mm	1600*700*1150mm
Whole weight		550kgs	600kgs	900kgs	900kgs

                                                      Wet-mix shotcrete machine main parameter

Model		HSP-5	HSP-7	HSP-9
Output		5.0m³/h	7.0m³/h	9.0m³/h
Max. Convey distance	Horizontal	30m	30m	30m
	Vertical	20m	20m	20m
Concrete proportion		1:4-5C/A	1:4-5C/A	1:4-5C/A
Water cement ratio		≤0.4	≤0.4	≤0.4
Hose inner size		Φ51mm	Φ51/64mm	Φ51/64mm
Max.Aggregatesize		Φ15mm	Φ15mm	Φ15mm
Operating air pressure		0.3-0.6Mpa	0.3-0.6Mpa	0.3-0.6Mpa
Air consumption		10.0-15.0m³/min	10.0-15.0m³/min	10.0-15.0m³/min
Rotor diameter		438mm	480(160)mm	480(175)mm
Spring rate level		≤10%	≤10%	≤10%
accelerating liquid adding amount		0.3%-0.7%	0.3%-0.7%	0.3%-0.7%
Electric Voltage		220v/380v	380v or as your need	380v or as your need
Overall dimension		1280*700*1280mm	2000*800*1300mm	2000*800*1300mm
Whole weight		700kg	800kg	900kg

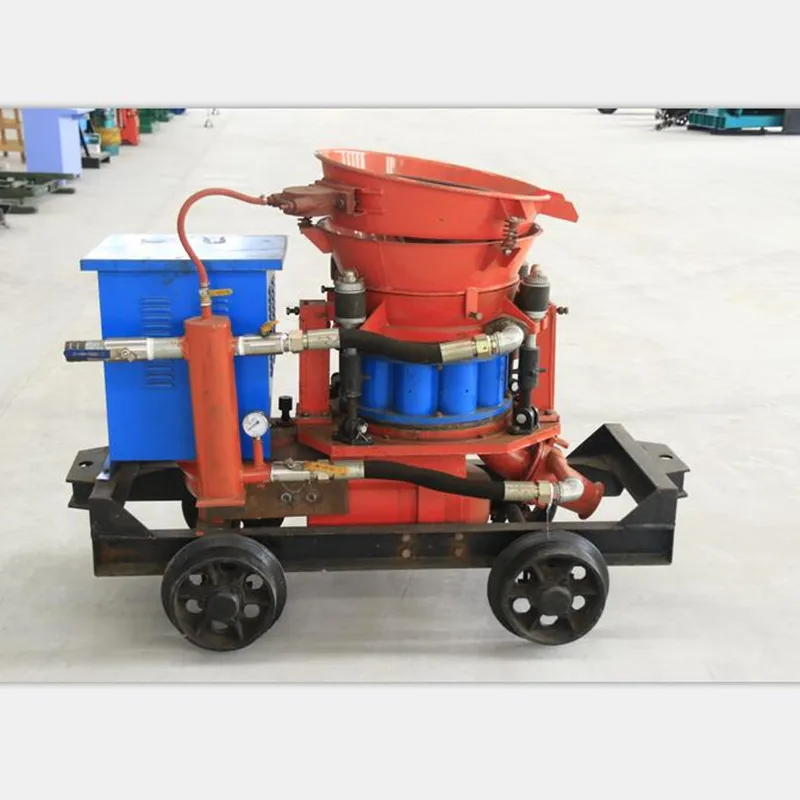

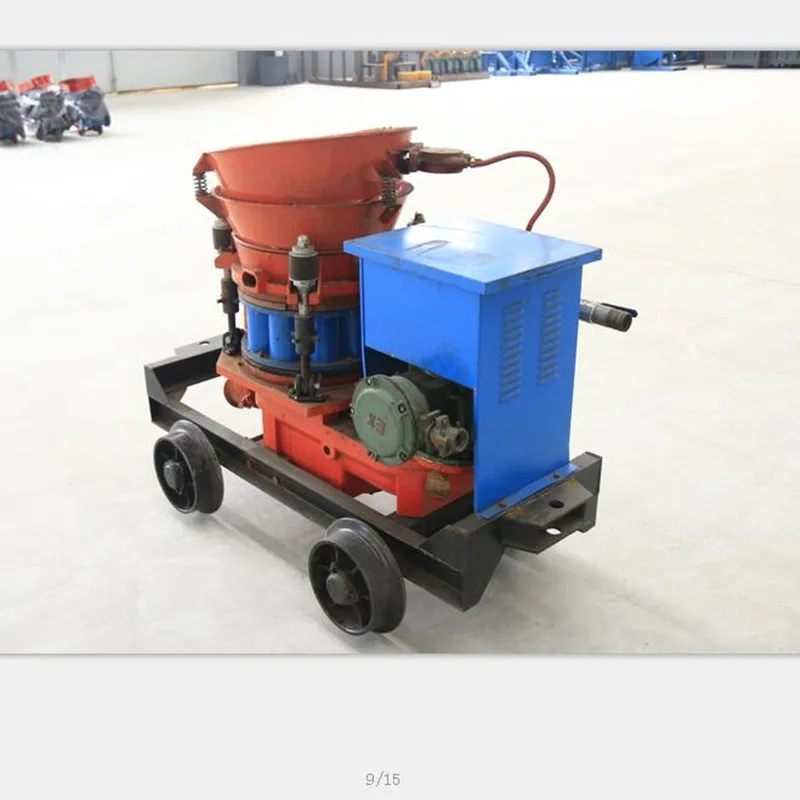

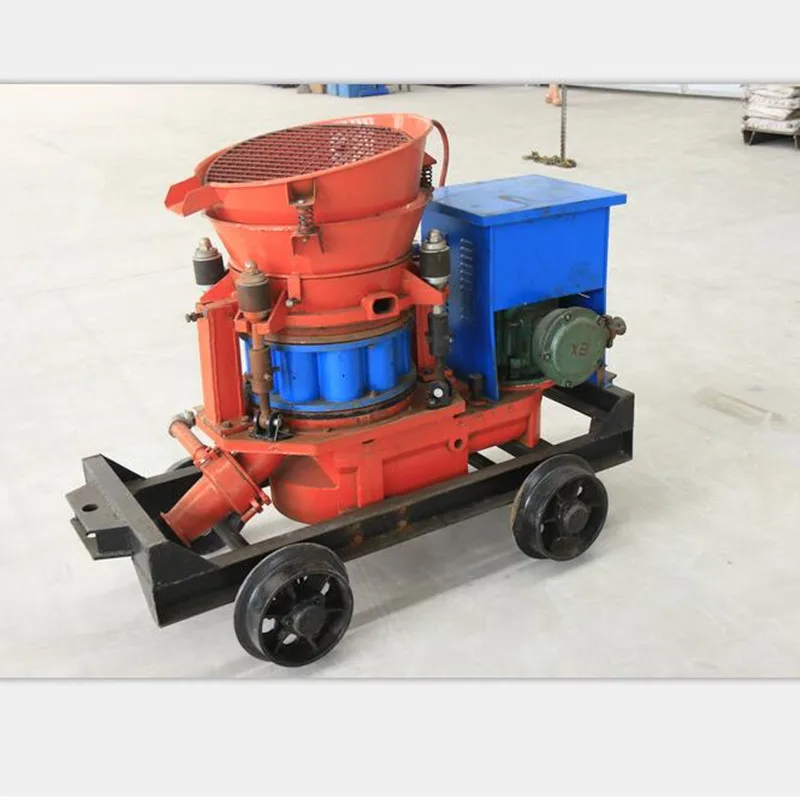

Figure Images of Air Driven Small Concrete Spraying Machine  Dry Shotcreting Guniting machine
