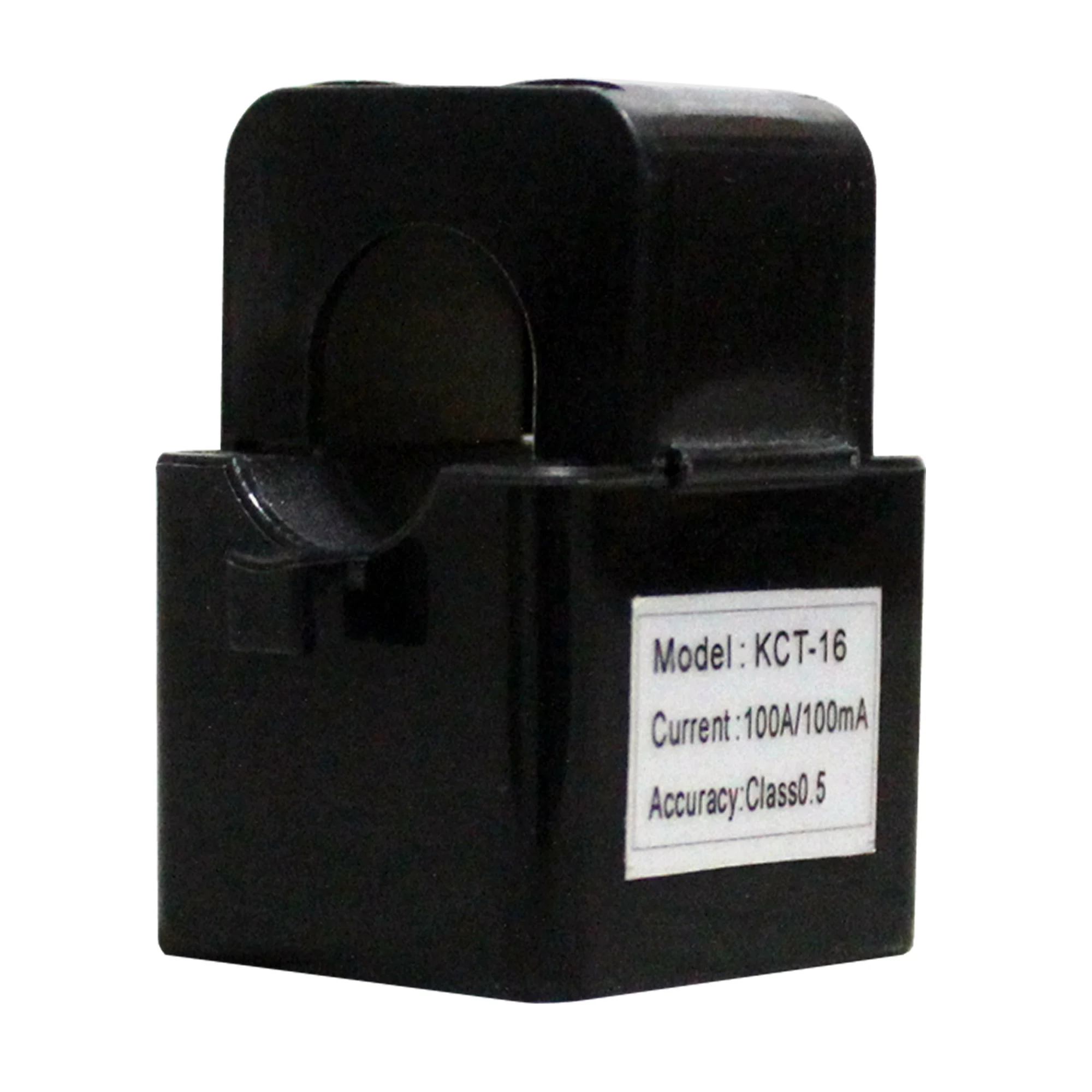

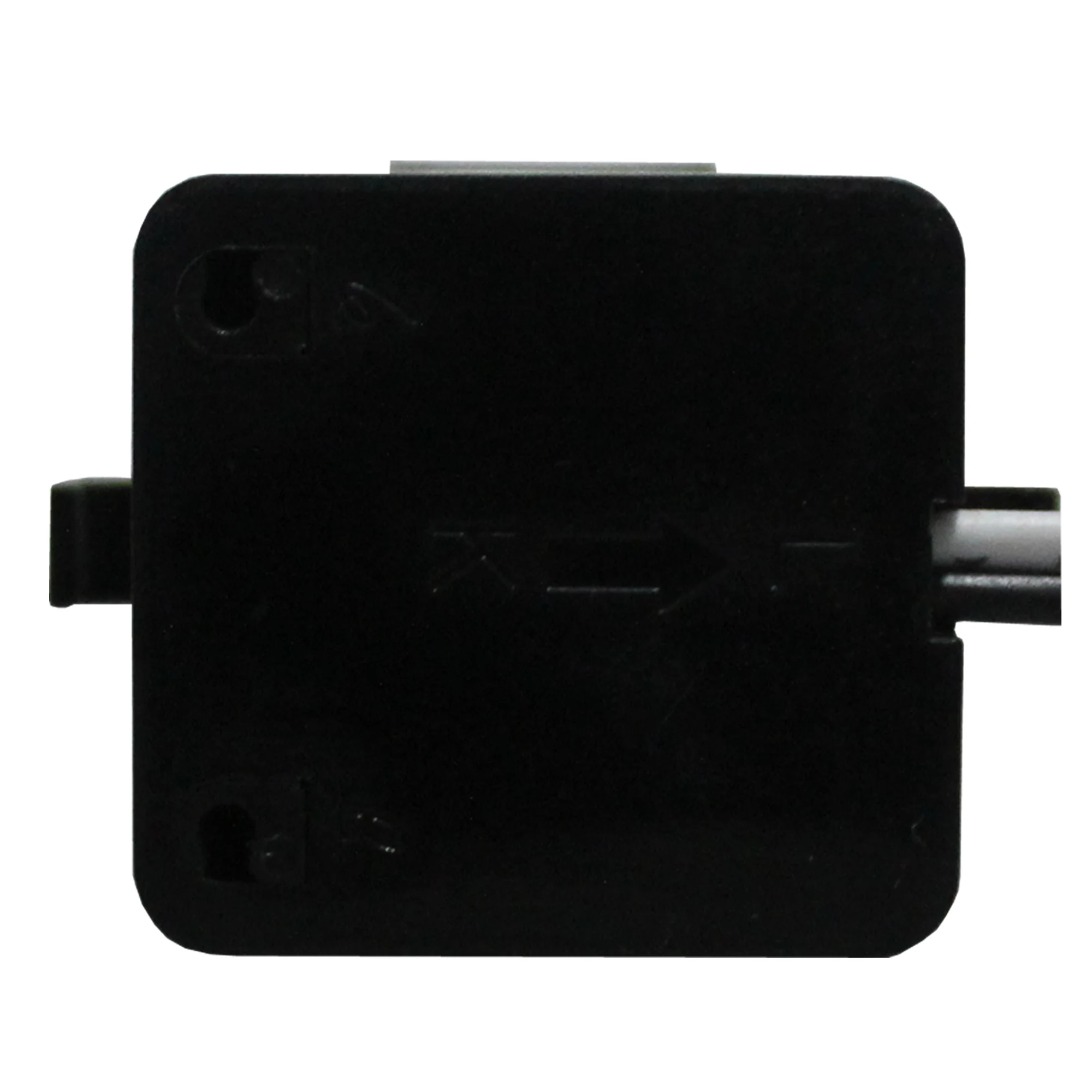

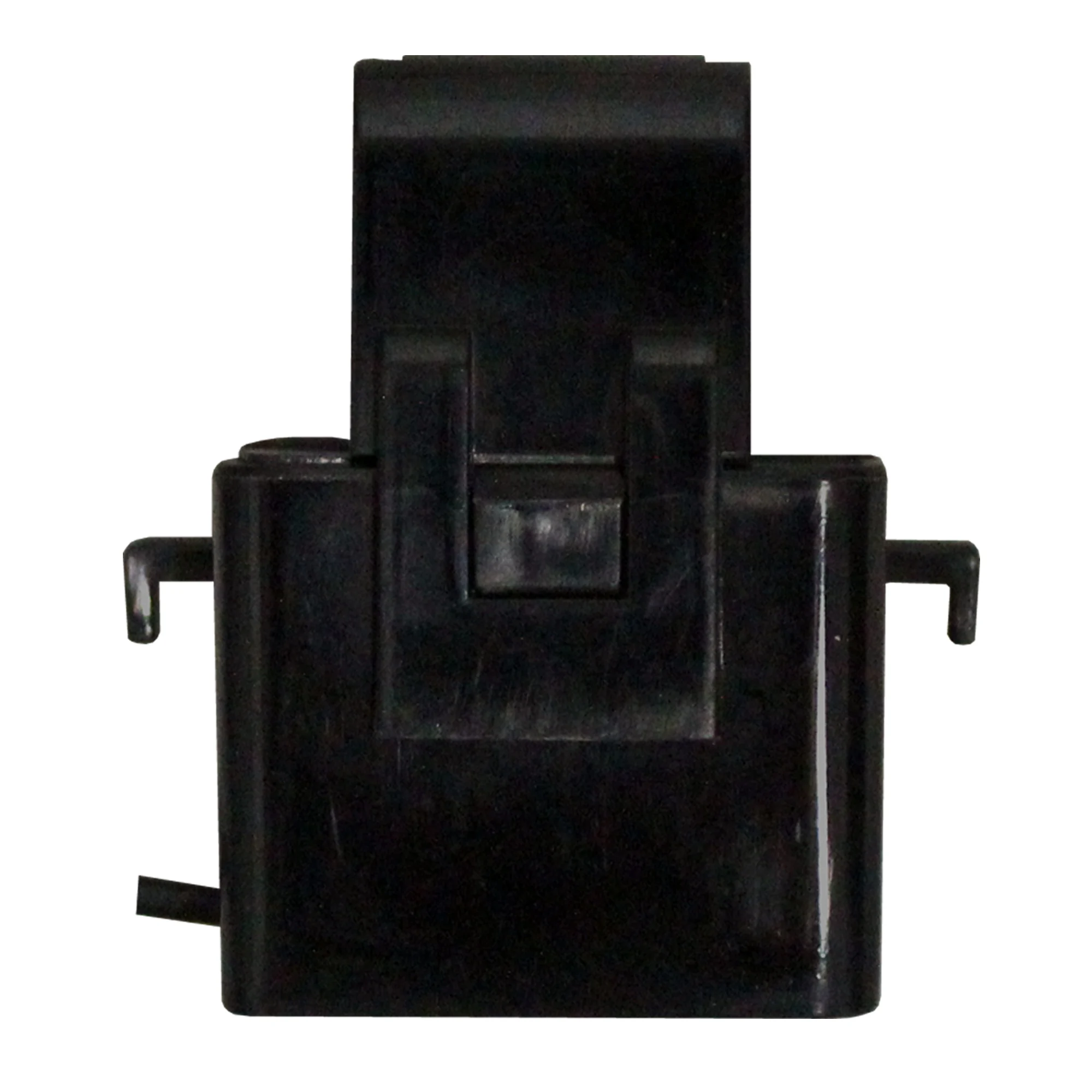

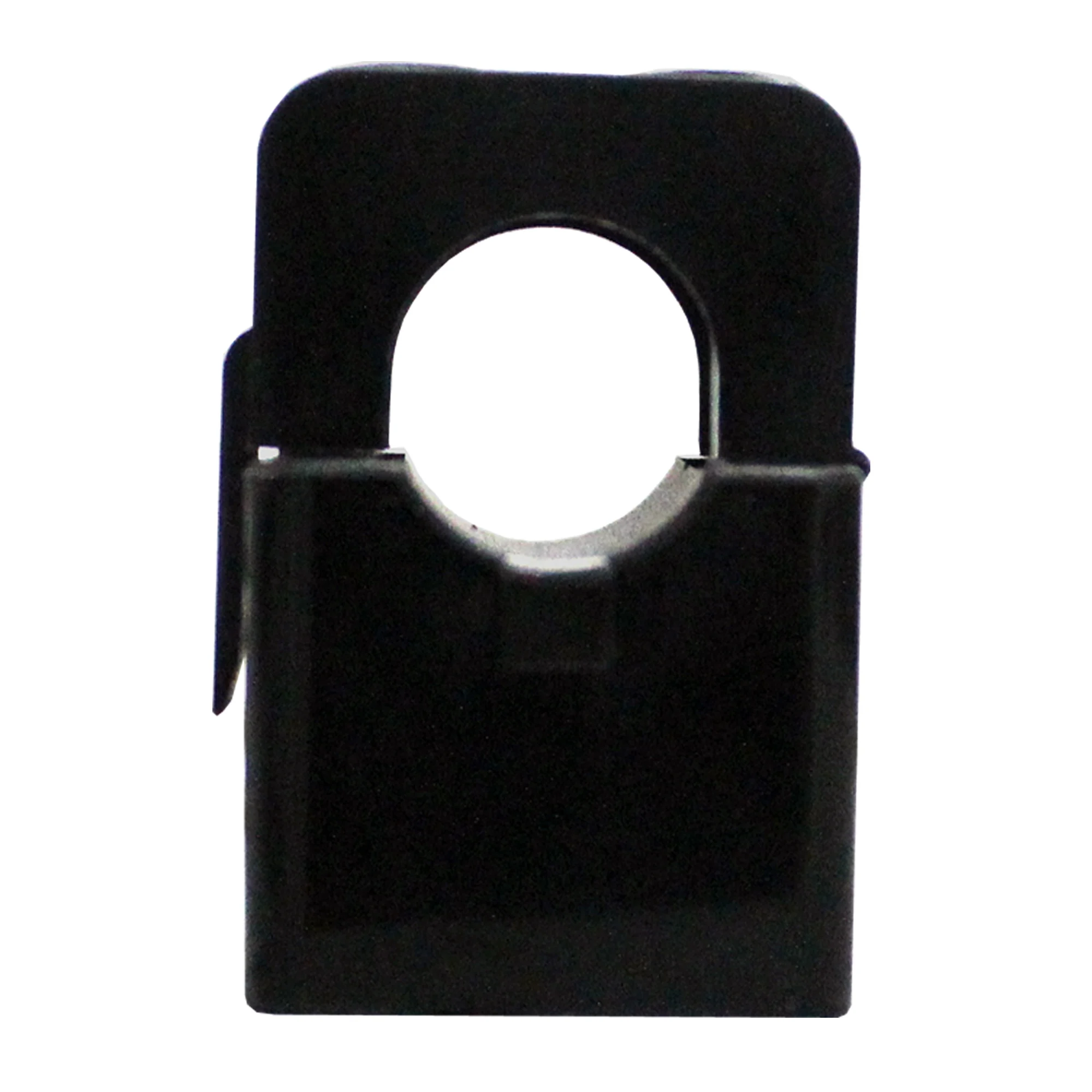

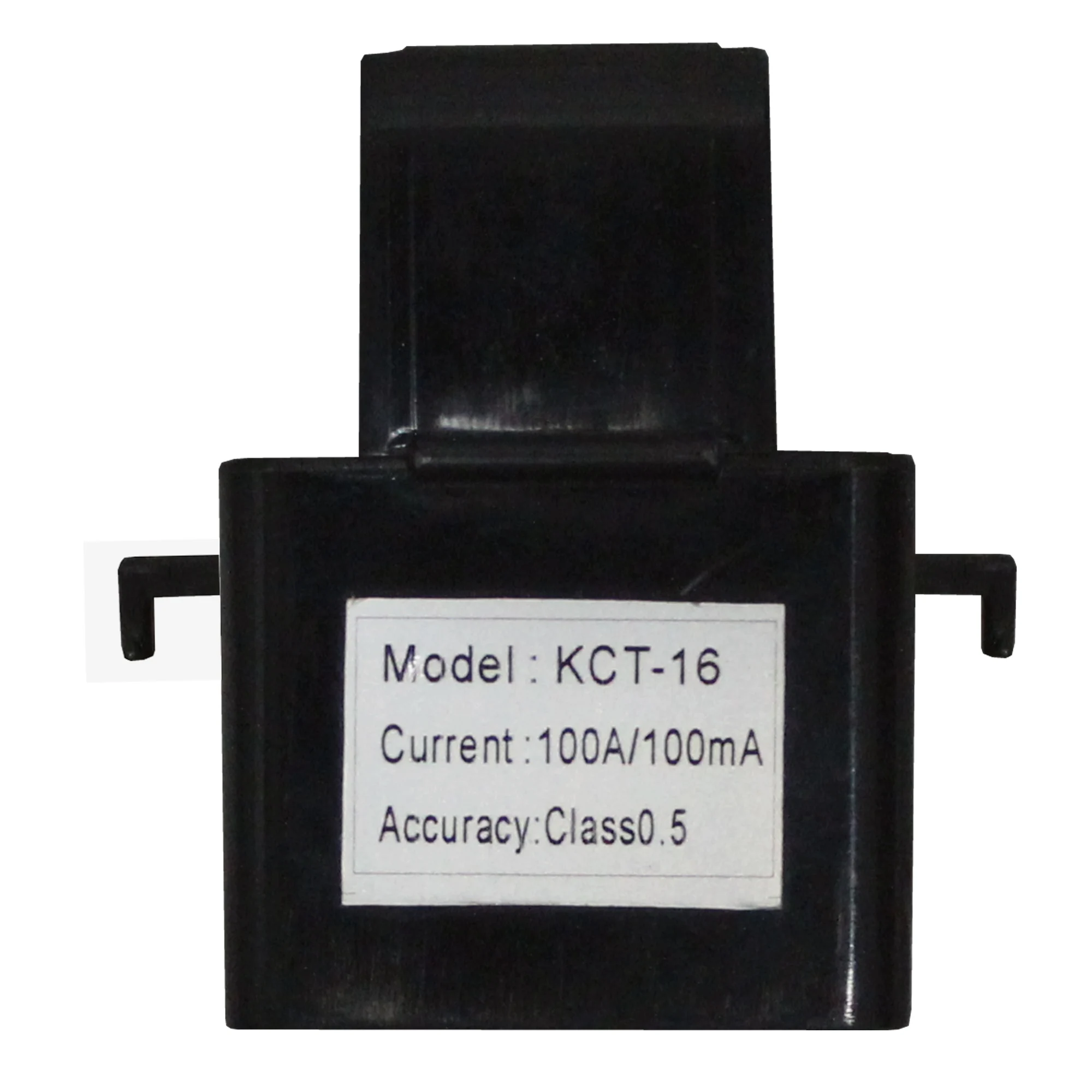

The KCT series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easier and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
The products comply with VDE 0414,BS7626 and IEC 60044-1 standard.
MAIN FEATURES
-Iron core is divisible, with high accuracy and low magnetic circuit loss;
-Elegant appearance, small volume, light weight, openable, easy installation;
-It is convenient to install, need not to disassemble the bus, can be operated under live condition, and will not affect customers’ normal using
APPLICATION
*Current measurement, monitoring and protection for electrical wiring and equipment
*Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation.
*Current, power and energy monitoring device
*Relay protection device
ADVANTAGE
• Split core • Safe operation • Mini in size • Very easy to mounting • Wide inner window • Wide range of size for all existing installation • Primary current from 5A - 1000A • 5A/1A,333mV, mA secondary output as optional
