Машина для завивки Бумажных
- Категория: Paper Production Machinery >>>
- Поставщик: Jinan,Chengdong,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 13090.52 $* | 13745.97 $* |
| Aug-16-2025 | 12980.50 $* | 13629.44 $* |
| Jul-16-2025 | 10890.56 $* | 11435.55 $* |
| Jun-16-2025 | 12760.30 $* | 13398.85 $* |
| May-16-2025 | 11110.42 $* | 11666.28 $* |
| Apr-16-2025 | 12540.89 $* | 13167.93 $* |
| Mar-16-2025 | 12430.13 $* | 13052.79 $* |
| Feb-16-2025 | 12320.23 $* | 12936.8 $* |
| Jan-16-2025 | 12210.60 $* | 12821.40 $* |
Характеристики
Product Description

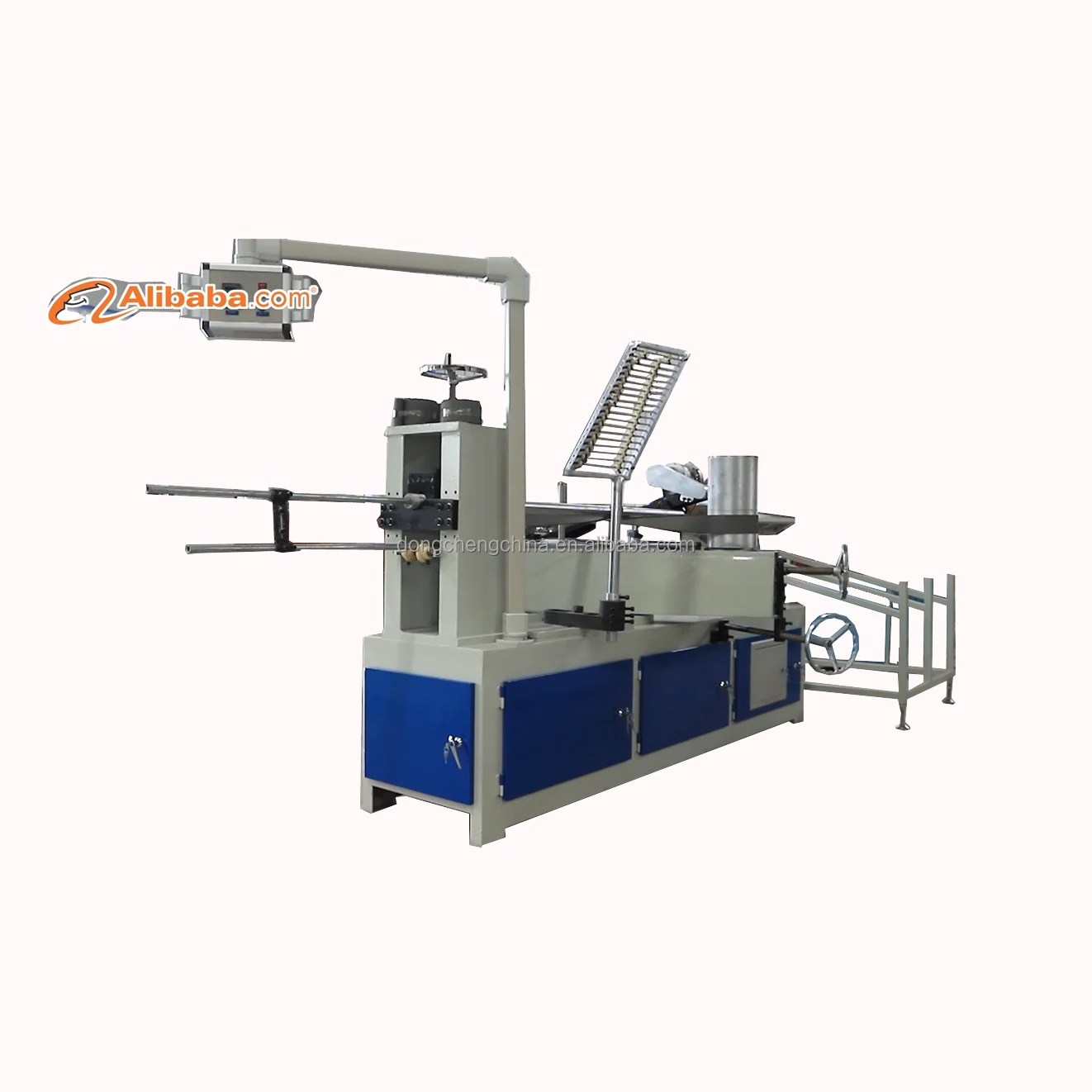

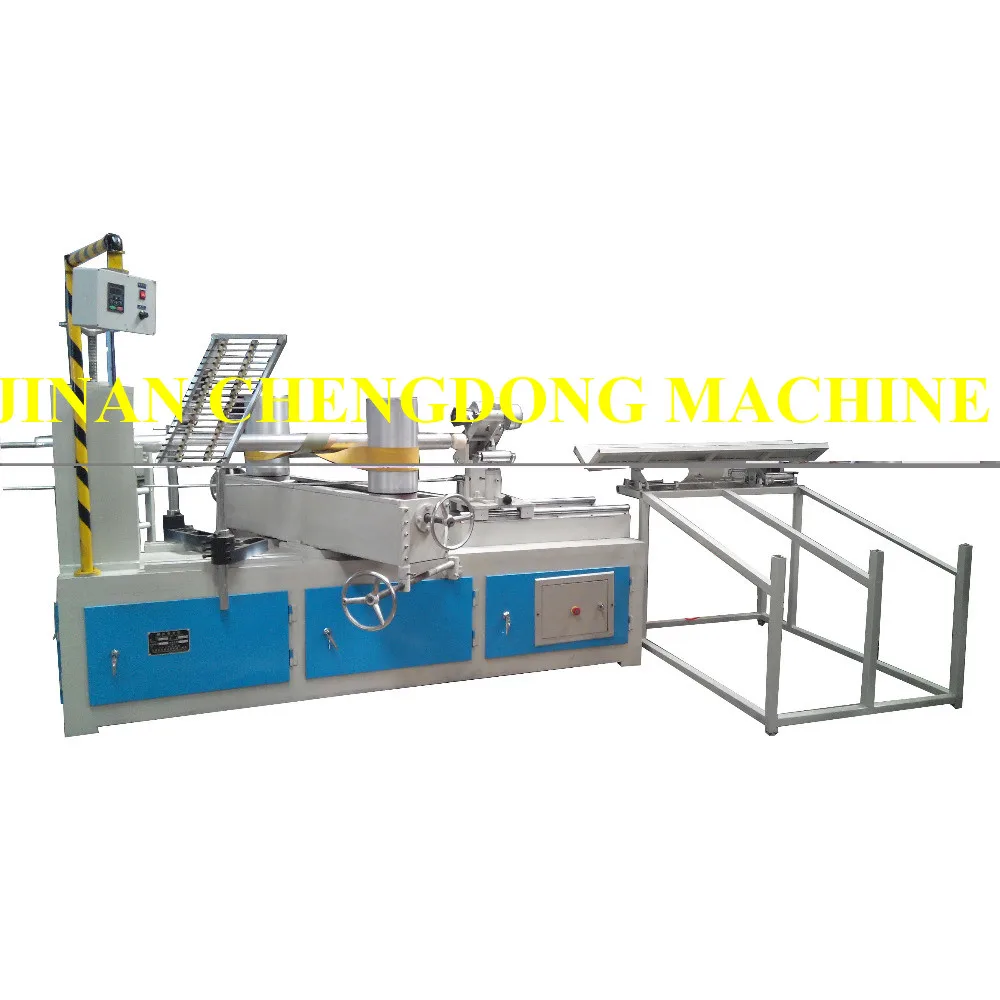

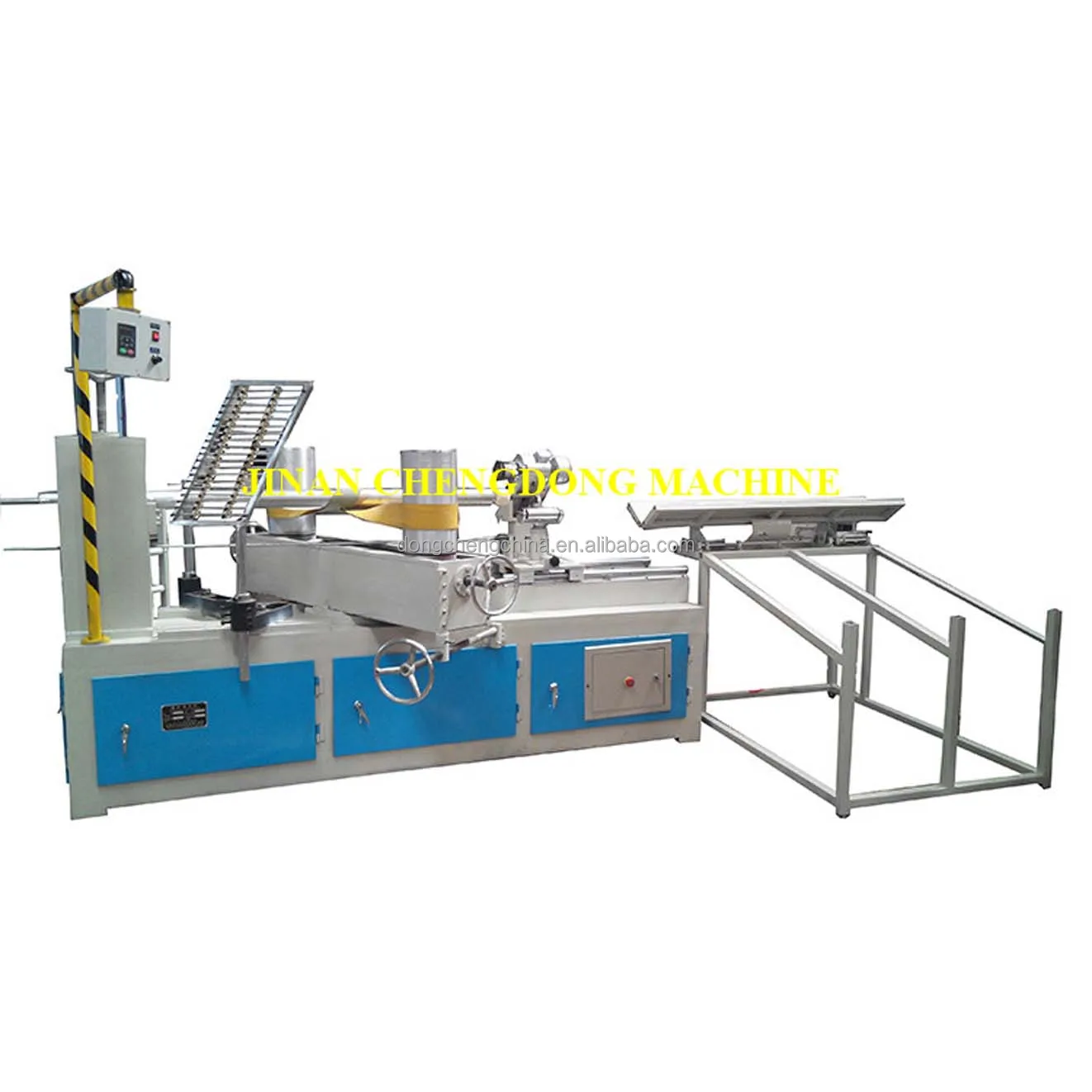

Automatic Spiral Paper Tube Making Machine JG-800-II
Usage and Features:
This Spiral Paper Core winder is suitable to produce thick walled cores for various applications like reel cores, film winding cores, carpet cores etc. which widely used for paper mill, plastic ,non-woven, stainless steel, PPGI and building mould industry.
This machine adopt PLC control, HMI input, The cutting carriage which driven by servo motor moves on a free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation.
This Spiral Paper Core winder is suitable to produce thick walled cores for various applications like reel cores, film winding cores, carpet cores etc. which widely used for paper mill, plastic ,non-woven, stainless steel, PPGI and building mould industry.
This machine adopt PLC control, HMI input, The cutting carriage which driven by servo motor moves on a free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation.
,Machine Technical Specification:
Machine Model | JG-800-II | ||||||
Paper Tube Diameter | 25~180mm | ||||||
Paper Tube Thickness | 1~10mm | ||||||
Working Speed | 1~15m/min | ||||||
No. layers of machine | 17 layers | ||||||
Cutting type | Servo motor control and sensor switch | ||||||
Control Type | HMI input, PLC control(Option) | ||||||
Machine power | Total around 6.5KW | ||||||
Detailed Images
Introduction of product advantages or application effect or application mode
Paper Stand
The stand could be move left or right through electric motor, save labor and easy for adjust while produce different diameter tube
It could load 17 layers paper rolls, with electric hoist for loading paper reels
Integrate frame type,square tube welded , high rigidity and stable
Glue Unit
The glue unit could be move front and back on the bottom guide , easy to operate according to glue dry situation
Each layer have separate glue sick, easy for paper feeding
With Pneumatic diaphragm pump to drive and control glue from tank to top
Cutting Unit
With Pneumatic Control cutting length, high accuracy and good cutting quality
Easy for adjustment of cutting blade and supporting roller
Operation Panel
HMI input, PLC control
Input required cutting length
Adjust working speed through Frequency inverter
Input required cutting length
Adjust working speed through Frequency inverter
Products Description
Diameter | 20mm to 200mm |
Thickness | 5mm to 10mm |
Length | According customer requirement |
Purpose | Chemical fiber, film, printing, papermaking, metallurgy |
Certificate
Company Introduction
JINAN CHENGDONG MACHINERY MANUFACTURE CO.,LTD. was founded in 1993 and have more than 20 years for manufacturing experience of paper-processing equipment in China. There are a group of senior engineers and technicians and R&D department to ensure the producing capacity and high quality. The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including Paper roll slitting and rewinding machine, Spiral paper tube/core winding machine, Fibre/Paper drum production line, Composite can production line, Paper tube/core cutting machine, paper board laminating machine, paper edge board protector machine, Paper tube polishing machine and other different paper processing machines
Packing&Shipping
Company Capacity
We have more than 20 sets precision and valuable equipment such as: horizontal and vertical machining centers, heavy-duty boring lathes, Doppler laser interferometric instrument, etc.. More than 80% of the key parts of our products are manufactured by ourselves. We have achieved the information sharing of design, production, marketing, management of quality and after-sale service in the development of software for remote diagnosis and construction of network. This has contributed to shortening production period, reducing the production cost and improving service quality for our customers.
