welding machine transformer for spot welding machine weld transformer



AC spot welding machine is made of cooper and epoxy resins with cooling water and low resistance



1)Top 3 and more than 26 Years' experience

2)5 years guarantee

3)Sold to Chile,Russia, Malaysia,HK,Ethiopia, Philippines, .....and so on

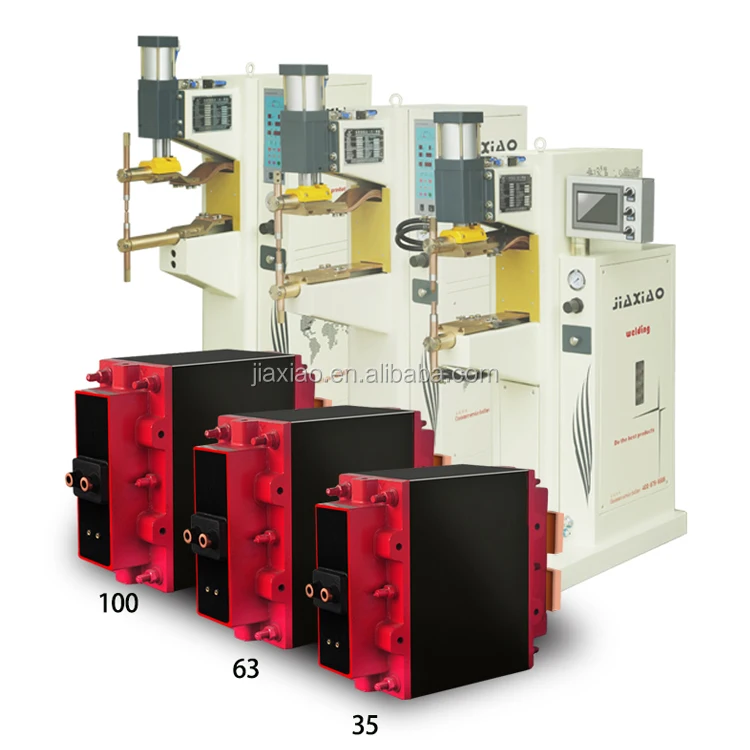

spot welding transformer

35KVA Transformer



63KVA Transformer

100KVA Transformer

Parameter

Series	Model	Primary  voltage	Secondary  voltage	Power of  20% duty cycle	Power of  50% duty cycle	Power of 100% duty cycle	short-circuit current (when machine arm 500mm, distance between upper  and below arm 300mm)	Consumer of  cooling water	Weight
20% series	20KVA-3.8V-2	380V	3.8V	20KVA	12.6KVA	9KVA	12000A	2L/min	45KG
	35KVA-5.2V-2	380V	5.2V	35KVA	22KVA	15.47KVA	19000A	3L/min	65KG
	63KVA-7.2V-2	380V	7.2V	63KVA	63KVA	28KVA	25000A	3L/min	95KG
	100KVA-8.5V-2	380V	8.4V	100KVA	71KVA	45KVA	32000A	4L/min	125KG
	150KVA-9.7KVA-2	380V	9.7V	150KVA	95KVA	67.5KVA	36000A	5L/min	200KG
	200KVA-11.5V-2	380V	11.5V	200KVA	142KVA	90KVA	42000A	5L/min	220KG
	250KVA-13V-2	380V	13V	250KVA	158KVA	112KVA	45000A	5L/min	265KG
	300KVA-13V-2	380V	14V	300KVA	190KVA	135KVA	46000A	5L/min	300KG
50% series	20KVA-3.8V-5	380V	3.8V	32KVA	20KVA	14.2KVA	12000A	3L/min	45KG
	35KVA-4.2V-5	380V	4.2V	55KVA	35KVA	24.8KVA	16500A	4L/min	80KG
	63KVA-7.2V-5	380V	7.2V	100KVA	63KVA	45KVA	25000A	4L/min	160KG
	100KVA-8.5V-5	380V	8.4V	158KVA	100KVA	71KVA	32000A	5L/min	185KG
	225KVA-8.5V-5	380V	8.4V	198KVA	125KVA	88KVA	32000A	5L/min	200KG
