Мини-фрезерный станок с ЧПУ 6090 кВт маленький фрезерный дерево акрил камень металл алюминий контроллером Mach 3
- Категория: Woodworking Machinery >>>
- Поставщик: Shandong,Lintianzhiyuan,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.67 $* | 0.9 $* |
| Aug-17-2025 | 0.52 $* | 0.85 $* |
| Jul-17-2025 | 0.68 $* | 0.13 $* |
| Jun-17-2025 | 0.0 $* | 0.69 $* |
| May-17-2025 | 0.62 $* | 0.77 $* |
| Apr-17-2025 | 0.71 $* | 0.68 $* |
| Mar-17-2025 | 0.74 $* | 0.45 $* |
| Feb-17-2025 | 0.99 $* | 0.27 $* |
| Jan-17-2025 | 0.50 $* | 0.85 $* |
Характеристики

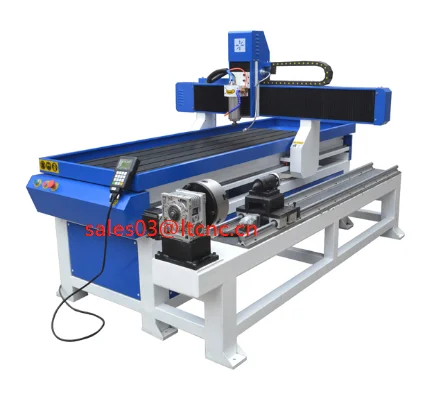

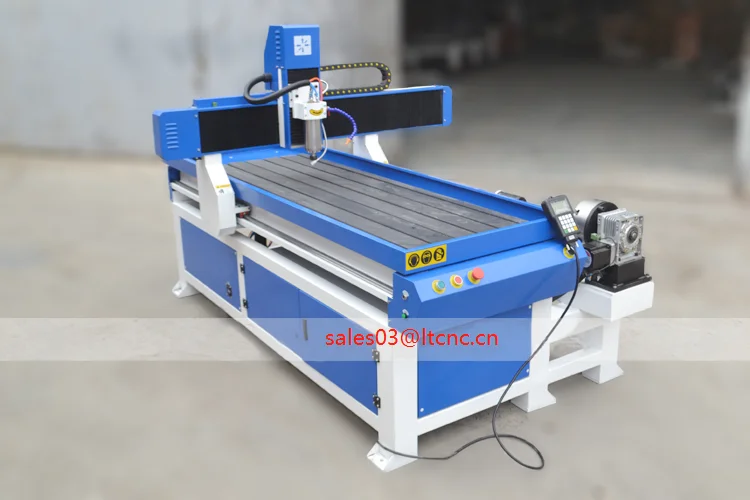

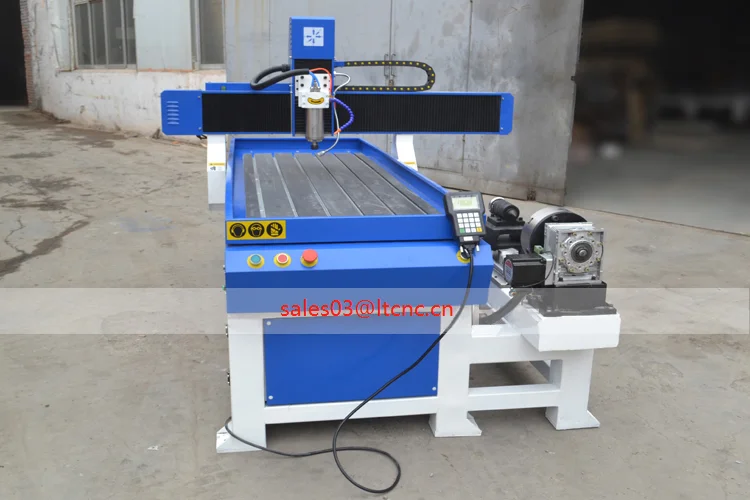

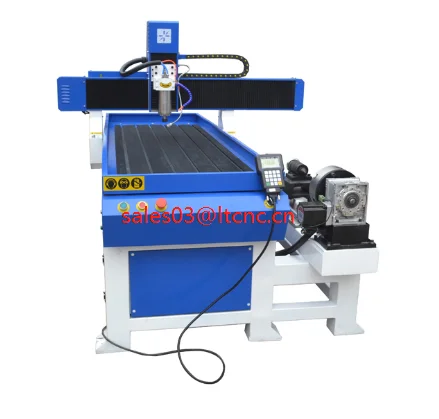

high quality LT-6090 cnc router cutting engraving machine with vacuum table
Product Description
1.Standard configuration of cnc router 600*900*150mm effective working area;
cast iron machine sturcture
ball screw transmission;
Ncstudio /dsp/Mach3 control system, stepper motor;
1.5KW water cooled spindle, 1.5KW inverter;
Leadshine driver;
Imported ball screw transmission and linear round guide rail
Steady data transmission
High speed calculation
Round orbit or square , including Type3 software
2.main machine part
3.tachnical parameters
Description | Parameter |
X,Y Working Area | 600*900mm |
Z Working Area | 110mm |
Resolution | +0.01mm |
Lathe Structure | Cast-iron structure |
X,Y Structure | Ballscrew transmission |
Z Structure | TBI ball screw, Hiwin square guide rail |
Max. Idling Speed | 8m/min |
Spindle | 2.2KW/1.5kw |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Fuling |
Working Voltage | AC220V/50Hz,Single Phase |
Working Mode | Sub-division Stepper motor |
Driver | Leadshine860 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | Ncstudio or DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-cooling |
Work-holding | By Clamp |
Net Weight | 300KGS |
Gross Weight | 350KGS |
4. Machine Application
Advertising Materials: such as acrylic, plastic, pvc, etc.
Metal: copper, aluminum, stainless stell etc.
Wood: all kinds of wood, mdf, plywood. etc.
5. Our service
Technical support
1. Professional technical suggestion before you order a machine
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine
4. 24-hour technical support by email or calling
Warranty
1. 18 months for machne
2. will provide the consumable parts at cost price after warranty period
6. Company information
Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is located in Jinan, China. our company focused on research, production and sale, maintenance service. we depend on high technology and high quality to build the world brand
our main produt includes adverting cnc router; wood cnc router; stone cnc router; laser engraving machine; laser cutting machine; cnc plasma metal cuttng .
