Характеристики
Application
Refractory gunning machine application
Our refractory gunning machine is specially designed for spraying refractory materials, castable in refractory repair installing project. Such as Aluminum Furnace Linings, Industrial Furnace Repair, Heat Treating Furnaces, Reheat Furnaces, Rotary Kiln Linings, Tunnel and Shuttle KiIns, Dryer and Combustion Chambers, Refractory Boiler Settings, Incinerator Rebuilds, Stack and Duct Linings, Ladle and Crucible Linings.
Products Description

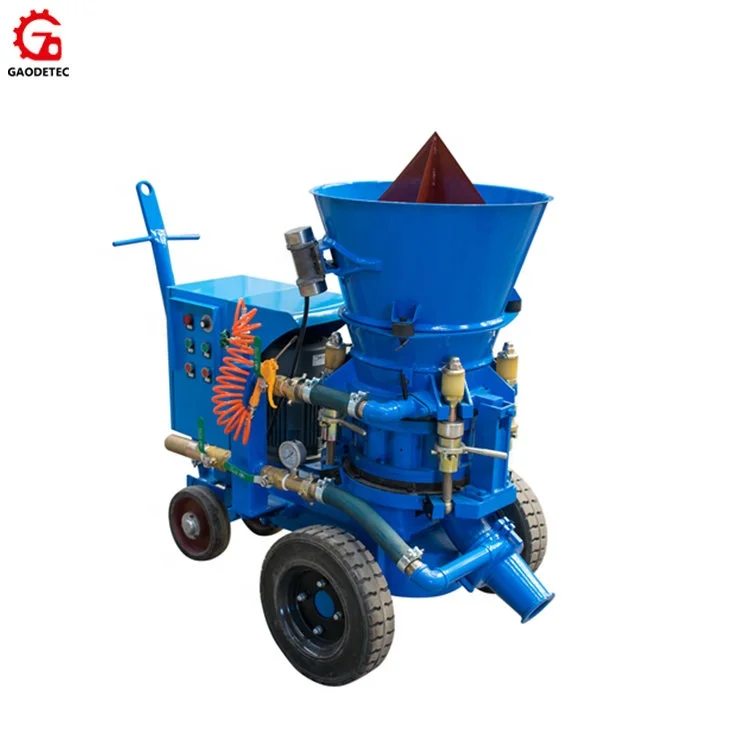

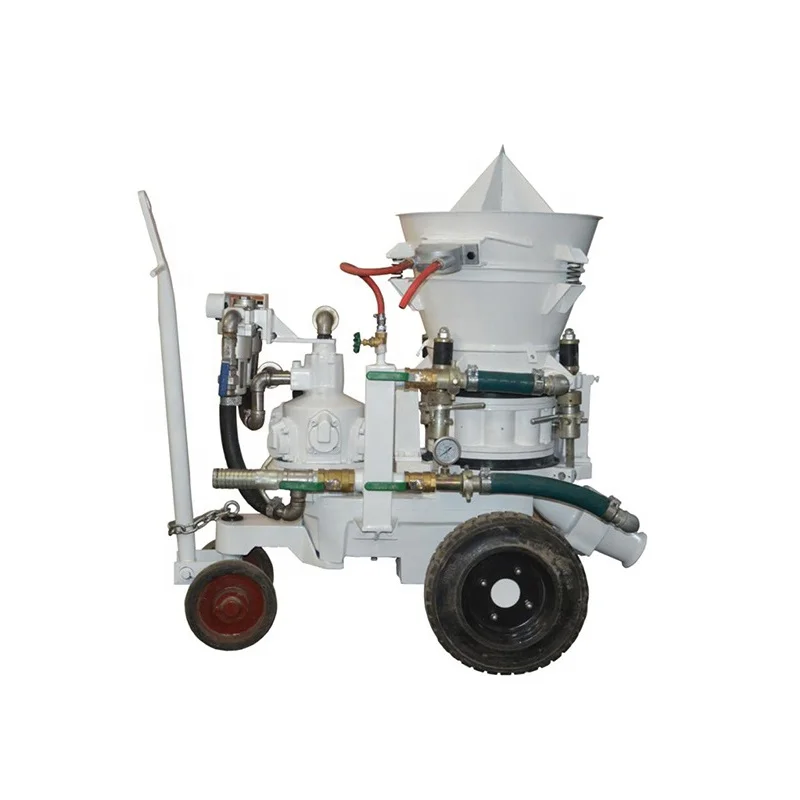

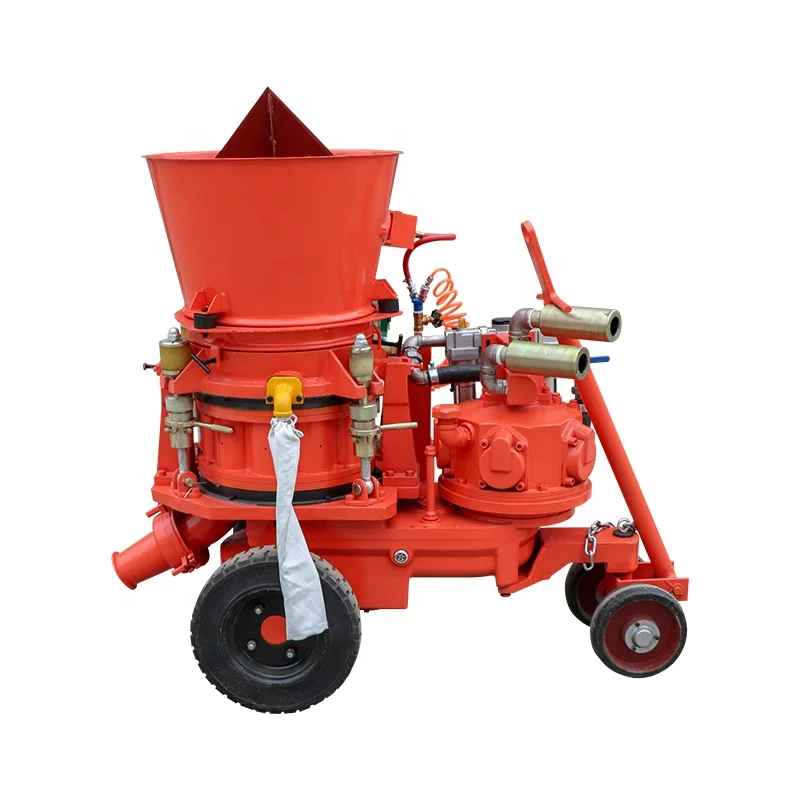

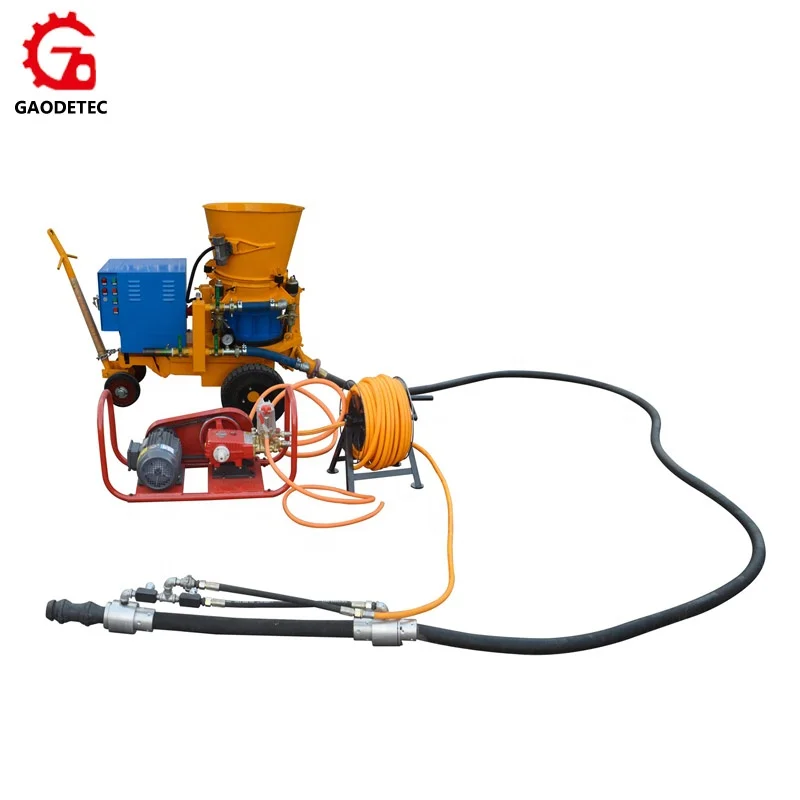

Refractory gunning machine
Different with common dry mix shotcrete machine, our GZ-3ER and GZ-5ER refractory gunning machine equipped with ABB frequency converter and high pressure water pump. ABB frequency converter is used for achieving variable output. High pressure water pump provide pressure water for nozzle assy,ensure that materials is mixed even with water.
GZ-3ER | GZ-5ER | ||
Rated Output | 1-3m3/h (2-6 tons/h) | 1-5m3/h (2-10 tons/h) | |
Max. Conveying Distance | 200m | 200m | |
Max. Aggregate Size | 10mm | 15mm | |
Conveying Hose ID | 38mm | 51mm | |
Operating Air Pressure | 0.2-0.4MPa | ||
Air Consumption | 5-6m3/min | 8~9m3/min | |
Drive Type | Electric | Electric | |
Motor Power | 4kw | 5.5kw | |
Rotor Speed | 0-13.2r/min | ||
GZ-3AR | GZ-5AR | ||
Rated Output | 1-3m3/h (2-6 tons/h) | 1-5m3/h(2-10Ton/h) | |
Max. Conveying Distance | 200m | 100m | |
Max. Aggregate Size | 10mm | 15mm | |
Conveying Hose ID | 38mm | 51mm | |
Operating Air Pressure | 0.2-0.4MPa | 0.2-0.4MPa | |
Air Consumption | 10-11m3/min | 15-16m3/min | |
Drive Type | Air motor | Air motor | |
Rotor Speed | 0-13.2r/min | 0-13.2r/min | |
Details Images
Packaging&Shipping
Contact Us
Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do?
2. What is the output do you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h?
3. Drive type mode? Do you want electric or air motor?
4. Do you have any other special requirments for this machine?
2. What is the output do you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h?
3. Drive type mode? Do you want electric or air motor?
4. Do you have any other special requirments for this machine?
