Дешевая машина для переработки отходов пластика ПП ПЭ пленки больших пакетов
- Категория: Plastic Granulators >>>
- Поставщик: Sinoreplast,(Jiangsu),Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.27 $* | 0.91 $* |
| Aug-16-2025 | 0.7 $* | 0.81 $* |
| Jul-16-2025 | 0.12 $* | 0.40 $* |
| Jun-16-2025 | 0.34 $* | 0.17 $* |
| May-16-2025 | 0.59 $* | 0.47 $* |
| Apr-16-2025 | 0.28 $* | 0.34 $* |
| Mar-16-2025 | 0.69 $* | 0.74 $* |
| Feb-16-2025 | 0.81 $* | 0.57 $* |
| Jan-16-2025 | 0.94 $* | 0.38 $* |
Характеристики
cheap waste plastic recycling machine for PP PE films, jumbo bags, cement bags
This line is mainly used for recycle waste plastics into granules, such as PP PE films, aggricuture films, woven bags, cement bags, Jumbo bags and so on. This waste plastic recycling line include plastic crushing & washing system, plastic granulating system, and it can make PP PE granules from waste PP PE material.

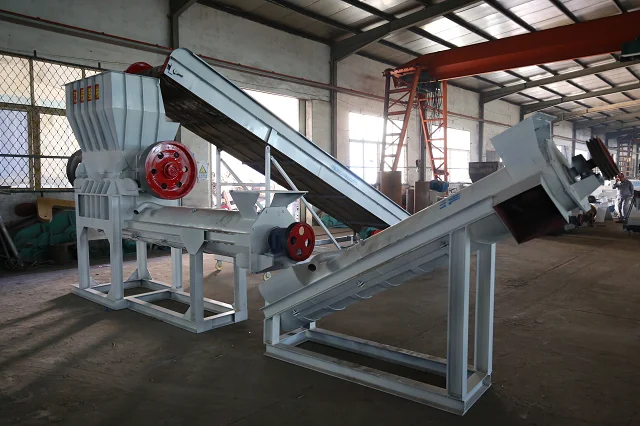

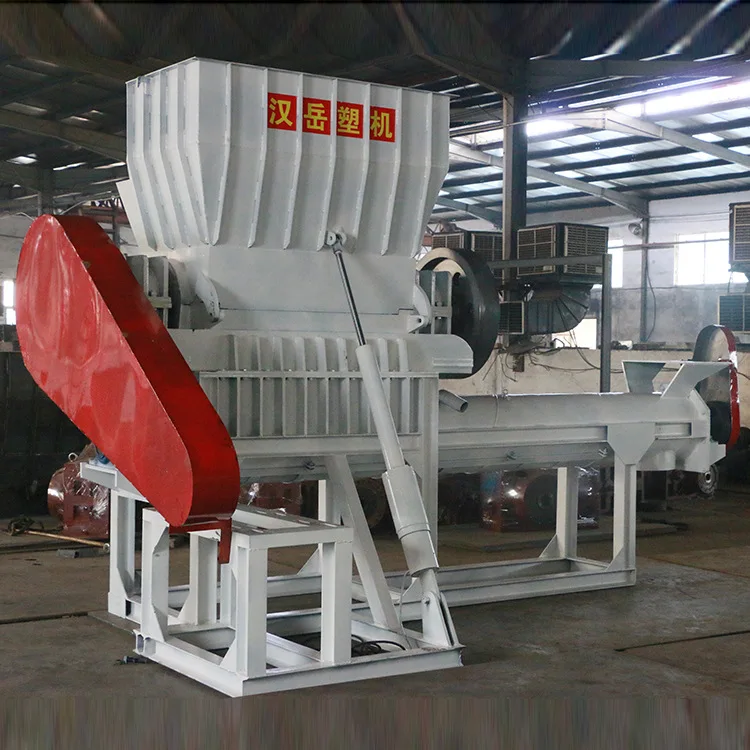

The plastic crusher adopt high duty type, which is easy to recycle thick plastics such as cement bags, jumbo bags, aggricuture films. There is water spraying system on the crusher, which will clean the material during the crushing. There screw convey under the crusher to conveying the material into friction washer.
The float washing system could be 10m to 20 meter long. The clients need to build a simple water tank with steel or water pool with cement, and our company will provide necessary part to make it as float washing tank. The float washer is big and it requires big space for transportation and increase the transportation cost. Besides the float washer tank is expensive. If the clients build this water tank or water pool, he will save a lot of cost.

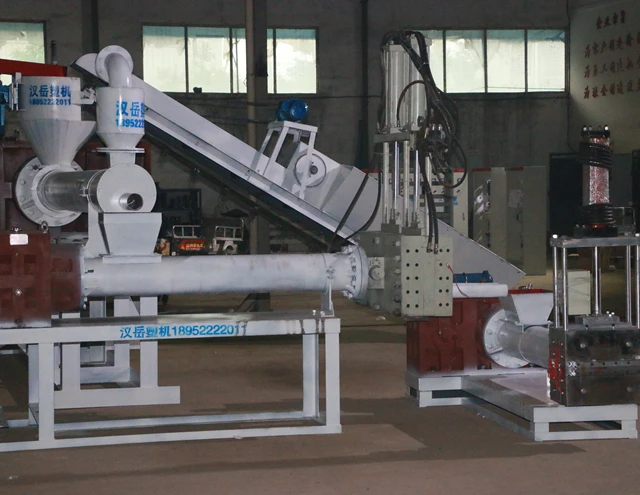

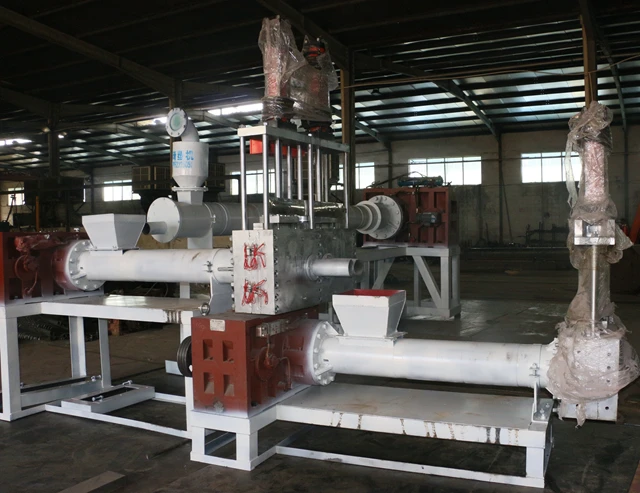

The pelletizing line adopt double stage pelletizing system, and it can apply to wet material after washing. The first extruder has squeezing structure, which can remove the water during extrusion. The pelletzing system adopt noodle cutter type, which is suitable for both PP and PE material.
The electrics of this waste plastic recycling line adopt high quality components, which will ensure the machine stable running. Warmly weclome to visit our factory and talking business.
No. | Machine picture | Specification | remark |
1 |

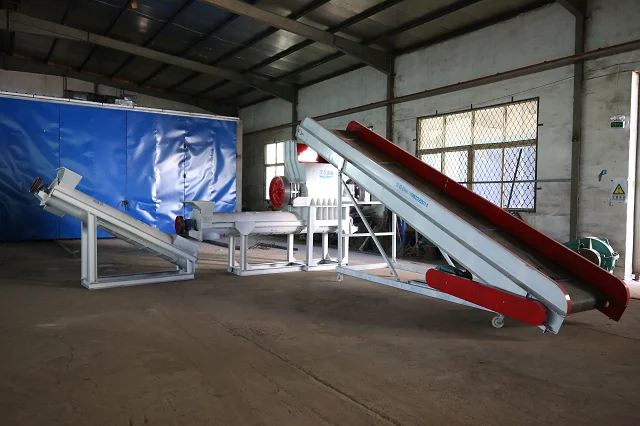

| Belt conveyer - Motor power: 3kw - Width: 900mm - Length: 5000mm - Belt material: rubber
|
Conveying material into crusher |
2 |
| Crusher with screw loader - Motor power: 30kw - Up cover open: 0.75kw - Crushing width: 600mm - Screw motor: 4kw - Screw length: 3000mm |
Crush material into scraps |
3 |
| Friction washer * 2 sets - Motor power: 7.5kw - Length 3000mm - Rotate speed: 600rpm - Sieve diameter: 5mm - water spraying: on top |
Wash material with friction |
4 |
| Parts for float wash tank - Furcate blender:10pcs - Transmission chain:30pcs - Reducer: 1set - Motor: 3KW | The clients need to build a water tank or water pool for this float washing system |
5 |
| Wet film elevator - Motor power: 3kw - Elevate bar : 10pcs - Transmission : By Chain |
Conveying material out from float wash tank |
6 |
| Material charger Charging capacity:300kg/h Motor Power 2.2KW Speed: 1~20m/min |
Conveying material into extruder |
7 |  | SJ140 single screw extruder Barrel Diameter: 140mm Reducer:High torque reducer Main Motor Power:37KW Heating:electric heating Force feeder: 1.5kw With water drainage structure Omron temperature meter Siemens contactor Capacity:150~200KG/H |
Extrusion material out and remove water and moisture |
8 |
| SJ140 single screw extruder Barrel Diameter: 140mm Reducer:High torque reducer Main Motor Power:15KW Heating:electric heating Omron temperature meter Siemens contactor Capacity:150~200KG/H |
Extrusion material out from the screen changer and die |
9 |  | Water cooling tank Length: 4meters Made by stainless steel |
Cool the material |
10 |
| Pelletizer Motor power : 4kw Rotor blade Adopt speed regulator |
Cut the strand into granules |
11 |
| Air blower and silo Blower power: 2.2kw Hopper volume 500L, Made of stainless steel |
Collect the granules for packing |
12 |
| Electric control box Omron Schneider | Control the whole line |
Other model of waste plastic recycling machine
Model List | Total Power | capacity |
HY-300 | 130kw | 300(kg/h) |
HY-400 | 150kw | 400(kg/h) |
FS-500 | 180kw | 500(kg/h) |
FS-600 | 220kw | 600(kg/h) |
Company Information
FAQ
Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic recycling machines and auxiliary equipment for over 10 years.
Q:What's warranty and after-sale service of machine?
A:Twelve months Warranty for main machinery part like motor and electric;
Llife-long maintenance service(Email and calling service in working hours;24 hours door to door in domestic
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.or our technician go to your pace for service.
