Вентилятор поперечного потока переменного тока 60x180 мм 220 В 240 вентилятор общего для лифта

Описание и отзывы

Трекер стоимости

Характеристики

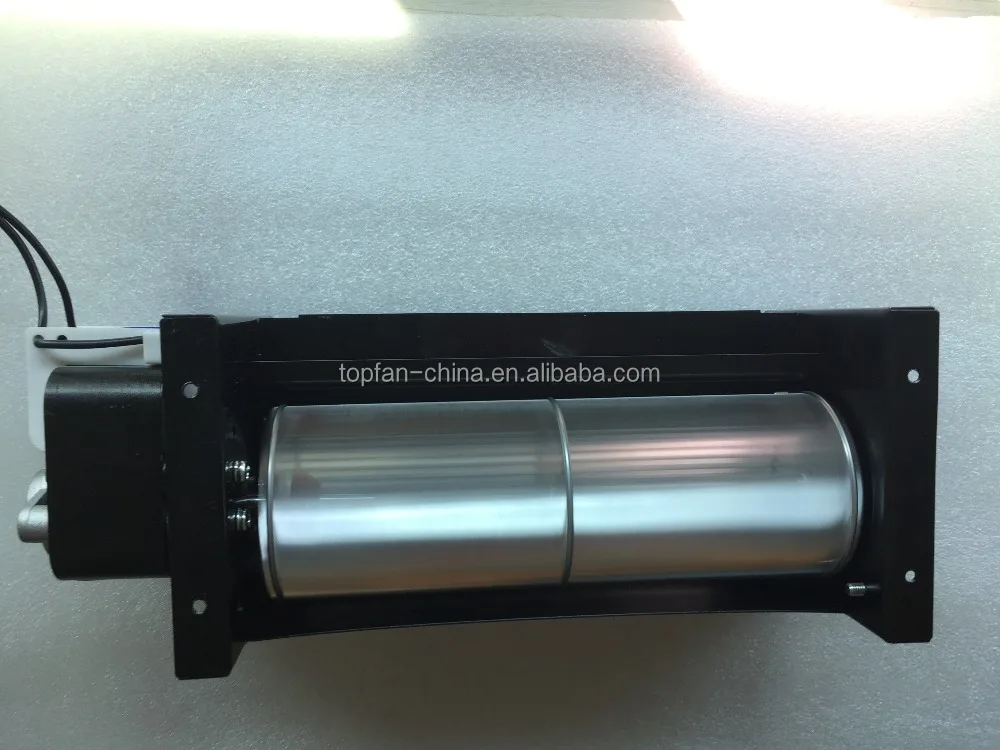

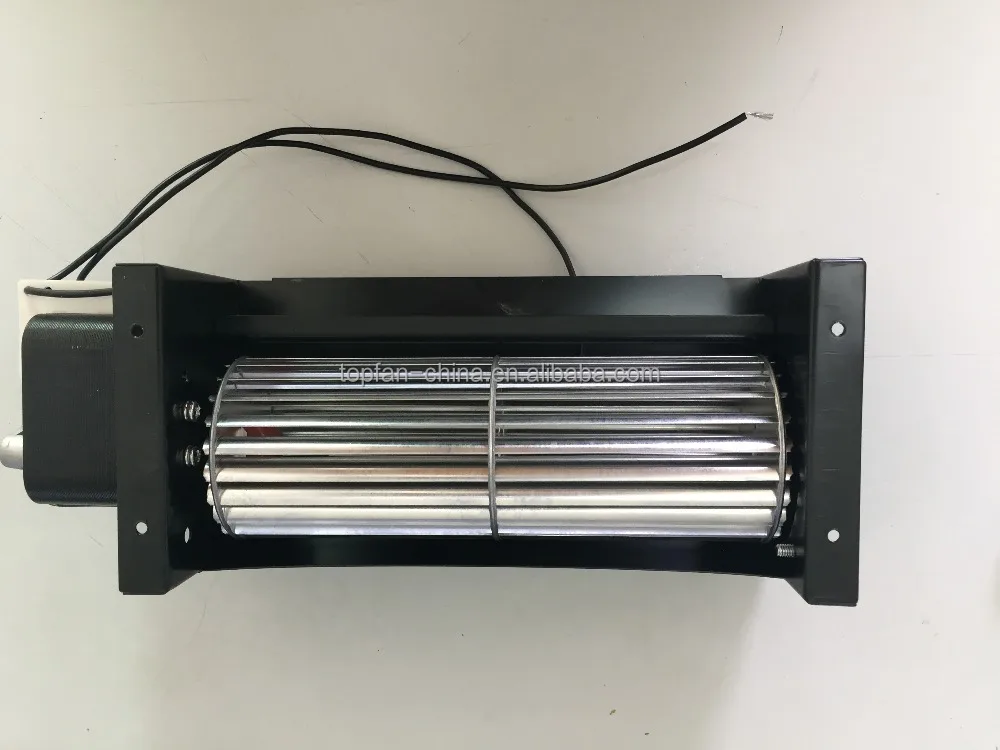

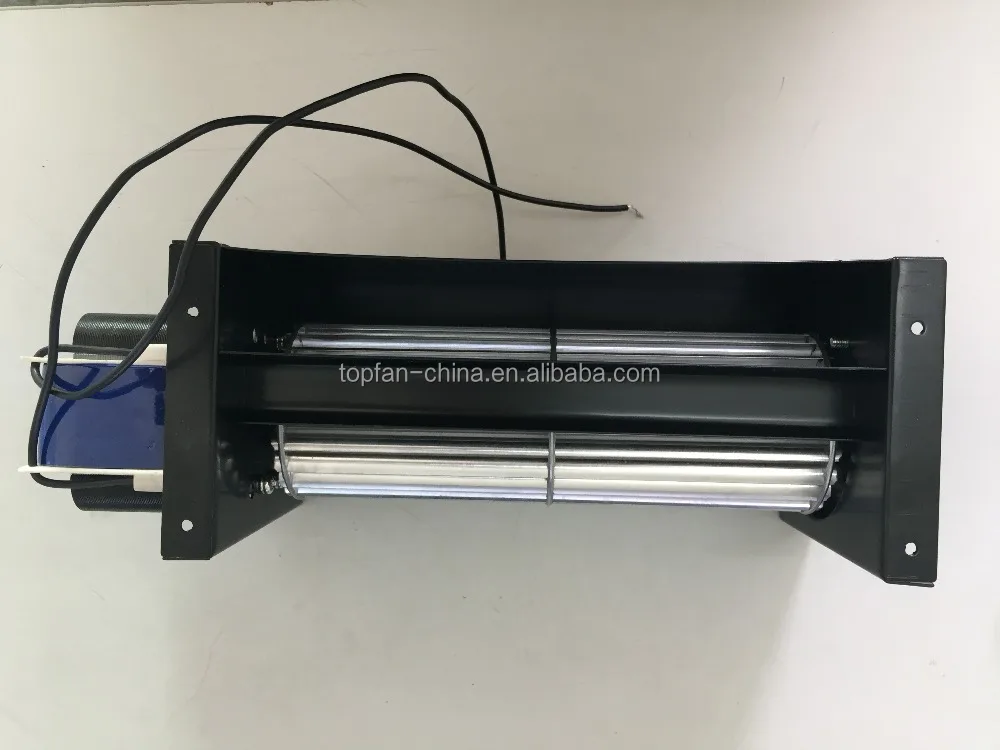

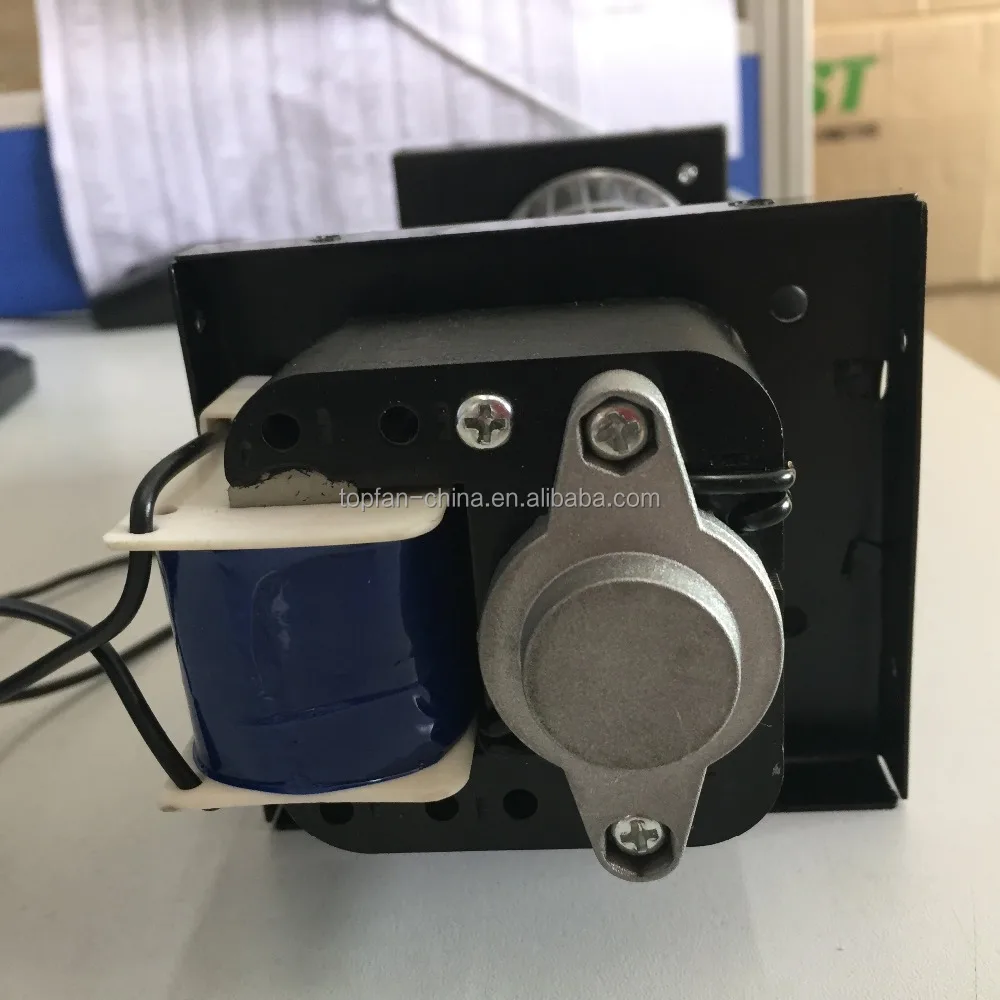

60 x 180mm ac cross flow fan ,  220V 240V AC tangential flow fan for Elevator,  refrigerator fan

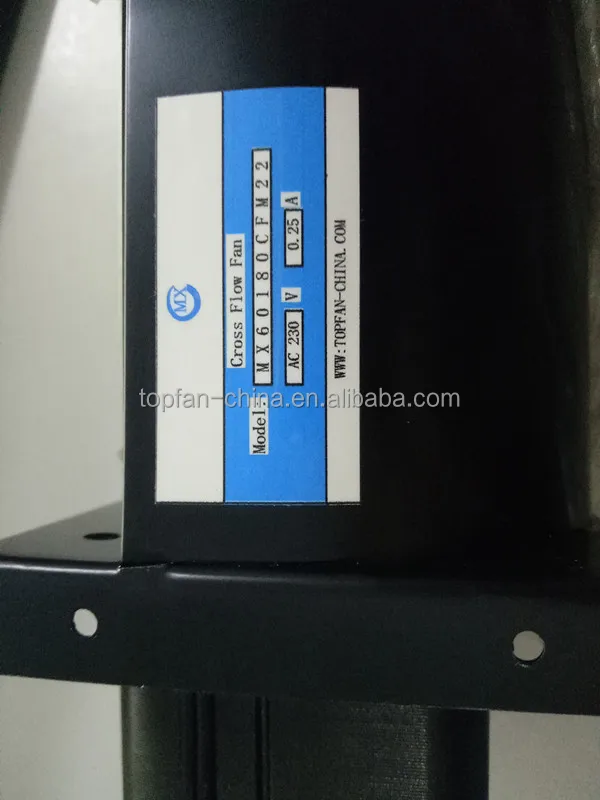

Modle : MX60180CFM22



1	RATED  VOLTAGE	VOLTS	V	230V AC
3	size	mm		H             M          L	60mm x 180mm
4	INPUT  CURRENT	AMP	A	0.27	AT  RATED  VOLTAGE
5	INPUT  POWER	WATTS	W	31.27	AT  RATED  VOLTAGE
6	ROTATION  SPEED	RPM	RPM	2500
7	ACOUSTICAL  NOISE(AVG)	dB(A)	dB(A)	45	DETAILS SEE ATTACHED  PAGE.
8	MAX .AIR-FLOW	CFM	Q	101.5	TWO-CHAMBER  METHODS
					DEAILS  SEE  ATTACHED  PAGE.
9	MAX . AIR-PRESSURE	mmH2O	P	4.0	TWO-CHAMBER  METHODS
					DEAILS  SEE  ATTACHED  PAGE.
10	INSULATION	MEG.	MΩ	>20MΩ	BETWEEN  FRAME  AND
	RESISTANCE	OHM			TERMINAL
11	DIELECTRIC  STRENGTH			5Ma MAX.	BETWEEN  FRAME  AND
				AT 500V AC 60HZ	TERMINAL.
				FOR 1 MINUTE
12	ROTARY DIRECTION			CCW
13	INSULATION CLASS			CLASS  B
14	LIFE EXPECTANCY			30000 Hours at 25℃/65%RH

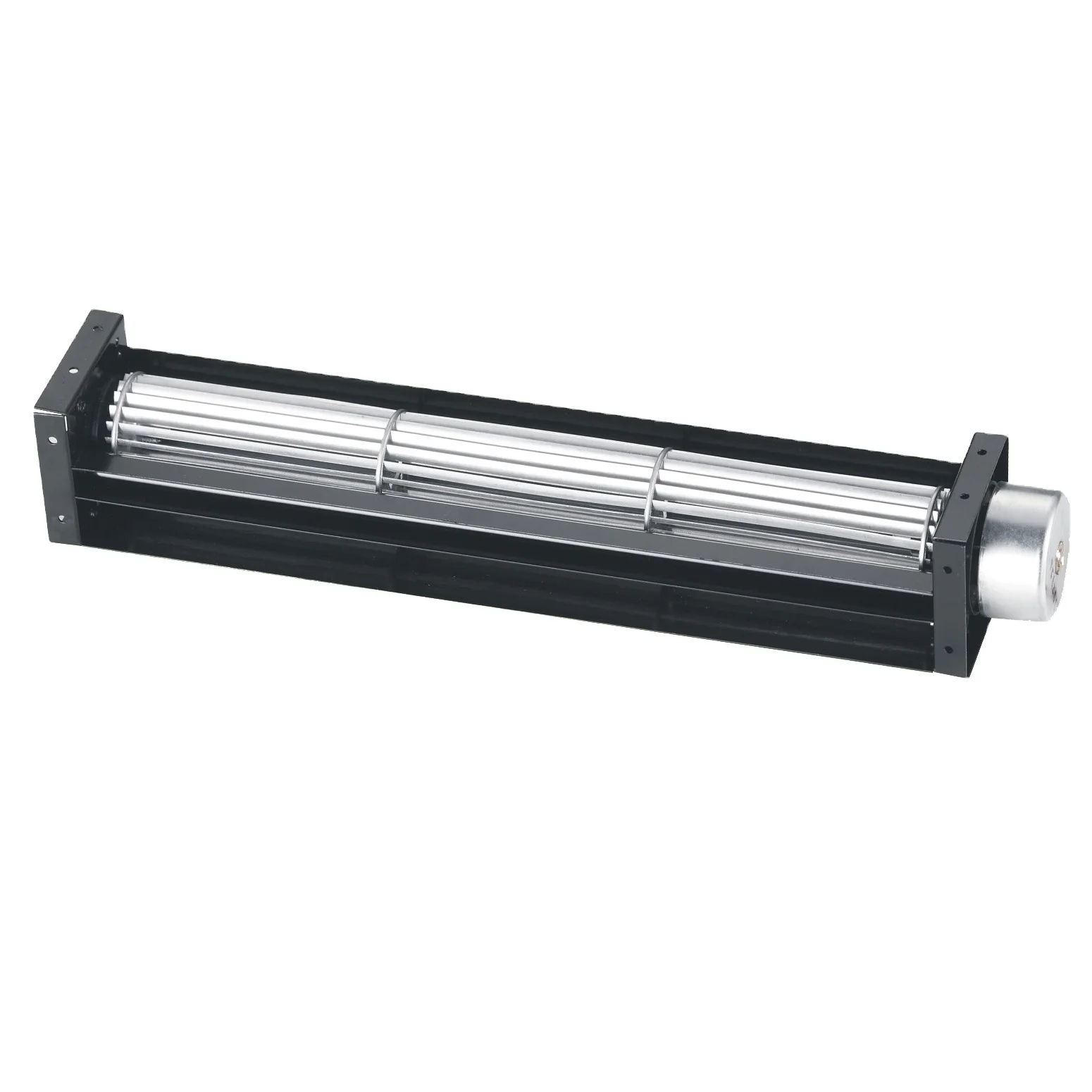

60F SERIES CROSS FLOW FAN

1.Material: Framework: Cast Iron Impeller: Aluminum alloy Protection: Impedance Protected Temperature Range: 0°C~+45°C(up to-50°C~+100°C)	2.Major Characteristic Parameters: Bearing type: Ball bearing and Sleeve bearing Rated Voltage: 110V 120V 220V 230V 240V 380V Speed: 1600-2500RPM Air Flow: 60- 185CFM Niose Level: 40 - 46dB-A
3.Expected life: ball bearing 50,000 hours(40 °c) sleeve bearing 30,000 hours(40 °c)







60F series dimention (unit:mm)





60F series specification





Application



Shipping and Packing:



Shenzhen topfan is a professional fan design and processing enterprises. founded in 1996 in Shenzhen China our company professionally engaged in the R & D and production of brushless AC  and DC fans for more than ten years. Products support OEM, ODM and passed CE, RoHS certificated , we have developed a full range of axial fans with sizes from 20mm to 280mm. and good sellers both at home and abroad, This products are widely used in communication, industrial control, medical, home appliances, electronics, power supplies, automobiles enquipment.



More information you can visit our webside

 http://www.topfan-china.com

 http://topfan-china.en.alibaba.com

http://www.equipment-coolingfans.com







Contact with Miss Vivian,Click to View Pricing, Inventory, Delivery & Lifecycle Information:

l   If you have any questions, please contact me. We have many types of fans that can be recommended to you and provide technical support.
