The 3ND583 is a high resolution 3-phase microstepping driver based on precision current control
technology. It’s suitable for driving 3-phase hybrid stepping motors from NEMA size 17 to 34. By
using the advanced pure-sinusoidal current control technology, both the noise and vibration of the
stepping motor have been greatly reduced, which makes the stepping motors offer servo-like
performances. Compared to the 3MD560, it’s lighter and smaller, and compared to most of the
Microstepping drivers in the market, both driver heating and motor heating have been reduced by
15-30%.
Applications
Suitable for a wide range of 3-phase stepping motors from NEMA size 17 to 34. It can be used in
various kinds of machines, such as X-Y tables, labeling machines, laser cutters, engraving
machines, and pick-place devices, and etc. It’s extremely suitable for the applications desired with
low noise, low vibration, high speed and high precision.
Main Feature
l High performance, low noise and lost cost
l Low driver heating and low motor heating
l Supply voltage up to 50 VDC
l Output current up to 8.3A (RMS 5.9A)
l Input signal TTL compatible
l Automatic idle-current reduction
l Suitable for 3-phase stepping motors,
including 3 lead and 6 lead motors
l Optically isolated differential input signals,
pulse frequency up to 300 KHz
l 8 selectable resolutions up to 10000
steps/rev
l DIP switch current setting with 16 different
values
l PUL/DIR & CW/CCWmodes optional
l Over-voltage, short-voltage, over-current
and short-circuit protection
l Small size for easy mounting

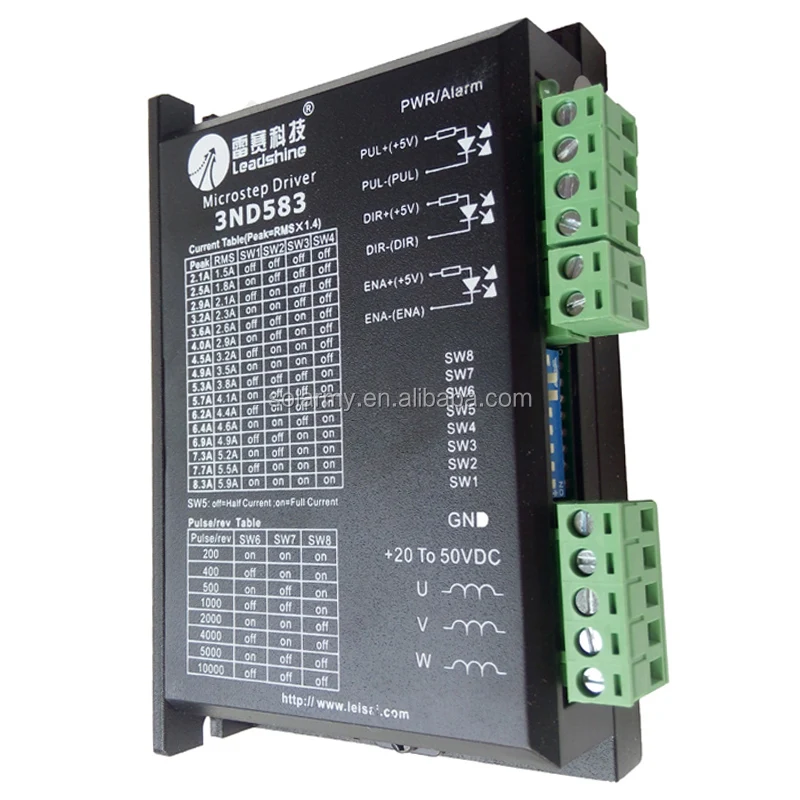

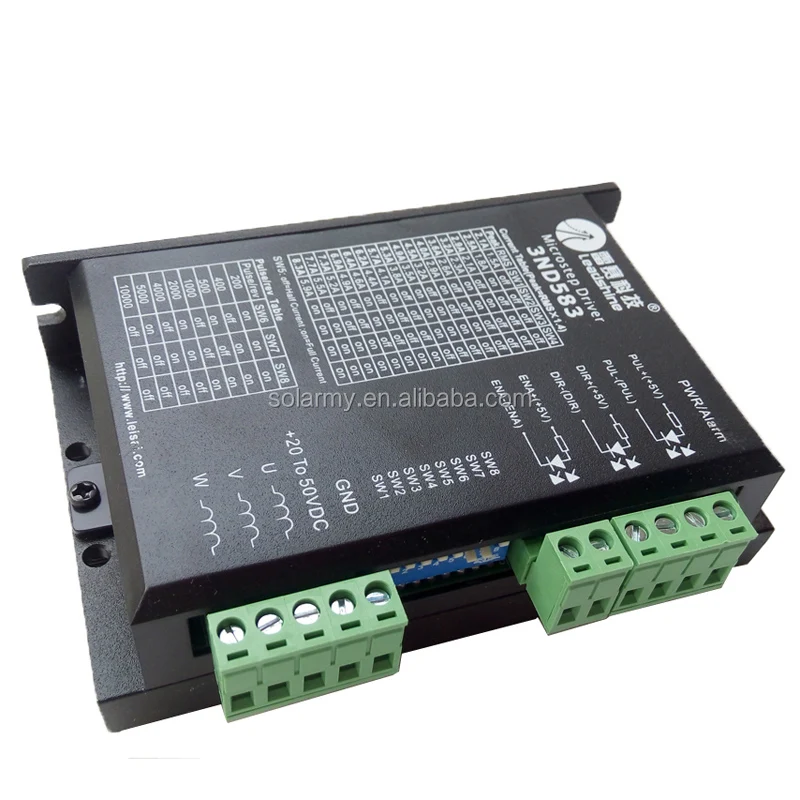

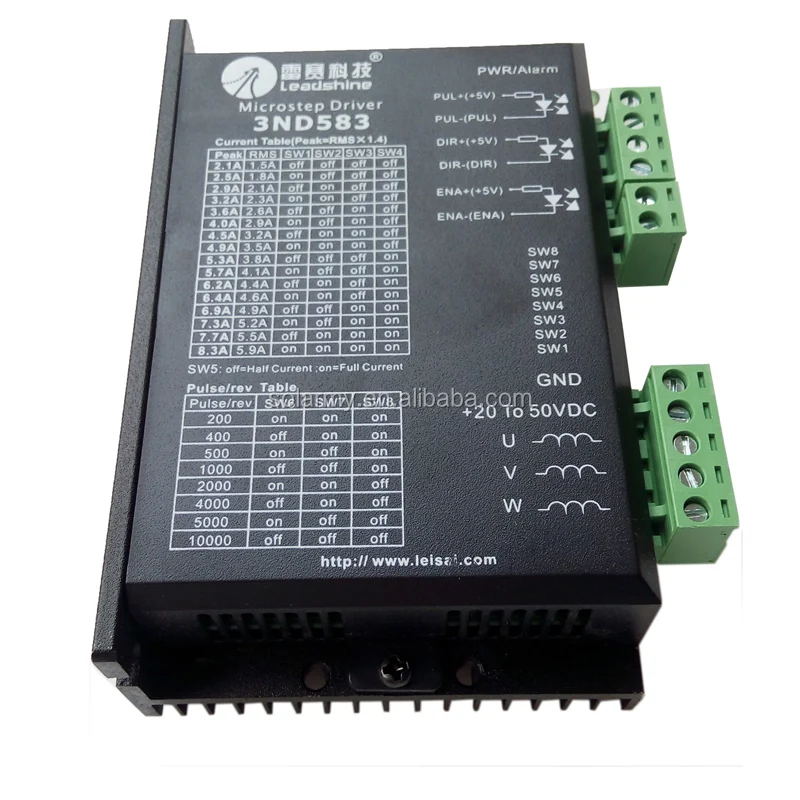

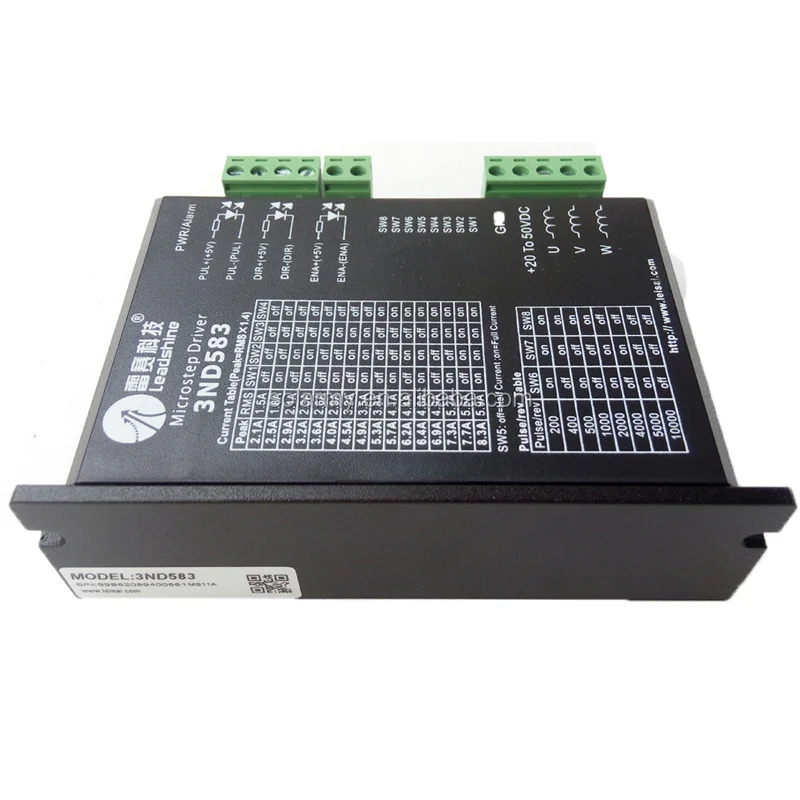

Detailed Images
