Солнечная входная сила и сетка вход гибридный 500KVA солнечный
- Категория: Solar Energy Products >>>
- Поставщик: Aerospace,Baykee,(Guangdong),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 437255.80 $* | 446000.59 $* |
| Jul-18-2025 | 354624.34 $* | 361716.49 $* |
| Jun-18-2025 | 430369.54 $* | 438976.90 $* |
| May-18-2025 | 426926.84 $* | 435465.42 $* |
| Apr-18-2025 | 340852.58 $* | 347669.79 $* |
| Mar-18-2025 | 420040.71 $* | 428441.74 $* |
| Feb-18-2025 | 416597.3 $* | 424929.34 $* |
| Jan-18-2025 | 413154.30 $* | 421417.87 $* |
Характеристики
Solar Input and Grid Input Hybrid 600KW Solar Inverter
Product Description

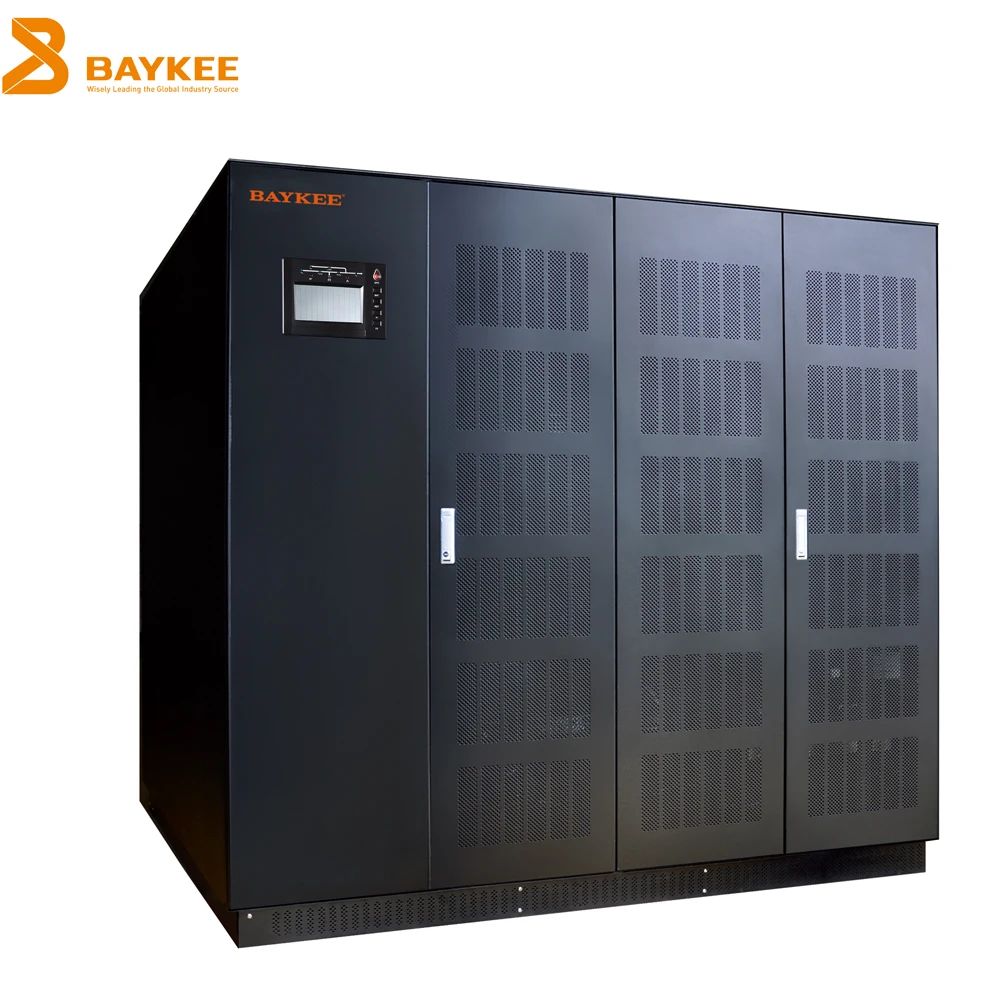

TYN33 Series Brief
TYN33 series solar inverter is a three phase inverter, which range from 10KVA to 200KVA, This inverter is a multifunctional intelligent power supply, which consists of MPPT solar controller, charger, rectifier, inverter, static transfer switch, main control circuit and display alarming circuit. It can set different inverter work mode according to users’ actual application.

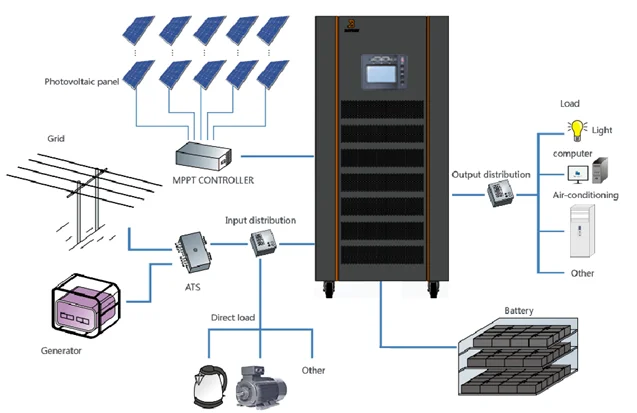

Two Work Mode
1. PV---Grid---Battery: This series solar inverter is designed for real-time sharing function between solar power and utility power. Solar power priority, solar power supply power to inverter via MPPT controller, and then output pure sine wave AC power to load via inverter, meanwhile charge battery. When solar power is not enough, the utility power will supply power to load. In this way, we can maximum use solar power and utility power, reduce battery discharge time and extend battery lifespan.
2. PV-Battery-Grid ( Maximum use solar power under the stable environment of utility power ): Solar power supply power to inverter via MPPT controller, and then output pure sine wave AC power to load via inverter, meanwhile charge battery. When the solar power is not enough, to maximum use solar power, the battery will supply power to load. When the battery is discharged to a value, the utility power will supply power to load. The users can maximum use solar power, reduce grid power supply and save electricity.
Main Feature:
Pure sine wave output
Built-in MPPT solar controller
Adopt 4 layer PCB, and SMD technology
Can choose the AC charger by button: On-off
With two charging mode: AC charging mode and solar charging mode, solar chargingpriority.
Can choose two work mode: Solar-Grid-Battery, Solar –battery-Grid, Can choose it by LCD screen
High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology: The sixth generation low-exhaust and big-power IGBT with excellent high speed switch feature, high voltage feature and large current feature. Drives by electric voltage, only need small control power. The sixth generation with lower saturation voltage, the inverter has high efficiency, low temperature, high reliability.
Intelligent detecting function : This system microprocessor can continually online detect power status, the breaker status and all the working status of the circuit.
Excellent load feature : It is completely capable to load from 0-100% while no need to change to bypass, which make sure the output reliable.
Intelligent communication-URL Based RemoteMonitoringandOperation :With RS232 and RS485 standard collocation, optional SNMP and dry contact.
Perfect protection :Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
Selectable battery inspection module :Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.
High-powered dynamic feature :Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment, but also reduce the output voltage distortion.
TYN33 series specification:
| Model | TYN3310K--TYN33200K | ||||||||||
|
Capacity (KVA) |
10 kVA |
20 kVA |
30 kVA |
40 kVA |
50 kVA |
60 kVA |
80 kVA |
100 kVA |
120 kVA |
160 kVA |
200 kVA |
|
Power ( Watts ) |
8 kW |
16 kW |
24 kW |
32 kW |
40 kW |
48 kW |
64 kW |
80 kW |
96 kW |
128 kW |
160 kW |
|
Grid (AC Input) |
|||||||||||
|
Max input current (A) |
31 | 41 | 61 | 81 | 101 | 121 | 161 | 201 | 241 | 321 | 401 |
| Type | Three Phase ( 3P+N+G ) | ||||||||||
|
Line-Neutral voltage |
220/230/240VAC±25% (100/110/120VAC is optional) | ||||||||||
|
line-line voltage |
380/400/4150VAC±25% (200/208/220VAC is optional) | ||||||||||
|
Input frequency |
50/60Hz±5% | ||||||||||
|
Charge voltage |
407V±1% | ||||||||||
|
Charge current |
ON or OFF, Can adjust through panel switch | ||||||||||
| PV | |||||||||||
| PV1 | 300VDC~600VDC ( 15pcs 24vdc solar panel in series,then through combiner box parallel ) | ||||||||||
| PV2 | 300VDC~600VDC ( single group 15pcs 24vdc solar panel in series, or through combiner 2 pcs in parallel ) | ||||||||||
|
Charge current |
20A ( max ), need more, can add external 20A charge module | ||||||||||
| Battery | |||||||||||
| Type | Maintenance free lead-acid battery (other type battery need customize ) | ||||||||||
|
Battery voltage |
360Vdc ( 2V battery 180pcs in serial or 12V battery 30pcs in serial ) | ||||||||||
|
Battery capacity |
According to backup time | ||||||||||
|
Battery low voltage protection |
>315V | ||||||||||
|
Inverter (Output) |
|||||||||||
|
Inverter output waveform |
Pure sine wave, THD<3% (linear load) | ||||||||||
|
Line-Neutral Voltage |
220/230/240VAC±2% (100/110/120VAC is optional) | ||||||||||
|
Line-line Voltage |
380/400/415VAC±2% (200/208/220VAC is optional) | ||||||||||
| Frequency | 50/60Hz±0.5% | ||||||||||
|
Dynamic feature |
Inverter output transient dynamic range less than±5%,recovery time <20mS | ||||||||||
| Crest factor | 3:1 | ||||||||||
|
Overload protection |
(Inverter output)125% overload, delay 1mins protect, 150% overload, immediate protect | ||||||||||
|
Inverter efficiency |
>90% ( 100% load ) | ||||||||||
|
System Parameters |
|||||||||||
| Transfer time | <0.5ms ( inverter--bypass ) | ||||||||||
| Protection | Output short circuit, overload, overvoltage, under voltage, over temperature etc protection, have audible and visual alarm | ||||||||||
| Display |
LCD display input and output voltage, output current, the inverter voltage, frequency, output current, battery voltage, PV voltage, PV charging current, temperature mode, flowcharts, current work status, event record and system information |
||||||||||
|
Operating environment |
Temperature 0-40℃ | ||||||||||
|
Relative humidity |
30%-95% | ||||||||||
|
Work sequence |
Solar-Grid-Battery or Solar –battery-Grid, Can choose one of the mode via LCD panel | ||||||||||
|
Operation altitude (max) |
<1000 meters ( per increase 100 meters power decrease 1%, at most 4000 meters ) | ||||||||||
|
Computer communicate interface |
RS232/RS485 | ||||||||||
|
Cooling method |
force-air cooling | ||||||||||
|
Size W×D×H (unit: mm) |
600*620*1250 | 700*620*1530 | 980*800*1800 | 1380*950*1800 | |||||||
| Weight (kg) | 236 | 265 | 342 | 407 | 485 | 506 | 770 | 913 | 937 | 1440 | 1710 |
Packaging & Shipping
Standard Export Wooden Package.
Company Information
Foshan Baykee New Energy Technology Incorporated Company is established in 2007, for getting our company public, update the company name to increase the solar system field in 2011. Foshan Baykee New Energy Technology Incorporated Company is a professional manufacturer and exporter that is concerned with the design, development and production of UPSs and inverters. We are located in Foshan, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering an area of 12,550 square meters, we now have over 500 employees and an annual sales figure that exceeds USD25 million.
We are currently exporting 30% of our products worldwide.
Our products: UPS (1-800KVA), inverters (300-400KW), EPS (0.5-800KW), battery (7-2000AH, 12V series & 2V series), AVR (10-200KVA) etc
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have passed ISO9001, ISO14001, OHSMS 18001, CE, 3C, TLC and CQC certifications.
