Малый размер 650nm D6mm 5V DC 5mW миниатюрная лазерная точечная Диодная модульная головка для
- Категория: Запчасти для лазерного оборудования >>>
- Поставщик: Elite,Optoelectronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 11.68 $* | 11.52 $* |
| Jul-17-2025 | 9.21 $* | 9.65 $* |
| Jun-17-2025 | 11.12 $* | 11.48 $* |
| May-17-2025 | 11.91 $* | 11.21 $* |
| Apr-17-2025 | 9.13 $* | 9.5 $* |
| Mar-17-2025 | 11.98 $* | 11.41 $* |
| Feb-17-2025 | 11.43 $* | 11.51 $* |
| Jan-17-2025 | 11.28 $* | 11.72 $* |
Характеристики
Product Information
ELITE mini laser diode module has extraordinary performance and unique compact design. Only our experienced engineer team can balance reliability and design for the system where size and weight limited. Mini laser diode module is one of the top-selling products in the market with CE and certifications.

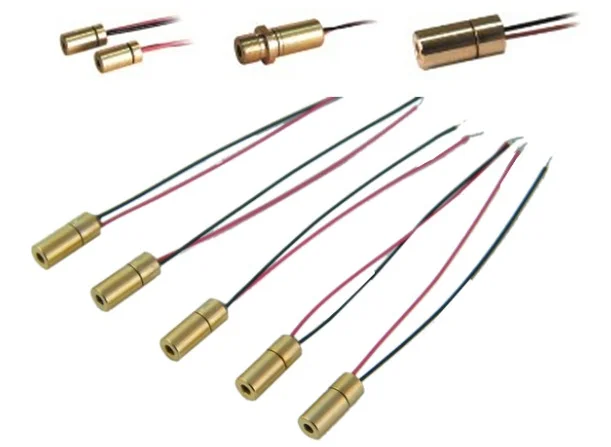

Mini Laser Module | ||
Product Description | Mini Laser Diode Module,small dimension with low power consumption,is particularly suitable for huilt-in miniature devices and tools,which could enable the laser tools. | |
Features | ·Small Dimension ·Low Consumption ·Low Cost | |
Product Specification | ||||||||
Wavelength | 650nm | |||||||
Output Power | ≤5 mW | |||||||
CDRH Class | I, II, IIIa | |||||||
Material | Brass | |||||||
Aperture | Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm | |||||||
Divergence | 0.6mrad, 0.8mrad, 1.0mrad,1.5mrad,2.0mrad, 3.0mrad | |||||||
Laser Drive Modes | CW, Analog Modulation, Digital Modulation | |||||||
Lens | Optical Glass Lens | |||||||
Dimension | Ø3.3x8.0mm, Ø3.8x8.5mm, Ø4.0x6.0mm, Ø4.0x8.5mm, Ø4.0x10mm, Ø6.0x12mm(Custom) | |||||||
Operating Current | <120mA, 35mA, 25mA | |||||||
Input Voltage | 3.0 to 5.0V | |||||||
Operating Temperature | -10°C ~ 50°C | |||||||
Storage Temperature | -40°C ~ 85°C | |||||||
MTBF | >8,000 Hours | |||||||
MOQ | 1 Piece | |||||||
Product Details | ||||||||
Product Applications | ||||||||
Medical Equipment
Machine Vision
Inspection
Alignment
Aesthetic
3D Scanning
Recommend Products
Package&Delivery
1.Packing the product in the plastic static-free bag
2.Add a layer of bubble film on the outside
3.Put the wrapped product in the export carton and seal it
Company&Factory
Certificate & Exhibition
Our Service
Customization Services
Please contact us with your application (or usage scenario) and laser specifications, such as wavelength, output power, the working distance (or range), beam size or line thickness and housing dimension, etc. We will recommend the best product according to your requirements.
Our company is still developing new products. There will be more new models.
Please follow us and stay tuned.
Our company is still developing new products. There will be more new models.
Please follow us and stay tuned.
After Sales Service
（One year warranty）
Step 1:Receiving Express
Step 2:Warehouse Registration
Step 3:Business Registration
Step 4:Inspection Department
Step 5:Engineering Department Analysis
Step 6:Test Result
Step 7:Feedback To Customers
Step 8:Solution Program
Why Choose Us
1. The pursuit of Customer Satisfaction, Creating Value for Customers
2. Leading suppliers of high stability laser, single-mode fiber-coupled laser, Uniform Line Laser, Laser Diode module, and DPSS laser.
3. Over 20 years’ experience in laser module design, development, and production.
4. Excellent research and development team, advanced production lines and complete testing equipment, Exclusive patent and patent pool.
5. Compliant with ISO9001:2015, CE, GB, IEC. ( MOQ 1pc, OEM/ODM service )
2. Leading suppliers of high stability laser, single-mode fiber-coupled laser, Uniform Line Laser, Laser Diode module, and DPSS laser.
3. Over 20 years’ experience in laser module design, development, and production.
4. Excellent research and development team, advanced production lines and complete testing equipment, Exclusive patent and patent pool.
5. Compliant with ISO9001:2015, CE, GB, IEC. ( MOQ 1pc, OEM/ODM service )
FAQ
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba.
3. What's your MOQ?
1 Piece.
4. What's the delivery time?
Within one or two weeks.
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS.
7. How long is the warranty period?
12 months.
