Светодиодный контроллер K1000C 5 В/12 В/24 В с поддержкой 2048 пикселей
- Категория: Dimmers >>>
- Поставщик: Shenzhen,Shiji,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.60 $* | 0.57 $* |
| Aug-16-2025 | 0.41 $* | 0.14 $* |
| Jul-16-2025 | 0.69 $* | 0.23 $* |
| Jun-16-2025 | 0.9 $* | 0.91 $* |
| May-16-2025 | 0.92 $* | 0.65 $* |
| Apr-16-2025 | 0.83 $* | 0.42 $* |
| Mar-16-2025 | 0.38 $* | 0.73 $* |
| Feb-16-2025 | 0.86 $* | 0.2 $* |
| Jan-16-2025 | 0.4 $* | 0.34 $* |
Характеристики
SJ-K1000C led controller
Product Description
- Technical Parameters
| Product Name | SJ-K1000C |
| Place of Origin | Guangdong, China (Mainland) |
| Power consumption | 3W |
| Voltage | DC5-24V |
| Supported chips | LPD8806, WS2801, LPD6803, P9813, SM16716 etc. |
| Type | SD card controller |
| Working temperature | -20℃~60℃ |
| Working Current | 28mA~40mA |
| Capacity | 128MB-32GB |
| Product weight | 0.35kG |
| Certificates | CE, RoHS |
| Usage | LED Control |

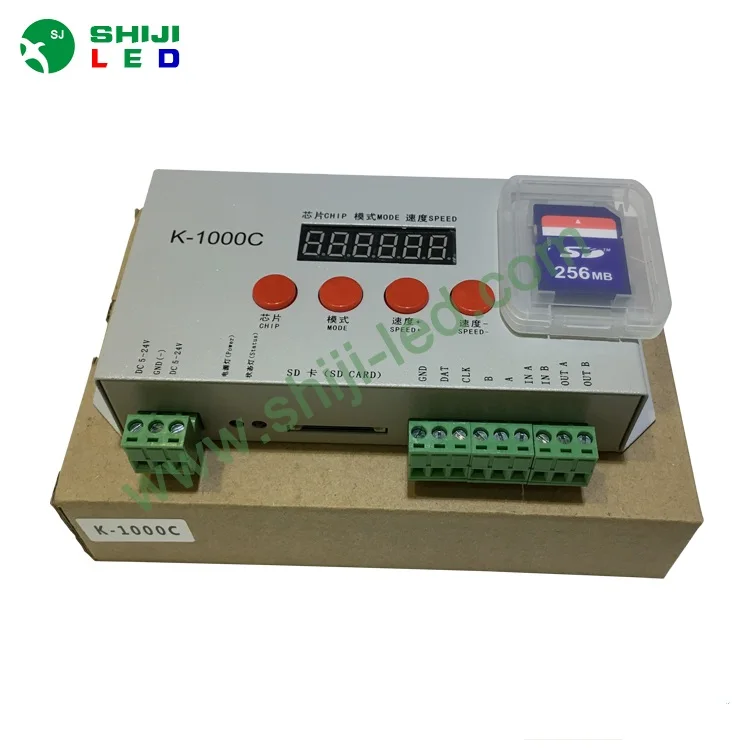

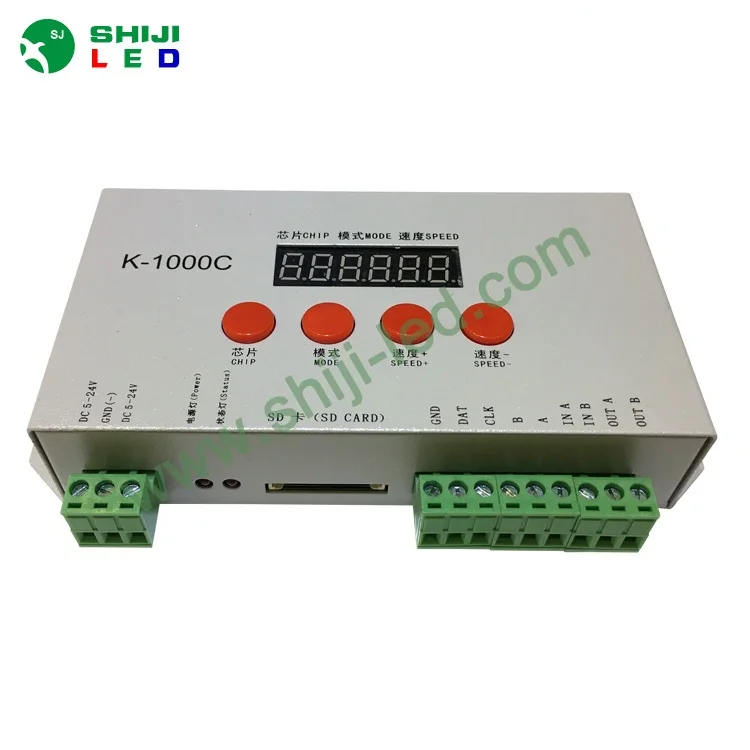

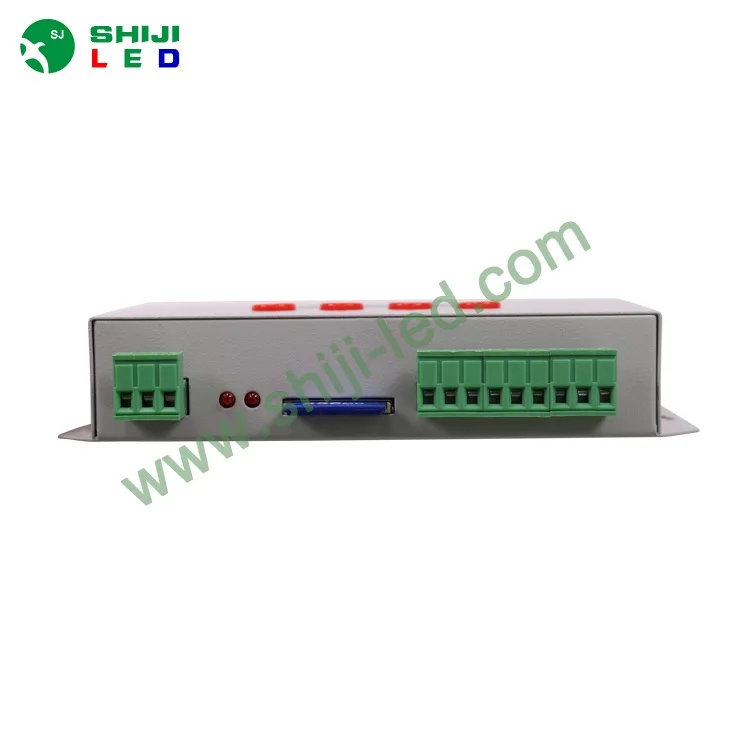

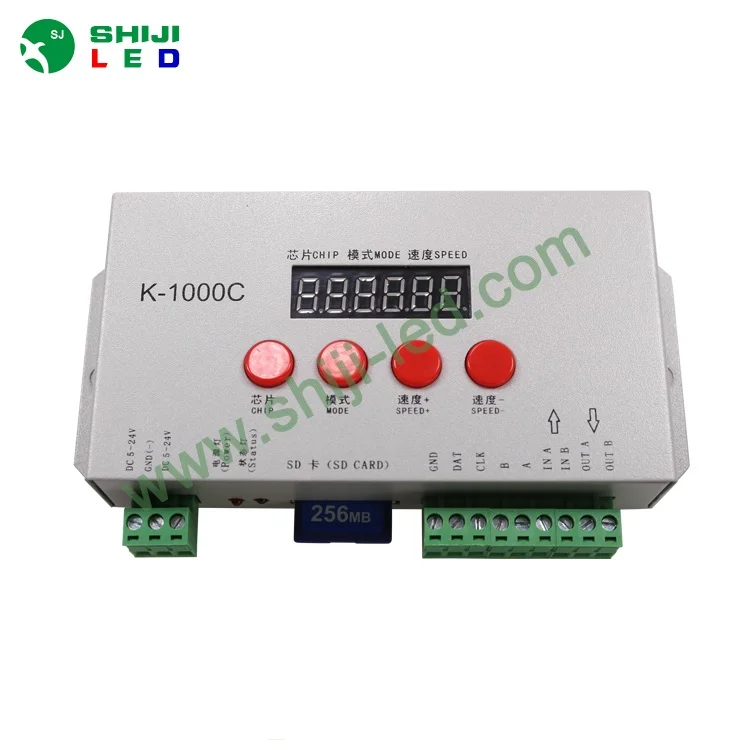

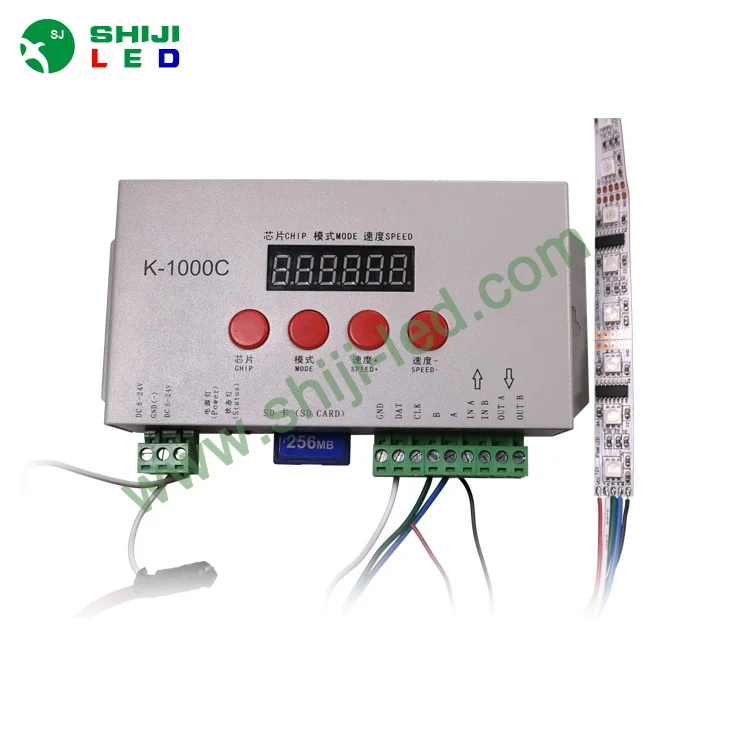

- Product Images
![$VIG~V)HA6VHBPU(K]3CKE.png](http://sc02.alicdn.com/kf/HTB19WhfglcHL1JjSZFB761iGXXaK/221417017/HTB19WhfglcHL1JjSZFB761iGXXaK.png)
- Product Features
1.32 to 65536 degree Gray control, Gamma correction procession handle.
2.Support various point, line light source, and all kinds of rules and specific shaped handle.
3. The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).
4.Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.
5.The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M2 pure copper power cord.
6.The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7.For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8.Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9.Enhanced 485 TTL and 485 differential (DMX) signal output.
10.The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
- Notes
1, The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 1024 point pixel speed can reach up to 25 frames / sec, 2048 point pixel speed is about 15 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)
2. International standard DMX512 (1990 agreement) maximum support 512 pixels. When the load is international standard 170 pixels, the speed can reach up to 30 frames / sec, 340 pixels speed is about 20 frames / sec, when 512 pixels speed is about 12 frames / sec.
3.If support RGBW four channels’ lights should select K-1000-RGBW.
4If support single channel light should choose K-1000-W, at this time, one channel means one pixel, the software effect make as white lighting.
Application
Support chips(PC Software Select K-1000-RGB):
1. UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
SM16703,16709,16712;WS2811,WS2812,WS2813,WS2815,WS2818;
INK1003;LX3203,1603,1103;GS8205,8206;SK6812(max. Supports lights 2048
pixels)
2. SM16716,16726(support up to 2048 pixels)
3. P9813(support up to 2048 pixels)
4. LPD6803(support up to 2048 pixels)
5. LX1003,1203(support up to 2048 pixels)
6. WS2801(support up to 2048 pixels)
7. LPD1886(support up to 2048 pixels)
8. TM1913(support up to 2048 pixels)
9. TM1914(support up to 2048 pixels)
10. P9883,P9823(support up to 2048 pixels)
11. DMX(support up to 512 pixels, suggest to support ≤320 pixels)
12. DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)
13. DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
14. DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
