Product Description
Iron casting plant industrial electric iron melting furnace with lifelong maintenance
Cooldo Induction Melting Furnace are available in capacities ranging from 1.0T to 60 Tons.These Induction furnaces are ruggedly built with heavy structural steel for trouble free operation under harsh melt shop
conditions.Thick walled rectangular coil sections are used to minimize coil losses. The higher coil efficiency ensures energy savings and higher productivity. Special coil insulation prevents inter turn sparking.Coil supports maintain inter turn gap and enhance the rigidity of The coil assembly
Detailed Images
Safety System：
1.The main circuit short circuit protection
2.SCR over voltage protection
3.Main circuit phase fault protection
4.Cooling water temperature protection
5.The main circuit phase loss protection
6.Low water pressure protection
7.SCR over-current protection
8.Furnace leakage protection
9.Intermediate frequency power failure protection
10.Intermediate frequency electric furnace fault protection

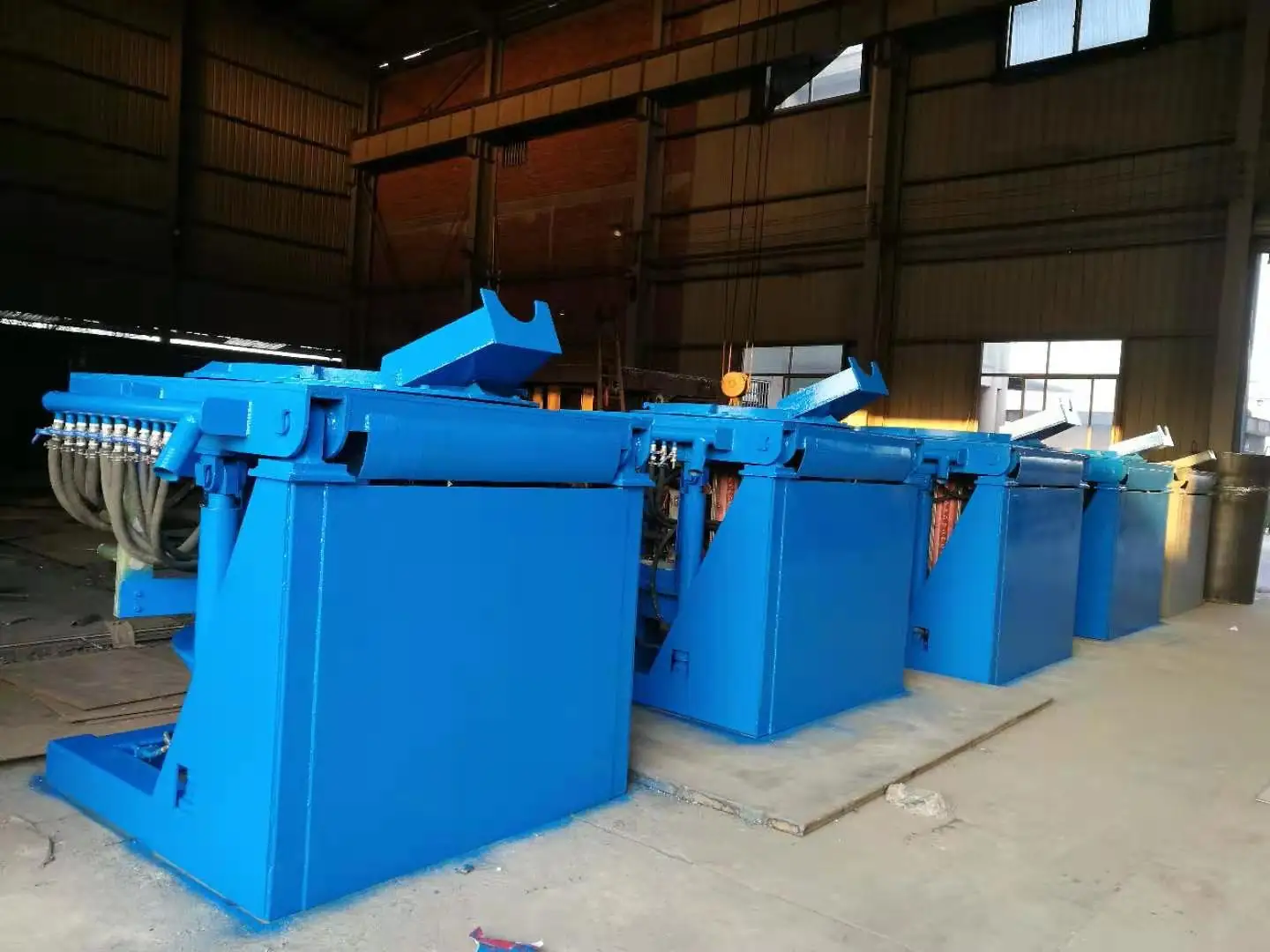

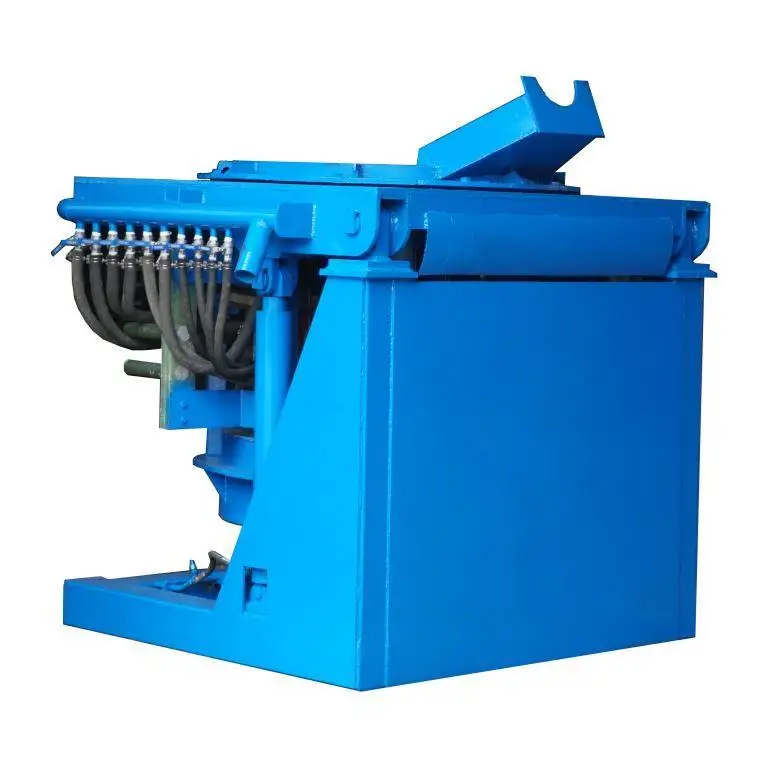

Steel shell furnace constructure:
Mainly comprises a furnace body frame(steel structure),furnace mouth,operation table,
hydraulic cylinder,induction coil,magnetic yoke,bricks, etc. See below
3.Main circuit phase fault protection
4.Cooling water temperature protection
5.The main circuit phase loss protection
6.Low water pressure protection
7.SCR over-current protection
8.Furnace leakage protection
9.Intermediate frequency power failure protection
10.Intermediate frequency electric furnace fault protection
Steel shell furnace constructure:
Mainly comprises a furnace body frame(steel structure),furnace mouth,operation table,
hydraulic cylinder,induction coil,magnetic yoke,bricks, etc. See below
Parameter
MODEL | Input Voltage V | Rate Power KW | DC Voltage V | Working HZ | Working V | Capacity | Power Consumption |
GW-0.05-100/1 | 380(6 Pulse) | 100 | 500 | 1000 | 750 | 0.05 | 800 |
GW-0.15-100/1 | 380(6 Pulse) | 100 | 500 | 1000 | 750 | 0.15/0.12 | 820 |
GW-0.25-160/1 | 380(6 Pulse) | 160 | 500 | 1000 | 750 | 0.25/0.2 | 790 |
GW-0.3-250/1 | 380(6 Pulse) | 250 | 500 | 1000 | 750 | 0.3 | 770 |
GW-0.5-250/1 | 380(6 Pulse) | 250 | 500 | 1000 | 1500 | 0.5 | 770 |
GW-0.75-400/1 | 380(6 Pulse) | 400 | 500 | 1000 | 1500 | 0.75 | 770 |
GW-1-500/1 | 380(6 Pulse) | 500 | 500 | 1000 | 1500 | 1 | 750 |
GW-1-750/1 | 380/690(6 Pulse) | 750 | 500/880 | 1000 | 1500 | 1 | 720 |
GW-1.5-1000/0.5 | 690(6 Pulse) | 1000 | 880 | 500 | 2600 | 1.5 | 700 |
GW-2-1500/0.5 | 690(6 Pulse) | 1500 | 880 | 500 | 2600 | 2 | 675 |
GW-3-2500/0.5 | 1000(6 Pulse) | 2500 | 1250 | 500 | 3200 | 3 | 590-640 |
GW-4-3000/0.5 | 1000(6 Pulse) | 3000 | 1250 | 500 | 3200 | 4 | 590-640 |
GW-5-4000/0.5 | 1000(12Pulse) | 4000 | 1250 | 500 | 3400 | 5 | 570-630 |
GW-10-6000/0.5 | 1000(12Pulse) | 6000 | 1250 | 500 | 3400 | 10 | 570-630 |
GW-15-10000/0.25 | 1000(24 Pulse) | 10000 | 1250 | 250 | 3400 | 15 | 550-600 |
GW-20-12000/0.25 | 1000(24 Pulse) | 12000 | 1200 | 250 | 3400 | 20 | 550-600 |
GW-25-14000/0.25 | 1000(24 Pulse) | 14000 | 1200 | 150~200 | 3400 | 25 | 550-600 |
GW-30-16000/0.2 | 1000(24 Pulse) | 16000 | 1200 | 150~200 | 3400 | 30 | 550-600 |
GW-40-18000/0.2 | 1000(24 Pulse) | 18000 | 1200 | 150~200 | 3400 | 40 | 550-600 |
GW-50-20000/0.2 | 1000(24 Pulse) | 20000 | 1200 | 150-200 | 3400 | 50 | 550-600 |
Application
Feature

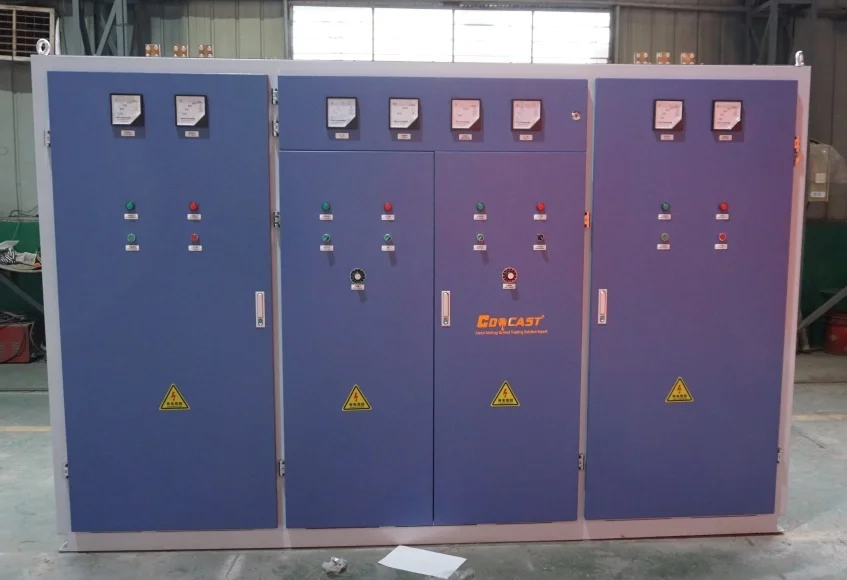

The cabinet adopts the GGD structure from German
The power start-up way adopts frequency scanning zero-voltage soft start mode
The constant power control board which can monitor the variation of voltage and current automatically
improves melting efficiency!
There is only one turn on/off switch and one power adjustment knob for easy operation.
Power supply is designed with reliable circuit protection, the electrical components work in a safe range,decrease the damage rate and increase the life obviously
About the furnace foundry and steel plant , The melting capacity range is from 1T—60T
The structure is welded by the high strength steel. It prolongs the working life of system.
The magnetic yoke of the steel shell can concentrate the magnetic field around the coils to generate the
great melting efficiency.
The induction coil is not easy deformed in the protection of the magnetic yoke.
The hydraulic titling system supports the furnace body to let them more reliable with the fixed pouring position.
1: CDOCAST Gold melting machine can quickly smelt various metals, the smelting speed is 5 minutes
2: Graphite crucible is adopted and quartz protective sleeve is coated which greatly extends the service life of the crucible
3: Comes with The ability to work continuously for 24 hours which can meet the needs of large smelting capacity customers
4: The color & size of the machine can be customized according to customer needs.
5: There is no need for an engineer to go onsite for installation . CDOCAST provides operating videos and complete instructions
for use. users can learn how to use the machine in 30 minutes

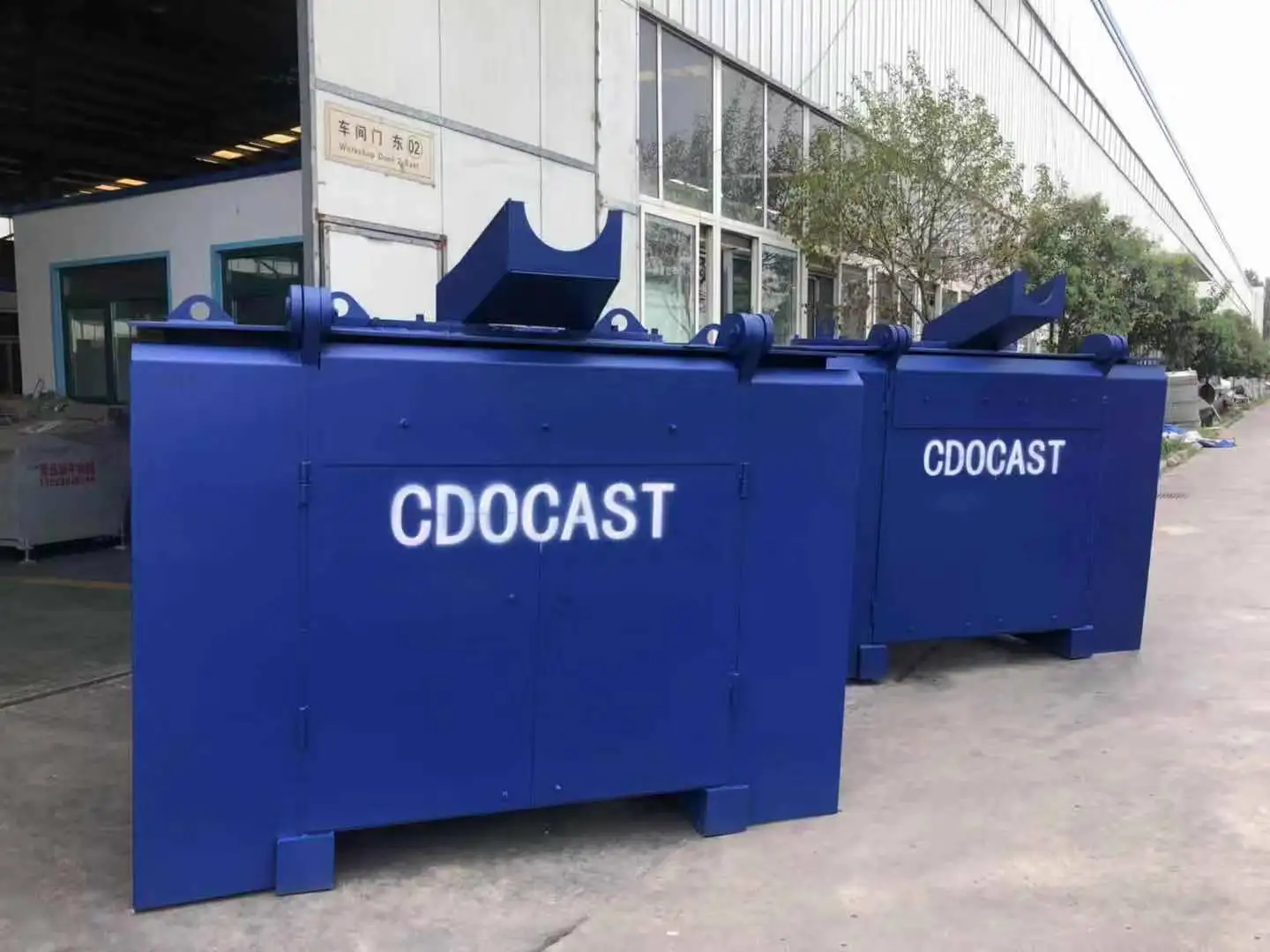

Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
