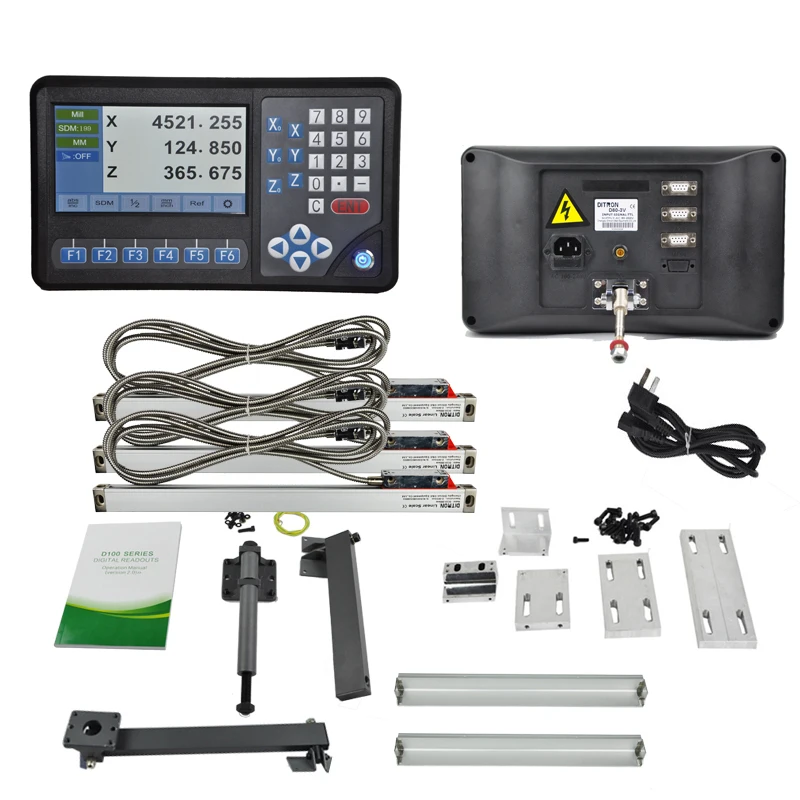

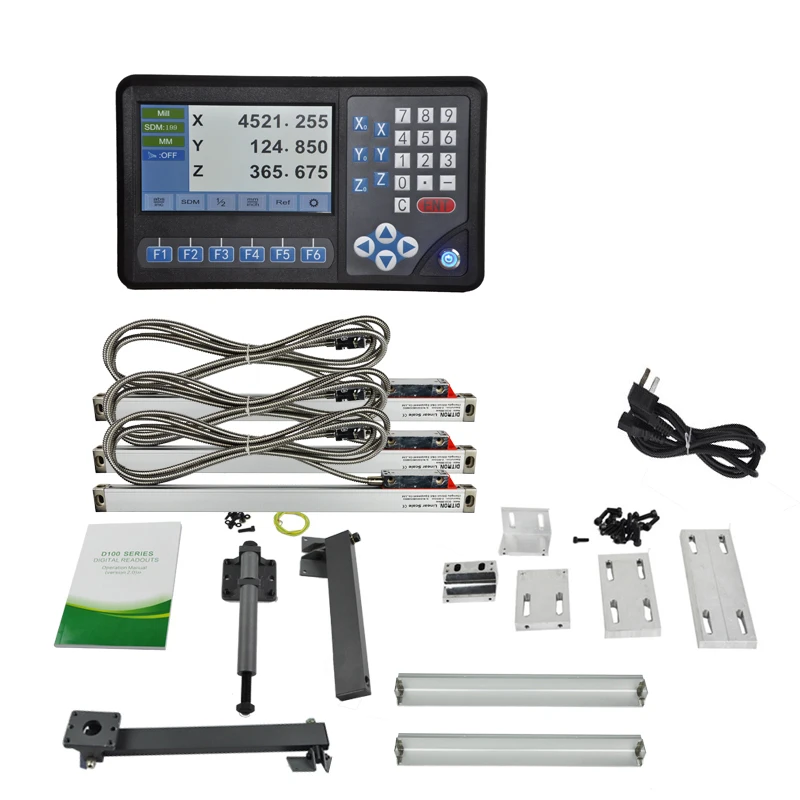

Многофункциональный комплект линейных шкал с цифровым индикатором для всех ручных машин DITRON 2/3/4/5 axis

Описание и отзывы

Трекер стоимости

Характеристики



D80 DRO



D80-2V  Full-featured digital readout (milling machine, boring machine, lathe machine, grinding machine)

D80-3V  Full-featured digital readout (milling machine, boring machine, lathe machine, grinding machine, electronic spark machine)

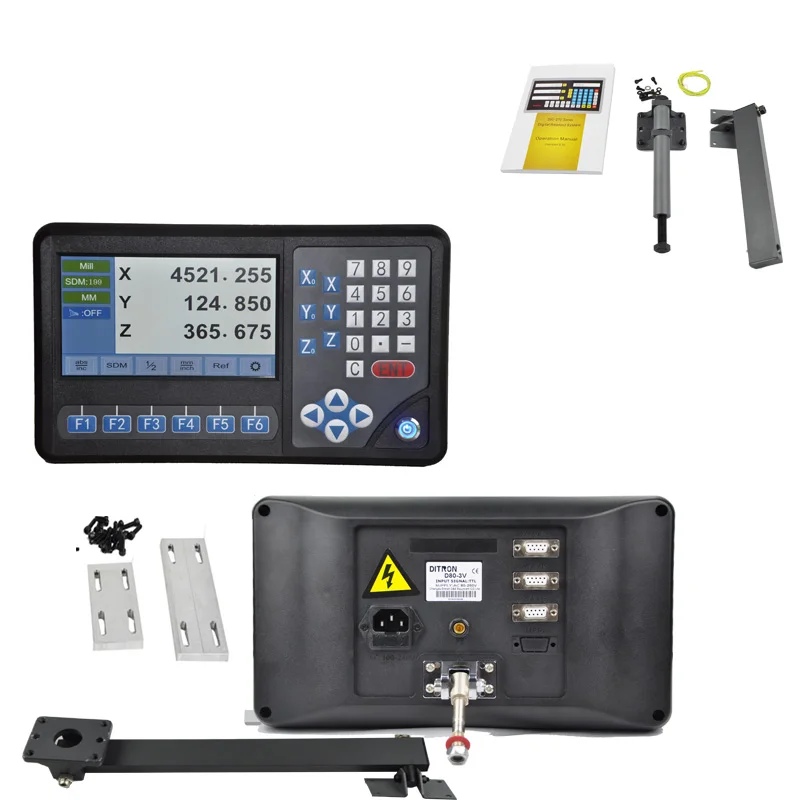

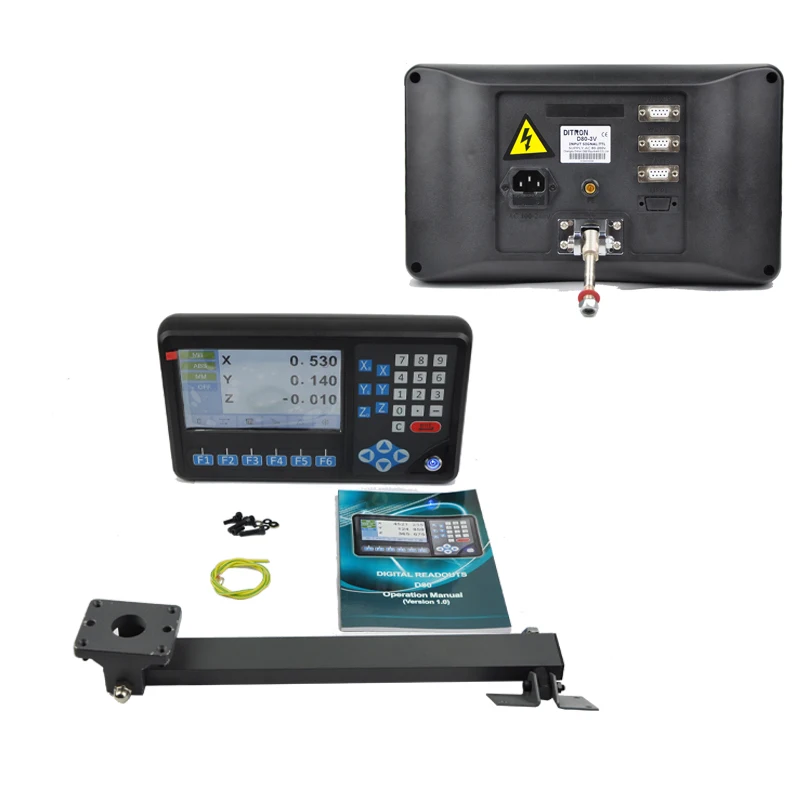

DITRON 2/3/4/5 axis  LCD multi-function Digital Readout DRO for all manual machines





The technical parameter of DRO-D80



  1) Voltage range: AC 80V-260V/50HZ-60HZ

  2) Power dissipation: 20VA

  3) Coordinate number: 1-5 axis

  4) Times frequency: 4X

  5)  Readout box input signal: TTL,EIA-422-A

  6) Resolution:10um, 5um, 1um, 0.5um, 0.1um

  7) Operating keyboard: light touch buttons

 8) Linear scale Grating space: 0.04mm, 0.02mm, 0.01mm, power supply is +5V.the difference between two and four TTL output signal is 90°.









Basic functions

1)    200 auxiliary zero:

2)    gamma calculator (for milling machine);

3)    Power-down memory:

4)    non-linear error compensation and linear error compensation;

5)    Points in the function:

6)    Inch / metric mode.



Processing functions

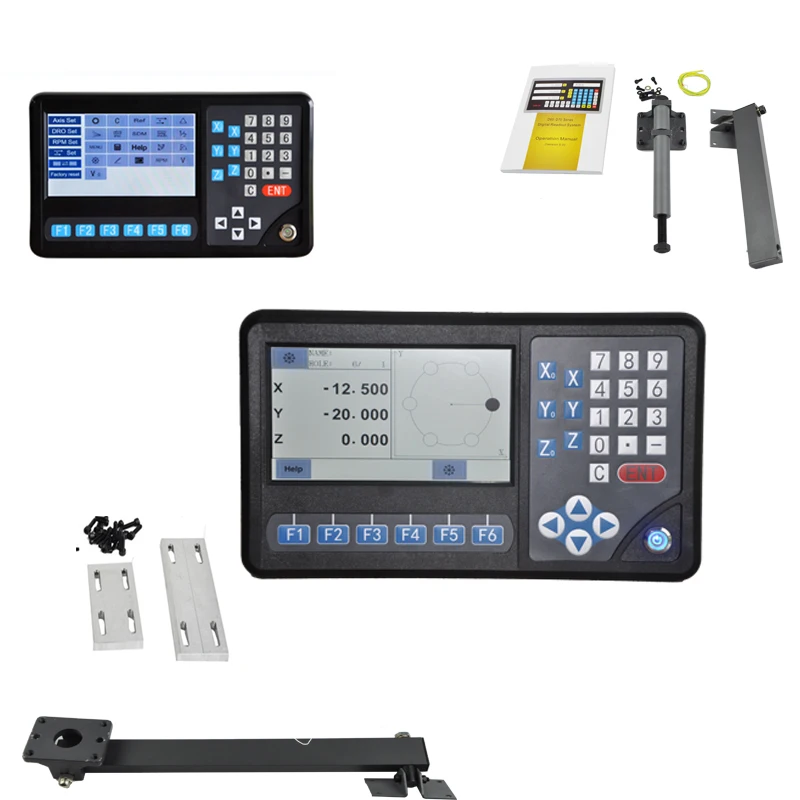

1)    PCD circular sub-holes (for milling, EDM)

2)    Slash punch (for milling machine)

3)    Tool compensation function (for milling machine);

4)    Taper measurement function (for lathe);

5)    Slope processing (for milling machine);

6)    R arc function (for milling machine);

7)    200 tool magazine (for lathe);

8)    EDM functions (for EDM, ordered separately)

9)    RS-232 communication (ordered separately)
