WE3526 двухдиапазонный 11ac 1200 Мбит/с беспроводной n гигабитный Мини Wi-Fi

Описание и отзывы

Трекер стоимости

Характеристики

WE3526 dual band 11ac 1200mbps wireless n dual band gigabit vpn wifi  router





Hardware

ZBT-WE3526 adopt the newest dual core MT7621 chipset, the main frequency is 880MHz, provide 5*10/100/1000Mbps Auto-MDI/MDIX Ethernet port, 1*USB 2.0 port, 1*Micro SD card slot.



Wireless

Support IEEE802.11ac/n/g/b/a wireless protocol, max wireless rate could be 1200Mbps , 4×5Dbi high gain antennas , perform better and cover larger.



Product Selling Points

ZBT new product WE3526 dual band 11ac wireless wifi mt7621 gigabit vpn router

A. 1 USB2.0 port

B. Provide 1 Micro SD Card slot

C. The transmission rate get to 1200Mbps

D. Provide 5 gigabit Auto MDI/MDIX Ethernet port

D. support IEEE IEEE802.11AC/N/G/B/A wireless protocol

E. Latest Dual core network chipset MT7621,Clock Frequency get 880Mhz

F. Dual band 2.4G and 5G working



Product Specification

Hardware
Product Mode	ZBT-WE3526
2.4GHz chipset	MT7621/Dual core/880MHz
5G chipset	MT7612E
RAM	DDR3 512MB (Maximum DDR3 512MB)
FLASH	SPI 16MB  (Maximum 32MB)
Protocol	IEEE802.11n, IEEE802.11g, IEEE802.11b IEEE802.3, IEEE802.3u
Wireless rate	2.4G: 300Mbps 5G: 867Mbps
Work frequency	2.4GHZ, 5.8GHZ
Antenna	2*5dbi 2.4Ghz antennas 2*5dbi 5.8GHz antennas
Interface	1* 10/100/1000Mbps Auto-MDI/MDIX WAN port, 4* 10/100/1000Mbps Auto-MDI/MDIX LAN port, 1* USB 2.0 port, 1* SD Card Slot
LED	Power/2.4G/5G/WAN/LAN4/LAN3/LAN2/LAN1
Button	Reset
Powered by POE	NO
Maximum power consumption	12W
Power Adapter	DC 12V 2A
Housing size (L*W*H) and color	Size: 235*135*25.5mm Color: Black silver (accept custom)
Software
Factory setting	IP address: 192.168.1.1 User name/ pass word: admin/admin
WAN access way	PPPoE, Dynamic IP, Static IP, 3G/4G
Work mode	AP; ROUTER;
DHCP server	DHCP server Client list; Static Address distribution
System supported	Original SDK, openwrt
Virtual server	Port Forwarding DMZ main machine
Safety setting	Client filter MAC Address Filter URL Filter Long-distance WEB management
DDNS	Support
WEB theme switch	Support
Bandwidth control	Support
Static routing	Support
System log	Support
Others	Mac clone NTP Synchronize Web firmware upgrade
Others
Work environment	Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃~ 70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Certification	3C
Accessories	Warranty card 1PCS Power adapter 1PCS (US 12V/2A  cable 1.5M)

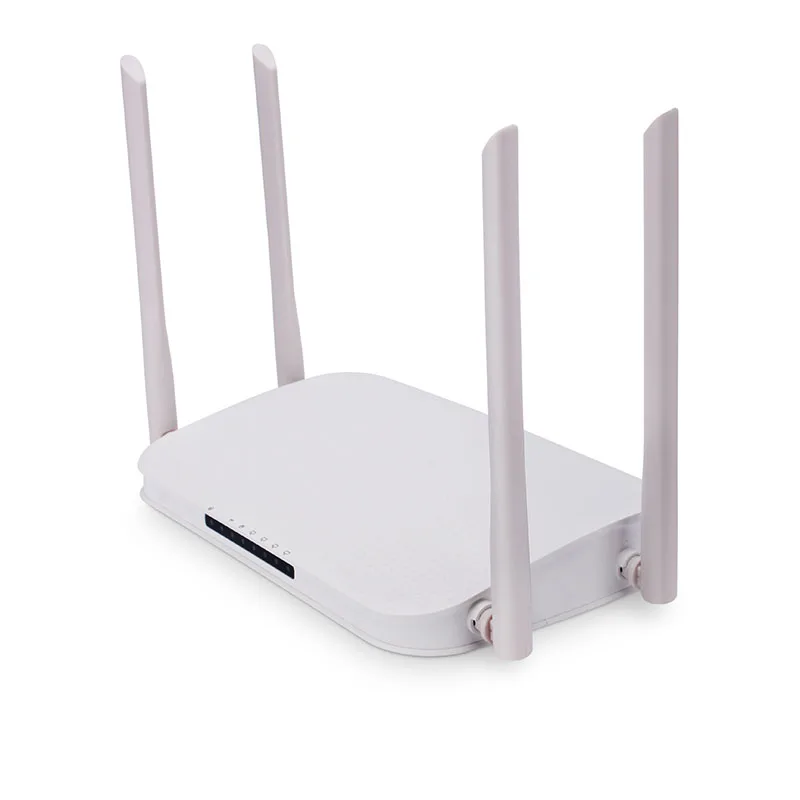

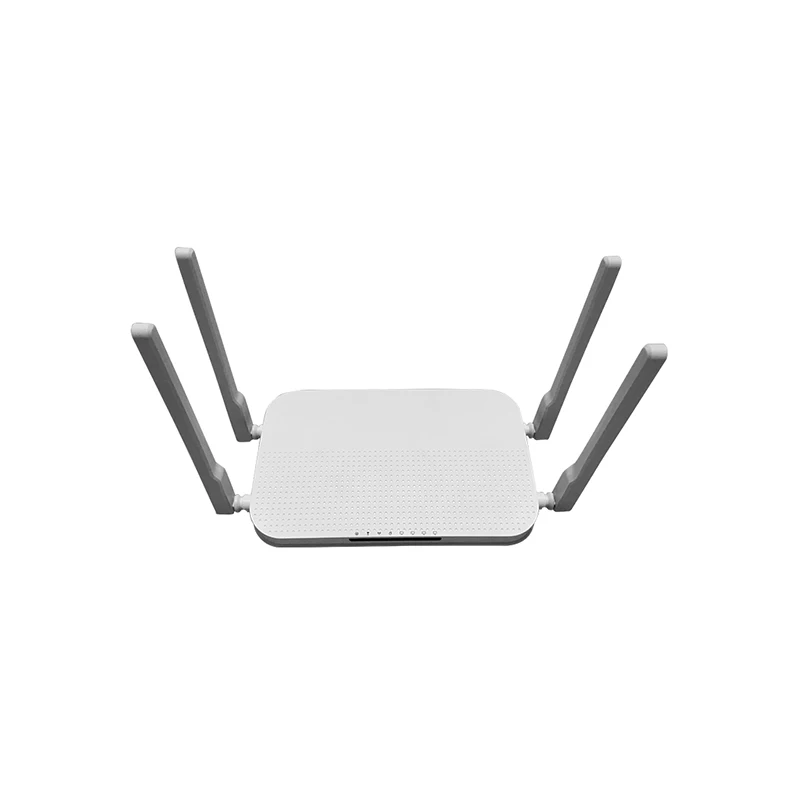

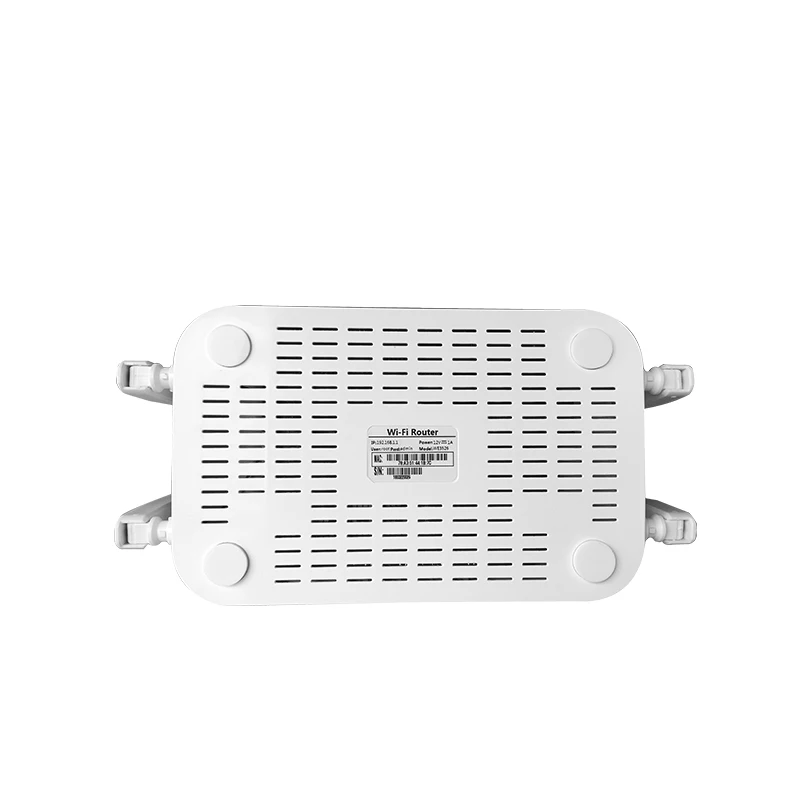

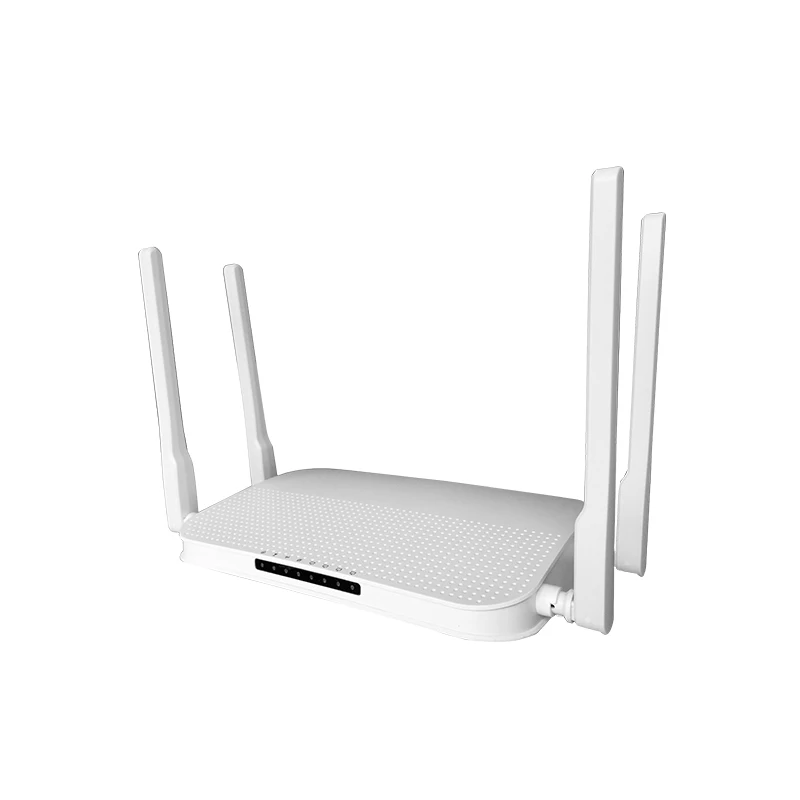

Product Photo

The enclosure design inspiration is from MacBook



Shenzhen Zhibotong(ZBT) Electronics Co.,Ltd is a professional manufacturer for openwrt wireless wifi router,you could easily find our brand "ZBT" on openwrt.org.

As a professional manufacturer, we support OEM&ODM and we have our own R&D department for the hardware and software.

We mainly do MTK, Atheros chipset solution. At present, we have successfully used MT7620, MT7621, MT7623, MT7628, AR9531, AR9344.....

Our production capacity is 20000pcs every week and we have cooperated with some operators, such as China Mobile, T-mobile, Smart......

QC department seriously control all products quality from material to finished products. Our product can be inspected by the third inspection part, products passed certificate, 3C, FCC, CE, RoHs...
