Онлайн-Датчик Мутности 4-20 мА или выход

Описание и отзывы

Трекер стоимости

Характеристики

online turbidity sensor 4-20mA RS485 output

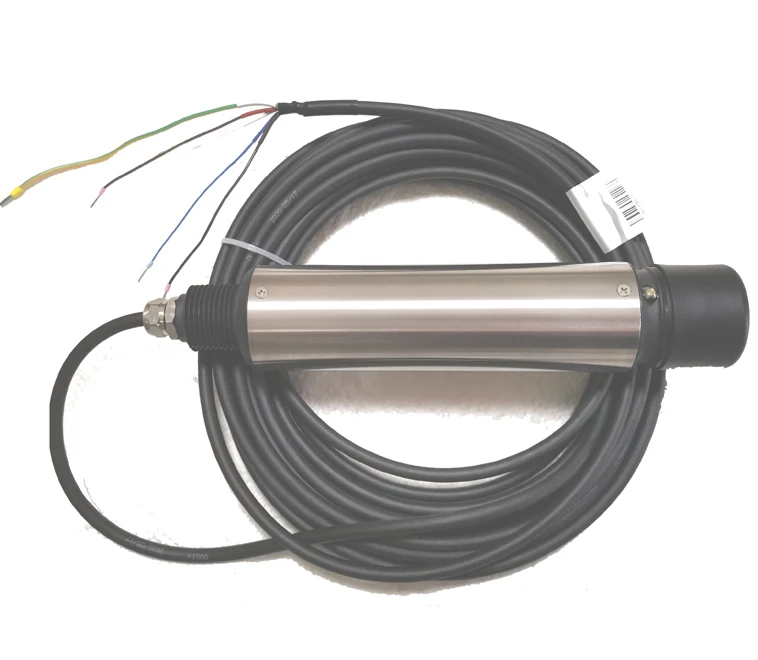

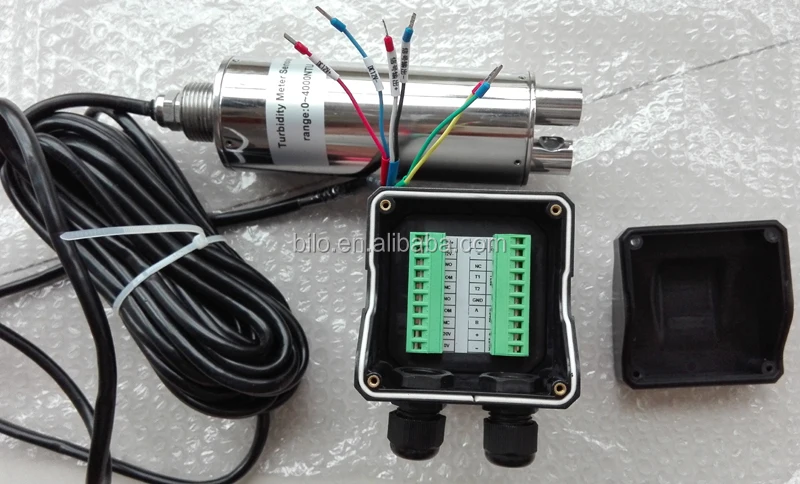

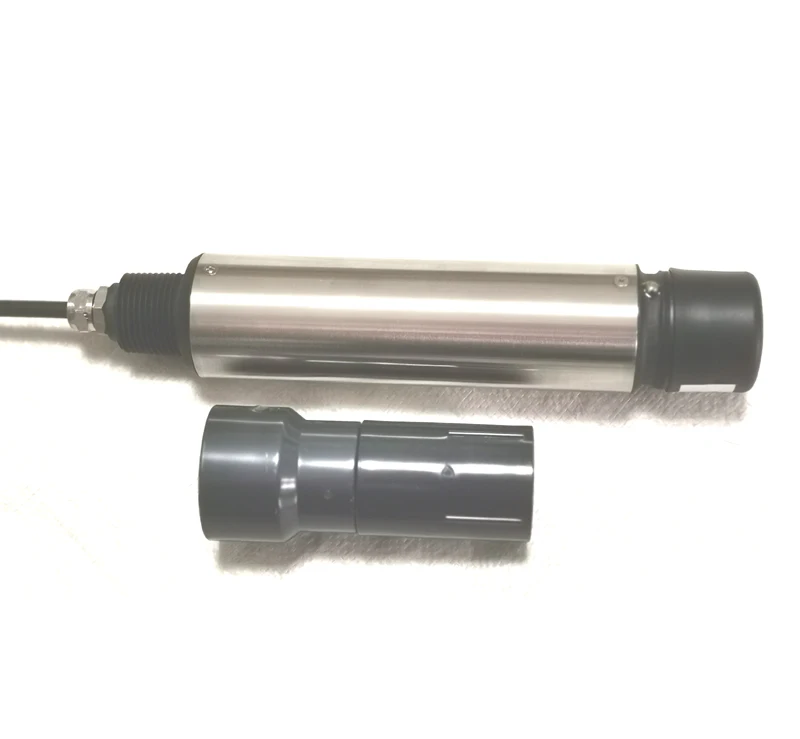

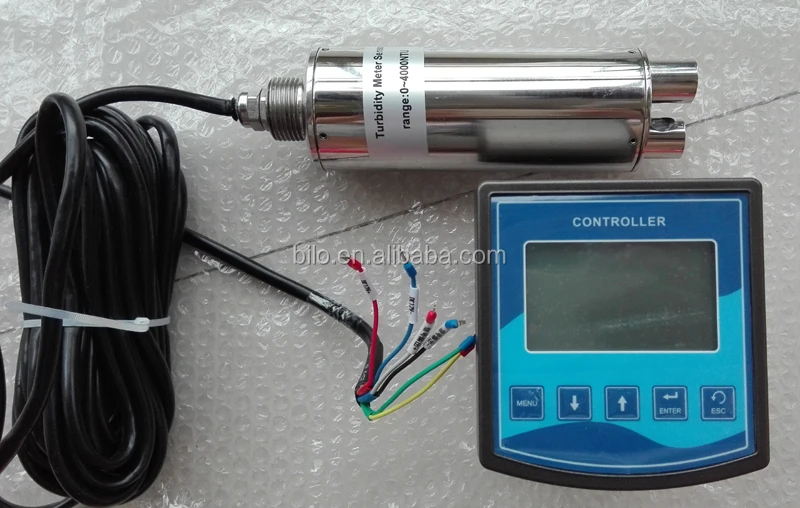

1- ZS-6150 online Turbidity sensor.

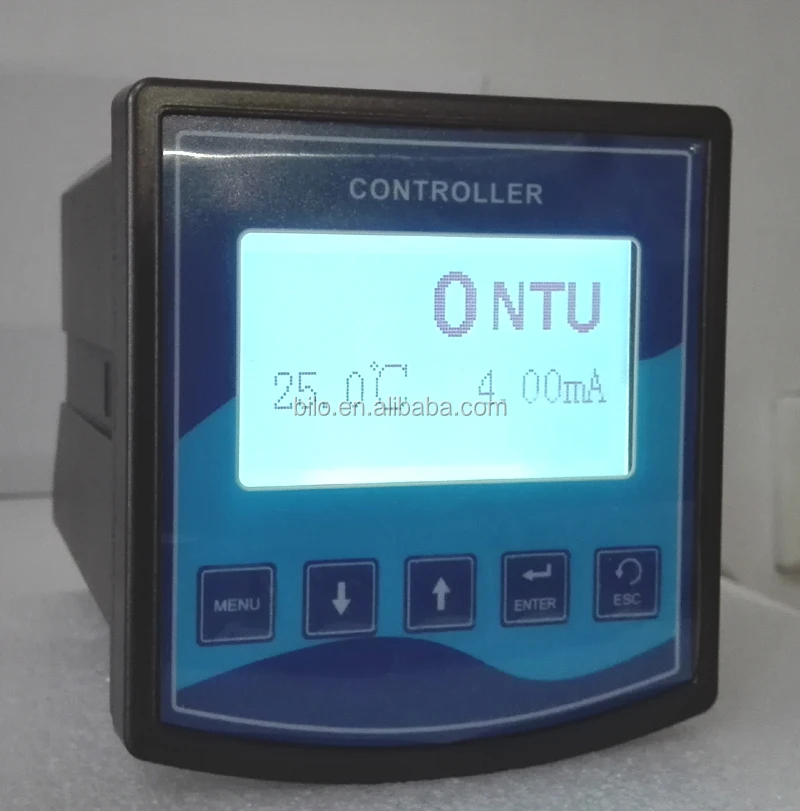

2- Large screen liquid crystal display (LCD)

3- Built-in bubble elimination system (circulation), improving the measuring accuracy and stability.

4- Communication function (optional):RS-485 communication interface (MODBUS protocol

   compatible), 4 ~ 20 mA current output corresponding Turbidity value can be set freely.

5- Adopting two points calibration

6- Watchdog function: make sure the instrument does not crash

7- The core parts from international famous brand.

8- Can restore factory Settings. Power-fail protection > 10 years

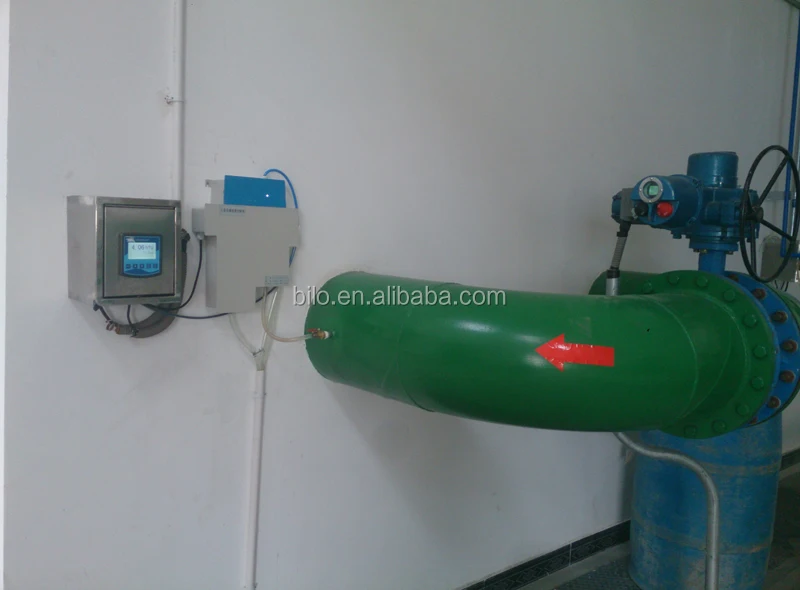

Turbidity meter is widely used in water source quality monitoring, environmental monitoring station, municipal water

treatment process, circulation cooling water, swimming pool water running management, factory aquaculture etc.



Turbidity sensor features:



















Function                                                       Model	ZS-6150 online turbidity controller with sensor
Measuring Range	Circulation Type:  0-10,0-20,0-100 NTU 0-400 NTU
	Throw-in Type: 0-500,0-2000 ,0-4000NTU
Display	Large screen LCD
Resolution	0.01%
Accuracy	±1.0% (FS)
Repetitive	±1.0%
Analog output	load <750Ω (4-20mA)
Switched output	3 Relays, 3A/220V AC
Power	≤10W
Power	AC 220V±10%, 50/60Hz
Working environment	Ambient Temp. 0-60℃, Relative Humidity ≤90% or less
Dimensions	96×96×115mm(H X W X D), 0.8kgs
Hole size	91×91mm H X W)
Installation Mode	Panel Mounted









     1.  Turbidity sensor will be transported by Express DHL, TNT, etc as per request, which will take 3-5days.

     2.  By air transport for the bulky order, it will  it will take 5-7days for different area,

     3.  By sea transport for the not urgent bulky order.









1.  Business term: FOB, C&F, CIF, DDU,DDP are acceptable.


2. We accept Western Union, T/T, L/C,Paypal etc term of payment.

    If you want to know more detailed info. about turbidity sensor and us ,



    pls see our website: www.watequipment.com



    or E-mail me: info at watequipment.com.



    or add me on skype: sunnylee301



    or QQ: 544432716
