Китайский инструмент трансформатор Нанокристаллические тороидальные

Chinese Instrument Transformer Nanocrystaliine Toroidal Cores

Features:

  High permeability - greatly improved transformer accuracy and reduce difference and angular than the difference

   Light weight, low cost - the price was significantly lower than permalloy, cost-effective

    Excellent temperature stability - can be -55 - 130 ℃ to work long hours

    Saturation magnetic flux density between silicon steel and Permalloy between - is conducive to reducing the instrument security factor

Application areas:

    Measuring Current Transformer Substation Core (accuracy 0.5-0.01 grade, rated voltage 0.5-500kv)

    Power transformer is specifically measure current and power transmission lines of special transformers. According to measurement accuracy class requirements, can choose a different soft magnetic materials as core. The higher permeability core, the higher the measurement accuracy. At present the greatest amount of core material is cold-rolled silicon steel, glass and nano-crystalline alloy Mo alloy. In recent years, high-precision level (such as the 0.2, 0.2S class, 0.5S level) of the transformer demand is increasing rapidly. When asked to become more than a small, low-security turns, or the core size due to volume requirements restricted circumstances, the cold-rolled silicon steel sheets often do not meet the required precision. Although the high permeability glassy Mo alloys meet the required precision, but the price higher. The use of nano-crystalline core not only meet the required accuracy but also with lower price than the glassy Mo alloys.

The phycisal property of iron core:

Product Type Dimension:

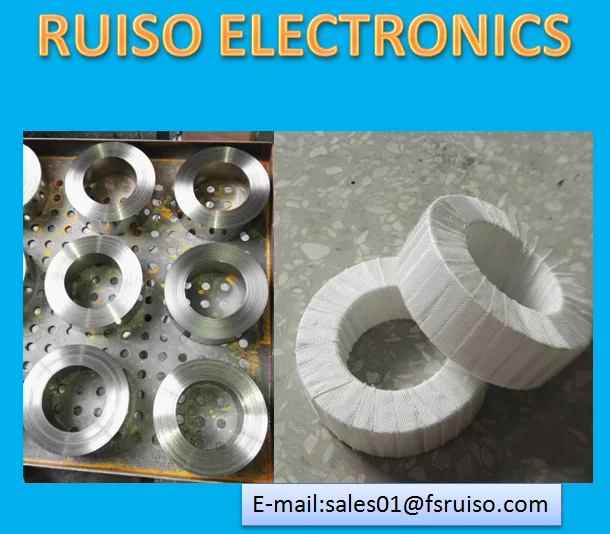

Chinese Instrument Transformer Nanocrystaliine Toroidal Cores

Automatic vacuum furnace for nanocrystalline cores

We do 100% inspection for the cores

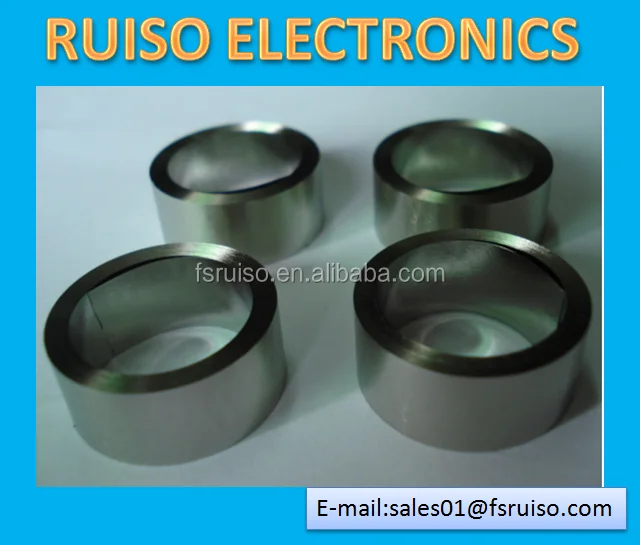

Chinese Instrument Transformer Nanocrystaliine Toroidal Cores
Our nanocrystalline cores are  are widely applied to power electronics, new energy, aerospace and aviation, information, communication, etc.

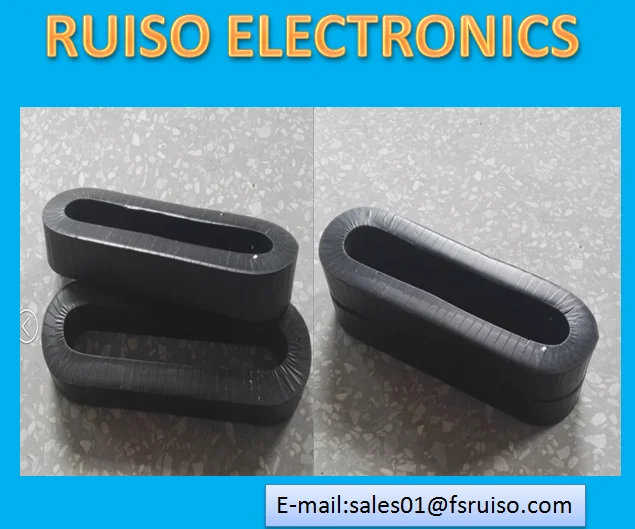

Chinese Instrument Transformer Nanocrystaliine Toroidal Cores

All cores are well packed by sponge inside, and in export standard wooden boxes or strong carton boxes,to avoid any damages during sea transportation or air transportation.

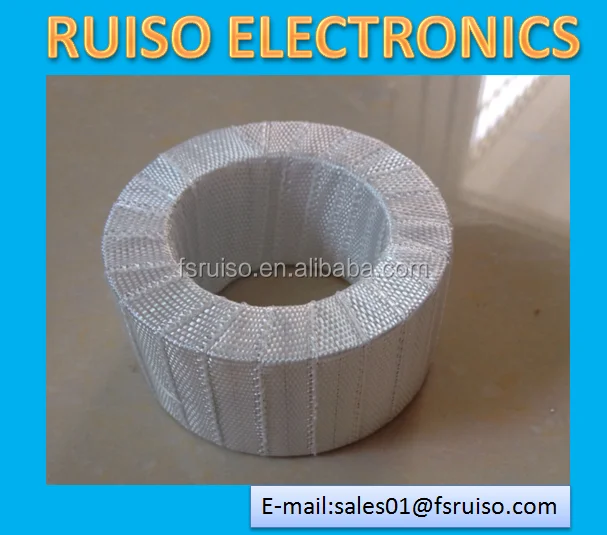

Chinese Instrument Transformer Nanocrystaliine Toroidal Cores

 Welcome to contact us by the below details if you are interested in any of our products
