Проволочное оборудование для контроля давления и инструмент лубрикатор нефтяного

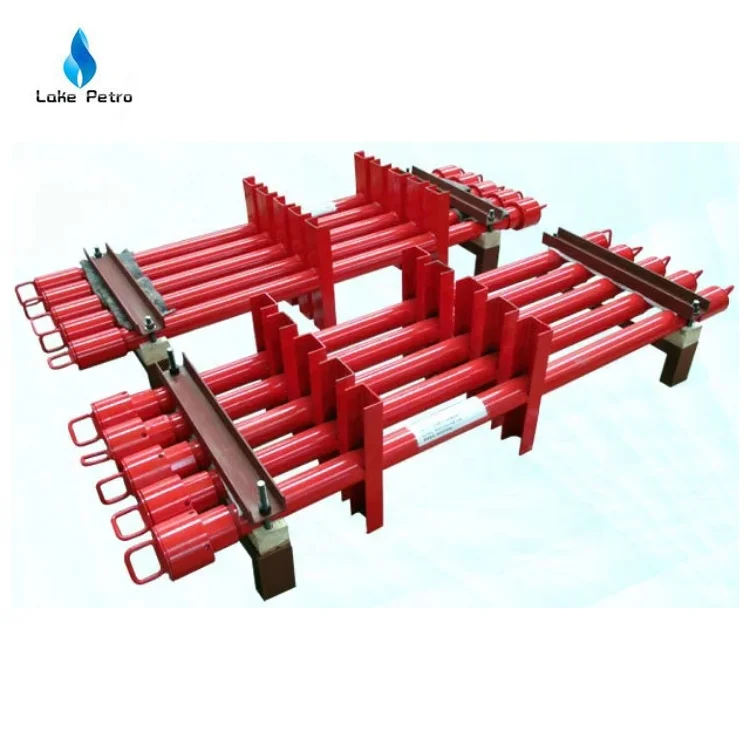

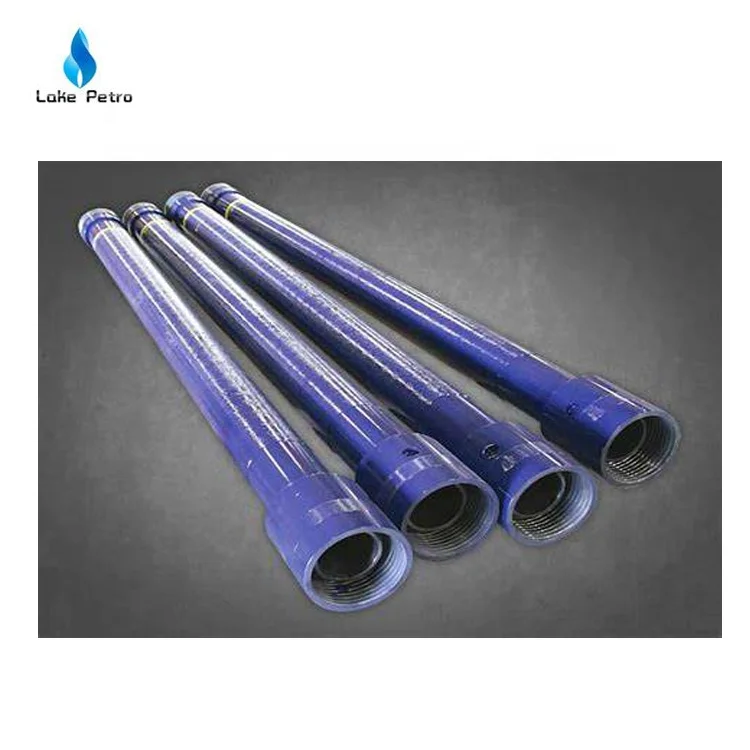

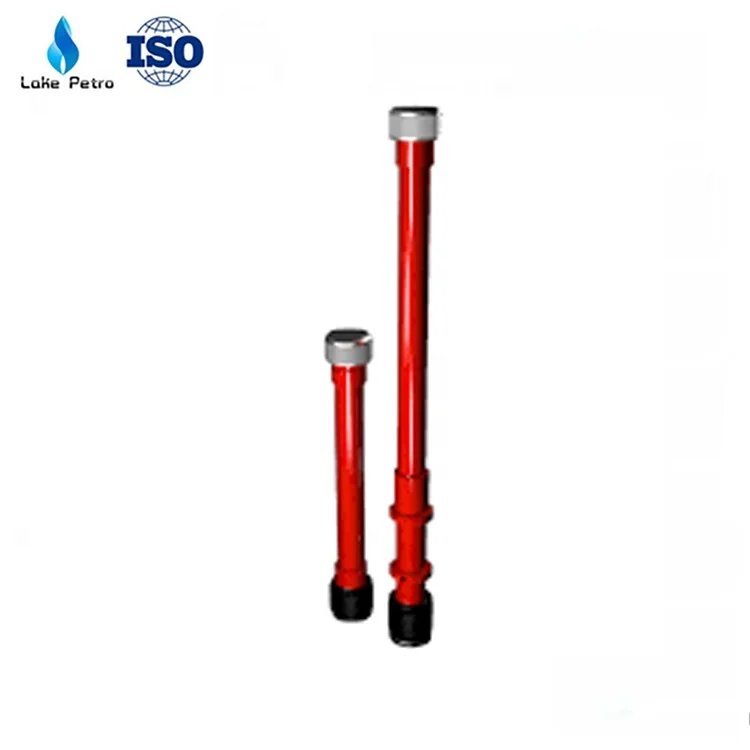

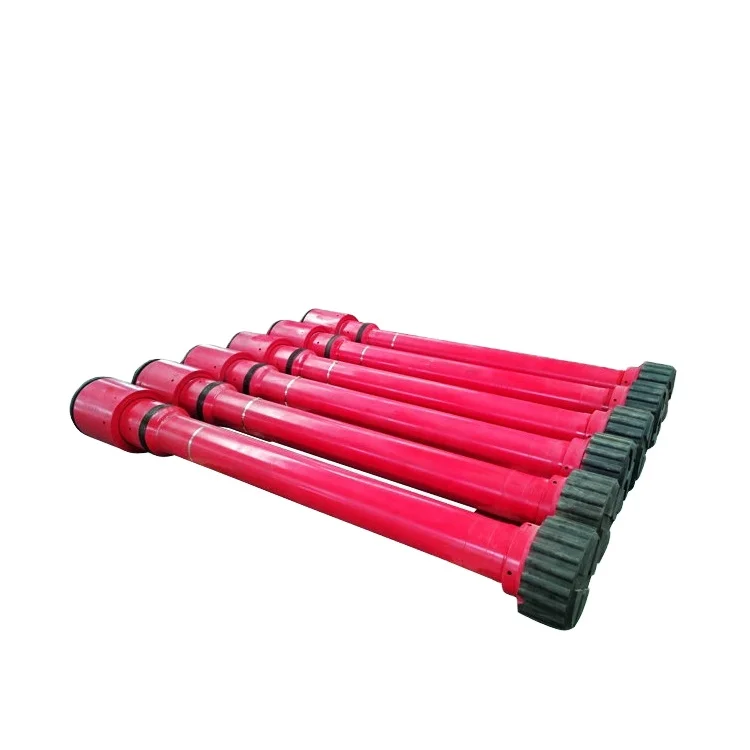

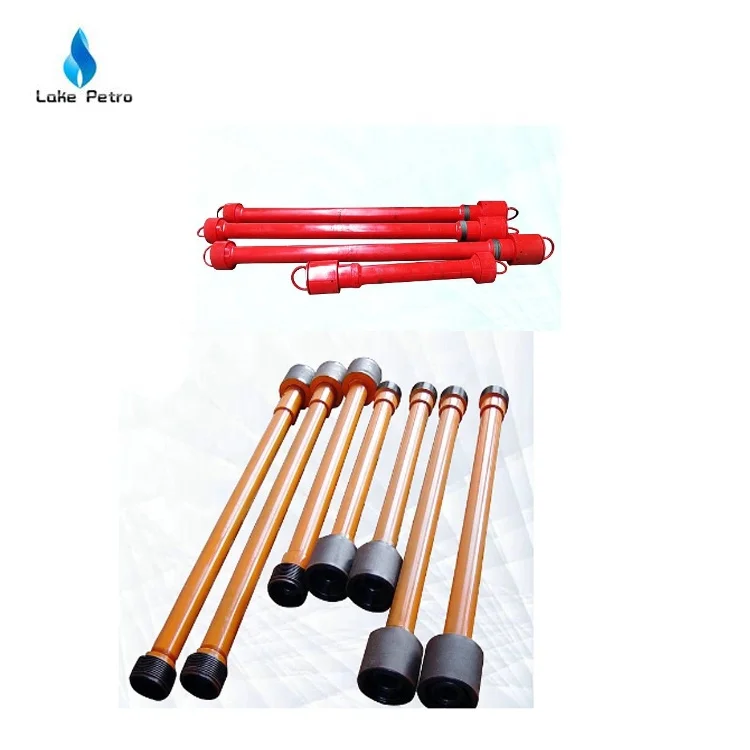

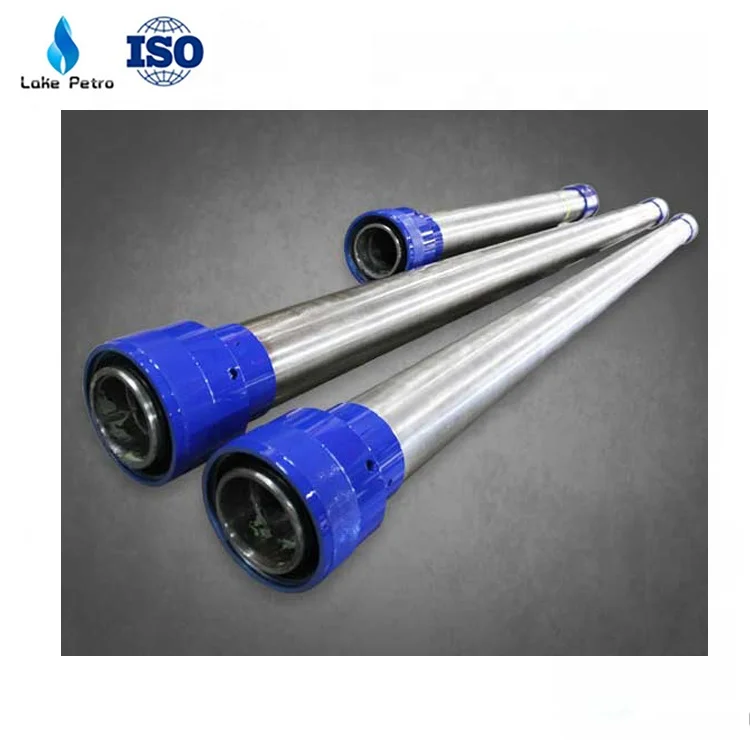

Lubricator & riser sections are pressure retaining cylinders used during well intervention operations, for tool deployment. Sections can be made-up together with an appropriate sealing device, to form an effectual operating height to retain the tool string complete with sub-surface deployment tool(s) being run or Retrieved from the well.

options:

The lubricator and riser section range is available with the following options :

• 3.00”ID to 9.00” ID through bores


• 3ft to 20ft length options


• 5,000 Psi, 10,000 Psi and 15,000 Psi working pressures


• Standard or sour service


• Service temperature range of -29 to +121 °C


• Choice of quick union or API flanged connections


• Choice of bleed port connections

Technical Features:

• On conventional lubricators, the component parts are screwed together by means of a special TIS acme connection, which has a primary o-ring seal and secondary metal to metal seal


• On integral type lubricators, the quick union collars can be very quickly and easily removed for cleaning, inspection, etc


• Integral lubricator sections can also be provided with an optional full re-cut facility on quick union connections.

Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.

How can I place order?

A: You can contact us by email about your order details, or place order on line.

How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.

What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
