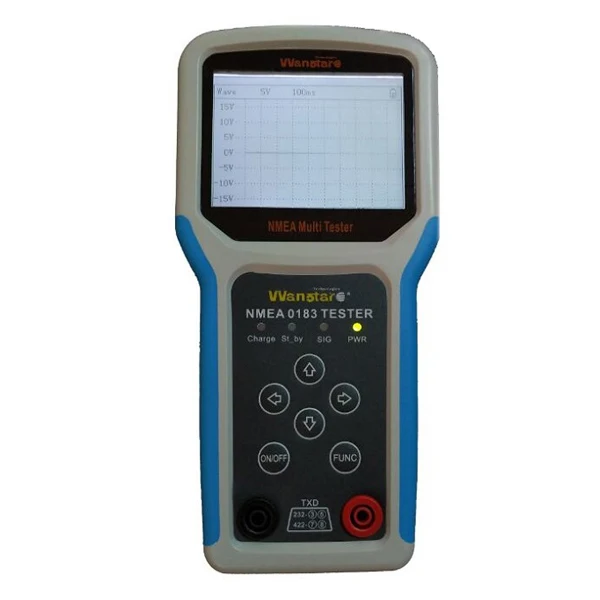

HC-401 NMEA0183 MULTI TESTER

NMEA0183 Multi Tester Application:

1,NMEA0183 Signal Tester:All the NMEA0183 Signal(RS-232 OR RS-422 OR TTL )can be tested and directly display the NMEA0183 sentence on the LCD screen.

2,NMEA0183 Signal Generator:Can Simulator the NMEA0183 Sentence , such as :GPS /HEADING/AIS/DEPTH/LOG/WEATHER/AUTOPILOT / RADAR etc.

3,NMEA0183 signal waveform detection: The Device can work as a small oscilloscope, which can test the NMEA0183 signal waveform amplitude, data pulse width and so on.

   4,VDR BEACON TESTER:Can detect the working status of the ship VDR beacon to determine when the ship is in danger whether the beacon can effectively send out 37.5KHZ positioning signal.

Specification :

1)             3.5 Inch COG LCD Display .

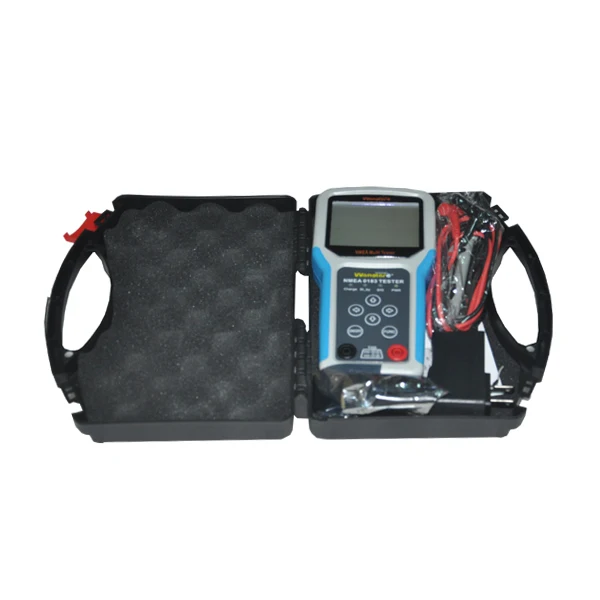

2)             Test Pen:Red and Black with 1.2m Cable

3)             Battery:Li-ion Recharger 3.7V 2200mAh,Continue work more than 8 Hours

4)             Baud Rate:2400-115200 ;

5)             Input :RS-232,RS-422,TTL;

6)             Output :RS-232,RS-422,200 Pulse;

7)             BEACON Frequency :37.5KHZ;

8)             Brightness Contrast: 5 Level adjustable;

               9)             Waveform amplitude :+/- 15V;

10)         Work Temprature:-20 ℃~ —70 ℃;

11)         Humidity:Less Than 95%;

12)         Weght :600g;

13)         Dimension:205mm X 100 mm X 35 mm ;
