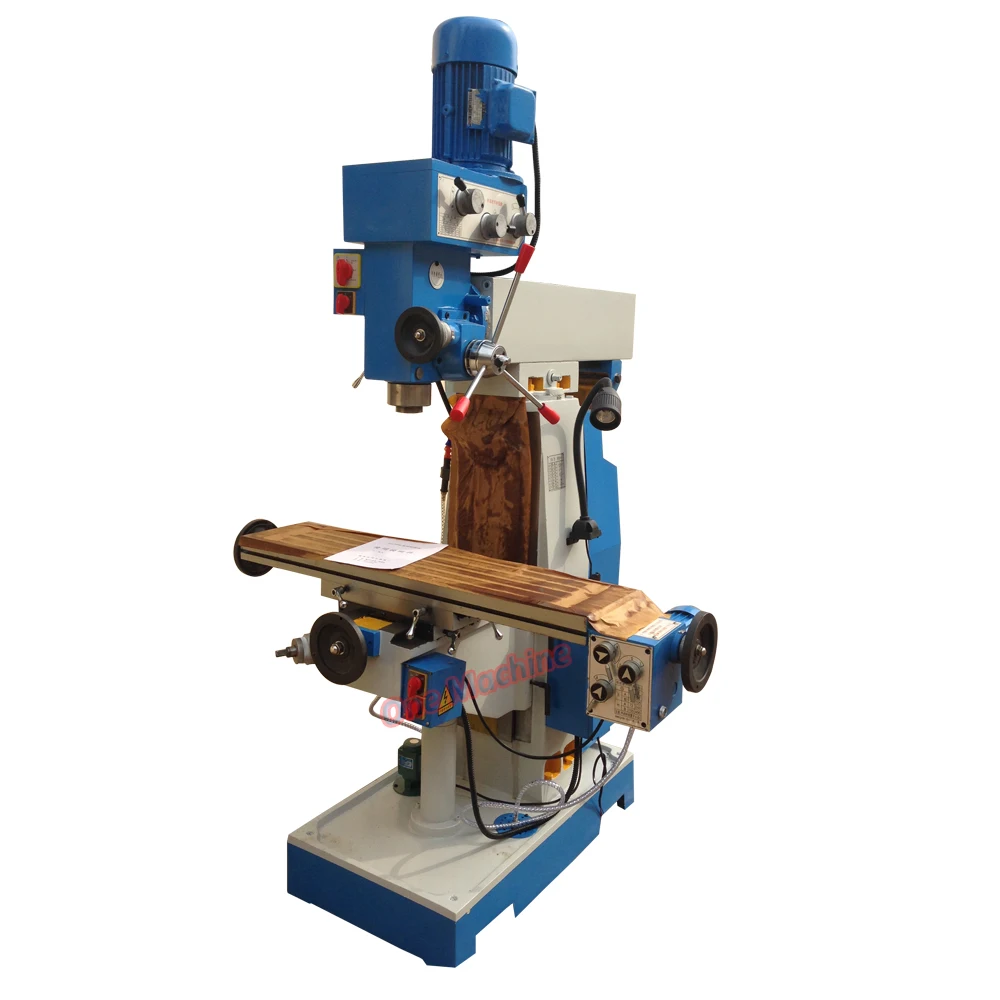

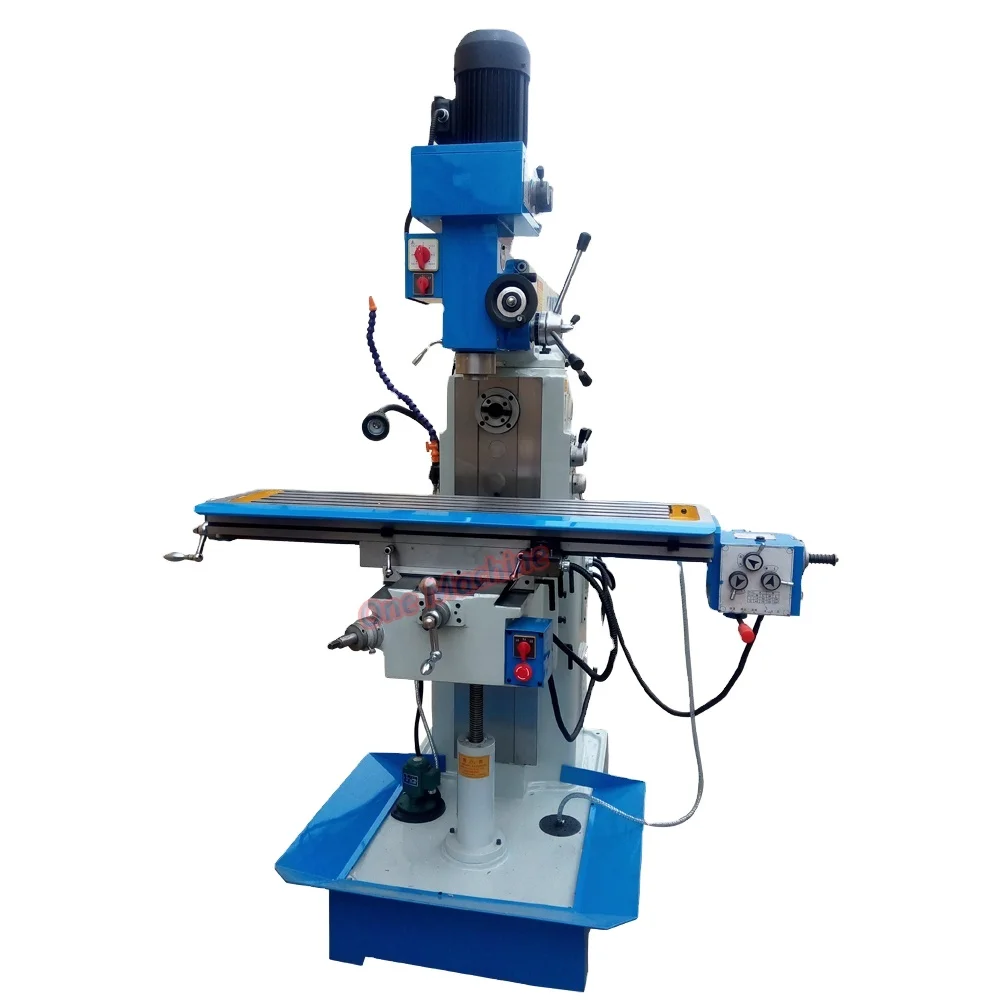

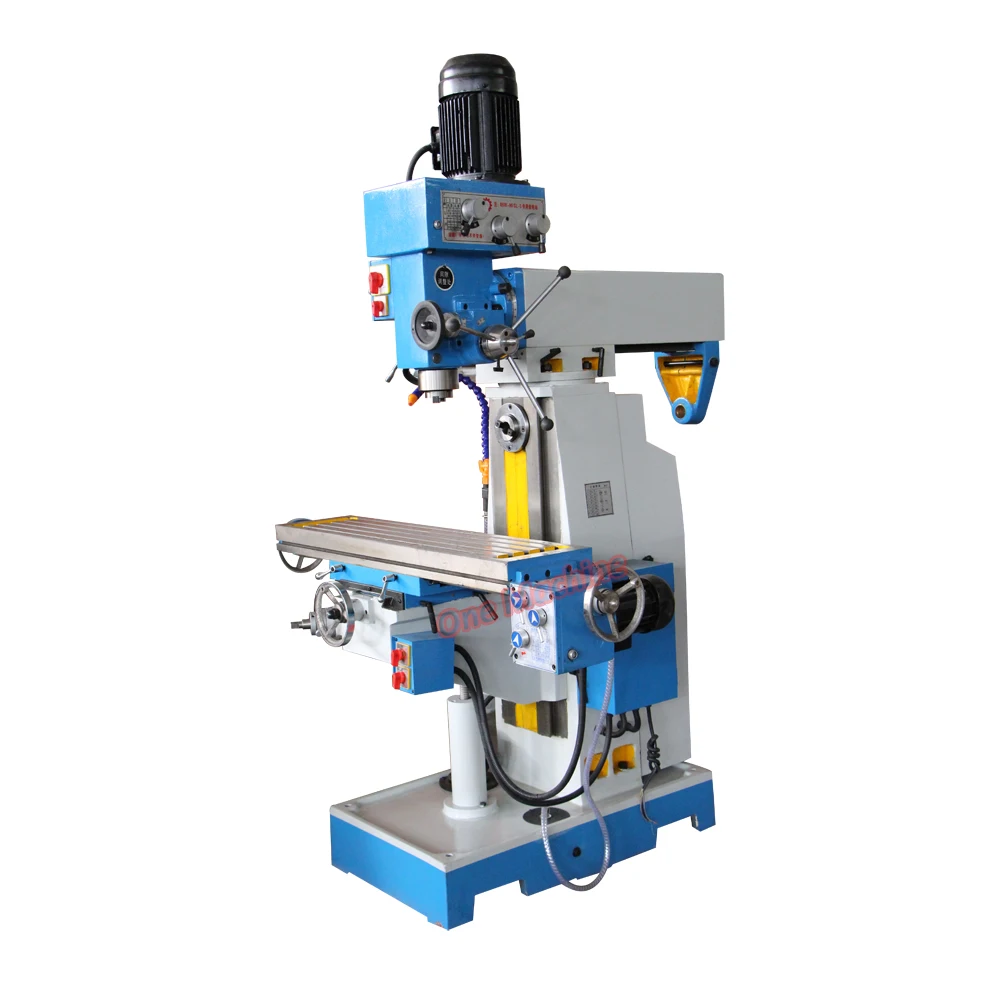

ZX7550C/ZX7550CW Manul мельницы высокого качества Высокоточный фрезерный и сверлильный

ZX7550C/ZX7550CW Manul мельницы высокого качества Высокоточный фрезерный и сверлильный

Категория: Machine Tool Equipment >>>
Поставщик: Zaozhuang,No.1,CNC,Machine,Tool,Co.,Ltd.

Цена:2 640,00 $ - 2 805,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	3142.29 $*	3299.2 $*
Aug-18-2025	3115.44 $*	3271.74 $*
Jul-18-2025	2614.40 $*	2745.70 $*
Jun-18-2025	3062.99 $*	3215.1 $*
May-18-2025	2666.6 $*	2799.78 $*
Apr-18-2025	3010.91 $*	3161.17 $*
Mar-18-2025	2983.89 $*	3132.74 $*
Feb-18-2025	2957.66 $*	3105.12 $*
Jan-18-2025	2930.30 $*	3077.63 $*

Характеристики

Product Description

Main feature

Rectanger guide way,better stbility
Headstocck swivels ±90º
Worktable turns ±45º
Easily changing from vertical milling to horizontal milling
Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working
ZX7550CW Vertical milling is gear-driven ;Horizontal milling is belt-driven.

Specifications for ZX7550CW Milling Drilling Machine
Specification	ZX7550CW	ZX7550ZW	ZX5325C
Max.drilling dia	Φ50mm	Φ50mm	Φ50mm
Max.horizontal milling dia.	Φ100	Φ100	Φ100mm
Max.vertical milling dia.	Φ25mm	Φ25mm	Φ32mm
Max.boring dia.	Φ120mm	Φ120mm	Φ100mm
Spindle taper	ISO30, R8, MT4
Spindle speeds range)	V:115- 1750rpm(8)	V:60-1500rpm(8)	115-1750rpm
	H:60-1350(8)	H:60-1350(8)
Spindle travel	120mm	120mm	125mm
Table size	240×1000mm	240×1000mm	260×1000mm
Table travel	400×230×350mm	400×230×350mm	600×280×380mm
Main motor power (V/H)	V:0.85/1.5 H:2.2kw	V:1.5kw H:1.5kw	0.85/1.5kw
Packing size	1140×1120×2220mm	1140×1120×2220mm	1140×1200×2220mm
N.W/G.W	850kg/1000kg	900kg/1050kg	700kg/760kg

Packing & Delivery

Packaging
Size	1140(L) * 1120(W) * 2220(D)
Weight	850/1000KGS
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t

Zaozhuang one-machine CNC machine tool Co.,LTD

Zaozhuang one-machine CNC machine tool Co.,LTD is located in the beautiful Tengzhou city, Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for many years.
Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales service for all customers in the world. Our product range is CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws, Shapers, Presses, Sheet metal machines, Metal forming machines, Garage equipment and other machine accessories.
Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
